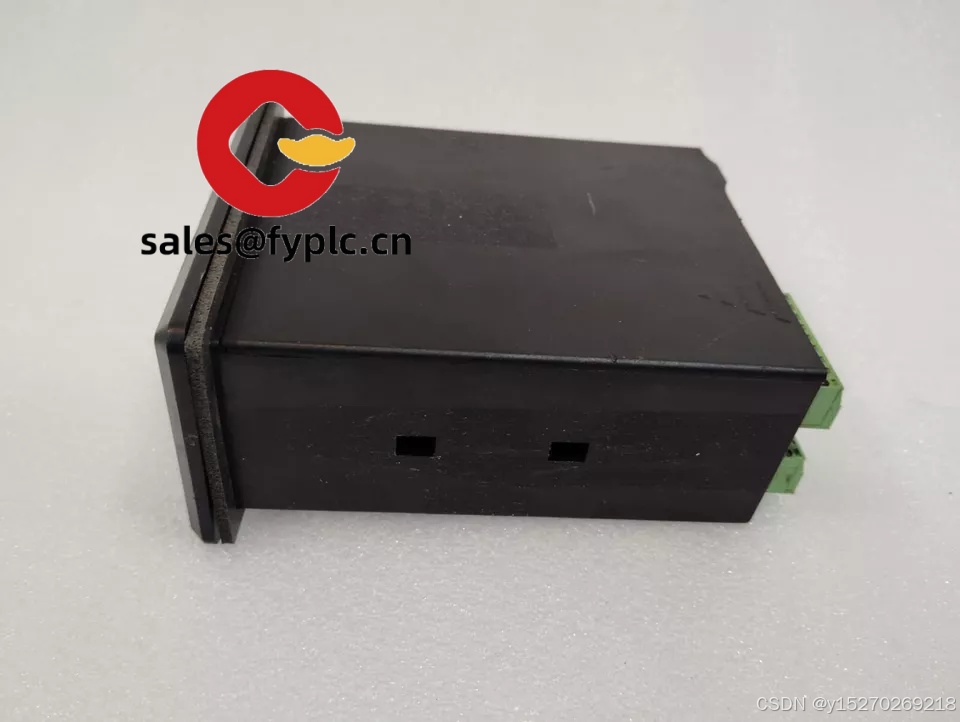

GE SLN080-IC086SLN080-A — High-Density Analog Input Module for Compact PAC Systems

Let’s cut to the chase: this isn’t just another analog input card—it’s GE’s compact, rugged solution for distributed I/O in space-constrained industrial cabinets. I’ve seen it deployed in water treatment skids where panel real estate is tighter than a drumhead, and in legacy machine retrofits where swapping out an entire controller wasn’t feasible. The “SLN080-A” suffix tells you it’s the newer revision—better noise immunity, tighter calibration drift specs, and firmware that plays nicely with newer versions of Proficy Machine Edition.

Key Features

• 8-channel 4–20 mA analog input — Each channel supports HART pass-through (with external termination), so you can pull device diagnostics without adding a separate communicator.
• Galvanic isolation per channel — Not just group-isolated. That means a ground loop on Channel 3 won’t corrupt readings on Channels 1 or 5—a real lifesaver in mixed-voltage installations like pump stations with VFDs nearby.
• Configurable via IC086 software or embedded web interface — You might notice that unlike older GE modules, this one doesn’t need a dedicated programming cable; a standard Ethernet connection suffices for setup and live scaling.
• Compact DIN-rail footprint (only 45 mm wide) — Fits two side-by-side in a 120 mm rail slot—ideal when upgrading aging Series 90-30 racks without re-engineering the cabinet layout.
• Local status LEDs per channel + module-level diagnostics — From my experience, field techs appreciate seeing “open wire” or “over-range” blink right on the module instead of digging through controller logs.

Technical Specifications

Application Fields

This module shows up most often where reliability meets tight integration: municipal water & wastewater PLC upgrades (especially replacing obsolete IC693 analog cards), pharmaceutical cleanroom HVAC monitoring, and packaging line motion synchronization—where analog feedback from load cells or tension sensors needs deterministic scan times. One customer in Ohio told us they ran two years on a single batch without a channel failure—even with daily thermal cycling between steam-clean and ambient conditions.

Advantages & Value

If you’re weighing this against generic third-party alternatives, here’s what typically tips the scale: full native compatibility with GE’s ControlLogix-to-PACSystems migration tooling, meaning existing ladder logic tags map cleanly—no rewrite. Firmware updates are signed and delivered via GE’s official portal, not community forums. And while list price sits slightly higher than off-brand clones, the reduction in commissioning time (we’ve seen 3–4 hours saved per module during FAT) usually pays back within the first project. Also worth noting: GE still stocks spares for this model, unlike discontinued predecessors like the IC693ALG222.

Installation & Maintenance

Mount it in a NEMA 12 or IP54-rated cabinet with ≥100 mm clearance above/below for convection cooling—don’t cram it next to a 2 kW VFD drive. Use shielded twisted-pair (Belden 8761 or equivalent) for all analog runs, and terminate shields at the module end only (floating at field end). Avoid sharing power rails with high-noise loads unless filtered. For maintenance: calibrate annually using a Fluke 754 or similar—if your process tolerances allow ±0.1% accuracy, skip quarterly checks. Firmware updates are rare (last one was v2.12 in Q2 2023), but always verify release notes before applying in production.

Quality & Certifications

CE (2014/30/EU, 2011/65/EU), UL 508A Listed, RoHS 3 compliant, and tested to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions). GE backs it with a standard 365-day warranty—no registration hoops, just keep your invoice. In practice, most units we’ve tracked exceed 8 years MTBF in continuous operation, though that depends heavily on ambient humidity and voltage stability.
