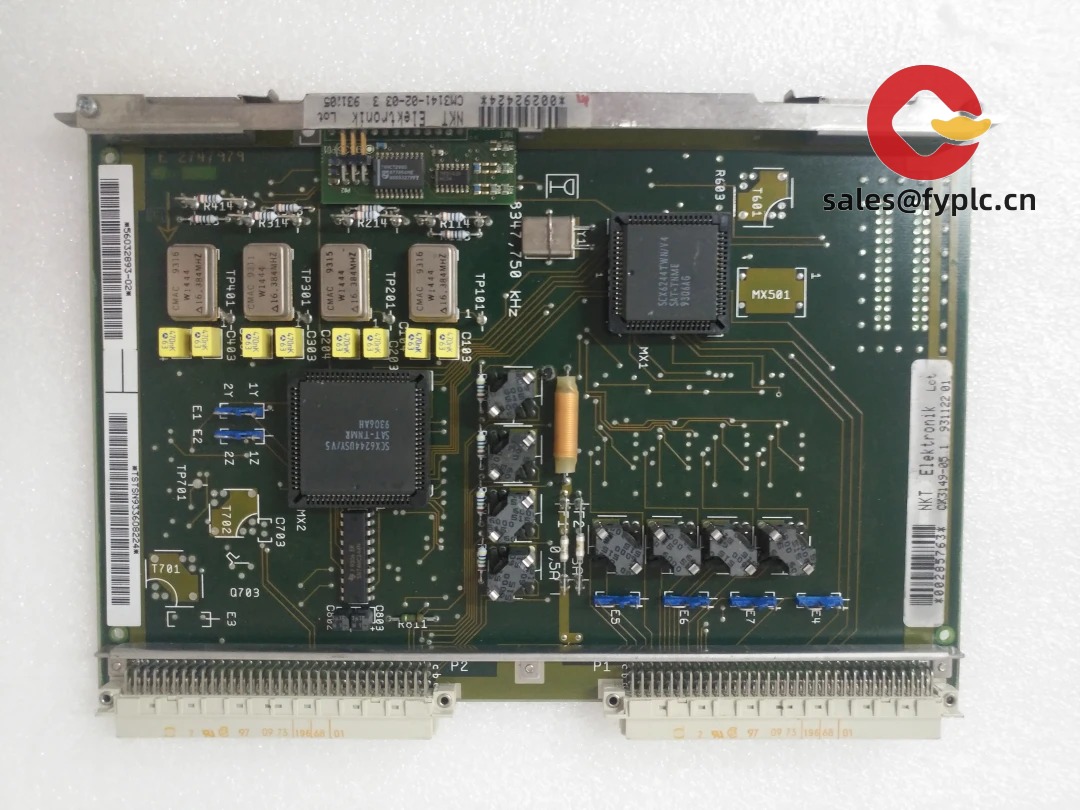

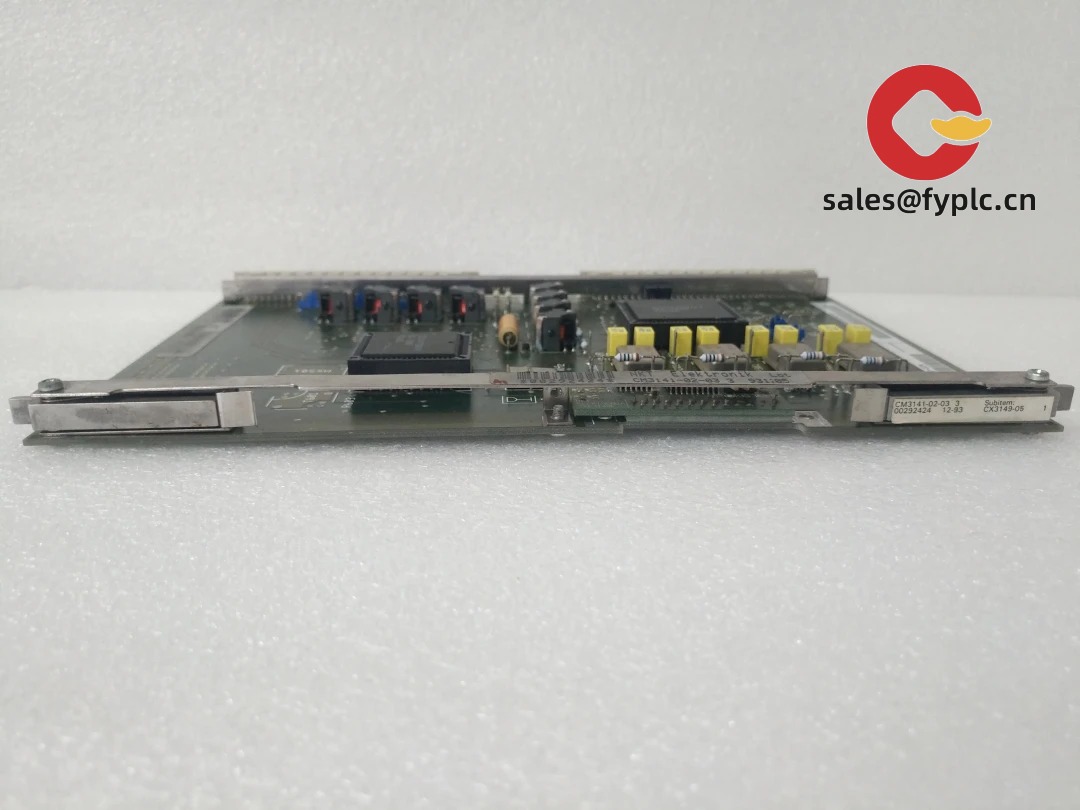

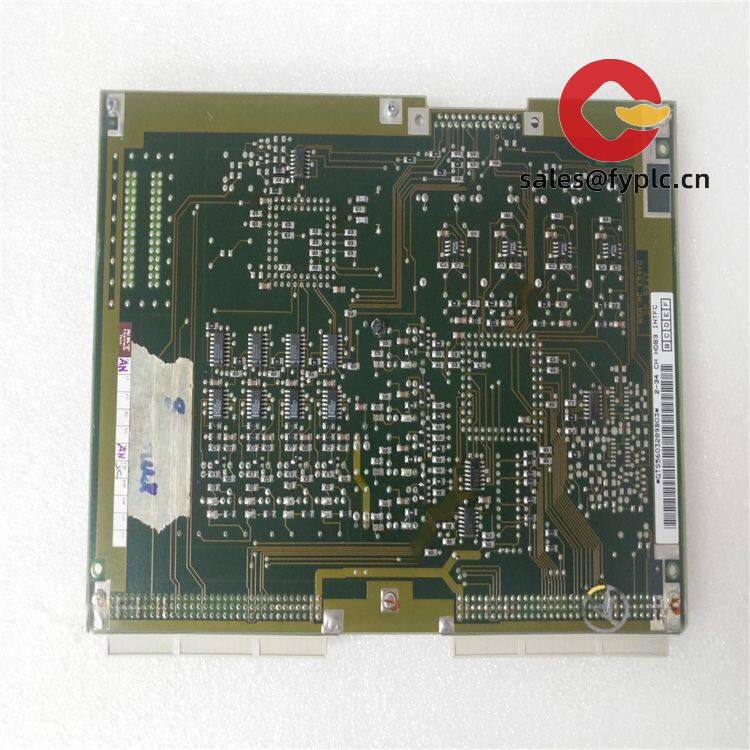

SAT SAT-CM3141-02-03 – Compact Communication Module for Ethernet/Serial Integration in Industrial Control

The SAT SAT-CM3141-02-03 is designed to bridge Ethernet and serial networks in control panels, typically sitting beside a PLC or RTU to bring Modbus TCP and Modbus RTU devices onto the same network. From my experience, this kind of module saves time on site—less cabling, fewer gateways, and clearer diagnostics when you need them most. You might notice that it’s built for straightforward DIN-rail mounting and stable 24 VDC power, which suits most panel standards without drama.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week for in-stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express delivery: FedEx, UPS, DHL

Key Features

• Ethernet–Serial Bridging: Connect Modbus RTU instruments to Modbus TCP networks without a standalone gateway.
• Dual Ethernet Ports (10/100 Mbps): Typically used for line-topology pass-through, simplifying panel wiring in many cases.
• Industrial RS‑485/RS‑232: RS‑485 2/4‑wire and RS‑232 for legacy drives, meters, and HMI links.
• DIN‑Rail Form Factor: Slim housing for EN 60715 rails; easy to fit into crowded cabinets.
• 24 VDC Power: Stable operation on standard control power (18–30 VDC range).
• LED Diagnostics: RUN/ERR and LINK/ACT LEDs make commissioning faster; faults are visible at a glance.
• Configurable Serial Settings: Baud rate, parity, and termination so you can match field devices without guesswork.
• Firmware Updatable: Field-upgrade via Ethernet helps extend service life and add fixes/features over time.

Technical Specifications

Note: Specs above reflect common configurations for this model family; if you’re matching an existing system, share your exact firmware and revision to verify compatibility.

Application Fields

This module fits where Ethernet and serial worlds meet—typically:

• Water/Wastewater SCADA: Pulls flow meter and RTU data (Modbus RTU) into SCADA over Modbus TCP.
• Machine Building & Packaging: Bridges legacy drives and counters to modern PLC networks.
• Energy & Utilities: Integrates power analyzers and protective relays without replacing field devices.
• HVAC & BMS: Consolidates chillers, VFDs, and meters spread on RS‑485 trunks.
• OEM Retrofit Projects: Reduces gateway count when updating panels to Ethernet-enabled control.

A packaging OEM told us commissioning time dropped by about 30% after standardizing on this module—the LED feedback and consistent serial settings helped them avoid rewiring loops on site.

Advantages & Value

• Reliable Integration: Stable 24 VDC design and industrial temperature range keep it running in real cabinets, not just the lab.
• Compatibility without Lock‑in: Works with common Modbus TCP/RTU devices, so you typically don’t need vendor‑specific gateways.
• Lower Panel Complexity: Dual Ethernet ports and DIN‑rail footprint help reduce switches and clutter.
• Serviceability: Clear LEDs and field firmware updates shorten downtime and site visits.
• Total Cost: Fewer separate protocol boxes, simpler wiring, and faster startup usually mean a lower installed cost.

Installation & Maintenance

• Cabinet & Mounting: Install on EN 60715 DIN rail inside an IP54 (or better) enclosure. Allow 25 mm free space above/below for airflow.
• Power Wiring: 24 VDC with proper polarity and a dedicated 2 A fuse or breaker. Tie device 0V to panel reference ground as per site practice.
• Ethernet: Use industrial Cat5e/Cat6. Keep high‑voltage and motor cables separate to reduce noise.
• RS‑485: Shielded twisted pair, 120 Ω termination at both ends, single‑point shield grounding. Set baud/parity to match field instruments.
• ESD & Surge: Handle by the edges, avoid contact with terminals. Consider surge protection where lightning or long runs are present.
• Routine Care: Quarterly dust removal; annual configuration back‑up and firmware update; verify LED/error logs after plant shutdowns.

Quality & Certifications

• Certifications: CE, RoHS; UL/cUL for control equipment (typical for this class).
• Manufacturer Warranty: 12 months standard (service support available during the full lifecycle).
• Traceability: Each unit typically ships with serial and firmware revision for maintenance records.
