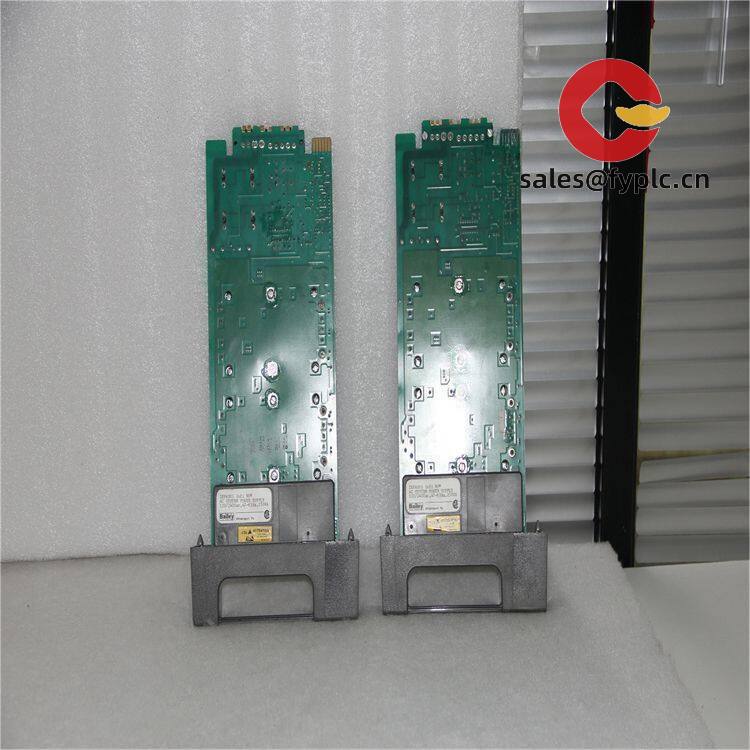

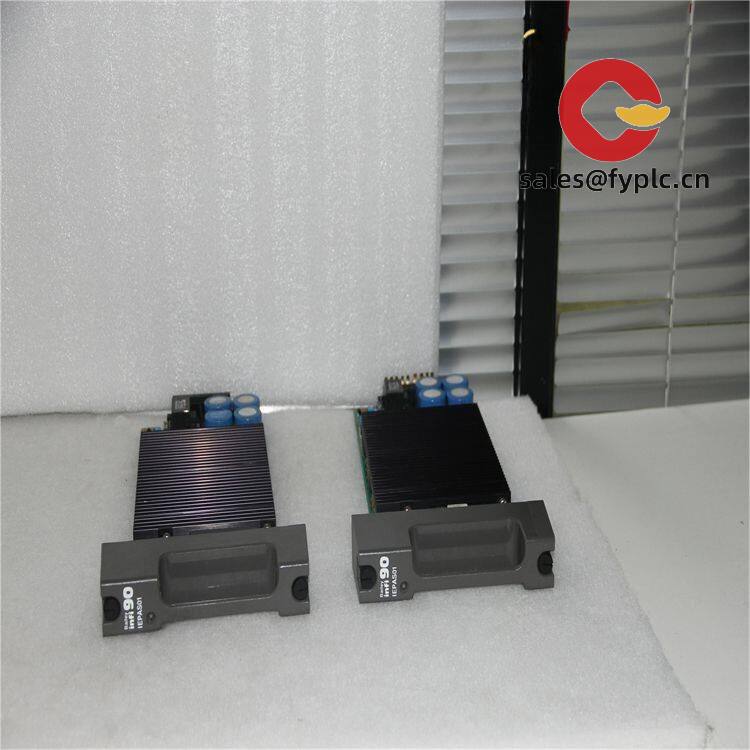

ABB  IEPAS01 Analog Input Module – Reliable Signal Acquisition for Industrial Automation

If you’re upgrading or maintaining a legacy ABB  ControlLogix system, the IEPAS01 is one of those workhorse modules that tends to fly under the radar—until you actually need it. From my experience supporting retrofits in food processing and water treatment plants, this analog input module still shows up more often than you’d think, especially in facilities that value long-term compatibility over full platform overhauls.

Key Features

• 8-channel voltage/current input – Handles standard 0–10 VDC and 4–20 mA signals from field devices like pressure transmitters and flow meters. One thing I appreciate is how stable the signal conditioning remains, even in electrically noisy environments.
• Legacy ControlLogix integration – Designed specifically for older ControlLogix chassis (e.g., 1756-A4, A7). It’s not CompactLogix-compatible, so double-check your rack setup before ordering.
• Isolated inputs – Each channel has galvanic isolation, which typically reduces ground loop issues—a real headache-saver during troubleshooting.
• DIN-rail mountable – Can be installed in standard industrial control cabinets using adapter brackets, though most users keep it in its native chassis.
• Firmware updatable – While not field-upgradable via software tools anymore, earlier versions could receive updates through RSLinx, which helped extend service life in many cases.

Technical Specifications

Application Fields

The IEPAS01 still sees use in aging but operational systems—particularly in wastewater lift stations, older bottling lines, and HVAC monitoring setups where replacing the entire PLC system isn’t cost-effective. It’s commonly found reading temperature from RTDs via transmitters, monitoring tank levels, or capturing pump feedback signals. In many cases, engineers keep spares on hand simply because finding a drop-in replacement with identical addressing behavior can be tricky.

Advantages & Value

You’re probably not buying this module for new designs—but if you’re managing uptime for an existing system, having a known-good IEPAS01 can prevent days of downtime. Its plug-and-play nature (assuming firmware and configuration match) means minimal commissioning time. Procurement teams often prioritize it for backward compatibility, even though Rockwell no longer actively markets it. There’s also some peace of mind knowing that the signal isolation helps reduce field wiring faults, which are responsible for a surprising number of “PLC failures” that aren’t actually PLC-related.

Installation & Maintenance

Install only in compatible ControlLogix chassis with clean backplane connections. Avoid high-vibration areas unless secured properly. Ensure cabinet ventilation keeps ambient temps below 60°C—especially important since heat accelerates electrolytic capacitor aging in older electronics. Periodically check terminal screws for tightness, particularly in facilities with thermal cycling. While there’s no routine calibration required, verifying input accuracy annually with a precision source helps catch drift early. Firmware updates are largely obsolete, but keeping a backup .L5K file of the associated project is strongly advised.

Quality & Certifications

The IEPAS01 carries CE and UL certifications for industrial equipment, and complies with RoHS directives despite its age. Units we supply are tested for basic functionality—input accuracy, LED status response, and bus communication—and come with a 365-day warranty. Given its discontinued status, original packaging may vary, but all units are free of physical damage and excessive wear.

Our Order Placement Process and Guarantees

• Warranty: 365 days from date of delivery
• Delivery time: 1 week for in-stock units; no more than one month at the latest
• Payment method: 50% advance payment, balance due before shipment
• Express delivery: FedEx, UPS, or DHL (account holder or prepaid options available)
