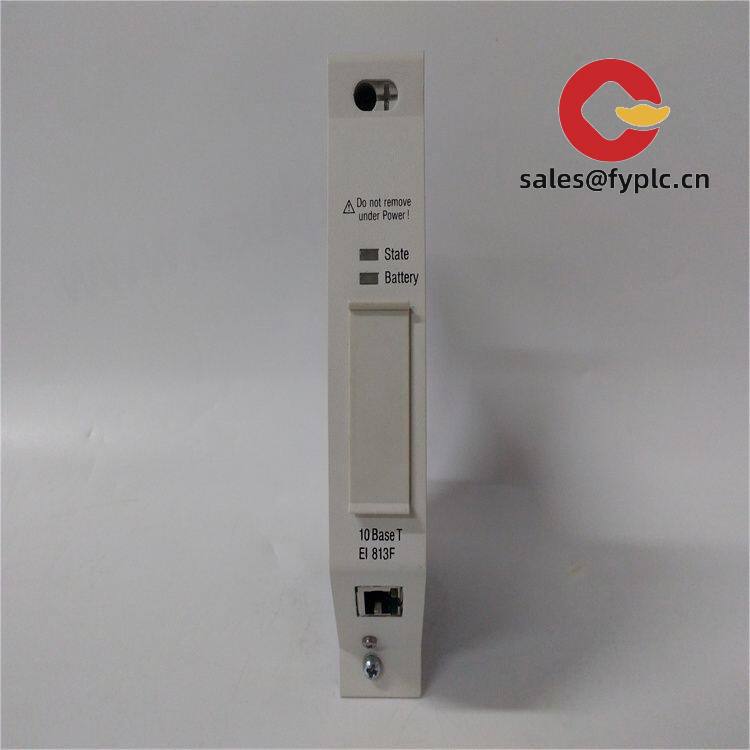

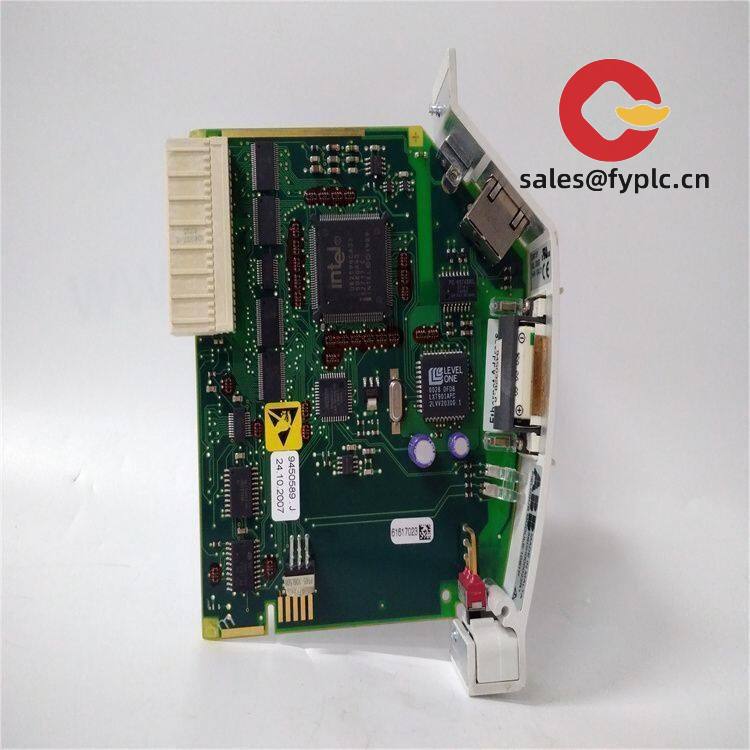

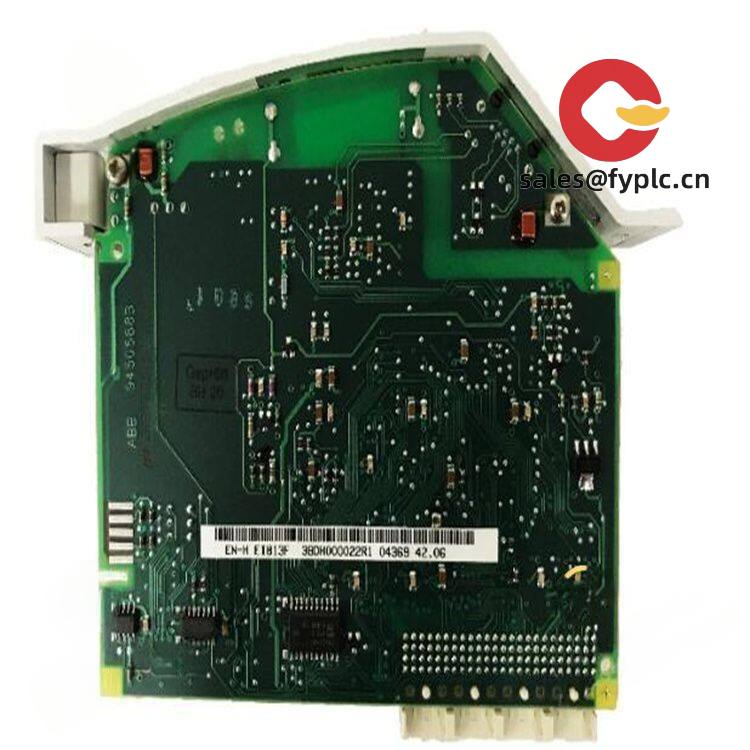

ABB EI813F – Modular I/O Block for Industrial Automation Systems
The ABB EI813F is a digital output module designed for use in distributed control setups where reliable signal transmission and compact footprint matter. From my experience working with machine builders in packaging and material handling, this unit tends to show up in applications that need fast response times and solid noise immunity—especially when integrated within Profinet or EtherNet/IP networks.
Key Features
- 8-channel transistor output: Handles loads up to 0.5 A per channel, suitable for driving small relays, solenoids, or indicator circuits.
- EtherNet/IP communication: Seamlessly integrates into Rockwell Automation environments—typical for OEMs standardizing on Allen-Bradley platforms.
- DIN-rail mountable: Fits standard 35 mm rails, saving space in crowded control cabinets.
- Diagnostic LEDs per channel: One thing I appreciate is how quickly you can spot a failed output during troubleshooting—no multimeter needed in most cases.
- Wide supply voltage range (24 VDC typical): Tolerates minor fluctuations common in mobile or older plant environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model | ABB / EI813F |
| HS Code | 85371090 |
| Power Requirements | 24 VDC (±15%), typical consumption ~1.2 W |
| Dimensions & Weight | Approx. 45 mm (W) × 125 mm (H) × 75 mm (D), ~220 g |
| Operating Temperature | 0 °C to +55 °C (non-condensing) |
| Signal Output Type | 8x PNP transistor outputs, individually isolated |
| Communication Interface | EtherNet/IP via RJ45, 10/100 Mbps |
| Installation Method | Top-hat DIN rail (35 mm), clip-on mounting |
Application Fields
You might notice the EI813F turning up in conveyor sorting systems, automated assembly stations, or smaller-scale SCADA nodes. It’s commonly used when a machine builder wants to reduce wiring complexity by placing I/O closer to sensors and actuators. In many cases, it replaces traditional relay banks in retrofits where Ethernet connectivity adds value for remote monitoring.
Advantages & Value
While not the fastest scanning module on the market, its stability in mid-tier automation projects makes it a go-to for procurement teams balancing cost and compatibility. Since it supports CIP messaging, integration with FactoryTalk or Ignition-based HMIs is straightforward. From a lifecycle perspective, Eaton’s parts availability has been consistent over the past few years—something maintenance managers tend to highlight during audits.
Installation & Maintenance
Mount it vertically in a NEMA 12-rated cabinet if possible—heat buildup can shorten lifespan if surrounded by drives or power supplies. Keep at least 10 mm clearance on both sides for airflow. Wiring should use 16–24 AWG stranded copper with ferrules, especially in high-vibration areas. Firmware updates are handled through EDS files in Studio 5000 or similar tools, though many users leave it at default unless adding redundancy features.
Routine checks every six months—like verifying terminal tightness and cleaning dust from vents—go a long way. Calibration isn’t required since it’s a digital output block, but confirming network health via diagnostic logs helps catch issues before they cause downtime.
Quality & Certifications
Certified to CE, UL Class I Div 2 (for hazardous locations), and RoHS standards. ISO 9001 applies to manufacturing processes. Comes with a 365-day warranty—fairly standard, though some competitors now offer longer. Repairs or replacements are processed through regional service centers, typically within two weeks if under warranty.
