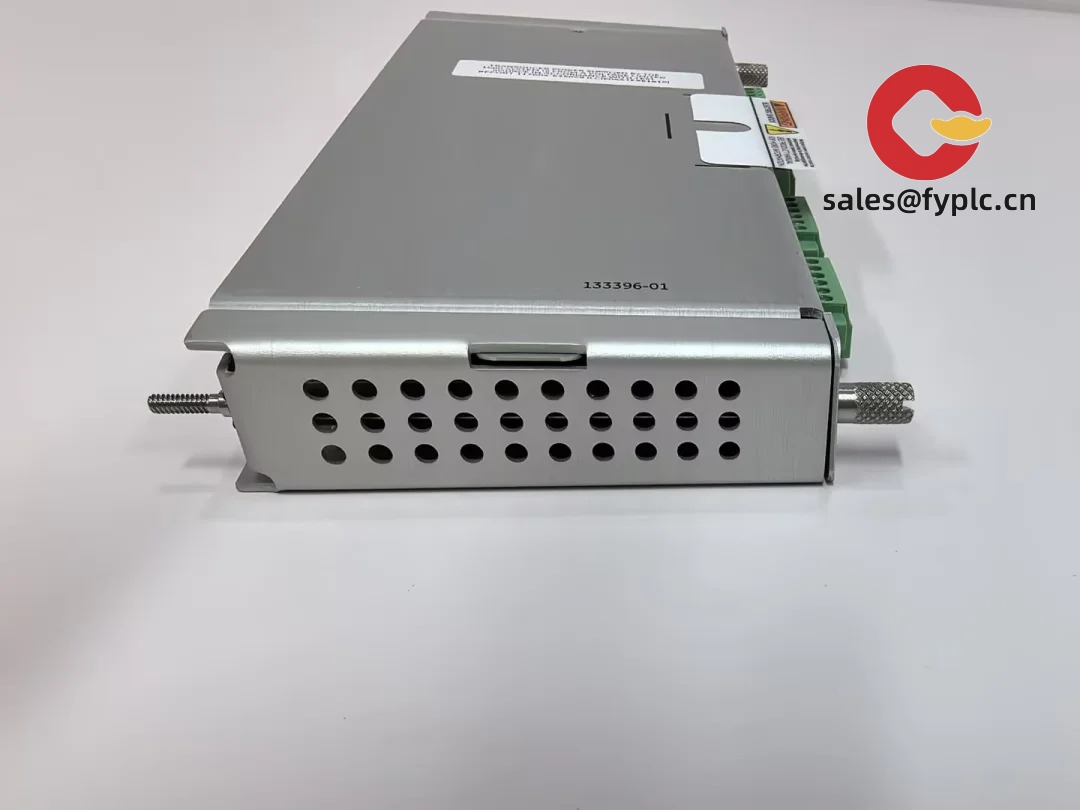

Bently Nevada 3500/54 286566-01 — High-Density Relay Module for Critical Machinery Protection

If you’re running a turbine, compressor, or large rotating equipment in oil & gas or power generation, the Bently Nevada 3500/54 relay module is one of those quiet workhorses that keeps everything from going sideways. This isn’t the flashiest part of your monitoring system, but it’s definitely one you don’t want failing. From my experience, it’s typically the go-to when you need reliable, high-density relay outputs to interface with emergency shutdowns, alarms, or control logic.

Key Features

• 16 Form C Relays – Provides isolated dry-contact switching for critical alarms and trips. One thing I appreciate is how each relay can be independently configured—useful when tying into legacy PLCs or safety systems.
• Designed for 3500 Rack Integration – Slots directly into the Bently Nevada 3500 chassis. Seems to be most commonly used alongside 3500/42M or 3500/44M monitor cards for full protection schemes.
• Fail-Safe Operation – In many cases, relays de-energize during power loss or system fault, triggering secure shutdown states—important for compliance with site safety standards.
• LED Status Indicators – Clear visual feedback per channel. You might notice that this makes troubleshooting faster during commissioning or maintenance outages.
• Firmware Configurable via System 1 or Asset Condition Manager – No need for DIP switches. Configuration is handled through software, which reduces setup errors.

Technical Specifications

Parameter	Specification
Brand / Model	Bently Nevada / 3500/54 (286566-01)
HS Code	8537.10.00 (Control panels incorporating industrial process controllers)
Power Requirements	+5 VDC nominal (supplied from 3500 rack backplane)
Dimensions & Weight	Standard 3500 module: ~24 cm H × 12 cm W × 18 cm D; ~1.2 kg
Operating Temperature	0°C to 70°C (32°F to 158°F)
Signal Output Type	16 Form C (SPDT) dry contact relays
Communication Interface	Backplane communication via 3500 chassis (Modbus over RS-485 or Ethernet via 3500/45 or 3500/48)
Installation Method	DIN-rail mounted within 3500 rack (typically 3500/15 or 3500/16 chassis)

Application Fields

This module shows up most often in environments where machinery protection is non-negotiable. Think offshore platforms, LNG trains, combined-cycle power plants, or large refinery air compressors. It’s commonly deployed to trigger alarm horns, initiate emergency lube oil pumps, or signal turbine trip sequences through interlocked control valves. One customer I worked with used two of these modules in redundant configuration on a critical booster compressor—helped them avoid an unplanned shutdown after a bearing temperature spike.

Advantages & Value

While not the cheapest relay card on the market, its value comes from compatibility and reliability. Since it’s native to the 3500 platform, integration time is minimal—no protocol gateways or third-party interfaces needed. That usually translates to lower engineering hours and fewer points of failure. Procurement teams tend to favor it because spare parts are widely supported, and firmware updates are backward compatible in most cases. Plus, having all 16 relays status-monitored via System 1 means you can catch coil degradation before it becomes a missed trip event.

Installation & Maintenance

Install it in a standard 3500 rack with proper ventilation—don’t stack it next to high-heat modules like power supplies without airflow spacing. Make sure the backplane is clean and fully seated; intermittent connections here can cause relay chatter. For maintenance, there’s no routine calibration since it’s a passive output device, but it’s smart to verify relay operation during annual proof tests using simulated trips. Also, keep firmware updated through GE’s official releases—some older versions had issues syncing with newer 3500/48 comms cards.

Quality & Certifications

The 3500/54 meets CE, UL, and CSA standards for industrial control equipment. It’s also RoHS compliant, which matters for installations in Europe or environmentally regulated zones. Built by GE (formerly Bently Nevada), it carries a manufacturer-backed design life of 10+ years under normal conditions. We provide a 365-day warranty on all units, whether new or refurbished, covering defects in materials and workmanship.

Our Order Placement Process & Guarantees

• Warranty: 365 days from date of delivery
• Delivery Time: 1 week for in-stock units. For out-of-stock, no more than one month
• Payment: 50% advance payment, balance due before shipment
• Shipping: FedEx, UPS, or DHL express—fully tracked and insured
