Description

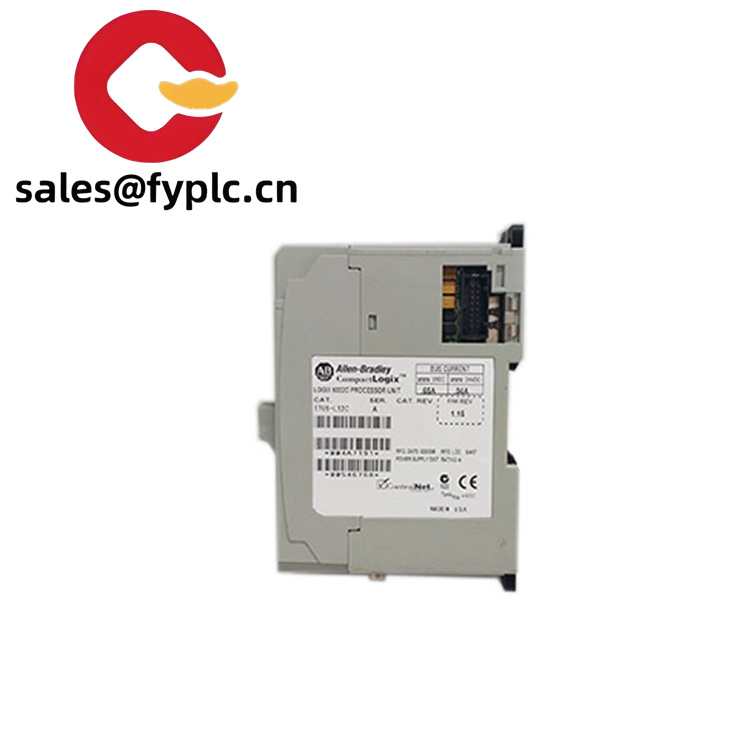

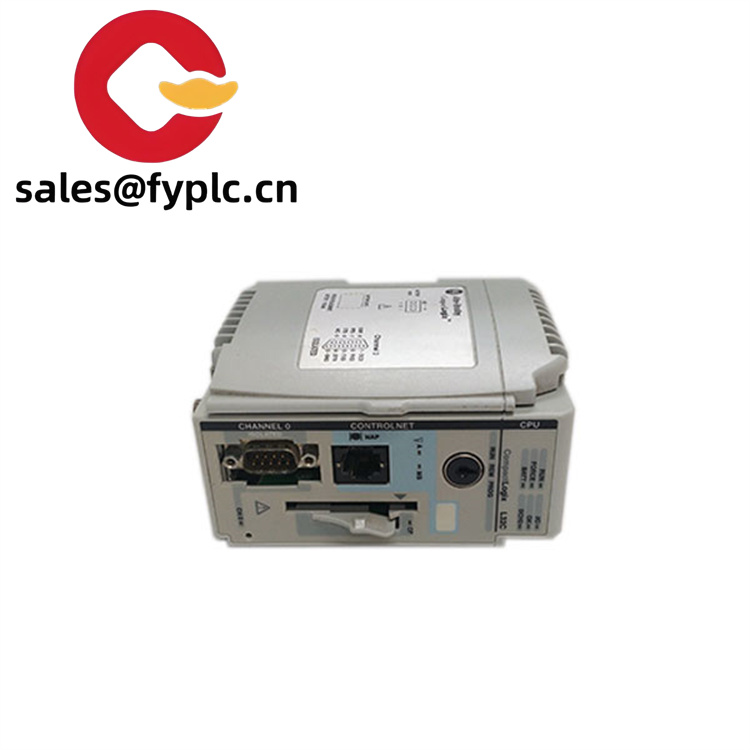

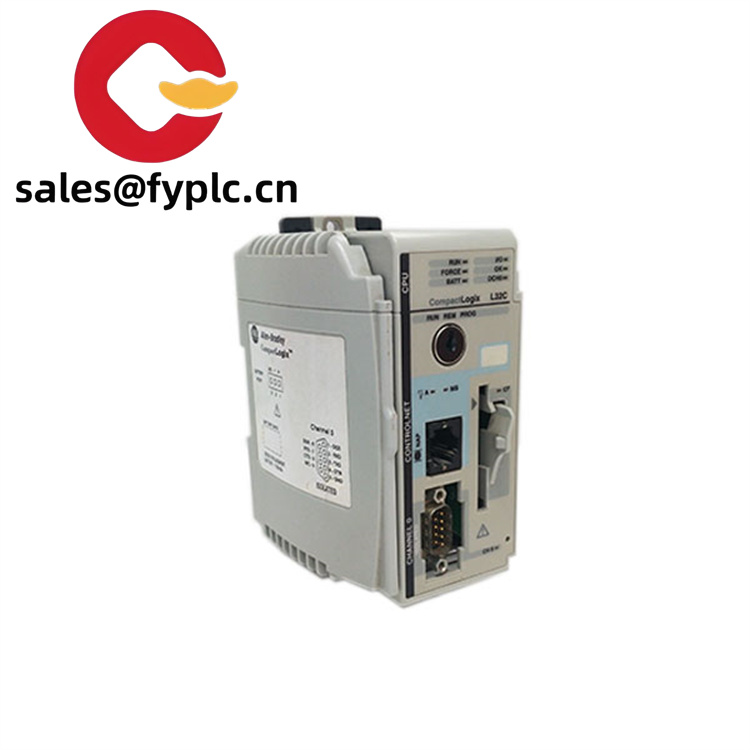

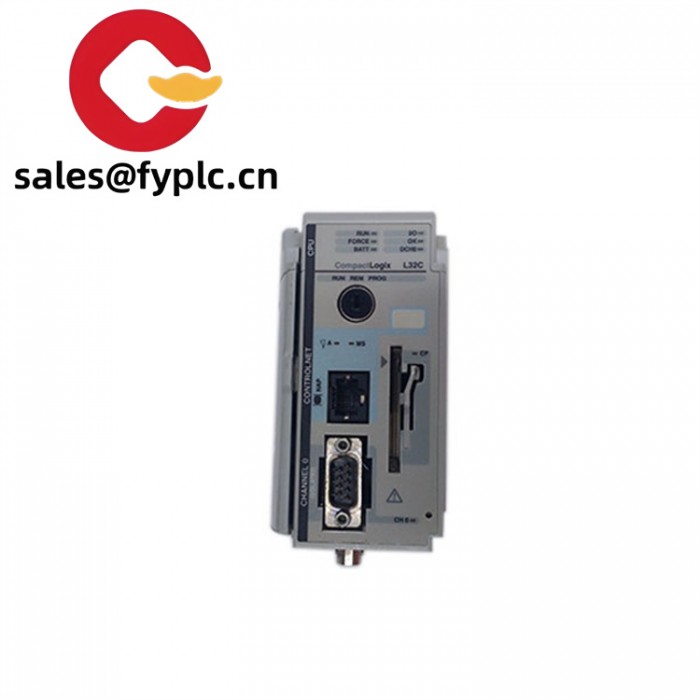

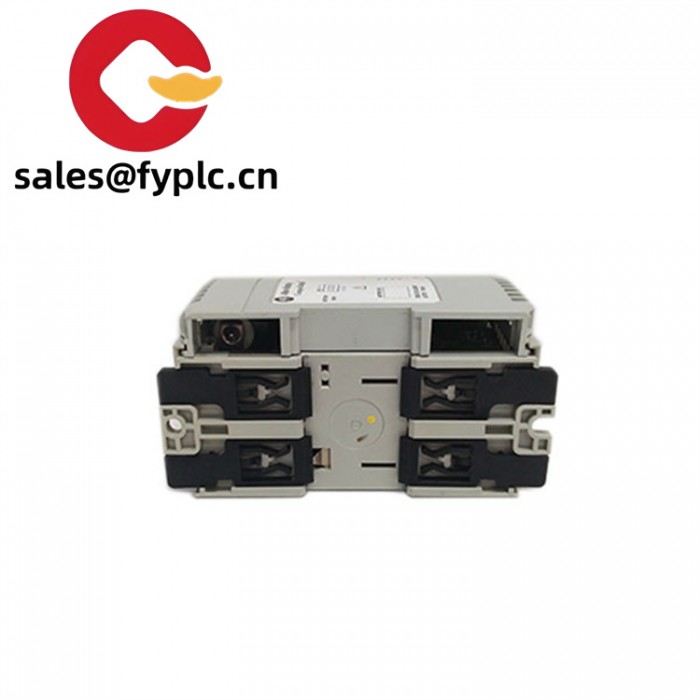

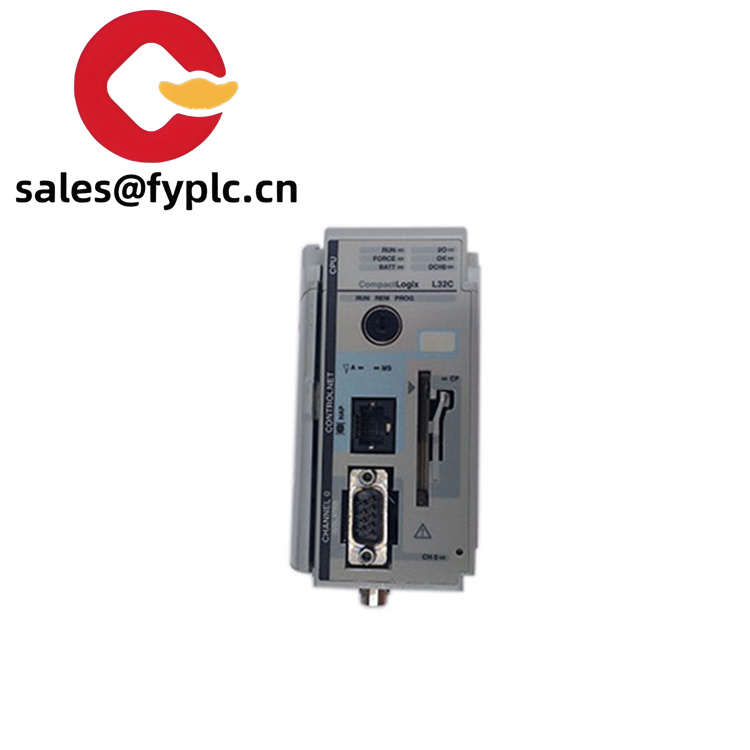

A-B 1769-L32C Input/Output Processor Module
1769-L32C
The ROCKWELL 1769-L32C is built to handle the complex control requirements of modern industries. It excels in applications where precise control, reliability, and ease of integration are crucial. For instance, in the automotive parts manufacturing sector, it can manage the movement of robotic arms on assembly lines, ensuring accurate part placement and welding. In food and beverage production facilities, it can regulate the flow of ingredients, control packaging machines, and monitor critical process parameters. By integrating with a variety of input/output (I/O) modules and communication devices, the 1769-L32C forms the core of an efficient automation system, enabling businesses to enhance productivity, improve product quality, and reduce operational costs.
| Label |
Specification |
| Model Number |
1769-L32C |
| Brand |
ROCKWELL |
| Type |
Programmable Logic Controller (PLC), CompactLogix 5370 series |
| Processor |
800 MHz ARM® Cortex™-A9 dual-core CPU |
| Memory |
8 MB user program memory, 16 MB data memory |
| Input Voltage |
24 VDC (powered by CompactLogix chassis) |
| Communication |
Integrated EtherNet/IP port, supports DeviceNet and ControlNet (with modules) |
| I/O Capacity |
Supports up to 256 I/O points |
| Operating Temp |
0°C – 60°C (32°F – 140°F) |
| Dimensions |
101.6 mm (H) x 44.45 mm (W) x 71.12 mm (D) |
| Certifications |
CE, UL, cUL, ATEX (hazardous area compliance available) |
| Programming Language |
Rockwell Studio 5000 (Ladder Logic, Structured Text, Function Block Diagram) |
| Redundancy Support |
Optional hot standby redundancy for enhanced reliability |
1769-L32C
The ROCKWELL 1769-L32C offers a plethora of functional strengths that make it a top choice for industrial automation. Its powerful 800 MHz ARM® Cortex™-A9 dual-core CPU enables rapid execution of complex control algorithms, allowing it to handle high-speed data processing and real-time decision-making. This processing power is essential in applications where split-second responses are required, such as in high-speed packaging or material handling systems. With 8 MB of user program memory and 16 MB of data memory, the 1769-L32C can store extensive control logic and historical data, facilitating advanced analytics and predictive maintenance strategies.
Communication capabilities are a strong suit of the
1769-L32C. The integrated EtherNet/IP port provides seamless connectivity to industrial networks, enabling easy integration with other devices, sensors, and HMIs. By supporting additional protocols like DeviceNet and ControlNet with the use of compatible modules, it can interface with a wide range of legacy and modern equipment, enhancing system interoperability. This flexibility allows for easy expansion and customization of automation systems, making it adaptable to evolving industrial needs.
1769-L32C
The design of the
1769-L32C emphasizes compactness and durability. Its small form factor allows it to fit into tight spaces within control cabinets, making it suitable for applications where space is at a premium. Despite its compact size, it is built to withstand the harsh conditions of industrial environments, with resistance to temperature fluctuations, vibrations, and electrical interference. The PLC also features an intuitive programming interface through Rockwell’s Studio 5000 software, which supports multiple programming languages. This makes it accessible to technicians with varying levels of expertise, reducing the learning curve and speeding up the development of control programs. Additionally, the option for hot standby redundancy further enhances its reliability, ensuring continuous operation even in the event of a controller failure.
For more information, please click on the following link:
