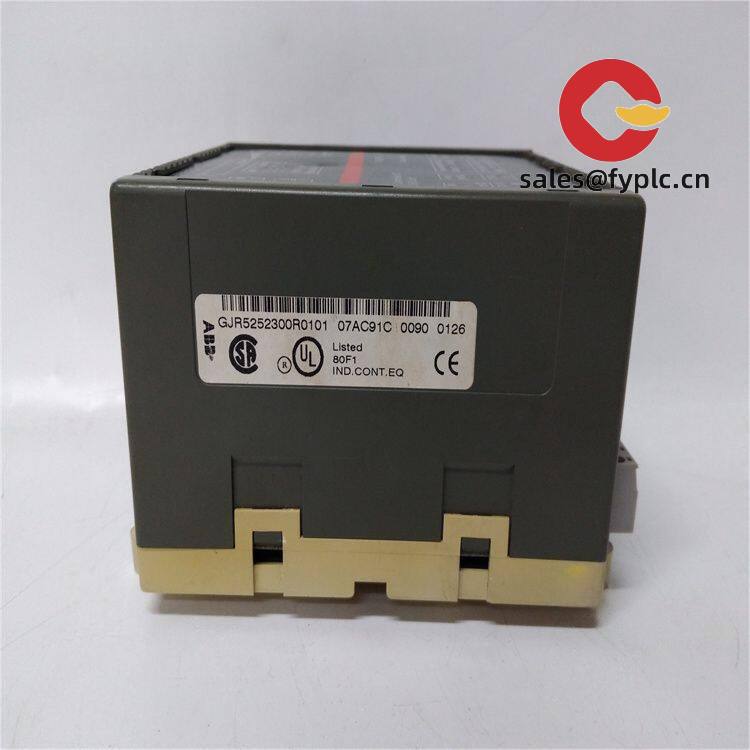

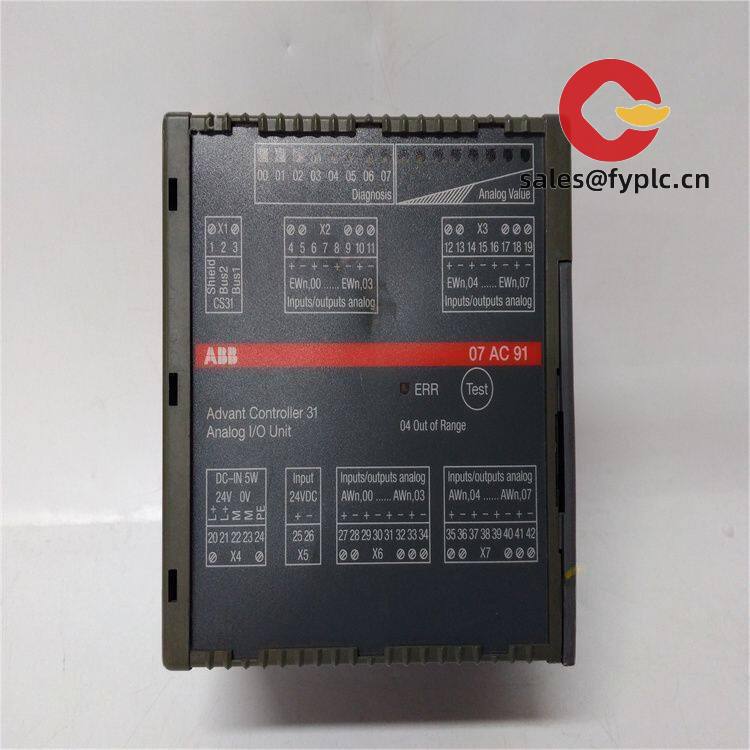

ABB 07AC91 GJR5252300R0101 – Industrial Logic Relay for Reliable Process Control

If you’re working on a compact automation setup that needs dependable signal isolation and logic handling—especially in oil & gas, water treatment, or HVAC systems—the ABB 07AC91 (GJR5252300R0101) is one relay that tends to deliver consistently. It’s not flashy, but it’s built for environments where uptime matters more than bells and whistles.

Key Features

• Modular design – Snap-on mounting makes field replacement quick, especially during maintenance windows. One thing I appreciate is how it integrates with ABB’s S-series terminal blocks without extra adapters.
• DC-controlled, AC output switching – Lets you use low-voltage control signals (typically 24 VDC) to switch higher AC loads (up to 250 VAC), which simplifies integration with PLCs and sensors.
• Two-pole changeover contacts – Offers both NO and NC outputs per pole, giving flexibility in interlock circuits or redundancy setups.
• LED status indication – Visible green LED shows coil activation. From my experience, this small detail cuts troubleshooting time in noisy panels where multimeters aren’t always handy.
• High insulation resistance – Helps maintain signal integrity in humid or electrically noisy environments, such as pump stations or boiler rooms.

Technical Specifications

Application Fields

This relay typically shows up in applications where digital outputs from a controller need to trigger larger loads safely. In many cases, it’s used in burner management systems, fan coil controls, or safety interlocks within machinery. I’ve seen it deployed in municipal water pumping stations where isolation between control and power circuits helps prevent ground loops and transient damage. It also fits well in retrofit projects involving older ABB motor control centers.

Advantages & Value

While not programmable, its simplicity is part of the value proposition. You’re not paying for unused intelligence. The 07AC91 maintains compatibility across ABB’s ecosystem, so if your facility already uses their terminal blocks and enclosures, integration is straightforward. Procurement teams tend to favor it due to long-term availability and consistent lead times. And since it draws minimal hold current, it can reduce heat buildup in densely packed cabinets.

Installation & Maintenance

Mounting is tool-free—just clip it onto a standard DIN rail. Make sure the panel has adequate ventilation, especially if ambient temperatures exceed 40°C. Wiring should follow standard industrial practices: use ferrules for stranded wires, keep control and power lines separated, and avoid sharing return paths with high-noise devices. There’s no routine calibration needed, but it’s good practice to inspect for loose connections annually. If firmware updates aren’t applicable here (which they aren’t), just verify mechanical stability and contact resistance every few years under heavy cycling conditions.

Quality & Certifications

It carries CE, UL, and RoHS compliance, which covers most international installations. The unit is designed to meet IEC 61810 standards for electromechanical relays. We offer a full 365-day warranty against manufacturing defects. In our experience, failure rates are low—most returns we see are due to incorrect voltage application or surge damage, not inherent faults.

Ordering Notes: Delivery is typically within one week for in-stock units; otherwise, no longer than one month. Payment terms are 50% upfront, balance before shipment. We ship via FedEx, UPS, or DHL depending on destination and urgency.
