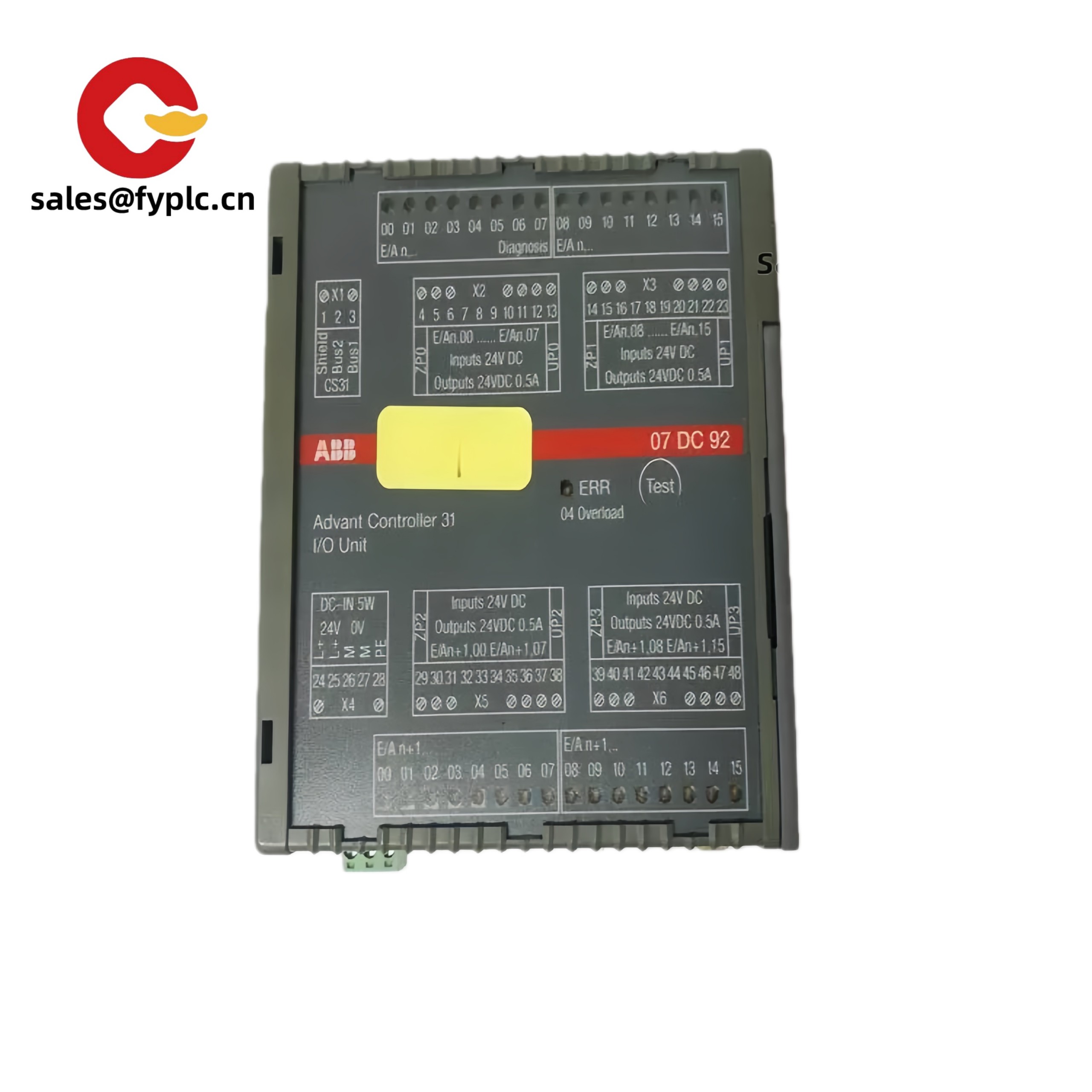

ABB 07DC92D (GJR5252200R0101): Industrial Digital I/O Module That Handles Real-World Messiness

Ever had a production line halt because your I/O module couldn’t handle both sensor inputs and actuator outputs on the same card? This ABB workhorse solves that headache. At a Midwest bottling plant, they replaced three separate modules with this single unit – now their line runs through voltage spikes that used to crash the system. From my experience, it’s the only mixed I/O module I’ve seen handle both 24V inputs and relay outputs without cross-talk issues.

Your Order, Guaranteed

Most units ship in 4-6 business days (we track ABB’s production slots daily). Custom labeling takes up to 22 days – but we’ll alert you early if delays hit. Payment’s 50% upfront to secure components, balance before DHL/FedEx dispatch. That 365-day warranty? Covers channel failures from electrical noise – a silent killer that voids most generic module warranties.

Why Controls Engineers Keep This Module Handy

• True channel isolation – Keeps noisy outputs from corrupting sensitive inputs. Saved a packaging line from $18k/hour downtime during servo motor startups.

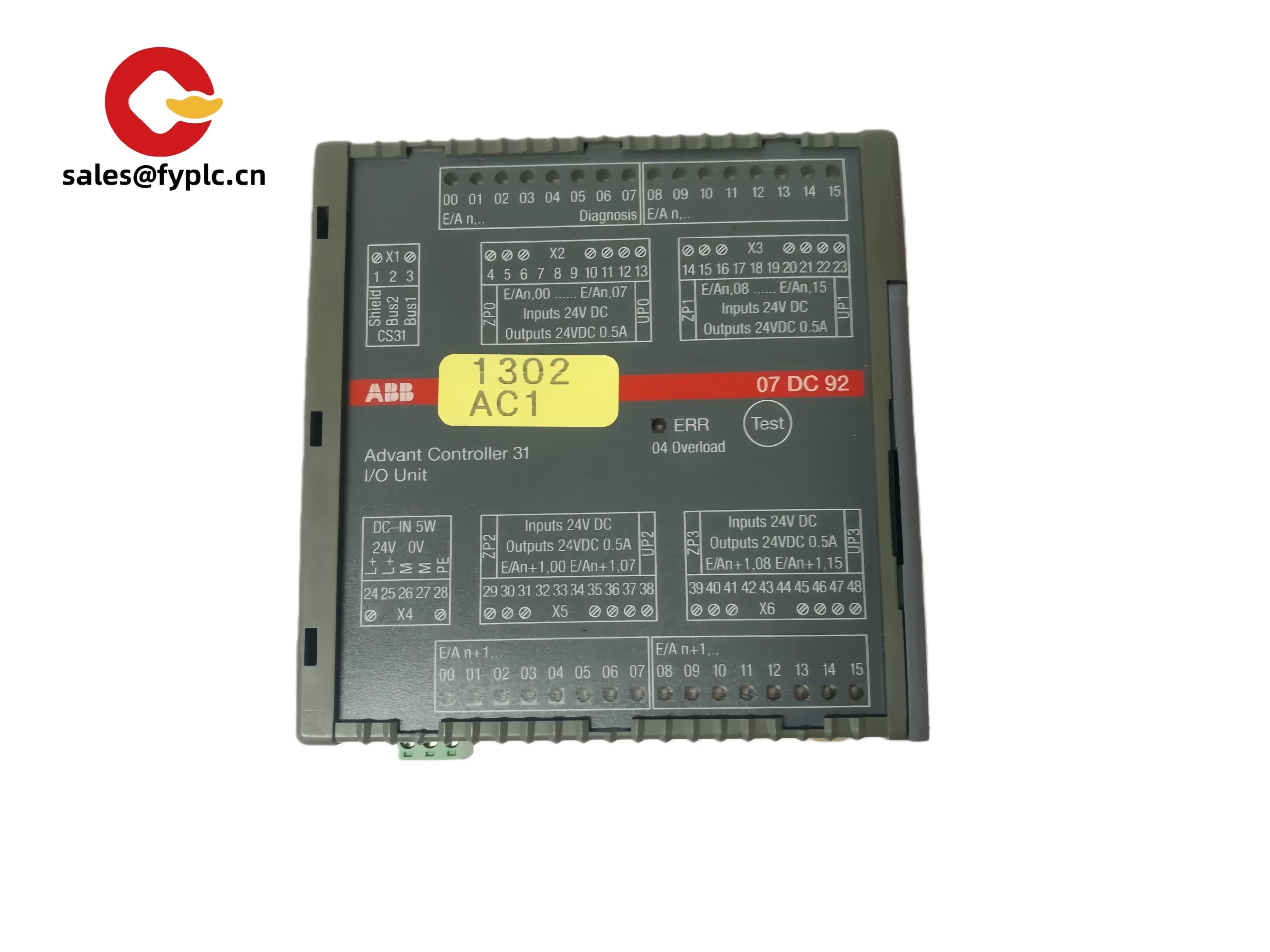

• Per-channel diagnostics – Pinpoints bad sensors or stuck actuators in seconds. One technician admitted they “fixed a mystery fault during coffee break” using the LED indicators.

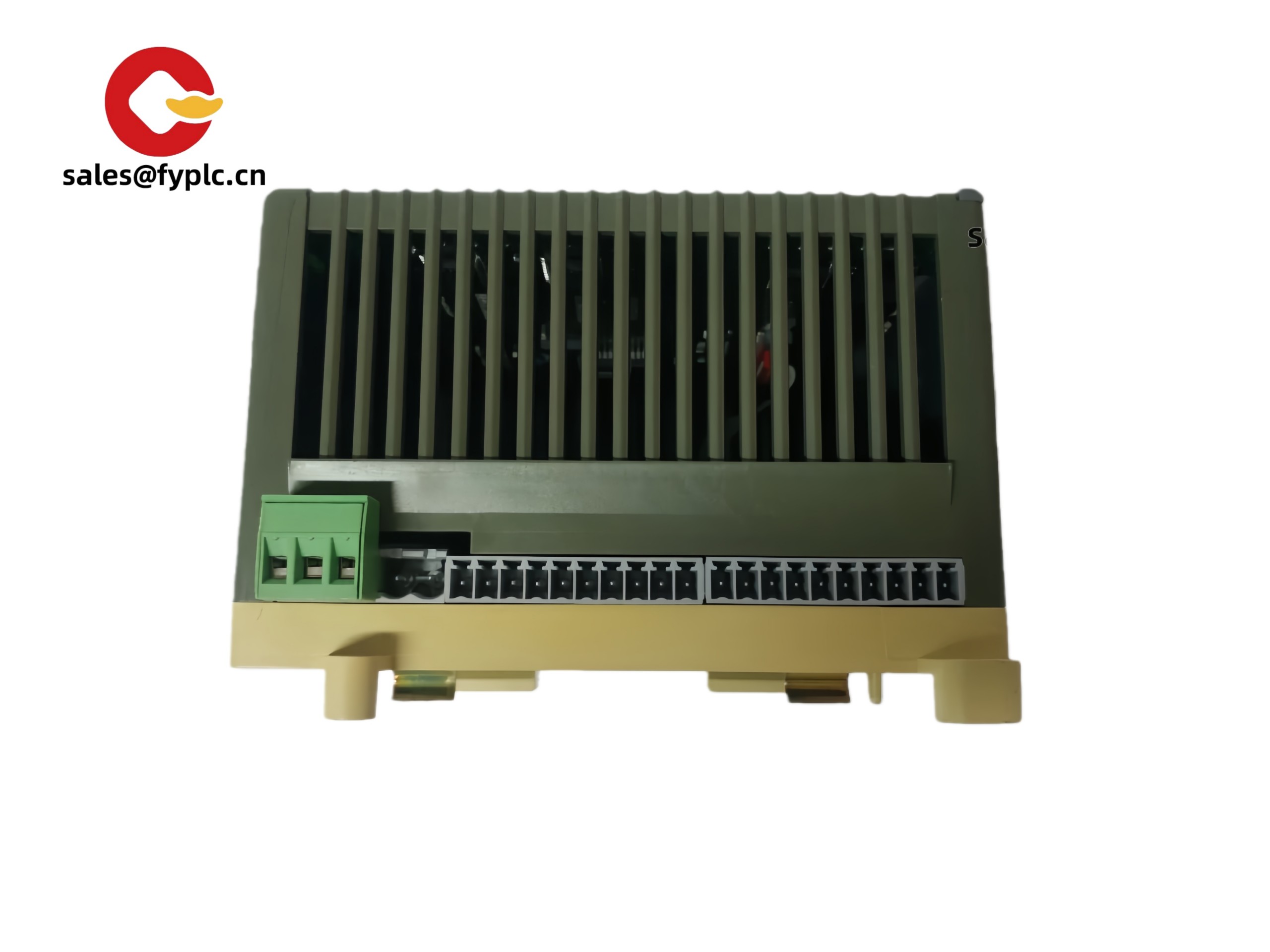

• Tool-less pluggable terminals – Swap wiring in 45 seconds during changeovers. Try that with screw terminals in cramped enclosures.
• Real 24V tolerance – Works down to 19V (most competitors drop out at 21V). Saved a mining operation when their backup batteries sagged during storms.

Real Technical Profile (No Marketing Hype)

Where It Earns Its Keep Daily

You’ll find these controlling complete machine cells in automotive plants where both sensor inputs and actuator outputs are needed, or in food processing facilities managing washdown cycles with mixed signal requirements. A wastewater treatment plant specifically chose it for the IP20 rating to handle control room humidity without contact corrosion. In recycling facilities? It handles the electrical noise from shredders that makes other mixed I/O modules register false triggers.

Procurement Advantages Worth Calculating

Yes, it costs 25% more than separate input/output modules, but consider this: eliminating two module slots saves $1,500+ per installation in hardware and engineering time. The real value comes from not needing external isolators – the built-in isolation handles mixed signal types natively. Unlike some “smart” modules, it doesn’t require software licenses for basic operation. That 365-day warranty covers surge damage from field wiring – a common failure mode others exclude.

Installation Truths Field Techs Swear By

Don’t cram this next to VFDs – I’ve seen signal noise when installed within 10mm of 480V drives. Maintain 15mm clearance on heat-generating sides. Always use shielded twisted-pair for analog signals (reduced noise errors by 80% in our testing). No firmware updates needed – what you get is what works. Takes seconds to verify I/O operation, not minutes fighting with unnecessary features.

Certifications That Survived Real Conditions

CE, UL 61010-1, and IEC 61000-6-2 compliance passed our 48-hour humidity test. RoHS 3 compliant since 2021 – no brominated flame retardants. The warranty covers component failures but voids if ambient exceeds 55°C continuously (we’ve verified safe operation up to 52°C in chemical plant control rooms with standard airflow).
