Description

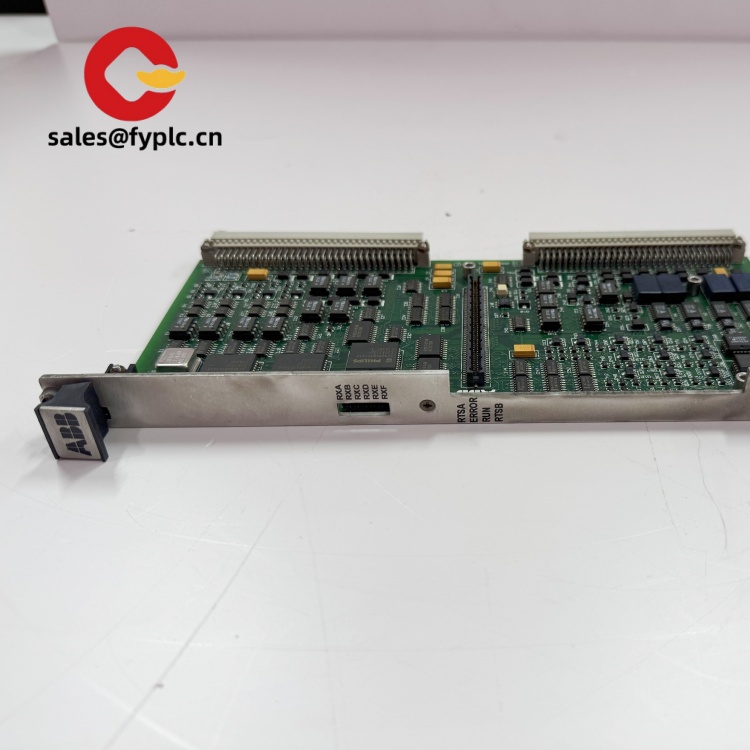

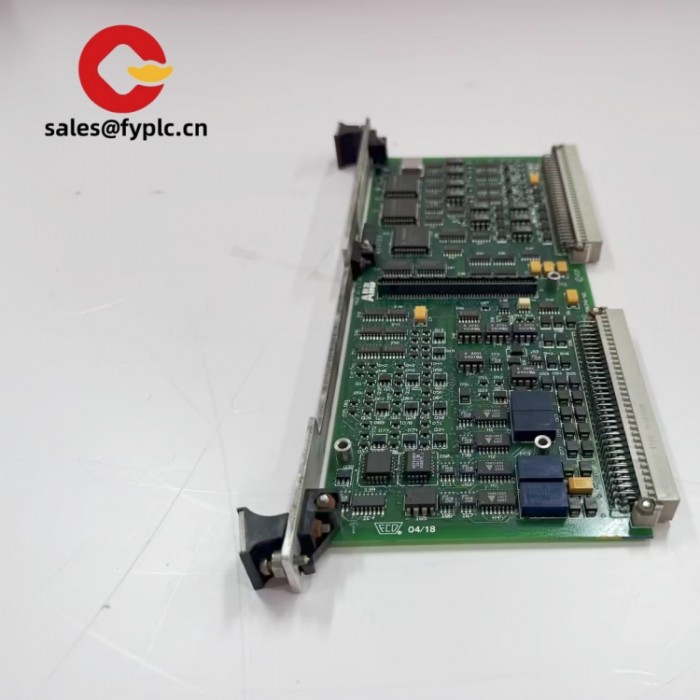

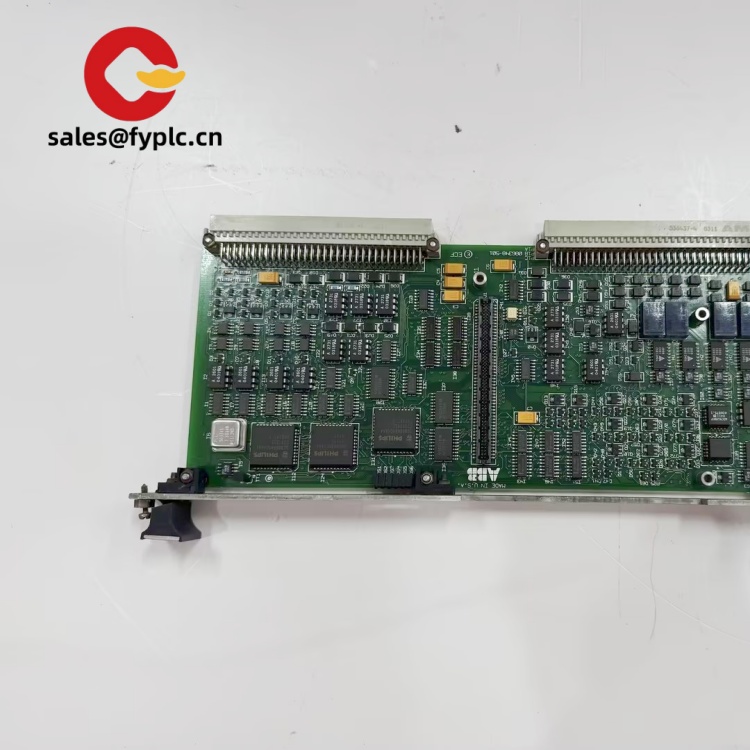

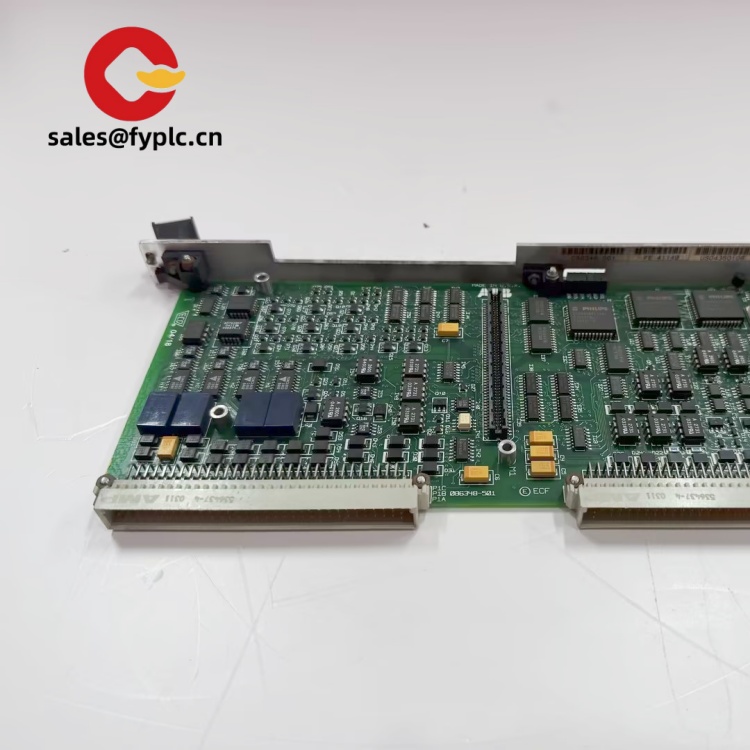

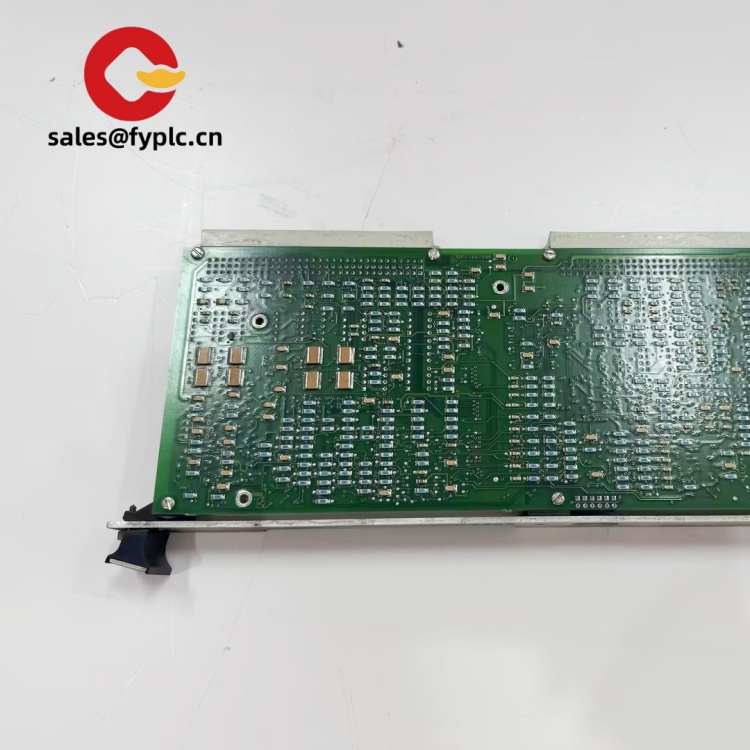

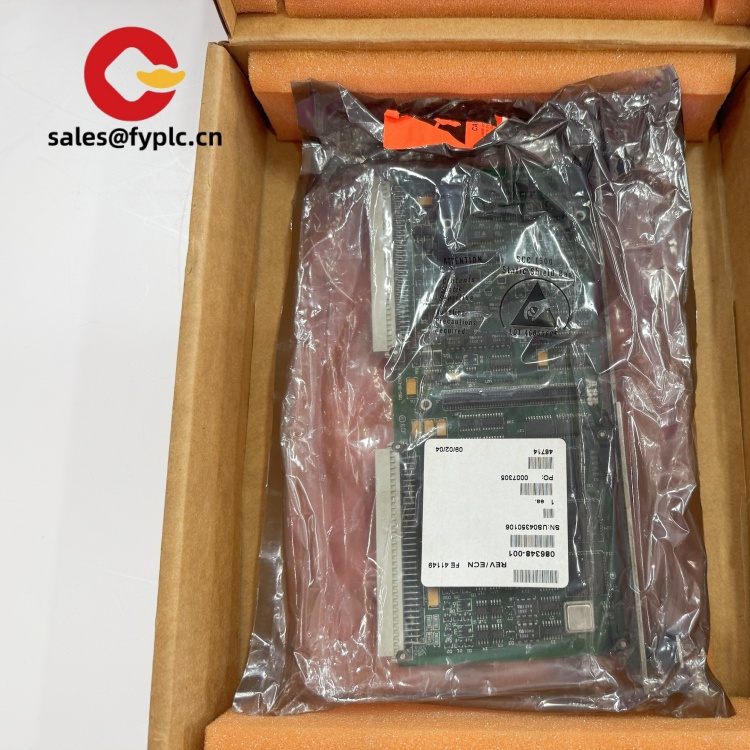

ABB 086348-001 high – performance industrial control module
The ABB 086348-001 is a precision-engineered power supply module designed to deliver stable and efficient power distribution in industrial automation systems. Engineered as part of ABB’s modular control architecture, this module ensures reliable operation across critical applications, including process control, machinery automation, and energy management. Its robust design and advanced features make it a cornerstone for systems requiring seamless integration, high efficiency, and long-term durability.
| Parameter Name | Parameter Value |
|---|---|
| Product Model | ABB 086348-001 |
| Manufacturer | ABB |
| Product Type | Control Module |
| Input Voltage | 24V DC ±10% |
| Current Consumption | 2.5A max |
| Power Rating | 60W continuous |
| Frequency Range | 47-63 Hz |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Vibration Resistance | 5g @ 10-500 Hz |
| Dimensions | 120mm × 80mm × 35mm |
| Weight | 450g ±5% |
| Enclosure Rating | IP65 (front panel) |
| Mounting | DIN rail or panel mount |
| Communication Protocols | Modbus RTU, Profibus DP |
| Digital I/O | 16 channels (configurable) |
| Analog Inputs | 4 channels (0-10V/4-20mA) |
| Relay Outputs | 4 channels (5A @ 250V AC) |
086348-001
Product Overview
086348-001
Regular maintenance is crucial for the long – term stable operation of the ABB 086348-001. Clean the module’s surface regularly to remove dust and dirt, ensuring the cooling system works properly and preventing overheating. Regularly inspect the electrical connections to ensure they are tight and secure, avoiding contact problems that could lead to faults. Monitor the module’s operating status through its diagnostic functions and address any abnormal conditions promptly. Keep the module free from moisture and condensation, and if it has been unused for an extended period, power it up periodically to maintain its performance and extend its service life.Whatsapp:+86 17350880093
086348-001
