Description

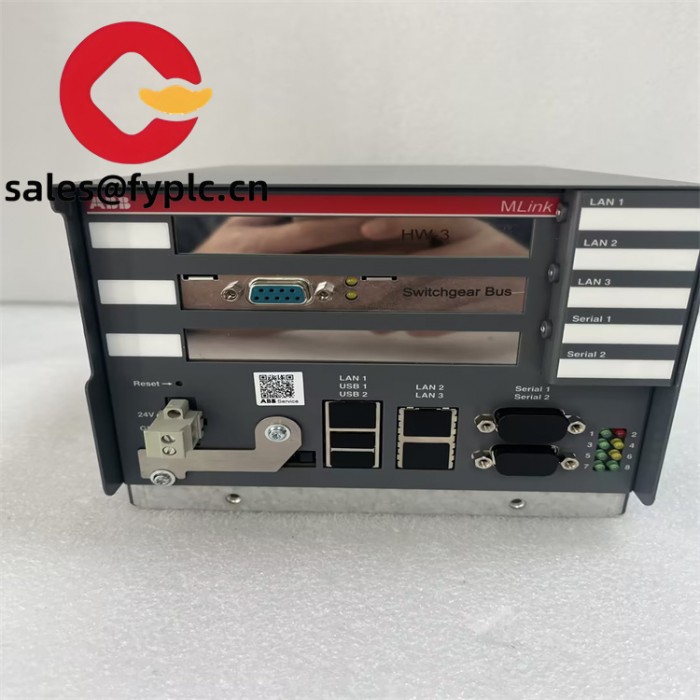

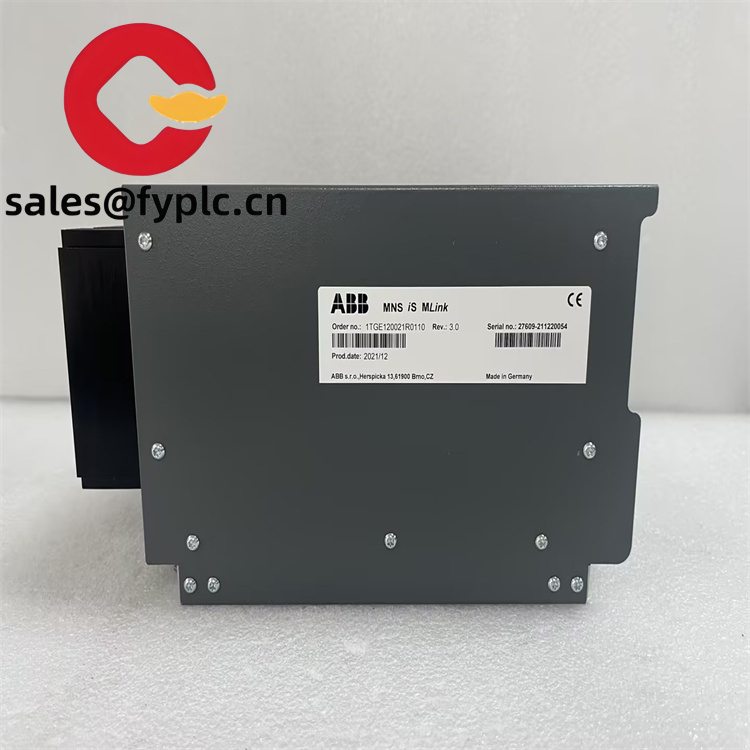

ABB 1TGE120021R0110 High-Speed Pulse Unit Module, Embedded

Engineers and system integrators will appreciate how the ABB 1TGE120021R0110 simplifies network architecture by translating between different communication standards. This reduces complexity in system design while enhancing interoperability—key factors in today’s interconnected industrial ecosystems. By serving as a universal translator for industrial protocols, the ABB 1TGE120021R0110 helps organizations maximize their existing infrastructure investments while paving the way for future automation upgrades.

Label	Specification
Model Number	1TGE120021R0110
Brand	ABB
Type	MLink Communication Gateway (Hardware Version 2)
Input Voltage	220V/380V AC
Operating Temp	-40°C to 100°C
Communication Method	RJ45 Ethernet, RS-485 Serial
Mounting	DIN Rail (Standard Industrial Enclosure)
Weight	2 kg
Certifications	CE (Declaration 1TGE097001), ISA-S71.04 Compliant
Dimensions	160mm (W) x 140mm (H) x 250mm (D)
Protocols Supported	Profibus, Modbus RTU/TCP, PROFINET IO
Output Signals	1 x 4-20mA Analog (12-bit D/A), High-Speed Pulse
Input Signals	SSI (10-26 bit Encoders, Linear Sensors)
Baud Rate	9600 bps to 115200 bps

The module’s support for multiple protocols ensures it can adapt to evolving industrial standards, protecting investment while enabling future expansion. By enhancing process reliability through consistent data transmission, the ABB 1TGE120021R0110 directly contributes to reduced waste, improved throughput, and lower operational costs across industrial automation systems.

Compatible and Related Models

1TGE120021R0010 – A sister model with similar architecture but optimized for Modbus-only environments

3BSE080219R1 – Compatible SFP transceiver for extended fiber optic communication

PFCL 201C – Complementary force sensor module for integrated feedback systems

AI815 – 8-channel analog input module with HART communication support

AI820 – Differential analog input module ideal for high-noise industrial environments

1TGE120021R0210 – Advanced version with redundant communication ports for mission-critical systems
