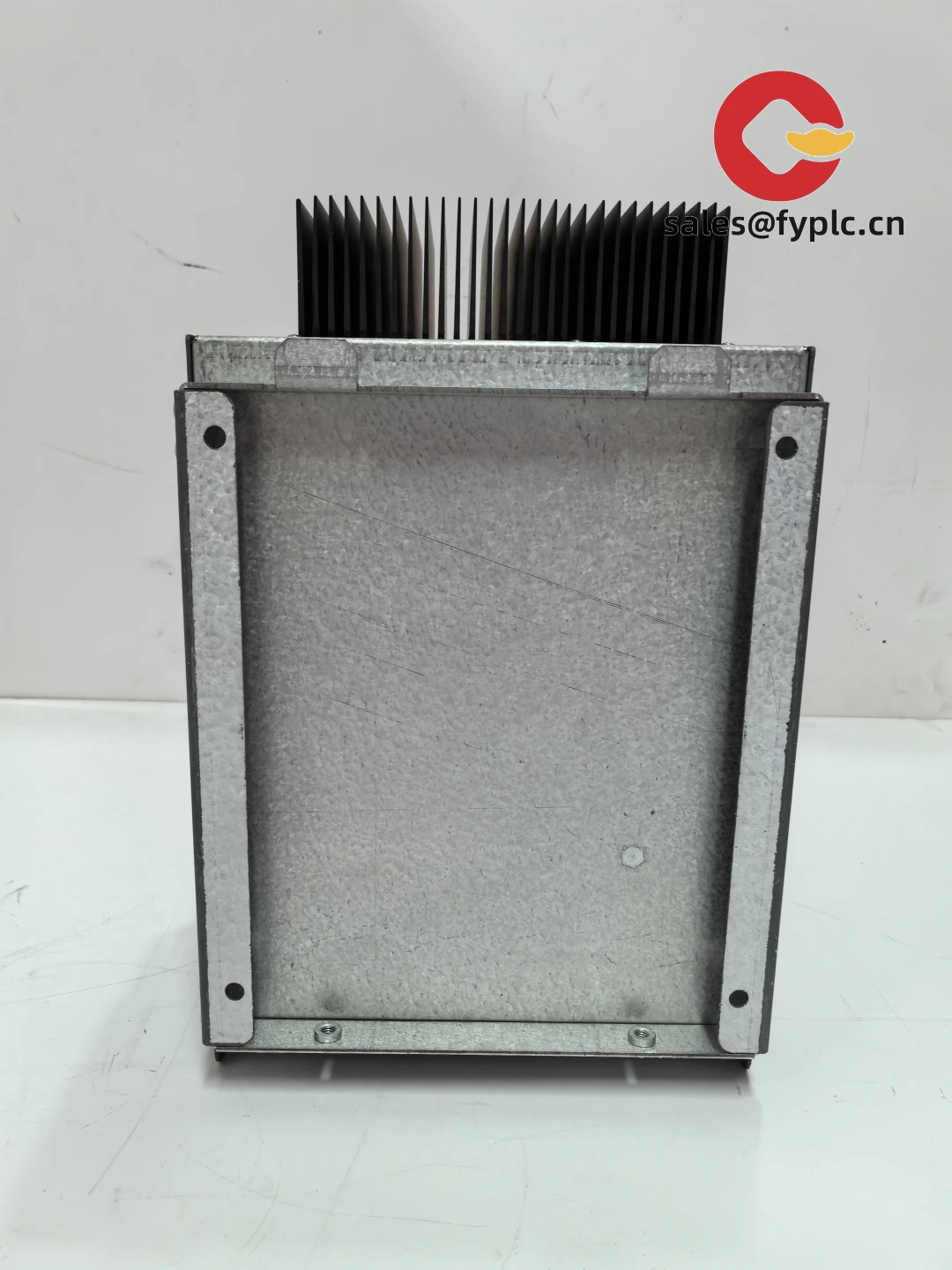

ABB 1TGE120021R0610 – Industrial Safety Relay Module for Emergency Stop & Machine Guarding

If you’re upgrading or maintaining machinery with strict safety requirements—especially in packaging lines, conveyor systems, or automated assembly stations—the ABB 1TGE120021R0610 is one of those components that quietly does its job, year after year. It’s a compact yet robust safety relay designed to monitor emergency stop circuits and safety gates, ensuring compliance with machinery safety standards without needing a full PLC setup.

Key Features

• Dual-channel safety monitoring: Handles inputs from two separate safety circuits (like dual-hand controls or redundant E-stops), which helps prevent bypassing and improves fault detection.
• Forced-guided contacts: Internally, the relay uses forced-guided relays (also known as positive-guided mechanisms), so if one contact welds, the others won’t falsely indicate a safe state—it’s a small thing, but it matters during audits.
• Manual or automatic reset option: You can configure it depending on your process needs. From my experience, manual reset is preferred in high-risk zones where operator acknowledgment is required before restart.
• LED status indicators: Clear visual feedback for power, relay activation, and channel status. One thing I appreciate is how quickly technicians can diagnose issues without a multimeter.
• Compact DIN-rail design: Fits standard 35mm mounting rails, saving space in control cabinets—especially useful when retrofitting older panels.

Technical Specifications

Application Fields

This module shows up most often in mid-tier automation setups where functional safety is needed but a full safety PLC would be overkill. Think of applications like wood processing machines, conveyor interlocks in distribution centers, or robotic workcells with light guarding. It’s also commonly used during retrofits where legacy equipment gets updated to meet current ISO 13849-1 Category 3 requirements.

One customer recently mentioned using several units across their bottling line—each tied to a different zone’s emergency stop loop. They liked that they could isolate faults locally instead of tripping the whole line.

Advantages & Value

In many cases, sourcing genuine ABB safety relays can be tricky due to long lead times—but we typically keep this model in stock. That means a week or less delivery, which helps avoid downtime when replacing failed units. The build quality seems consistent across batches, and compatibility with other ABB control gear makes integration smoother.

While not the cheapest option on the market, its reliability reduces maintenance callbacks. And since it meets international safety norms out of the box, engineering hours spent on validation are lower—something procurement teams don’t always see, but definitely adds value.

Installation & Maintenance

Install in a clean, dry enclosure—IP20 minimum—and ensure adequate spacing (at least 10 mm) on both sides for heat dissipation. Wiring should follow local electrical codes, and twisted-pair cables are recommended for input lines to reduce noise interference.

No firmware updates here—it’s an electromechanical device—but periodic testing is wise. Monthly functional checks (simulating a channel fault) help verify diagnostic coverage. Dust buildup around terminals can cause overheating over time, so include it in quarterly cabinet cleaning rounds.

Quality & Certifications

Certified to CE, UL 508, and complies with RoHS directives. Designed according to IEC 60947-5-1 and tested for use in safety-related parts of control systems per IEC 62061 and ISO 13849-1 (up to PL e / SIL CL 3).

Comes with a standard 365-day warranty. If installed correctly and within environmental specs, these units typically last well beyond five years—even under frequent switching cycles.
