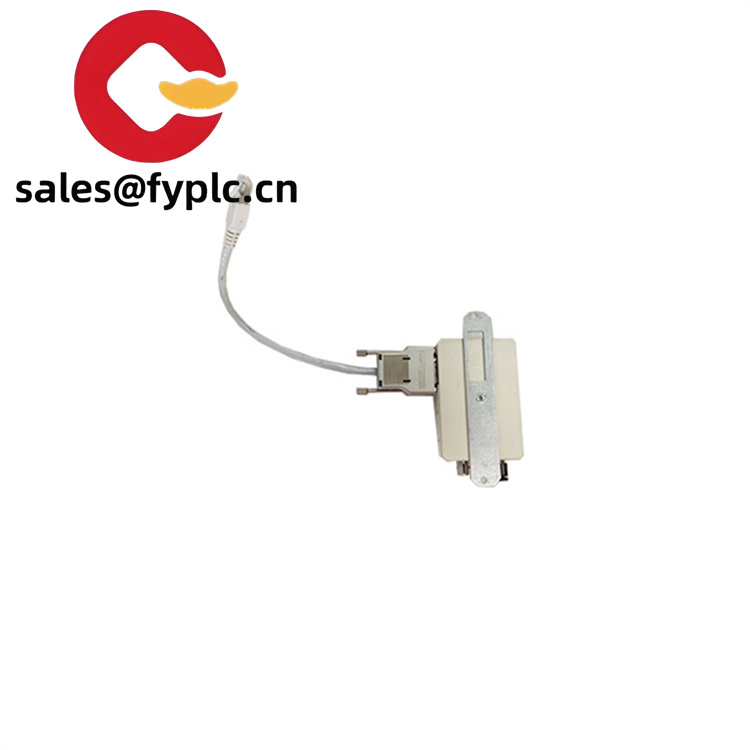

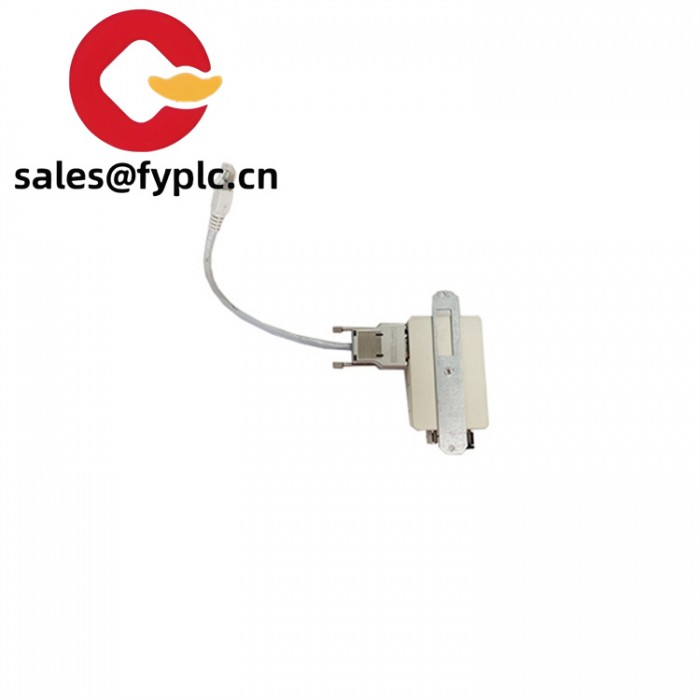

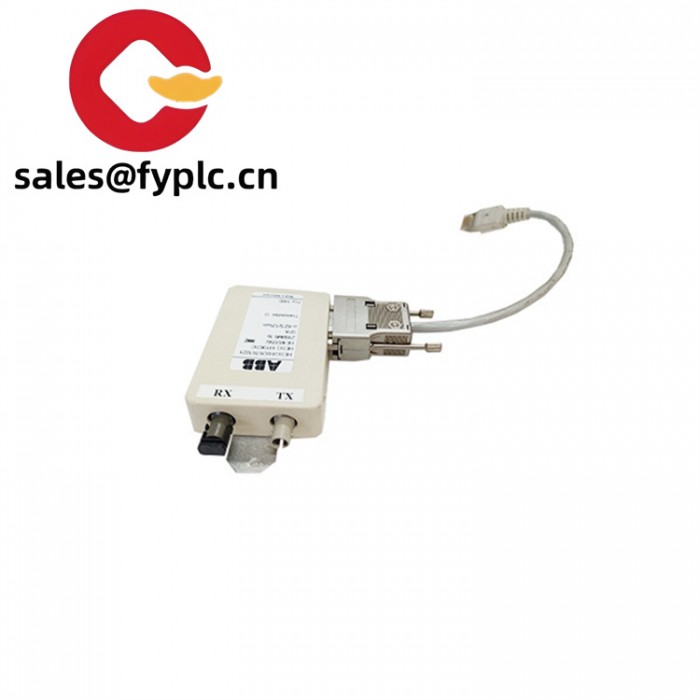

ABB 216BM61B high-voltage communication network Ethernet connector

ABB-216BM61B

The ABB 216BM61B is a power contactor specifically designed for controlling high – current electrical circuits in industrial machinery, motor control centers, and automation systems. Its primary function is to switch electrical loads on and off efficiently while providing protection against overloads and short circuits. With a focus on reliability and longevity, this contactor is built to withstand frequent switching operations and harsh environmental conditions, making it an ideal choice for mission – critical applications across various industries.

Label	Specification
Model Number	216BM61B
Brand	ABB
Type	Power Contactor
Rated Voltage	400V AC (3 – phase)
Rated Current	65A (AC – 3 duty)
Contact Configuration	3 NO + 2 NO/NC auxiliary contacts
Coil Voltage	24V DC (standard), options available for 110V/230V AC/DC
Coil Power Consumption	11VA (holding), 22VA (pull – in)
Operating Frequency	50/60Hz
Insulation Class	F (155°C)
Degree of Protection	IP20 (front), IP00 (rear)
Mechanical Life	10 million operations
Electrical Life	1 million operations (AC – 3)
Dimensions	110mm x 85mm x 110mm (W x H x D)
Weight	0.9kg
Certifications	CE, UL, CSA, IEC

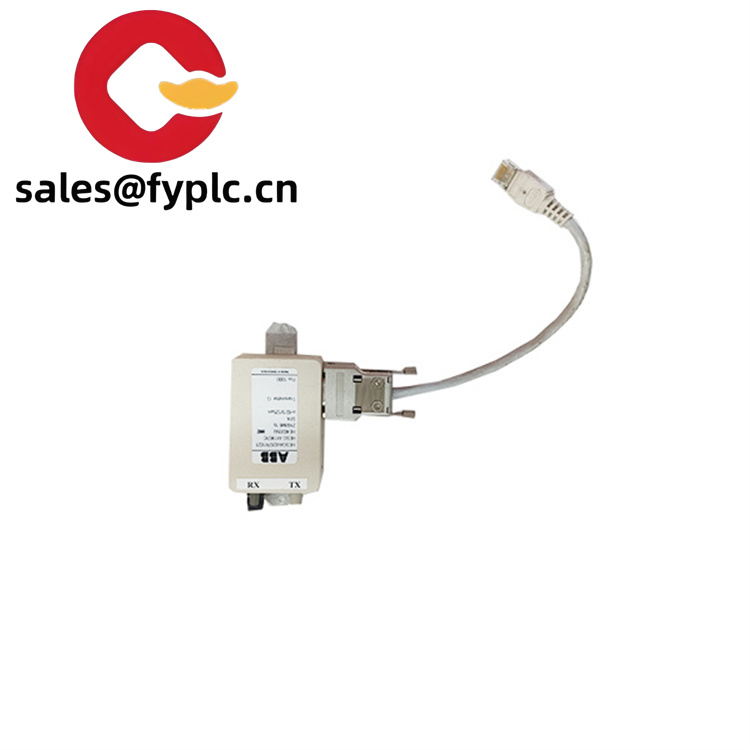

ABB-216BM61B-2

Functional Advantages
The ABB 216BM61B incorporates several advanced features that enhance its performance and usability:

High – Performance Contact System: Utilizes silver – alloy contacts with low resistance to minimize heat generation and extend service life.
Quick – Acting Arc Chutes: Efficiently extinguishes arcs during switching operations, ensuring safe and reliable performance even under high – current conditions.
Modular Design: Allows for easy installation of accessories such as auxiliary contacts, surge suppressors, and mechanical interlocks, enhancing system flexibility.
Wide Coil Voltage Range: Offers compatibility with various control voltage systems, simplifying integration into existing installations.
Visual Status Indicators: Clearly displays the contactor’s operating state (on/off), facilitating quick inspection and troubleshooting.
ABB-216BM61B

Applications
The ABB 216BM61B is suitable for a wide range of industrial applications, including:

Motor Control: Ideal for starting and stopping three – phase motors in pumps, fans, conveyors, and compressors.
Power Distribution: Used in switchgear and control panels to manage electrical loads and protect circuits.
Industrial Automation: Integrates seamlessly with PLCs and other automation systems for precise control of machinery.
HVAC Systems: Controls the operation of heating, ventilation, and air – conditioning equipment in commercial and industrial buildings.
Material Handling: Powers electric motors in forklifts, cranes, and other material – handling equipment.
