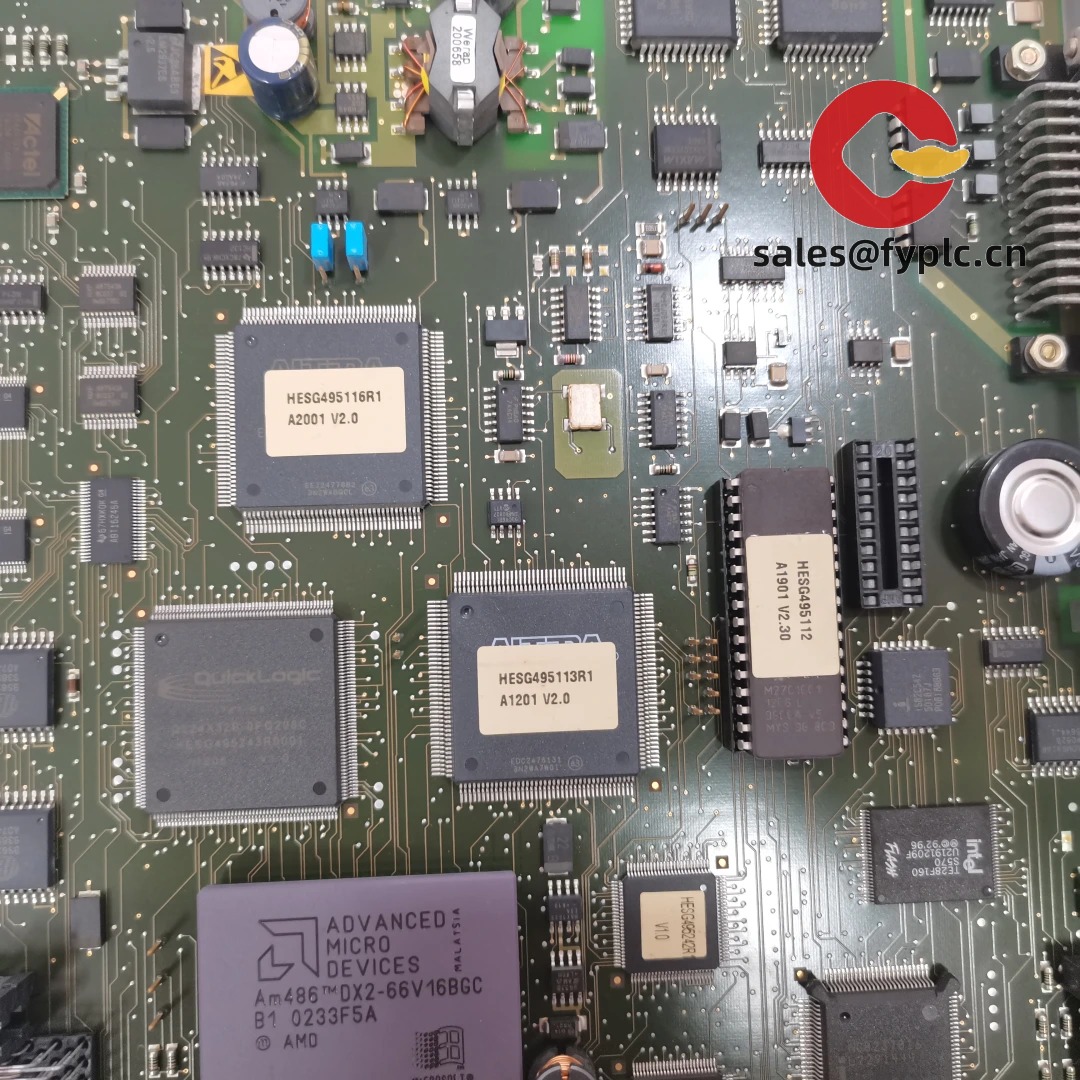

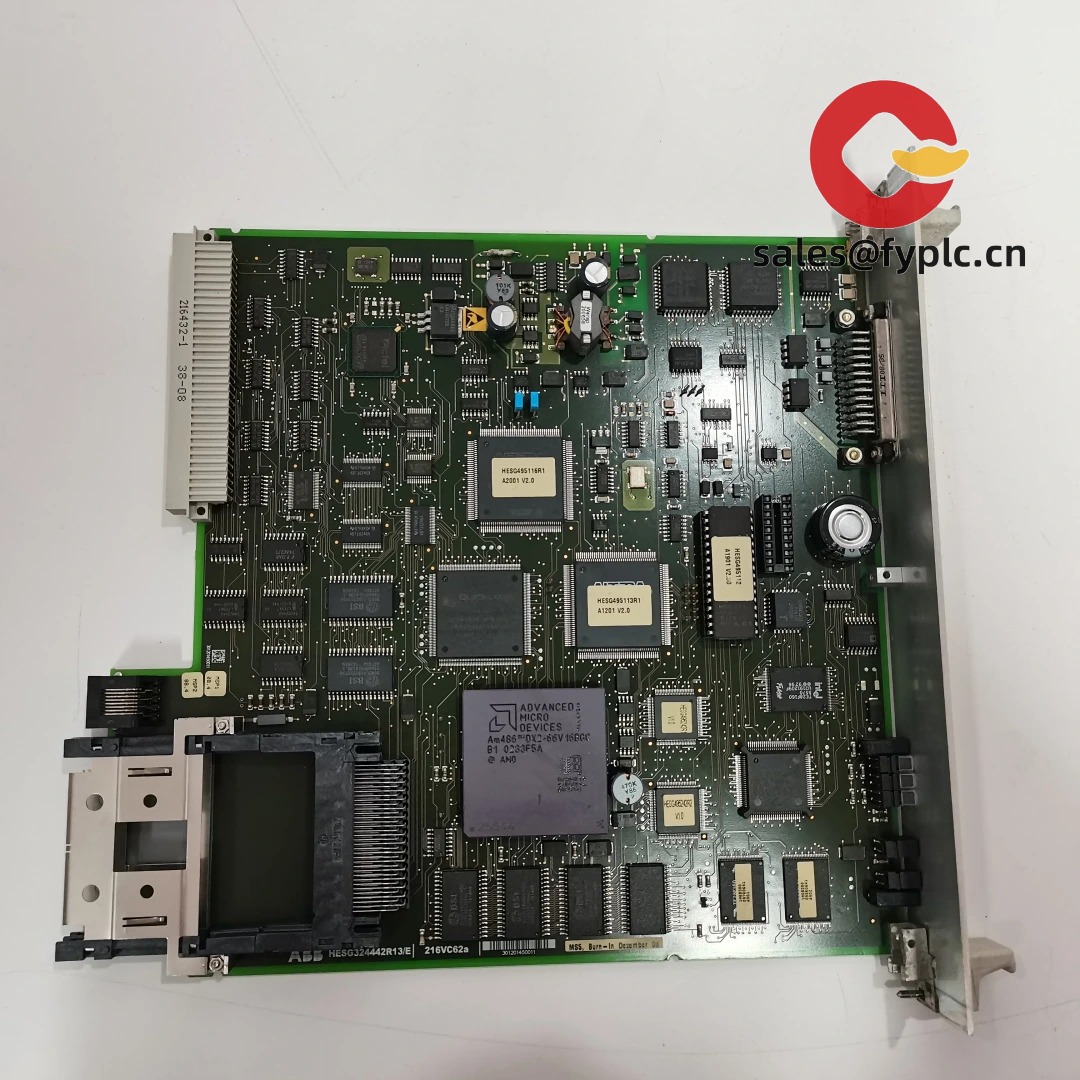

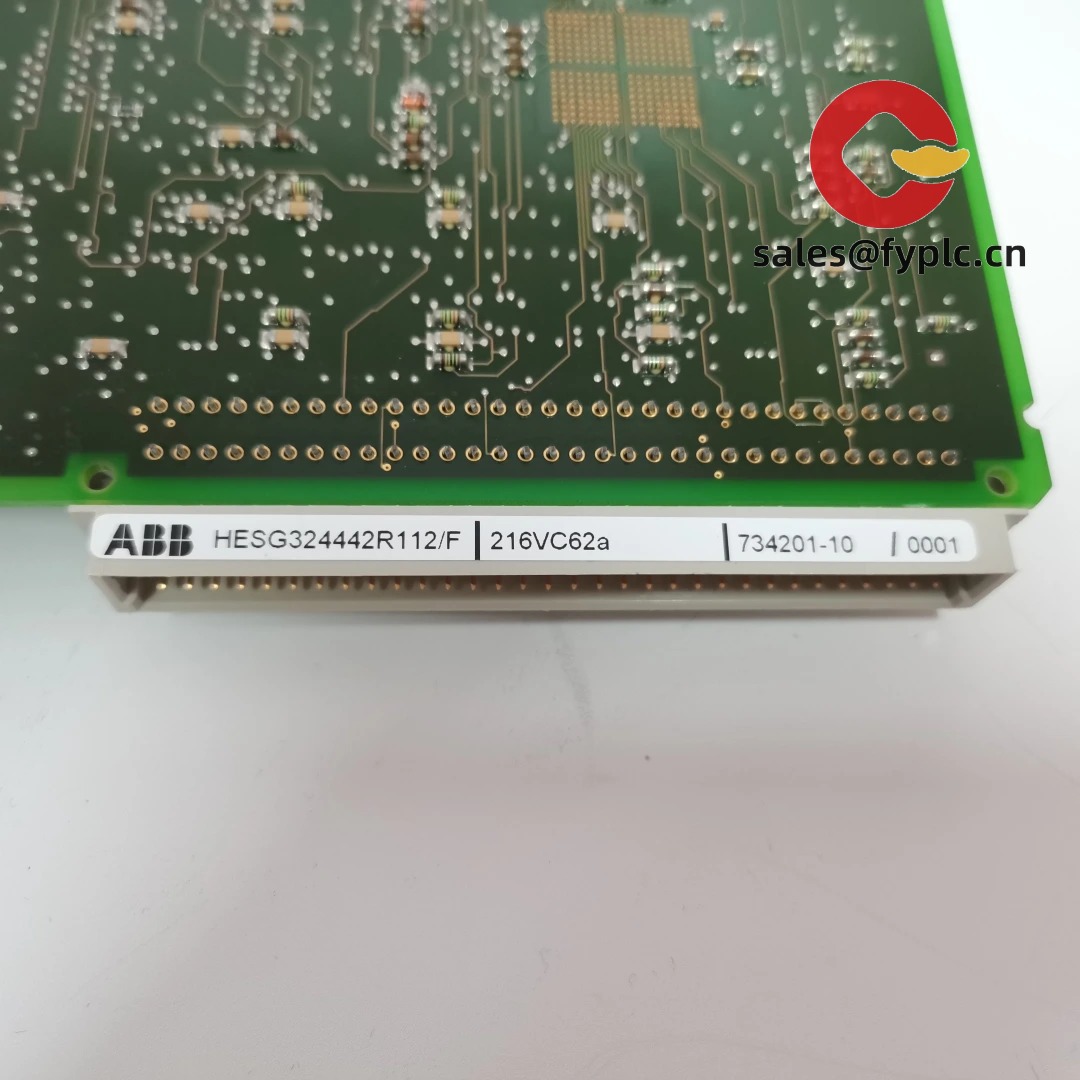

ABB 216VC62a (HESG324442R112‑F) – Pulse/Control Interface Board for Medium‑Voltage Converter Stacks
The ABB 216VC62a with hardware label HESG324442R112‑F is a plug‑in pulse/control interface board used inside ABB medium‑voltage drive and converter bays. From my experience, this is the card you swap like‑for‑like when a stack position starts throwing intermittent gating or interlock alarms and you need clean, predictable ramp‑ups without touching cabinet wiring. You might notice the “‑F” hardware variant tends to align with later bay builds, keeping timing and diagnostics consistent across the installed base.
Company’s Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in-stock; no more than one month at the latest
- Payment method: 50% advance payment, full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
- Process: Confirm model and quantity → Proforma Invoice → Advance payment → Functional testing and packing → Final payment → Express shipment with tracking
Key Features
- Pulse/control distribution – Coordinates gating patterns and timing to the gate units so commutation stays stable under load.
- Protection feedback – Aggregates desaturation, overcurrent and thermal signals back to the system controller via the backplane.
- Backplane integration – Drop‑in mechanical fit for ABB MV racks; field wiring typically remains untouched.
- EMC‑robust signalling – In many cases uses fiber‑optic trigger/status links to nearby gate units to ride through noisy MV environments.
- “‑F” hardware variant – Revision alignment that, in most cases, keeps timing/diagnostics consistent across similar bays.

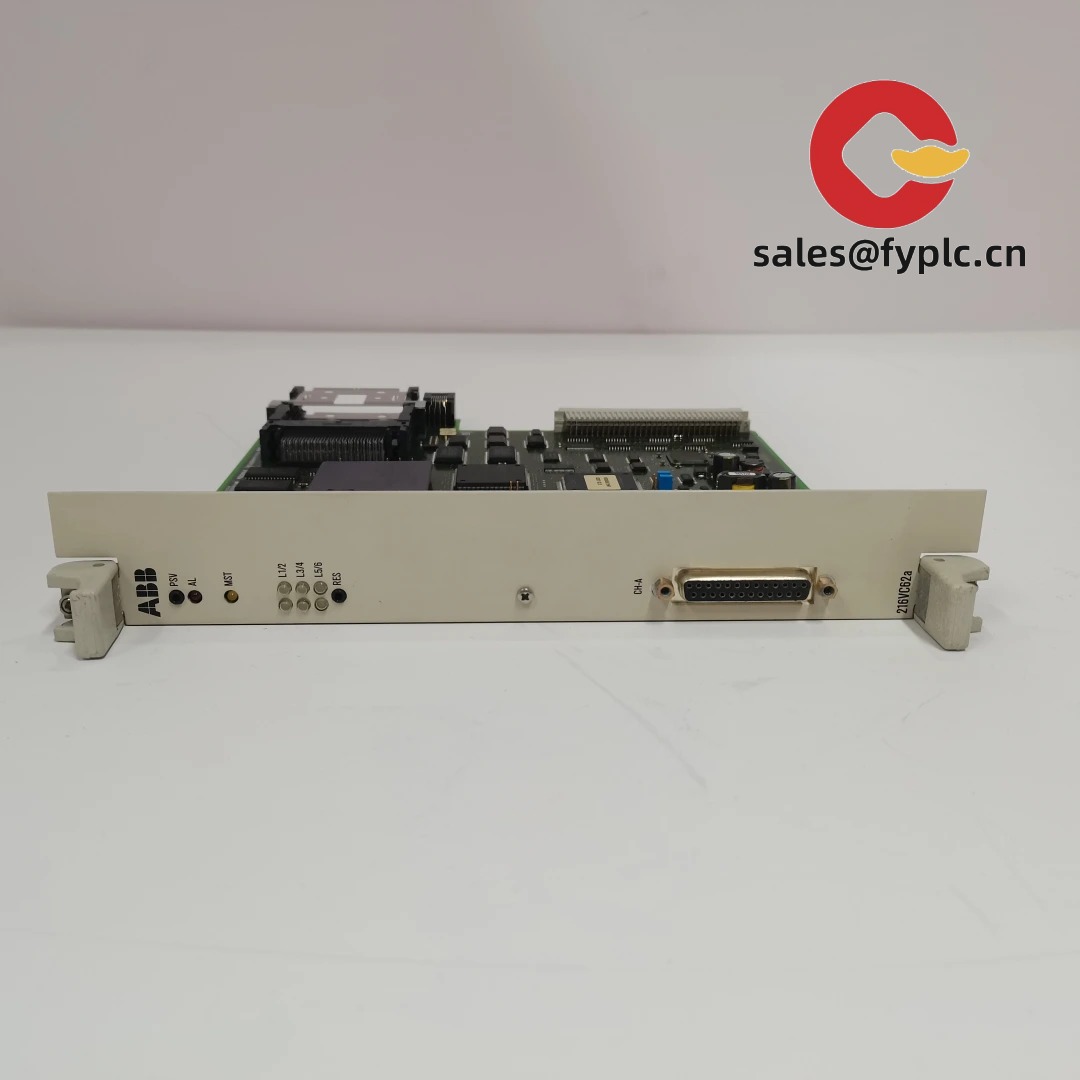

- Service‑friendly layout – Front LEDs and accessible test points speed outage checks and first power‑up.
Technical Specifications
| Brand / Model | ABB – 216VC62a (HESG324442R112‑F) |
| HS Code | 850490 (Parts of static converters / drive systems) |
| Power Requirements | Typically 24 VDC supplied via the drive backplane (on‑board DC/DC regulation) |
| Dimensions & Weight | Rack plug‑in PCB; compact card; weight commonly ~0.3–0.5 kg class |
| Operating Temperature | 0…55 °C cabinet ambient (typical for drive electronics) |
| Signal Input/Output Types | Backplane analog/digital feedback, interlocks and trigger references; fiber‑optic Tx/Rx to gate units in many builds |
| Communication Interfaces | Proprietary ABB rack/backplane; no user Ethernet/serial on board |
| Installation Method | Rack‑mounted plug‑in card with edge/backplane connector and front retention hardware |
Application Fields
Where this board typically fits in day‑to‑day maintenance and upgrades:
- ABB MV drive platforms (commonly ACS1000 / ACS5000 / ACS6000)
- Metals, mining, cement and chemical plants running 3–6.6 kV motors
- Stack refurbishments and lifecycle extensions during planned outages
- N‑1 spares coverage for critical bays to reduce downtime risk
Advantages & Value
- Reliability: A fresh 216VC62a typically tightens gate timing and clears intermittent interlock/trip events.
- Compatibility: Like‑for‑like fit with ABB backplanes—no field rewiring in most cases.
- Cost & downtime: Faster restoration than redesigning a bay; avoids broad software requalification in many cases.
- Support: We can power‑up test, verify indicators and share a concise status report before shipment.
“Swapped the HESG324442R112‑F board during a short outage. Backplane comms were clean, fiber checks passed, and the inverter ramped smoothly on first start.” — Maintenance supervisor, cement plant MV drive room
Installation & Maintenance
- Cabinet environment: Clean, dry, well‑ventilated MV cubicle; keep ambient within the drive’s rating.
- Handling: Use ESD protection; avoid flexing the PCB; inspect the edge connector and standoffs before insertion.
- Connections: Seat fully on the backplane; if optical links are present, verify Tx/Rx orientation and clean ferrules.
- Safety: Lockout/tagout MV sections; allow the DC link to discharge fully; confirm 24 VDC polarity and grounding before enabling.
- Routine care: Quarterly dust removal, connector reseat checks, and quick indicator/health reviews under load.
Quality & Certifications
- Quality system: Produced under ISO 9001 processes (typical for ABB drive electronics).
- Compliance: Intended for installation inside CE/UL‑listed converter systems; RoHS status may vary by production year.
- Warranty: 365‑day warranty from shipment date.
If you can share the drive platform, bay/slot position, and any revision notes, we’ll confirm interchangeability for 216VC62a (HESG324442R112‑F) and prepare a concise functional test record before dispatch.
