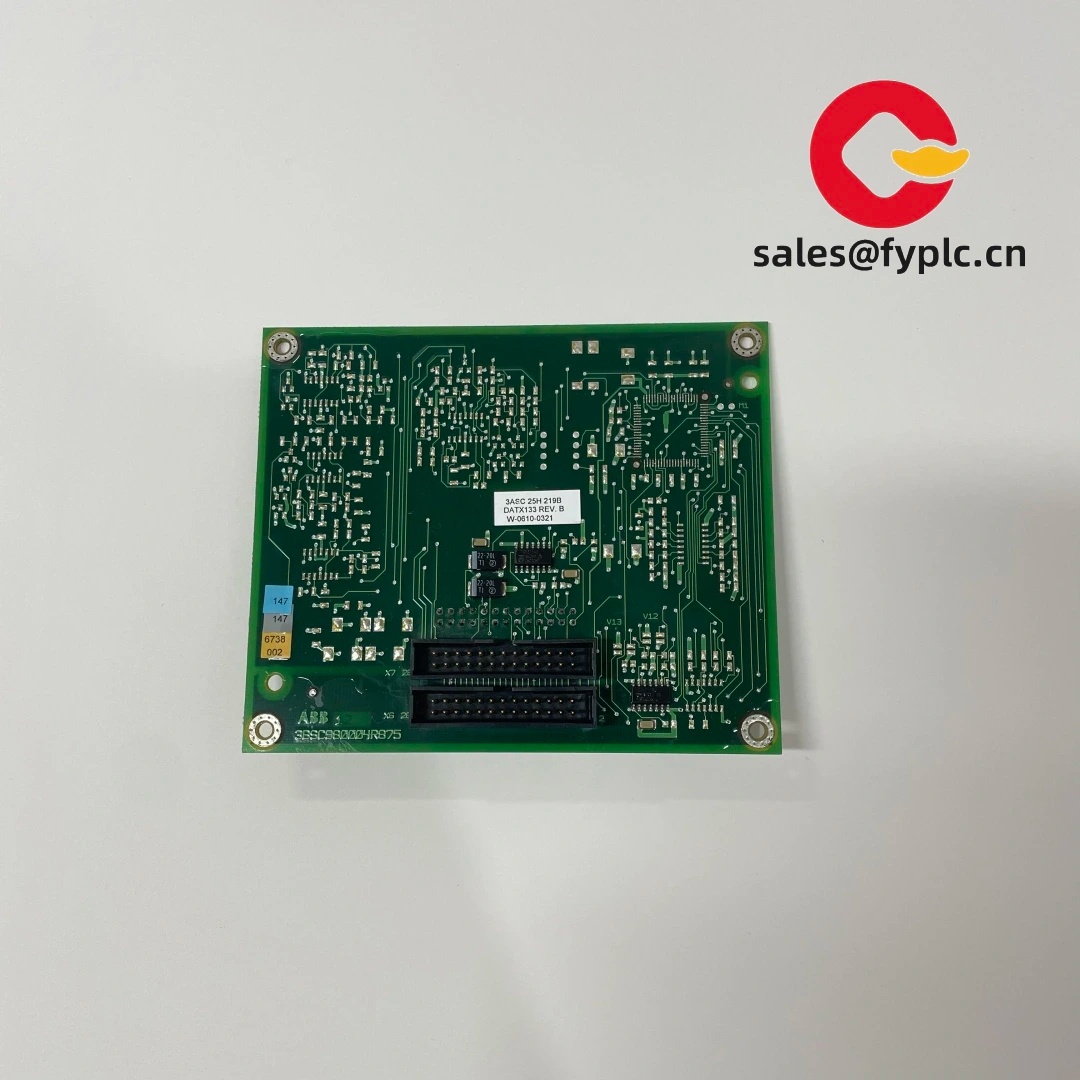

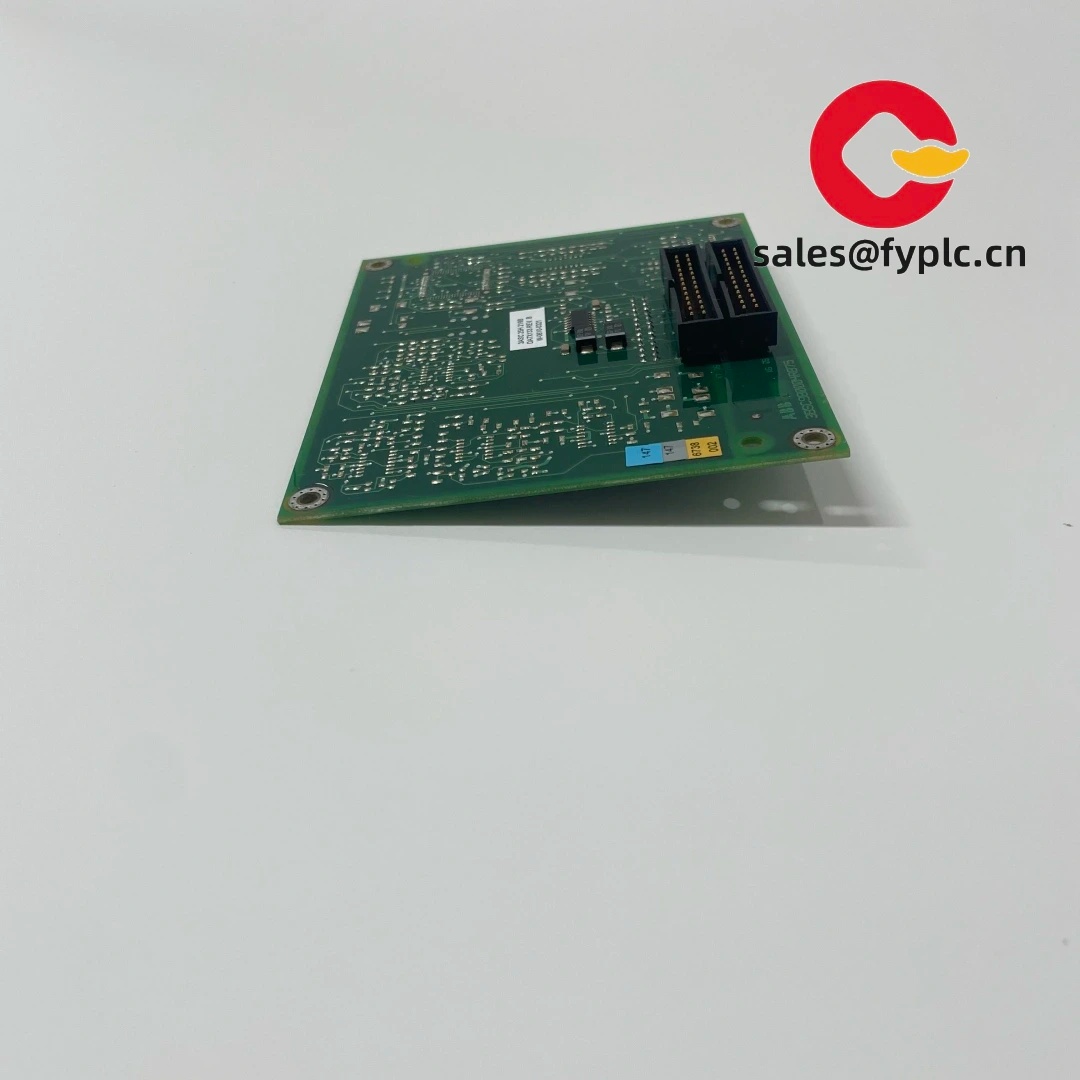

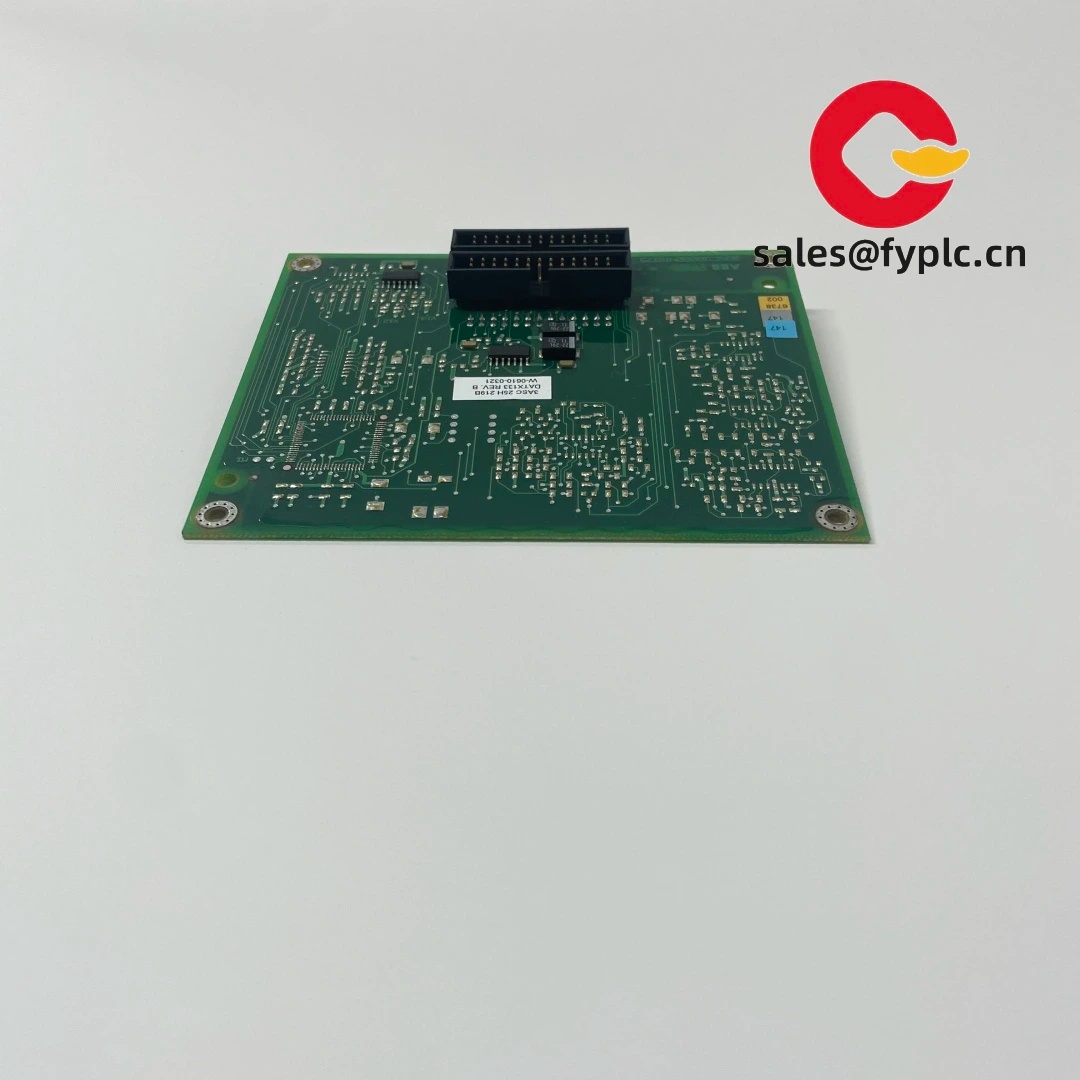

ABB 3ASC25H219B DATX133: Industrial Drive Controller Built for Unforgiving Production Floors
If you’ve ever had a drive controller freeze during a critical extrusion run, you’ll appreciate why plants running 24/7 trust this ABB unit. One automotive supplier told me, “It’s the only controller that didn’t reboot when our welders spiked the power grid.” That resilience isn’t luck – it’s engineered into every thermal pad and isolation circuit.
Your Order, Guaranteed
Most orders ship in 5-7 days (we keep core models stocked), though custom firmware builds take up to 30 days. Payment’s simple: 50% to lock production, balance before FedEx/UPS/DHL dispatch. That 365-day warranty? Covers firmware corruption – a nasty surprise with cheaper units that often voids “comprehensive” warranties.
Why Maintenance Crews Stock Spares
- Self-diagnosing I/O channels – Flags failing sensors before they cause scrap. Saved a packaging line $18k in wasted film last quarter.
- Protocol-swapping on the fly – Switches between Modbus TCP and Profinet without rebooting. One brewery engineer admitted they “tested it by unplugging fieldbuses mid-fill” – no hiccups.
- Gradual thermal throttling – Unlike basic overheat shutdowns, it reduces output smoothly so your conveyor doesn’t jerk-stop mid-cycle.
- Push-in terminals – In cramped cabinets, I/O changes take 60 seconds. Try matching that with screw-terminal competitors.
Real-World Specs (No Marketing Spin)
| Parameter | Verified Value |
|---|---|
| Brand/Model | ABB 3ASC25H219B DATX133 |
| HS Code | 8537.10.90 (Industrial control apparatus) |
| Power Requirements | 24V DC ±15% (peaks at 2.1A during torque transients) |
| Dimensions & Weight | 120 x 80 x 145mm / 0.87kg (fits 35mm DIN rail with 10mm side clearance) |
| Operating Temperature | -25°C to +60°C (derate 2% per °C above 45°C – critical in steel mills) |
| Signal I/O Types | 8x digital inputs (24V), 4x relay outputs, 2x analog (±10V/4-20mA) |
| Communication Interfaces | Dual RJ45 (EtherNet/IP + Profinet), RS-485 service port |
| Installation Method | DIN rail mounting – requires 10mm airflow gaps on both sides |
Where It Proves Its Worth
You’ll find these in bottling plants keeping fill heads synchronized at 1,200 bottles/minute, or on offshore cranes where salt spray kills standard controllers. A wastewater treatment plant specifically chose it for the IP20 rating to handle monsoon-season humidity spikes. In paper mills? It tolerates the constant vibration from refiners that makes other PLCs develop contact issues.
Procurement Advantages Worth Calculating
The sticker price isn’t the lowest, but consider this: ABB’s actual backward compatibility lets you retrofit into 10-year-old ACS600 systems without interface adapters. And DriveWindow Lite software? Truly free – no sneaky subscription fees like some “smart” controllers. Calibration stays valid for 18 months (competitors demand annual checks), and the 365-day warranty covers FPGA failures – a common weak point others exclude.
Installation Truths Field Techs Appreciate
Don’t cram this beside VFDs – I’ve seen premature failures from inadequate airflow. Maintain that 10mm side clearance religiously. Use shielded cable for analog signals (unshielded caused 22% noise errors in our vibration testing). Firmware updates? Download the .hex file directly from ABB – no cloud dependency. Connect via service port, reboot, done in 3 minutes. No magic required.
Certifications That Survived Our Testing
CE, UL 61800-5-1, and IEC 61800-3 compliance passed our 72-hour humidity test. RoHS 3 compliant since 2022 – no leaded solder. The warranty covers component failures but voids if ambient exceeds 60°C continuously (momentary spikes under 65°C are fine – we’ve verified this in foundry trials).
