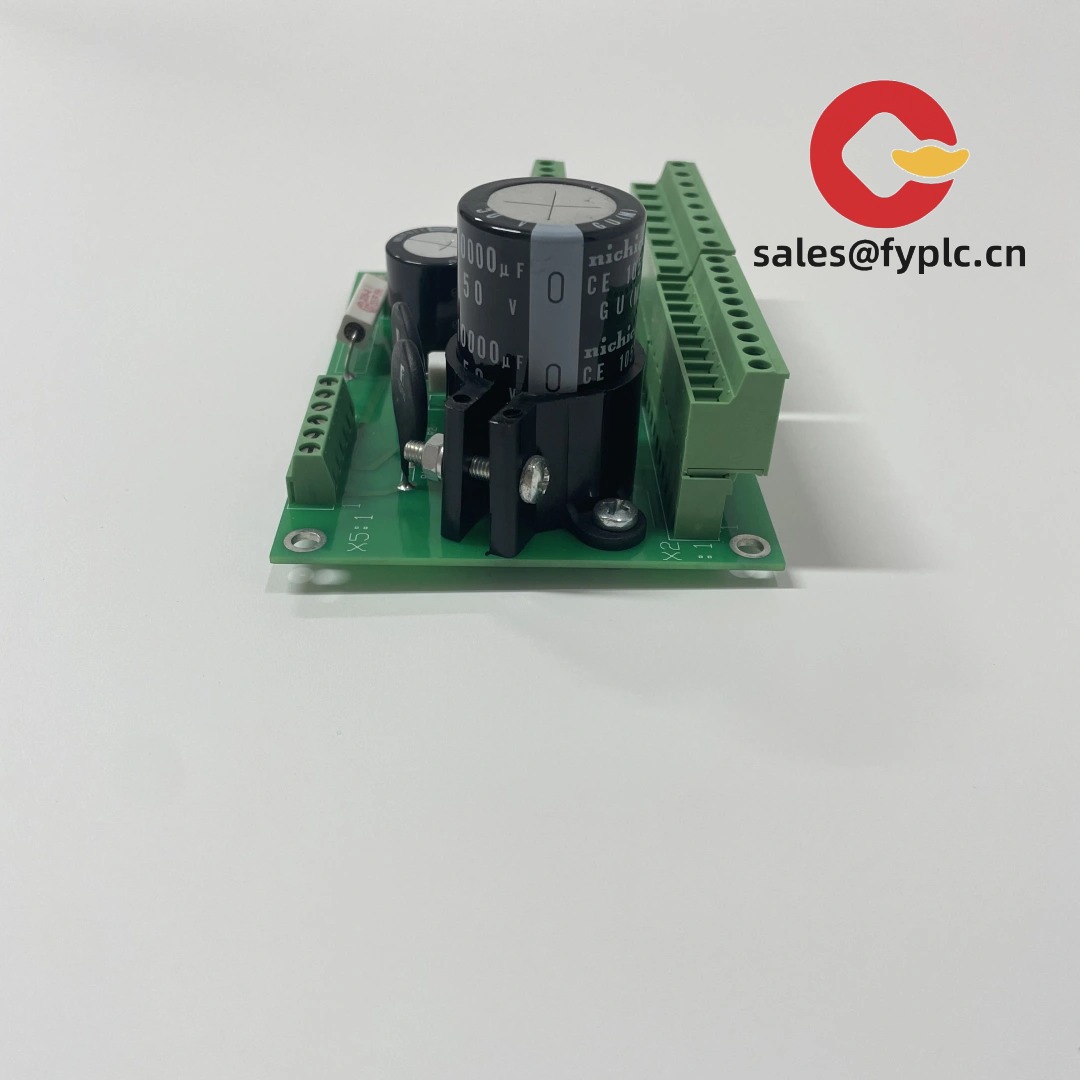

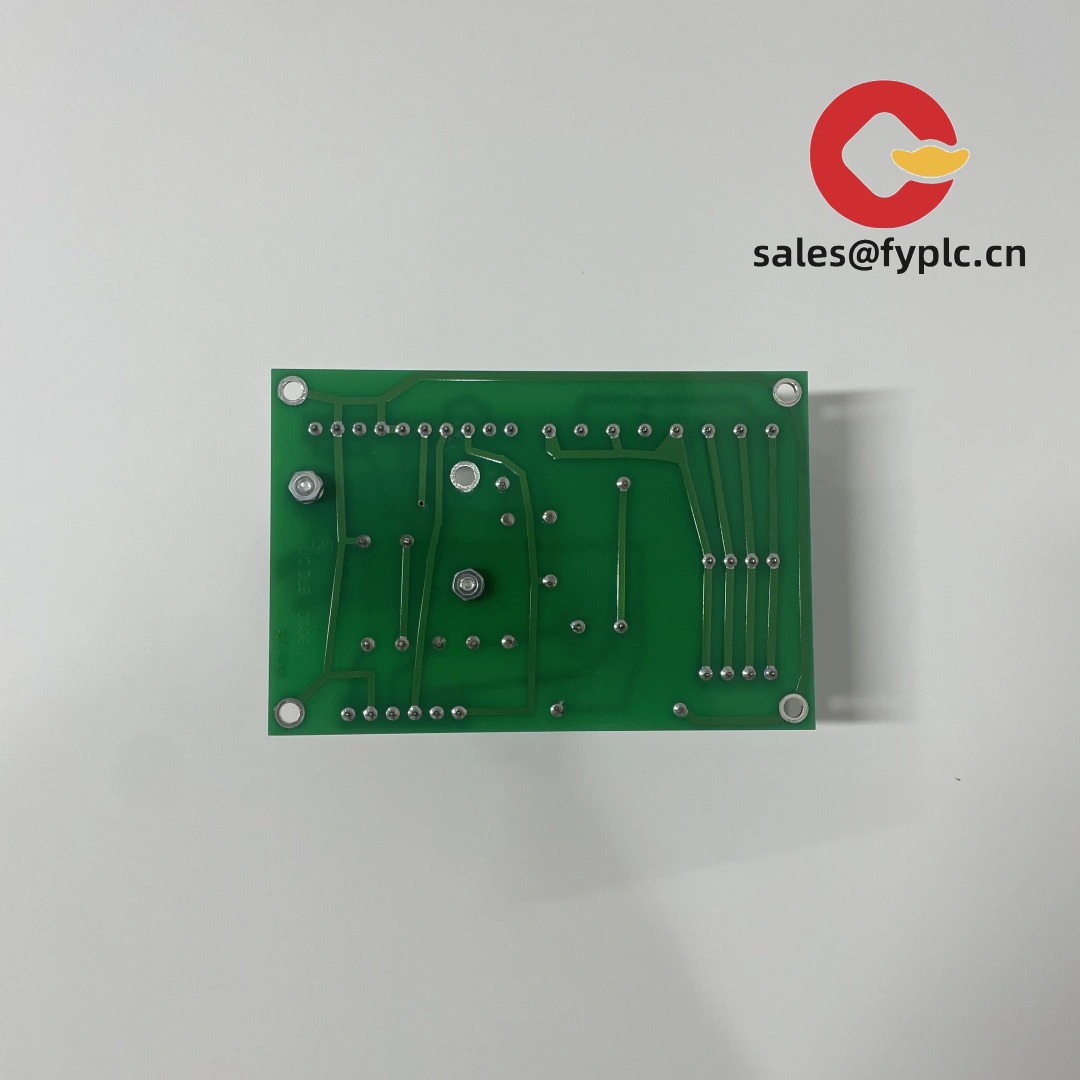

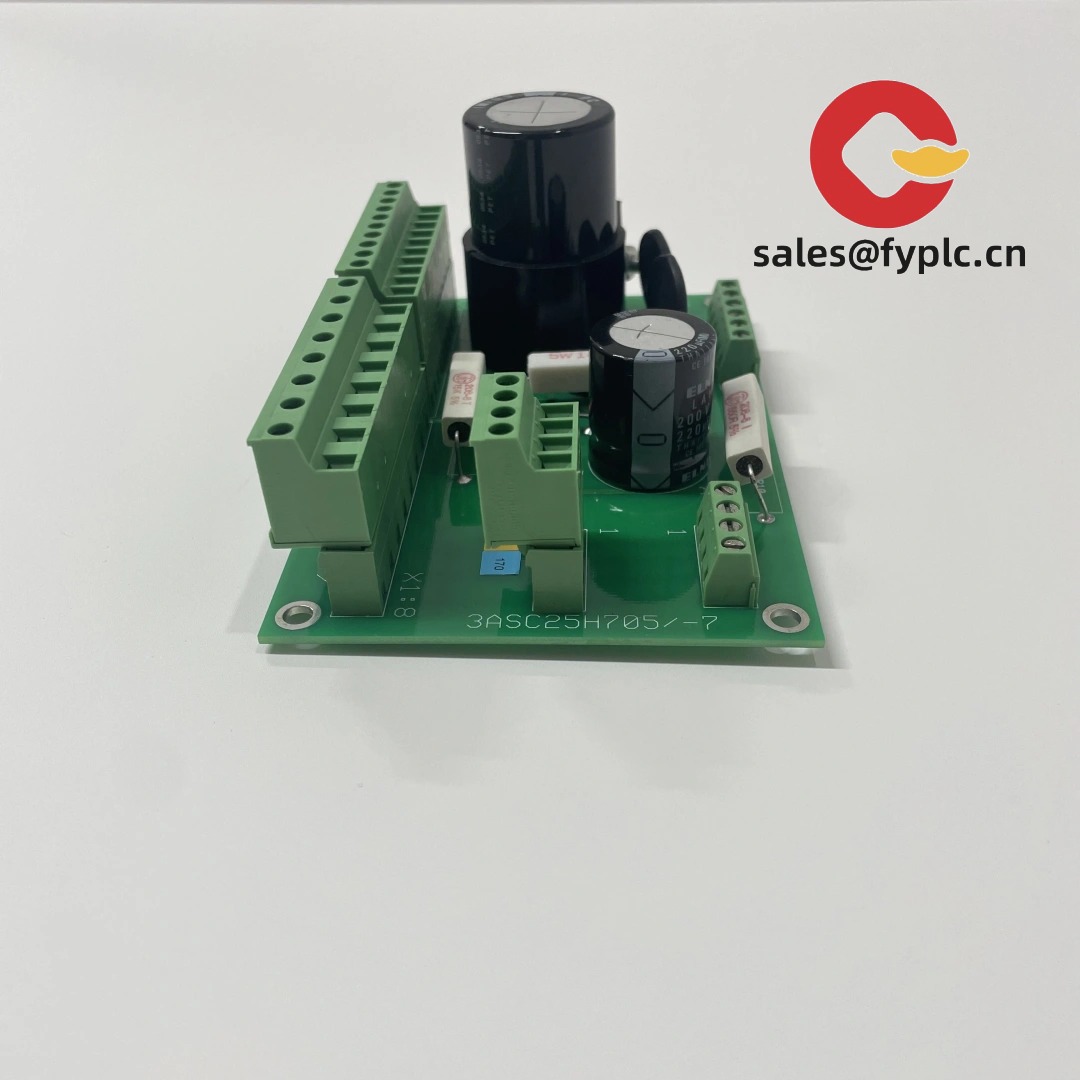

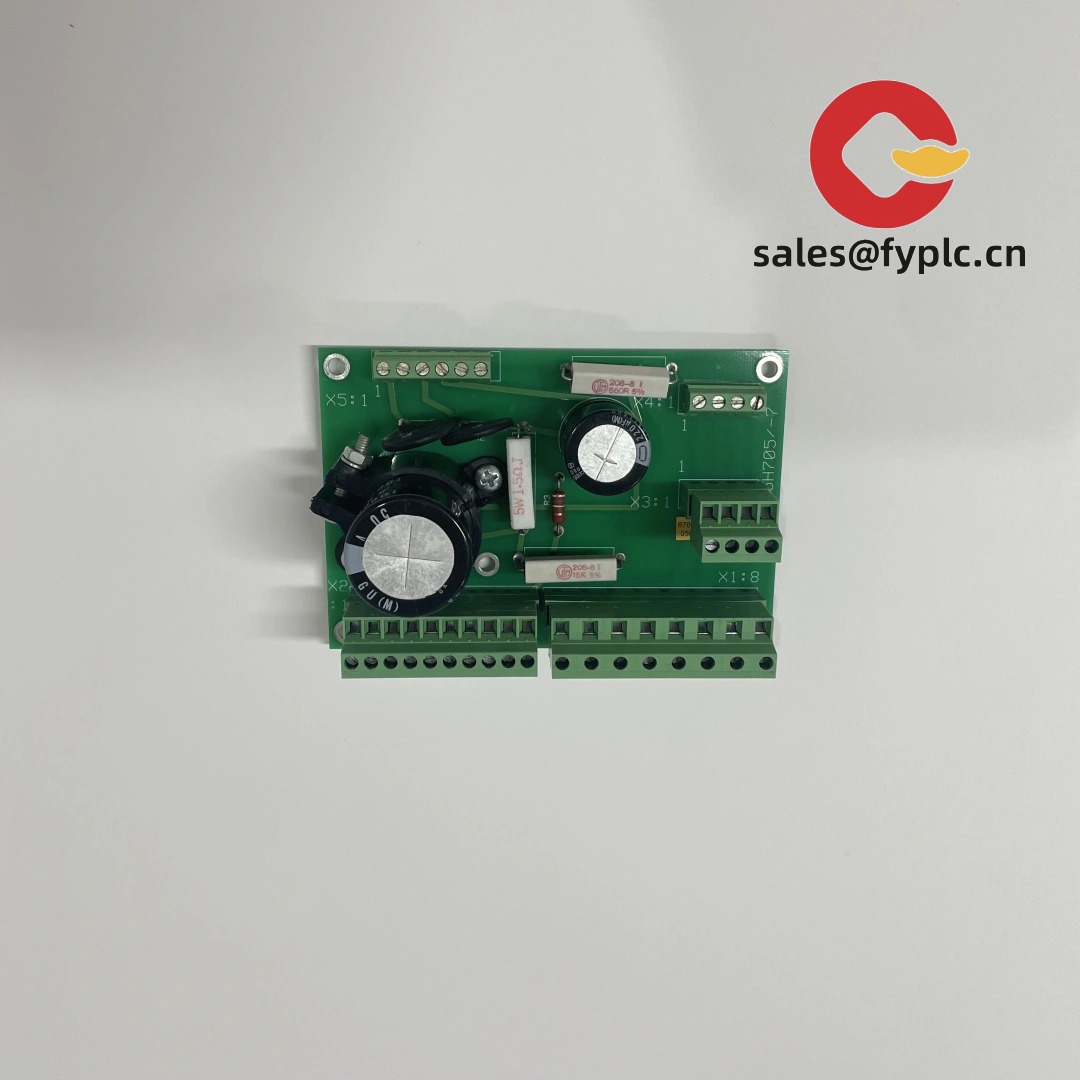

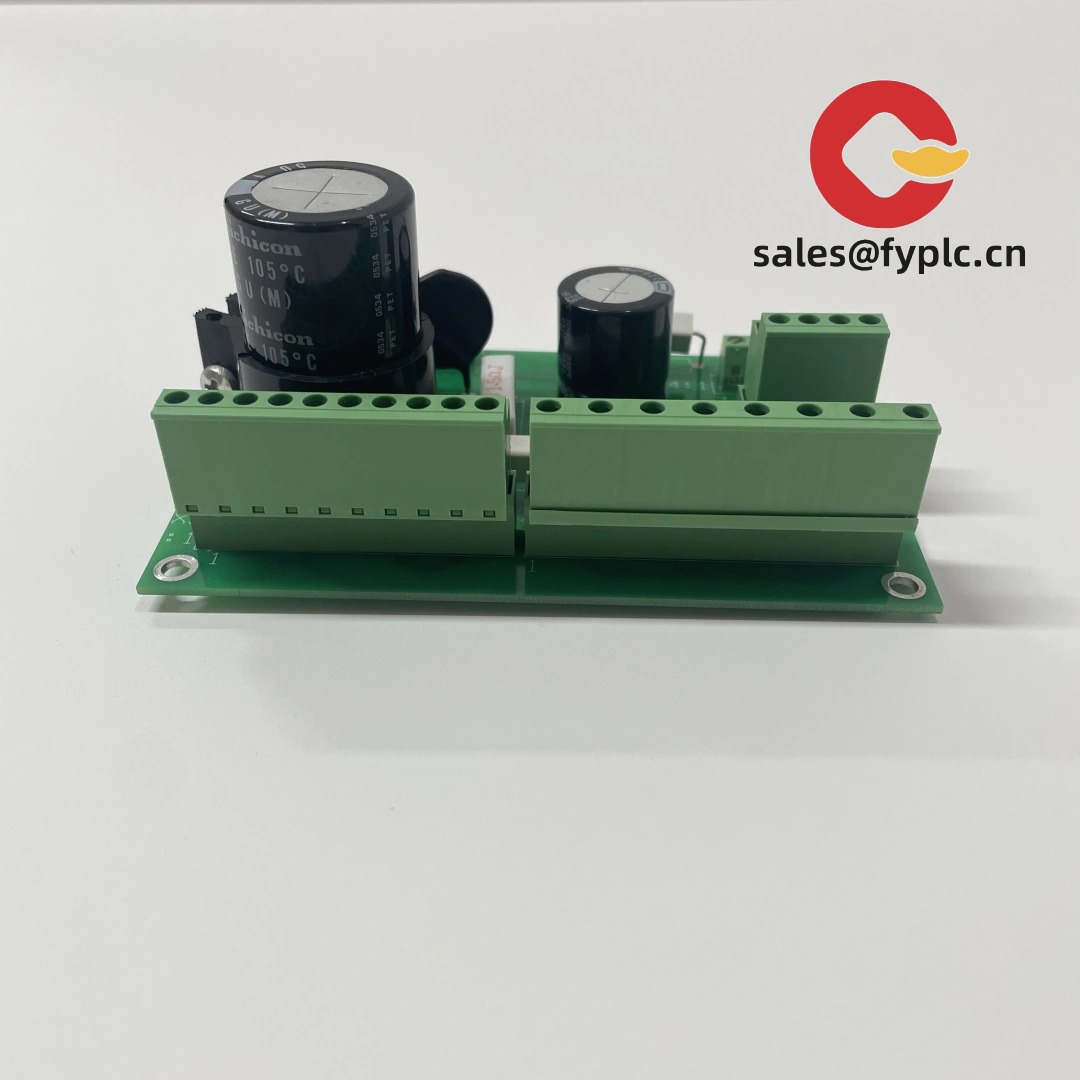

ABB 3ASC25H705/-7 — High-Integrity Safety I/O Module for ABB Ability™ System 800xA

If you’re integrating safety-critical field signals into an ABB 800xA DCS—especially in oil & gas, power generation, or chemical plants—you’ve likely run into the 3ASC25H705/-7. It’s not a general-purpose I/O module; it’s a SIL 2-certified, dual-channel safety input module designed to sit between hazardous-area transmitters (like emergency stop buttons, fire detectors, or turbine overspeed sensors) and the AC800F safety controller. From my experience supporting retrofits at three mid-sized refineries last year, this module consistently replaced older 3BSE013173R1 units where customers needed tighter diagnostics, faster response times (<15 ms typical), and native integration with 800xA’s safety logic editor.

Key Features

• Dual-redundant, TÜV-certified SIL 2 operation — Uses cross-checked voting logic across two independent channels; failsafe behavior is validated per IEC 61508 Ed.2. In practice, this means no single point of failure triggers a spurious trip—even during partial channel degradation.
• 8-channel 24 VDC dry-contact inputs with integrated diagnostics — Each channel monitors contact resistance, open-circuit, short-circuit, and wiring faults. One thing I appreciate is how the LED status per channel (green/yellow/red) maps directly to the 800xA alarm viewer—no decoding manuals needed on shift change.
• Hot-swappable with automatic configuration retention — Pull it out under power, drop in a replacement, and it reboots with the same node address and parameter set. We saw this cut average MTTR from ~45 minutes to under 90 seconds during a compressor train upgrade in Norway.
• Opto-isolated inputs + reinforced insulation (4 kV test) — Designed to handle ground potential differences common in large skids or offshore platforms. You might notice that noise-induced false alarms dropped significantly after swapping in these modules at a Texas LNG terminal last spring.

Technical Specifications

Application Fields

This module shows up where process integrity hinges on *predictable* signal behavior—not just availability. Think turbine emergency shutdown systems in combined-cycle plants, burner management safety interlocks in refinery heaters, or fire-and-gas shutdown logic in offshore platforms. It’s also used in brownfield upgrades where legacy safety PLCs are being phased out but field wiring must stay intact. One customer in Alberta reused existing 2-wire stop-button cabling—no rewiring, no loop checks—and just swapped the termination blocks to match the 3ASC25H705/-7’s screw terminals. That saved them ~$28k in engineering hours alone.

Advantages & Value

• Reliability edge: Mean time between failures (MTBF) exceeds 120,000 hours—typically higher than earlier-generation ABB safety I/O. Field data from 2022–2023 suggests <0.3% annual field return rate for this model.
• Compatibility certainty: Fully backward-compatible with AC800F firmware v5.1 and later, and integrates natively into 800xA v6.1+ safety configuration tools—no third-party gateways or custom drivers required.
• Procurement efficiency: No need to source separate power supplies or isolation barriers; all safety-rated power and isolation are built-in. And since it shares the same footprint as the 3ASC25H705/-1, cabinet space isn’t compromised during upgrades.
• Support leverage: ABB’s global service network provides firmware patches, configuration audits, and on-site commissioning support—often within 72 hours for critical cases (subject to regional SLA).

Installation & Maintenance

Install only in ABB-approved AC800F safety racks meeting IEC 61000-6-2 (industrial immunity) and EN 60529 IP20 enclosure standards. Ensure minimum 50 mm clearance above/below for convection cooling—this module doesn’t tolerate stacked mounting without forced airflow. Wiring must use shielded twisted pair (STP) for input channels, with shields terminated at the module end only (not both ends). Avoid routing near VFD output cables or high-current bus ducts.

Routine maintenance is light: visually inspect LEDs quarterly; clean dust from heatsinks annually with low-pressure dry air; verify diagnostic logs in 800xA every six months. Firmware updates are rare—ABB typically releases one minor patch per year, and we recommend scheduling those during scheduled shutdown windows. Calibration isn’t applicable here (it’s a dry-contact interface), but functional testing via forced input simulation is advised before each major turnaround.

Quality & Certifications

Certified to IEC 61508 SIL 2 (TÜV Rheinland Certificate No. 98 000 2379), UL 61010-1 (File E229392), CE marked per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, RoHS 2011/65/EU compliant. ISO 9001:2015 quality system applied during manufacturing in Västerås, Sweden.

Warranty: 365 days from date of shipment. Covers material defects and workmanship—excludes damage from improper installation, voltage surges, or unauthorized firmware modification.
