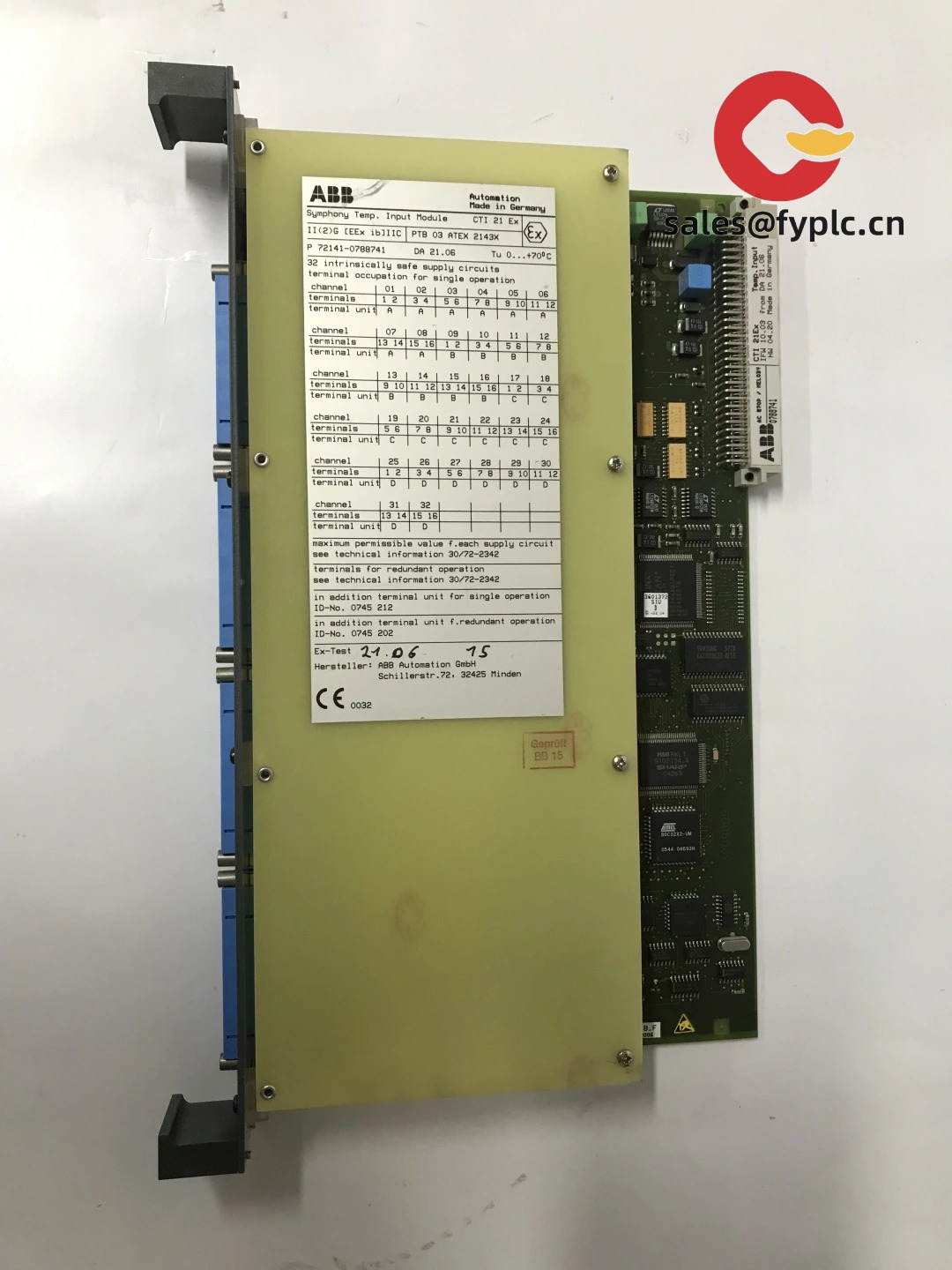

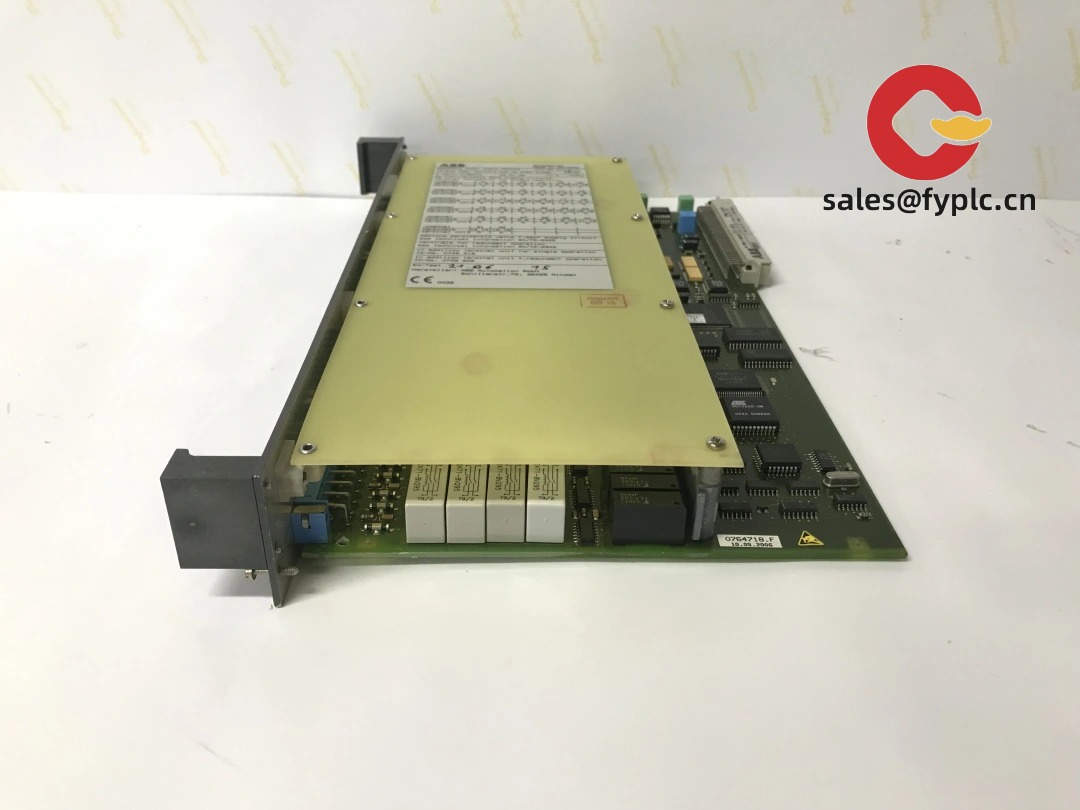

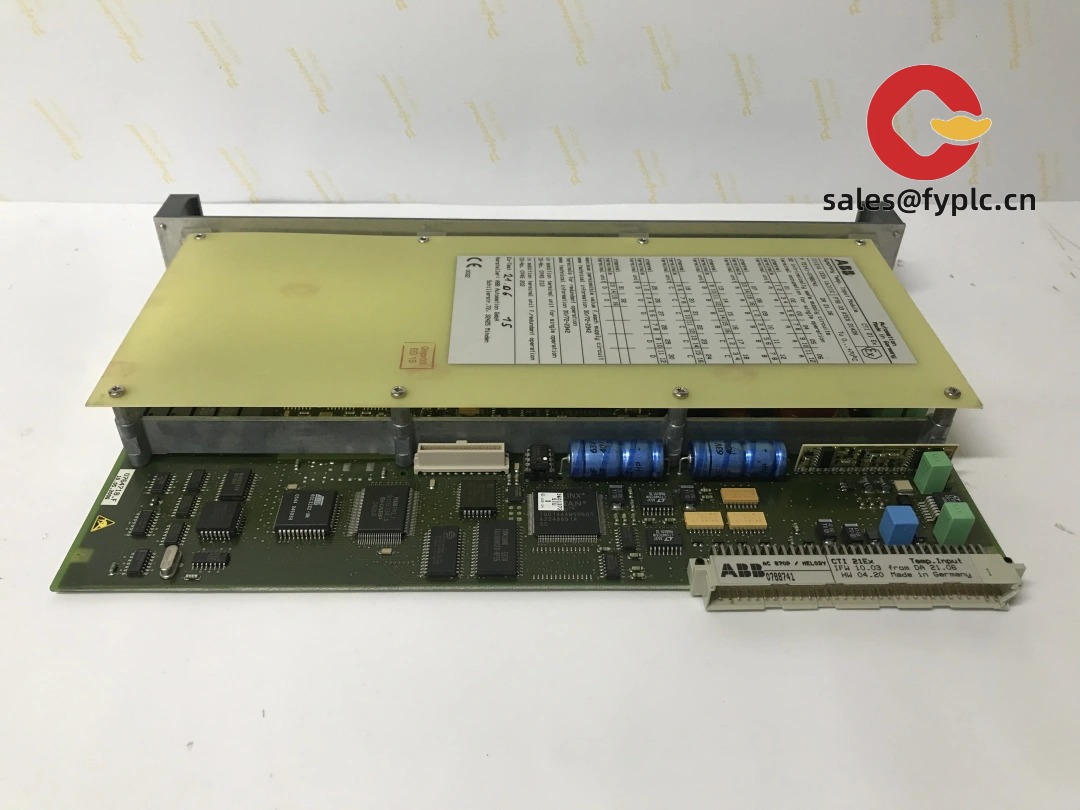

ABB 3BDH000741R1 – CTI-21-P-Ex Intrinsically Safe Terminal Interface for Hazardous-Area I/O Marshalling

The ABB 3BDH000741R1 (CTI-21-P-Ex) is a compact, Ex-rated terminal interface designed to simplify field wiring in hazardous locations and cleanly marshal signals back to ABB process I/O. From my experience, it’s the kind of passive interface panel you pick when you want tidy cabinet layouts, quick channel identification, and dependable loop segregation for Zone/Division classified areas. You might notice that the “-P-Ex” variant typically indicates pluggable terminals and suitability for intrinsically safe circuits when used with proper isolators or barriers.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than 1 month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express delivery: FedEx, UPS, DHL

Key Features

• 21-channel Ex terminal interface: Optimized for marshalling multiple field signals in hazardous areas with consistent channel layout.
• Passive design: No separate power required; it serves as a neat connection point between field devices, Ex barriers/isolators, and ABB I/O.
• Pluggable terminal convenience: The “-P” usually denotes pluggable connectors for faster installation and easier replacement.
• Clean separation of circuits: Helps maintain Ex segregation and grounding practices when paired with certified intrinsic safety devices.
• Cabinet-friendly footprint: Typically DIN-rail mounted to keep wiring tidy and serviceable in dense control panels.
• ABB system compatibility: Suits ABB process control environments (e.g., AC 800xA with S800 I/O) where standardized marshalling is preferred.
• Clear channel labeling: Field technicians can trace and maintain loops faster, which, in many cases, cuts routine service time.

Technical Specifications

Application Fields

The CTI-21-P-Ex fits process industries where hazardous area wiring must be organized and traceable:

• Oil & Gas: Wellhead skids, tank farms, compressor stations with Zone/Div classified loops.
• Chemical & Petrochemical: Ex marshalling for transmitters, solenoids, and shutdown circuits.
• Pharmaceutical: Clean cabinets where tidy, labeled Ex marshalling speeds validation and maintenance.
• Mining & Metals: Field device terminations in harsh areas routed to safe-area I/O via isolators.
• Terminals & Pipelines: Distributed junction cabinets that need quick loop checks and changes.

Advantages & Value

• Reliability: Passive hardware generally means fewer failure points; in most cases it just works for years with minimal attention.
• Compatibility: Suits ABB control architectures and standard Ex marshalling practices using certified barriers/isolators.
• Faster projects: Pluggable terminals and clear channel mapping reduce panel build time and loop-check effort.
• Lifecycle continuity: ABB part numbering (3BDH…) makes spares planning and traceability straightforward.
• Lower total cost: Clean marshalling often saves on rework, troubleshooting hours, and future modifications.

A maintenance supervisor at a Gulf Coast facility summed it up well: “We swapped to pluggable Ex terminal interfaces and our loop checks went noticeably faster—less time with the cabinet open, fewer wiring mistakes.”

Installation & Maintenance

• Cabinet & mounting: Install on standard DIN rail in a clean, ventilated cabinet. Keep adequate bend radius and route Ex and non-Ex circuits separately.
• Grounding & shields: Terminate cable shields per site EMC policy; maintain single-point grounding to avoid loops.
• Barriers/isolators: Use certified intrinsic safety devices matched to your loop energy parameters; verify entity values and approvals.
• Wiring practice: Follow torque specs for terminals; use ferrules; label channels to match DCS I/O lists.
• Routine checks: Periodically inspect for loose terminals, corrosion, and damaged labeling. No firmware to update—just ensure cleanliness and mechanical integrity.
• Environment: Typically suited for 0…55°C cabinet environments; avoid direct moisture and corrosive atmospheres unless enclosure is rated accordingly.

Quality & Certifications

• Certifications: CE and RoHS compliant; Ex use typically supported via ATEX/IECEx when used with approved barriers/isolators (confirm exact certificate for your build).
• Manufacturing standards: Built to ABB industrial quality norms for process automation hardware.
• Warranty: 12 months from shipment.

Related Supporting Components (Typical Pairings)

• ABB S800 / S800 I/O Ex modules for AI/DI/DO/AO channels in AC 800xA environments.
• Intrinsic safety barriers or galvanic isolators (e.g., for 4–20 mA transmitters, RTDs, solenoids) with appropriate ATEX/IECEx ratings.
• DIN-rail power distribution and grounding terminals for structured loop routing and shield management.

Note: Specifications above reflect typical use cases for ABB Ex terminal interfaces of this family. If you need a compliance match for a specific project certificate set (ATEX category, IECEx, or UL HazLoc), share the loop list and we’ll validate the exact build options.
