Description

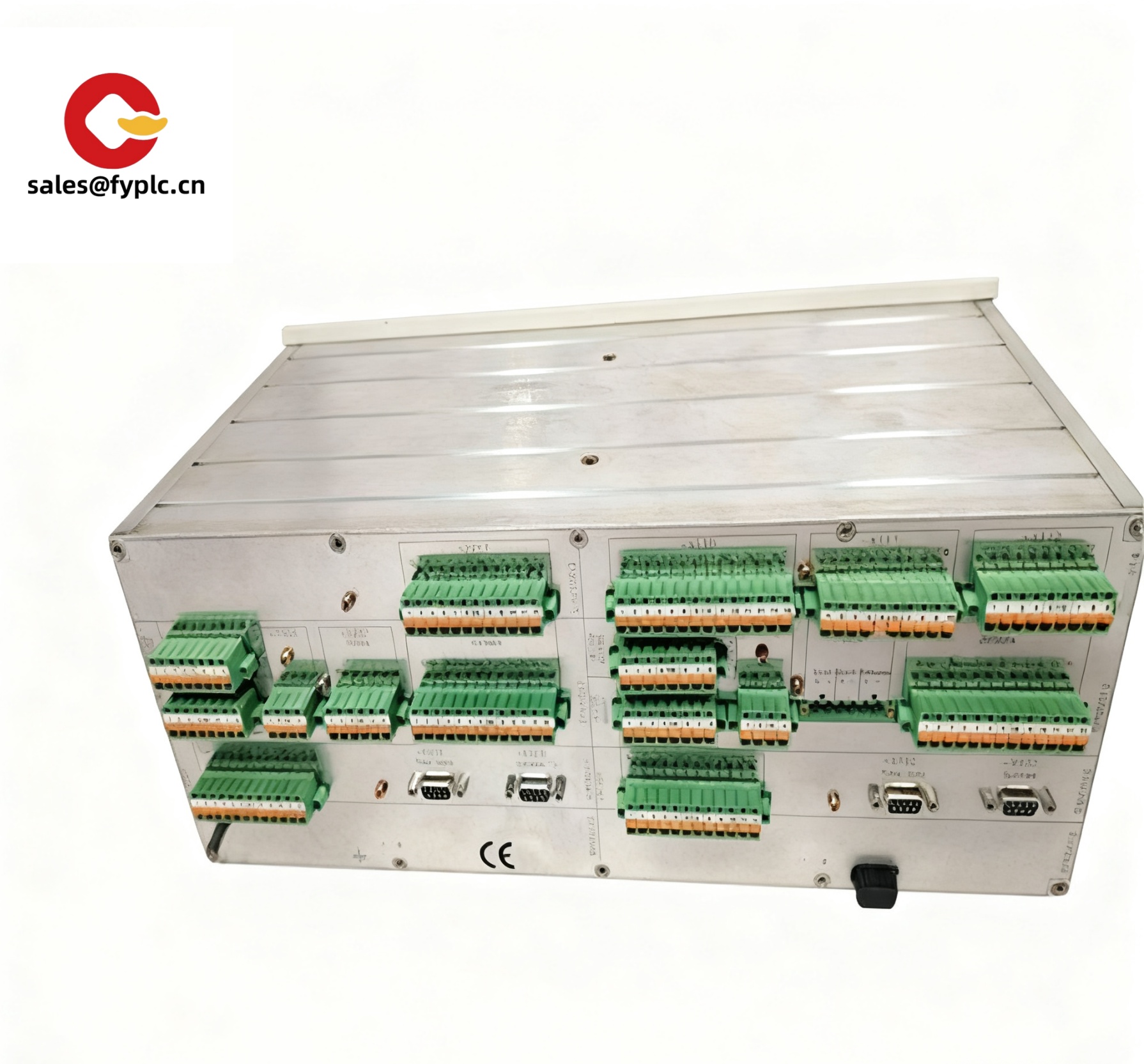

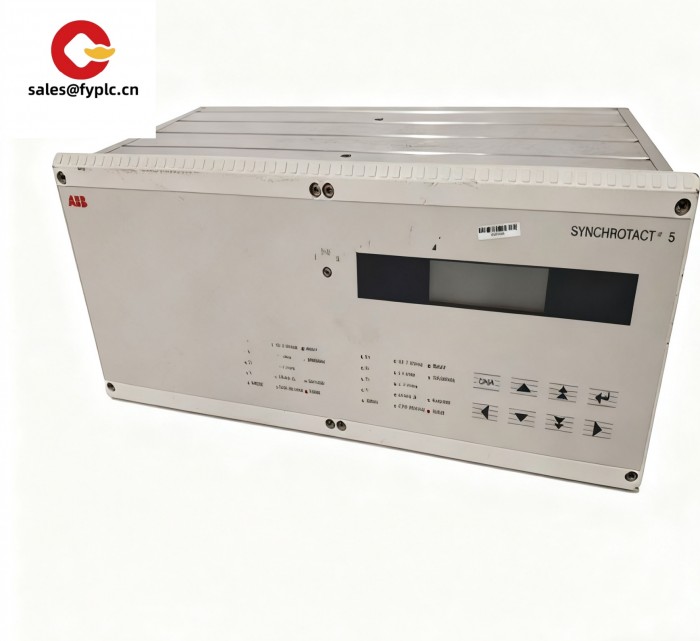

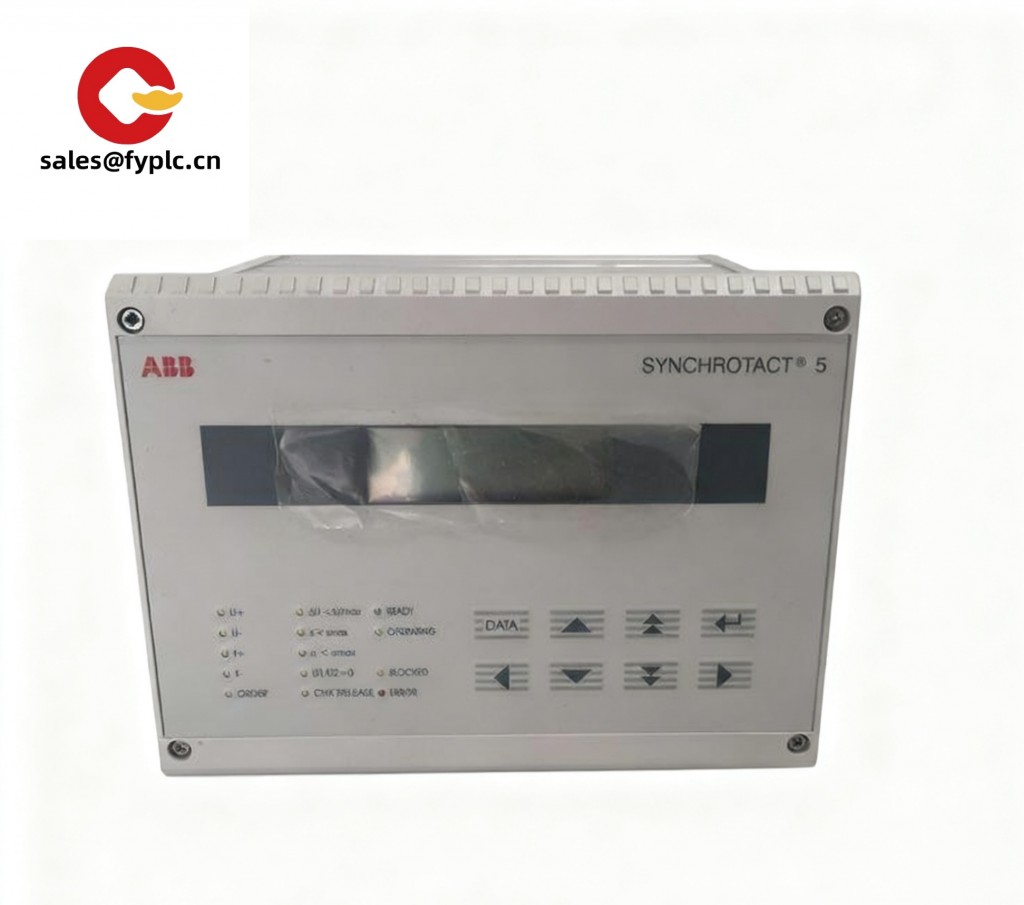

ABB 3BHB006716R0277 is a synchronizer device from the SYCHROTACT 5 series, model SYN5302a-Z.V277.Here are the details:

Functional Features:

1. High-precision synchronization control: Capable of real-time measurement of voltage, frequency, and phase angle, with a measurement accuracy of up to 0.01°, ensuring precise grid connection operations.

2. Automated control: Supports automatic grid connection processes, reducing human intervention and improving work efficiency.

3. Strong compatibility: Suitable for different types of generators, such as synchronous and asynchronous generators, and applicable to various scenarios, including power plants, industrial power grids, distributed energy systems, substations, and distribution equipment.

4. Modular design: Facilitates installation and maintenance, contains multiple metal contacts and connectors for electrical connections, and allows for easy expansion.

5. Built-in protection features: Provides power redundancy and communication redundancy design, ensuring the reliability of equipment operation.

Measurement Accuracy: Phase angle measurement accuracy can reach 0.01°

Voltage Range: 100V to 765kV.

Current Range: 1A to 5000A

Frequency Range: 45Hz to 65Hz.

Communication Methods: Supports serial port, Ethernet, optical port, and other communication methods.

Enclosure Dimensions: 217 mm (L) × 68.5 mm (W) × 63 mm (H).
