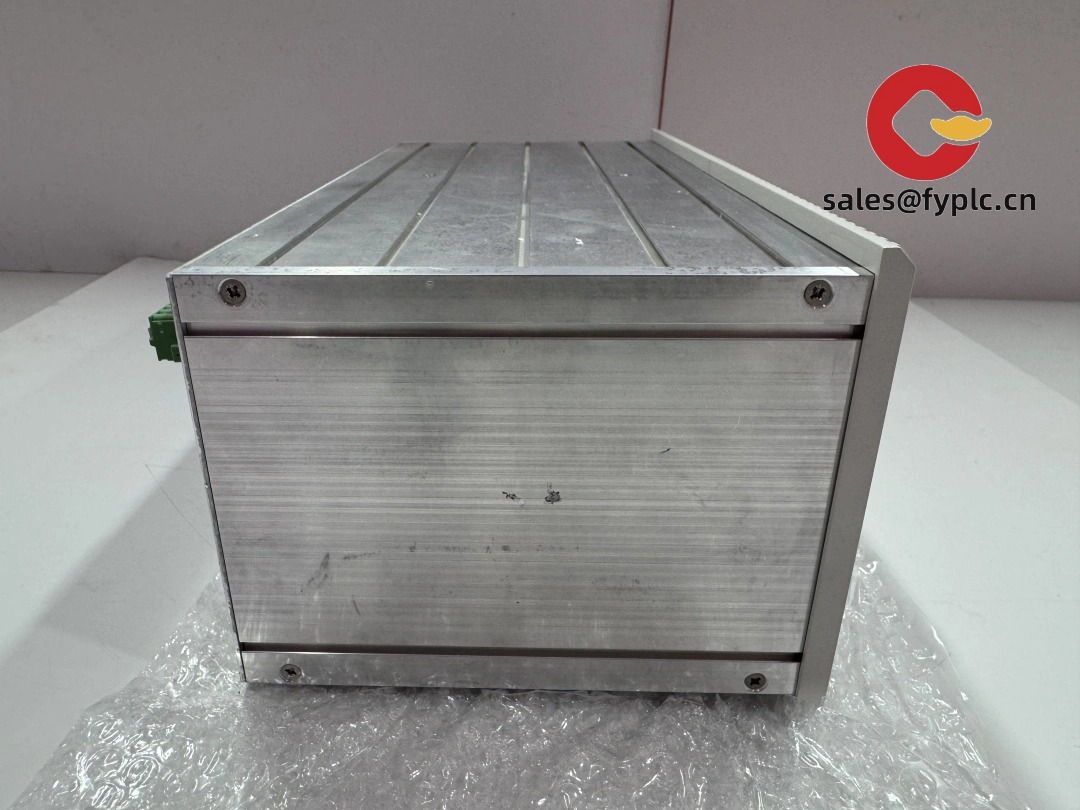

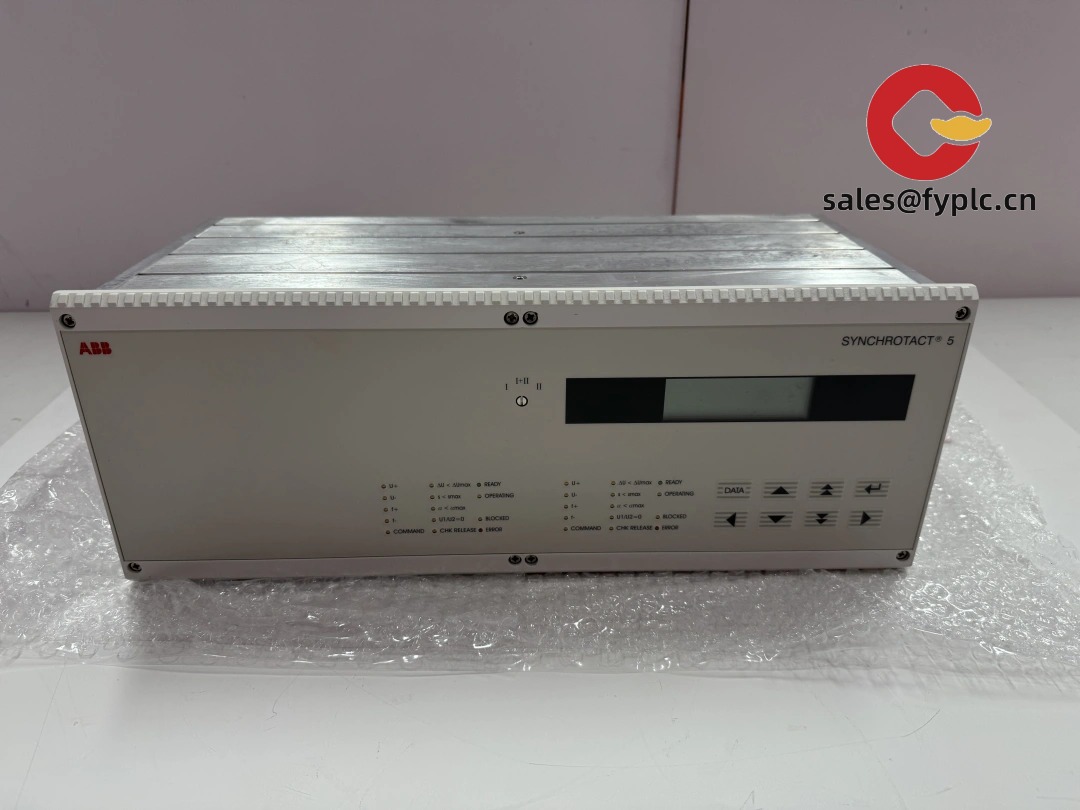

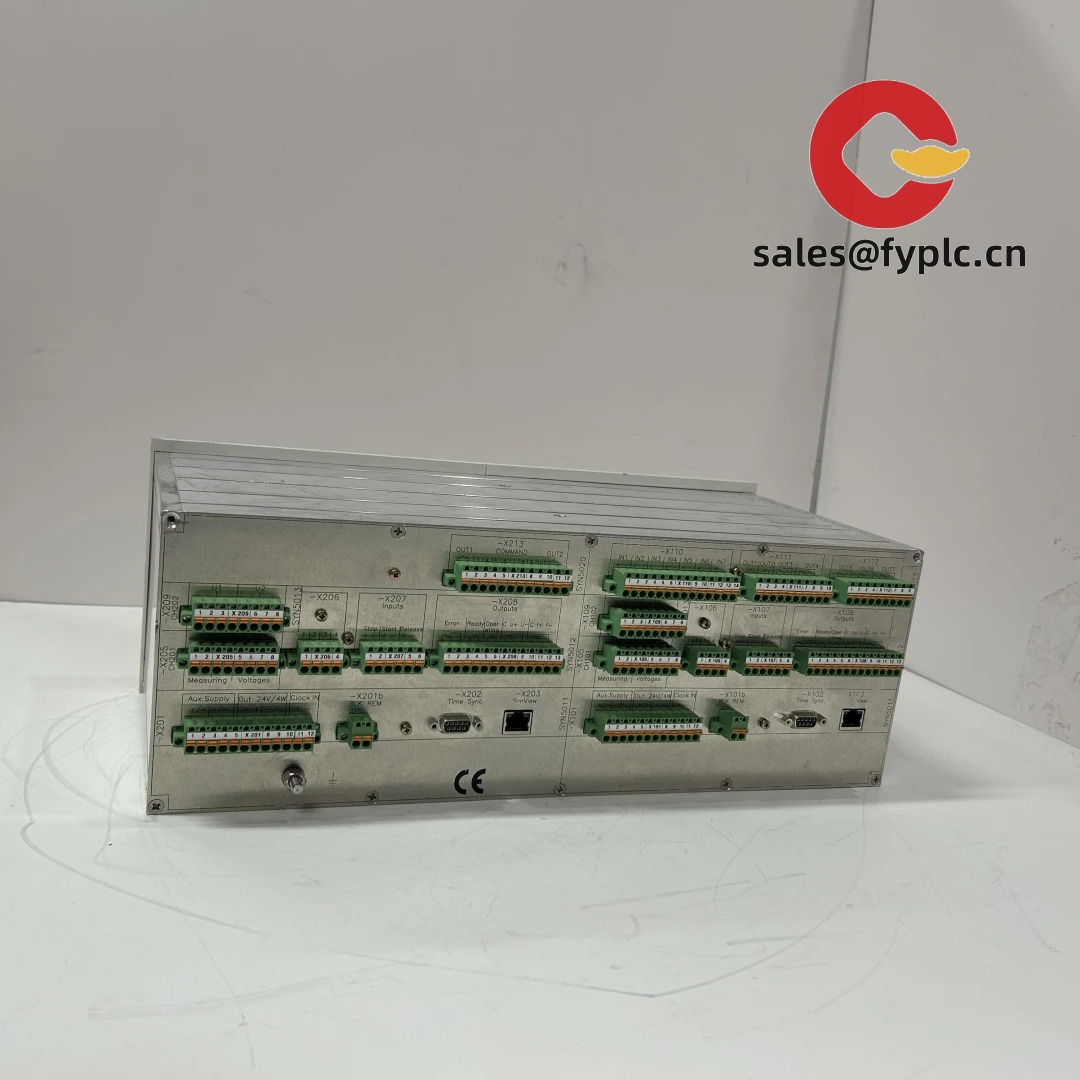

ABB 3BHB006716R0277 (SYN-5302A Z.V277) – Gate/Driver Board for ABB Low-Voltage Drives

The ABB 3BHB006716R0277, labeled as SYN-5302A with revision Z.V277, is a board-level driver/synchronization module typically used inside ABB low-voltage inverter stacks (commonly seen in ACS800 power units, and in some cases compatible with similar families). From my experience, maintenance teams use it as a form-fit-function replacement to restore gating, protection feedback, and interlock reliability after a fault event or age-related degradation.

Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery: 1 week for in-stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

One thing I appreciate is how this board ships in ESD-safe, foam-protected packaging—minimizing handling risks when you’re up against tight downtime windows.

Key Features

• Designed for ABB inverter stacks – Commonly used within ACS800 modules; verify by drive type code for exact slot compatibility.
• Fiber-optic gate signaling – Robust, noise-immune triggering to IGBT modules helps maintain clean switching in high-EMI cabinets.
• Isolated fault/interlock feedback – Feeds protection status back to the control unit to shorten fault-finding time.
• Internal power sourcing – Typically powered by the converter’s low-voltage rails; no separate external supply wiring.
• Form-fit-function replacement – Drop-in board replacement to get a down drive back online faster, in many cases without parameter changes.
• Service-friendly connectors – You might notice the layout supports quick fiber seating and keyed headers to avoid mis-plugs.

Technical Specifications

Application Fields

This board sits in the power section of ABB low-voltage drives used across continuous-process and heavy-duty applications. You’ll see it in:

• Pulp & paper and forestry lines needing stable torque control
• Metals, rolling mills, and annealing lines with high EMI exposure
• Marine auxiliary drives where uptime is critical
• Mining, cement, and aggregates requiring robust gating reliability
• Oil & gas and chemicals with strict interlock and protection feedback needs

A maintenance lead at a paper mill told us their spare SYN-5302A saved a full shift of downtime—one board swap, a quick fiber check, and the ACS800 line was back in regulation before the next reel change.

Advantages & Value

• Reliability – ABB layout and isolation practices help keep switching noise off your control backplane.
• Compatibility – Form/fit/function alignment with the intended inverter slot reduces integration risk.
• Cost containment – A targeted board replacement often avoids a full power unit swap.
• Lead-time balance – Stock-backed supply in many cases; revision-checked before shipment.
• Technical support – Guidance on revision matching, fiber routing, and post-install checks.

Installation & Maintenance

• Environment – Install inside a sealed drive cabinet meeting the OEM’s enclosure rating; ensure clean, dry air and adequate ventilation.
• Safety – Isolate mains, lockout/tagout, and wait for the DC bus to fully discharge before opening the inverter (check the DC bus LEDs/meters).
• ESD care – Use a grounded wrist strap and anti-static mat; handle by edges only.
• Wiring/Fibers – Keep fiber bend radius gentle; verify correct channel mapping and connector seating; avoid crossing power cables.
• Revision check – Match Z.V277 (or approved supersession) to the drive’s parts list; in most cases mixing revisions isn’t advised without guidance.
• Routine upkeep – Quarterly dust removal with dry, oil-free air; visual inspection for discoloration or loose standoffs; firmware/parameter checks done via the main control unit when applicable.

Quality & Certifications

• Manufactured to ABB’s quality standards; typically used within CE/UL certified drive assemblies
• RoHS-compliant components in most cases for this family of boards
• Traceable lot/revision identification on the PCB label
• Warranty: 365 days

If you’re replacing an existing board, sending a photo of the board label and the drive nameplate usually speeds up the compatibility check. You might notice that matching the revision (Z.V277) up front avoids repeat cabinet entries later.
