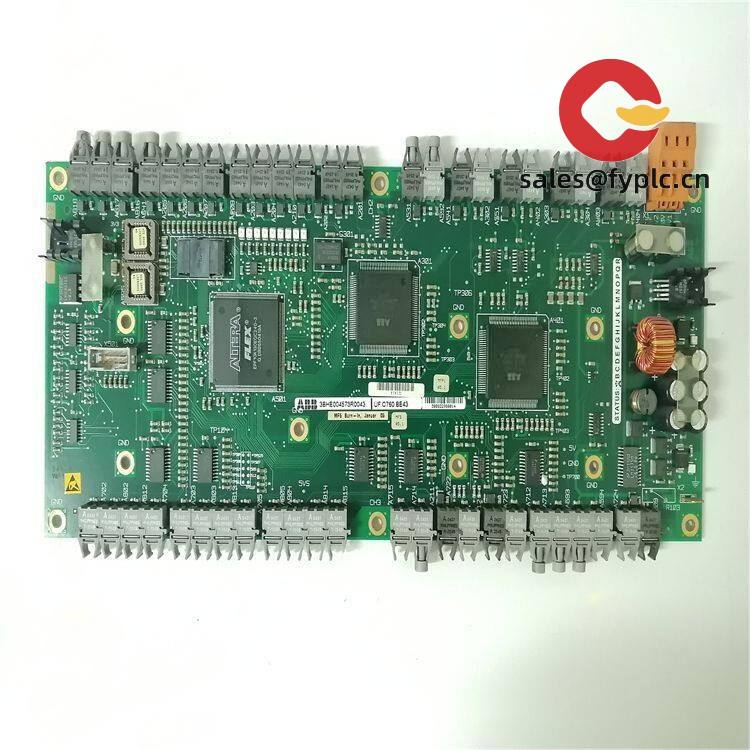

ABB 3BHE004573R0043 – High-Performance AC Motor Drive Module for Industrial Automation

If you’re running a process-heavy facility—like a medium-scale manufacturing line or a pumping station—you’ve probably dealt with drive instability under variable loads. The ABB 3BHE004573R0043 tends to stand out in these environments. It’s not the flashiest module on the rack, but from my experience, it holds up well when temperature swings or electrical noise would trip lesser drives.

Key Features

• Integrated Control & Power Stage: Combines control logic and power electronics in one compact unit—reduces cabinet footprint and wiring complexity, especially useful in retrofits where space is tight.
• Digital I/O Flexibility: Offers multiple programmable digital inputs and relay outputs. One thing I appreciate is how easily it can interface with legacy PLCs without needing signal converters.
• Fieldbus Ready: Supports common protocols like Modbus RTU over RS-485. In many cases, this eliminates the need for additional communication modules, cutting down integration time.
• Thermal Resilience: Designed to operate reliably up to 50°C ambient, provided there’s basic ventilation. You might notice that some competitors start derating earlier, which could affect performance during summer peaks.
• Built-in Safety Functions: Includes safe torque off (STO) as standard—helps meet basic safety requirements in machinery without external relays.

Technical Specifications

Application Fields

This module typically shows up in water treatment plants driving centrifugal pumps, where soft-start and energy-efficient operation matter. It’s also used in conveyor systems across packaging lines—especially where speed adjustment is needed mid-process. From what I’ve seen, it’s less common in high-torque applications like crushers, so it seems better suited for constant-voltage-variable-frequency tasks rather than heavy cyclic loading.

Advantages & Value

Procurement teams often favor this model because of its compatibility with existing ABB drive families—no need to retrain technicians or stock entirely new spare parts. While not the cheapest on the market, the long-term reliability tends to reduce downtime costs. Firmware updates are handled through standard tools like DriveWindow Light, which most maintenance crews already have access to. And since ABB still actively supports this series, finding documentation or configuration files isn’t a scavenger hunt.

Installation & Maintenance

Mounting requires a grounded metal surface or DIN rail setup with adequate airflow—don’t stack it directly next to transformers or VFDs generating harmonic noise. Keep at least 50 mm clearance on both sides. Wiring should use shielded cables for analog signals, especially if routed near power lines. For maintenance, a visual inspection every six months helps catch dust buildup. Calibrate the current sensors annually if used in precision flow control. Firmware updates are recommended when addressing known bugs—ABB usually publishes patch notes with clear impact summaries.

Quality & Certifications

Certified to CE, UL 508C, and RoHS standards—meets typical export compliance needs for North America, EU, and Asia-Pacific regions. Built under ISO 9001-controlled processes at ABB facilities. Comes with a standard 365-day warranty against manufacturing defects. No labor coverage unless installed by authorized personnel, so keep your installation logs handy.

Order Notes: Delivery within 1 week if in stock; otherwise, no later than 4 weeks. Payment: 50% upfront, balance before shipment. Shipped via FedEx, UPS, or DHL based on destination. We don’t ship to P.O. boxes.
