Description

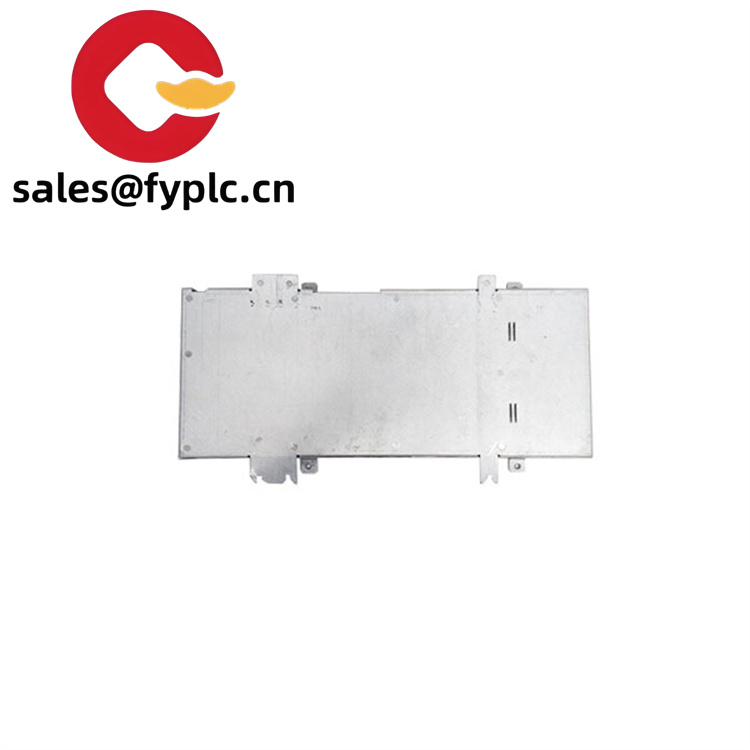

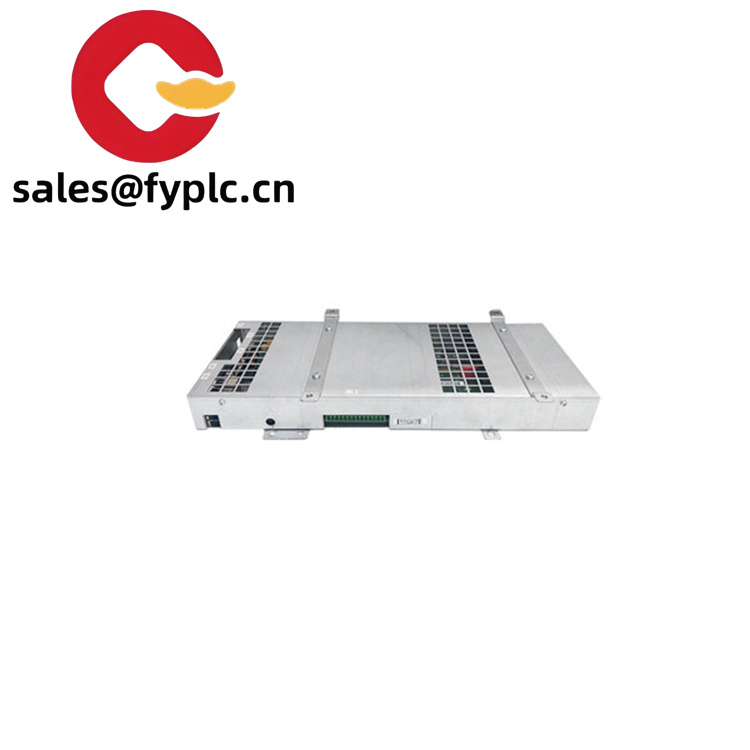

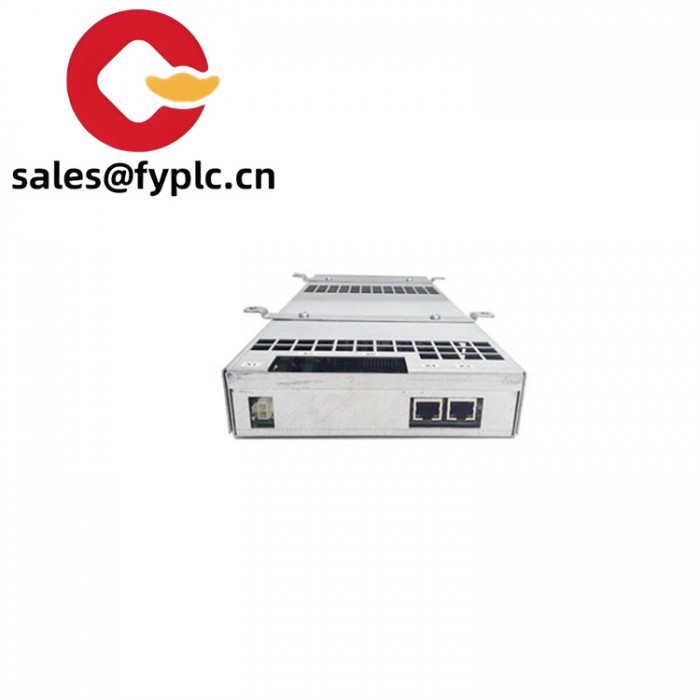

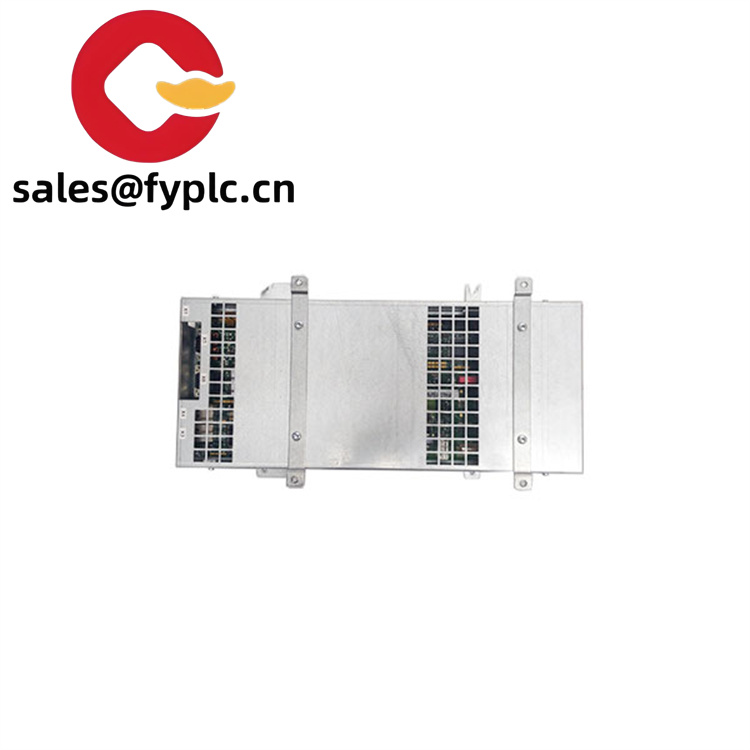

ABB 3HAC026271-001 Relay Controller PLC Module
3HAC026271-001
The ABB 3HAC026271-001 is a critical robotic control module designed to serve as the operational backbone for ABB’s industrial robot systems. As a key component in the brand’s renowned IRC5 and OmniCore controller ecosystems, this module manages real-time communication between robot arms, end-effectors, and upstream control systems, ensuring seamless coordination in high-precision tasks. Whether deployed in automotive assembly, electronics manufacturing, or logistics automation, the ABB 3HAC026271-001 delivers the reliability and responsiveness needed to keep complex robotic workflows running smoothly.
|
Label
|
Specification
|
|
Model Number
|
3HAC026271-001
|
|
Brand
|
ABB
|
|
Type
|
Robotic Control Module
|
|
Input Voltage
|
24 VDC (±10%)
|
|
Operating Temp
|
0°C to 40°C (32°F to 104°F)
|
|
Communication Method
|
EtherCAT, PROFINET, ABB Robot Communication Interface (RCI)
|
|
Mounting
|
Panel-mounted (compatible with ABB IRC5/OmniCore controller cabinets)
|
|
Weight
|
0.85 kg (1.87 lbs)
|
|
Certifications
|
CE, UL, RoHS
|
|
Dimensions
|
120mm x 85mm x 35mm (W x H x D)
|
|
IP Rating
|
IP20 (internal cabinet mounting)
|
|
Protocols Supported
|
OPC UA, Modbus TCP, ABB Fast Signal Interface (FSI)
|
The ABB 3HAC026271-001 stands out for its robust signal processing capabilities, particularly in environments where multiple robots operate in close proximity. Its advanced noise filtering reduces electromagnetic interference (EMI) from nearby motors or welders, ensuring clean data transmission even in electrically noisy factory floors. This module also features redundant communication channels—a critical design choice that minimizes single points of failure; if one channel falters, the 3HAC026271-001 automatically switches to the backup, preventing unplanned downtime.
- 3HAC028357-001 – A high-power variant of the 3HAC026271-001, designed for heavy-duty robots handling payloads over 50kg.
- 3HAC031683-001 – An I/O expansion module that pairs with the 3HAC026271-001 to add 16 digital inputs/outputs for end-effector control.
- 3HAC044099-001 – A safety-rated control module that works alongside the 3HAC026271-001 in collaborative robot (cobot) setups, supporting ISO 10218 compliance.
- 3HAC050673-001 – A temperature-hardened version optimized for use with the 3HAC026271-001 in foundries or heat-treated parts manufacturing.
- 3HAC064212-001 – A wireless communication adapter that extends the 3HAC026271-001’s connectivity for robots in large-scale warehouses.
