ABB 500BIO01 (Order Code: 1MRB150005R0001; Variant: 1MRB200060-E) – Baseplate I/O Module for ABB Industrial Drives

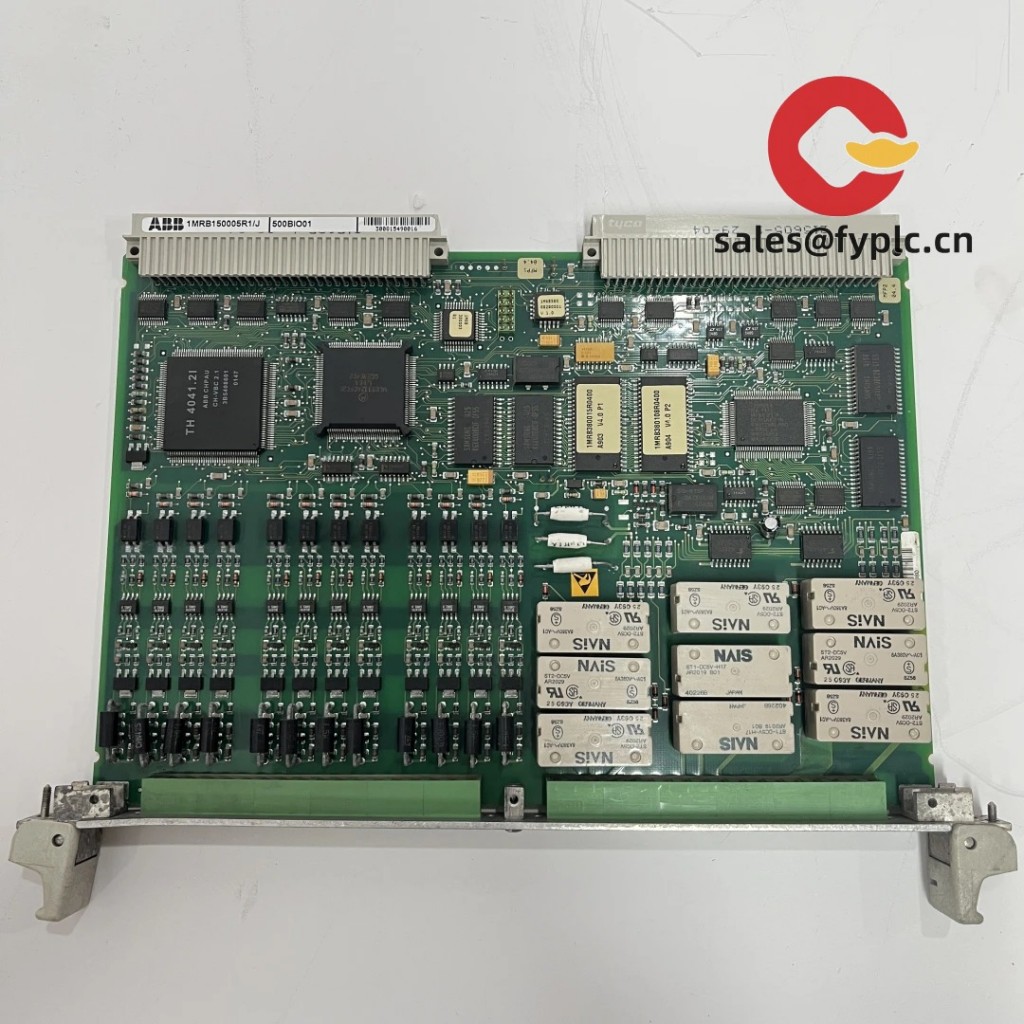

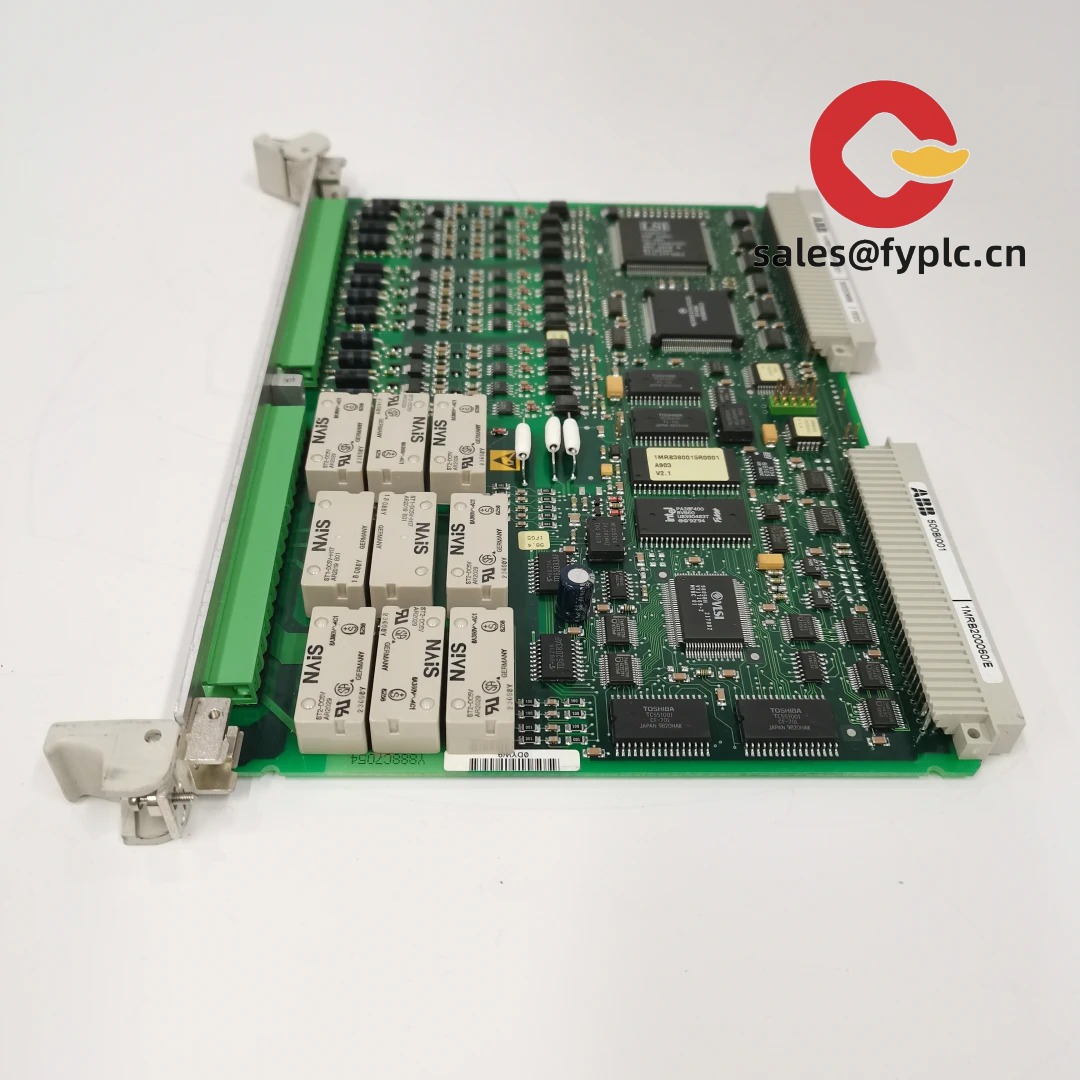

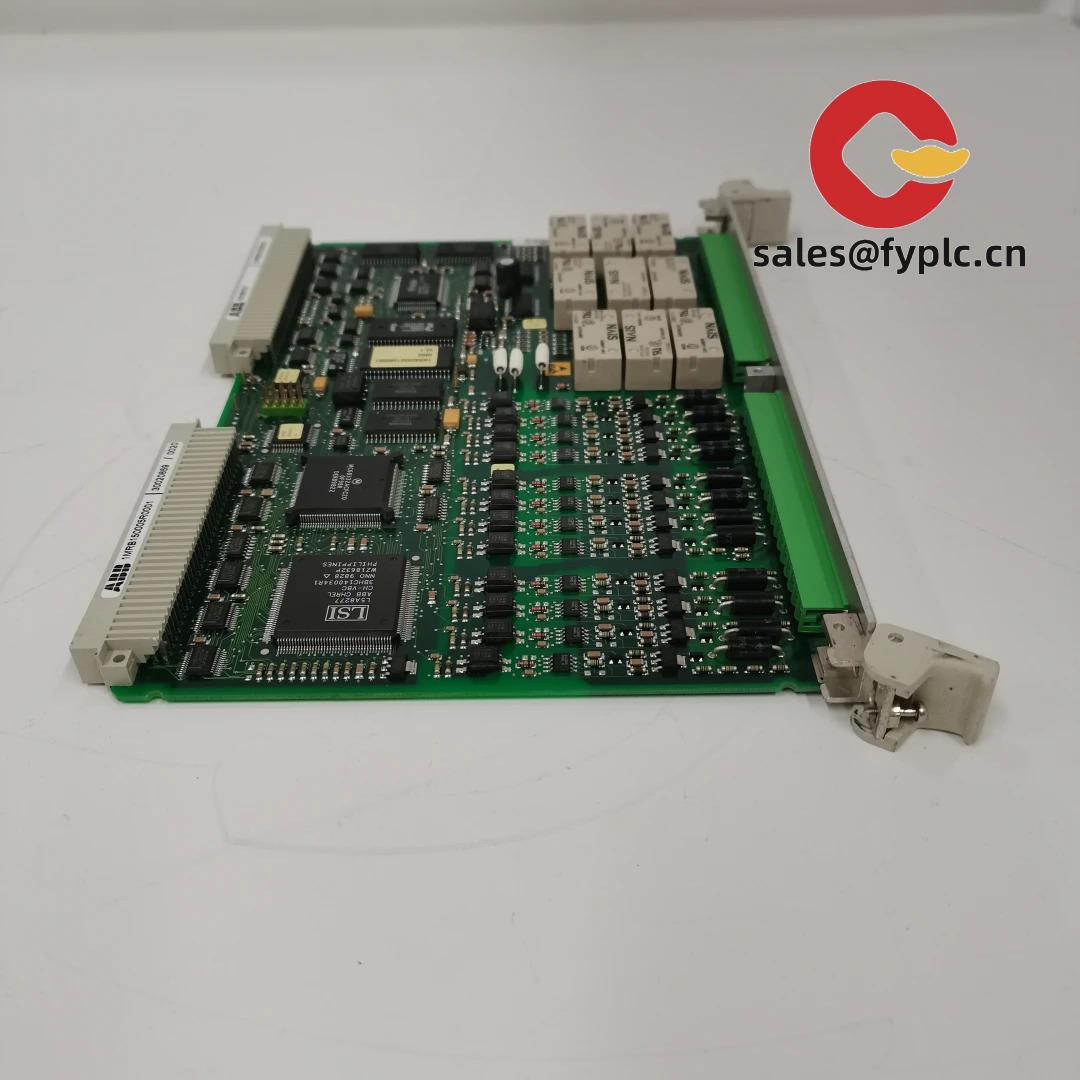

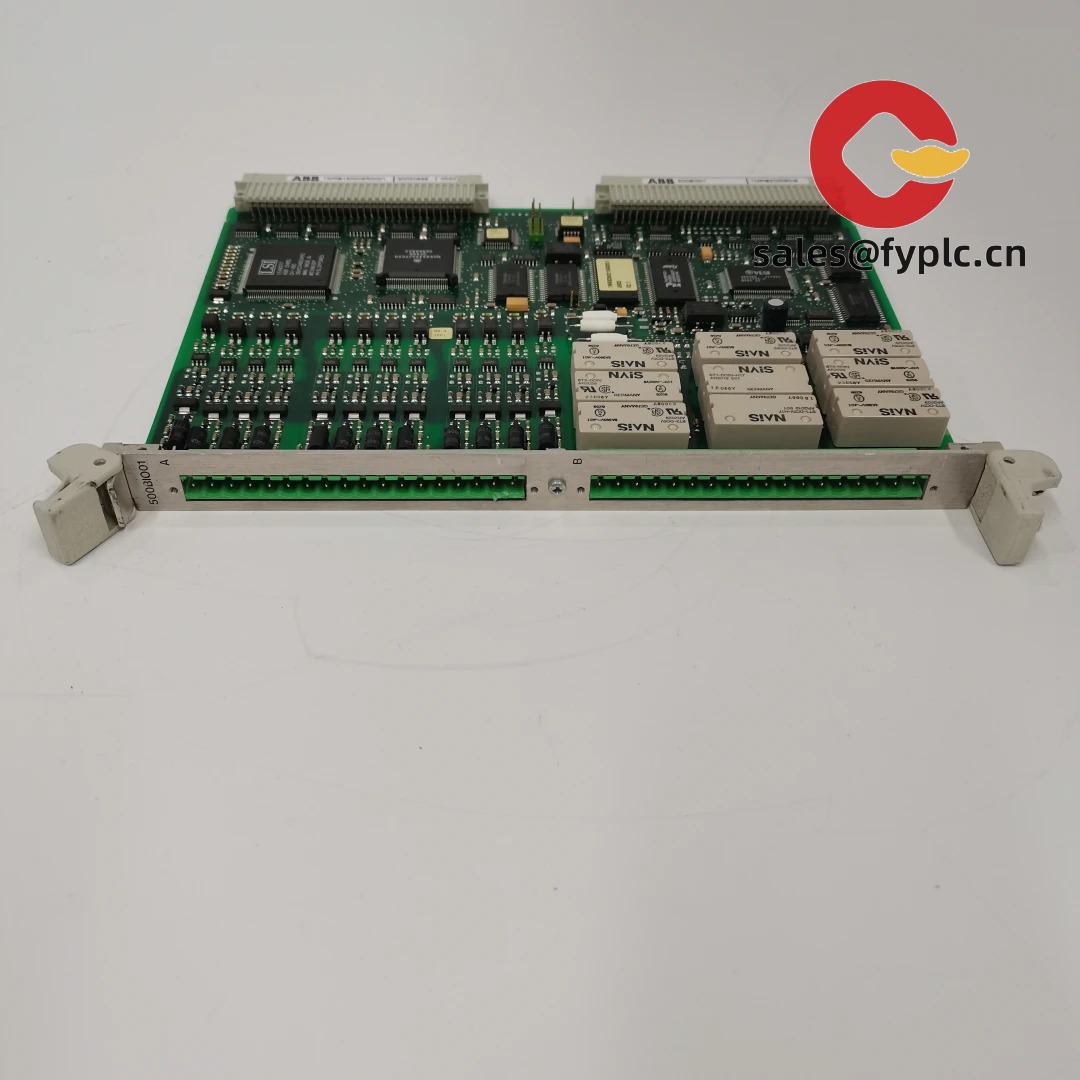

The ABB 500BIO01, supplied as order code 1MRB150005R0001 (with engineering/variant code 1MRB200060-E), is a baseplate I/O module used inside ABB drive cabinets. From my experience, this board bridges your field wiring—limit switches, interlocks, analog feedback—to the drive control core, so keeping it healthy directly affects start/stop chains and alarm stability. One thing I appreciate is the service-friendly layout: connectors and mounting points seem to be arranged for quick, like-for-like replacement during a short maintenance window.

Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment method: 50% advance payment; full payment prior to delivery
• Express delivery methods: FedEx / UPS / DHL
• Pre-check: Share a photo of the drive nameplate and the module label; it typically speeds up compatibility confirmation.

Key Features

• Baseplate-mounted I/O interface – Connects field DI/DO and analog signals to the drive controller for clean signal transfer.
• Drop-in spare part – Like-for-like module that usually preserves wiring and parameters, minimizing commissioning time.
• Stable signal conditioning – Helps eliminate nuisance trips from aging boards or oxidized connectors.
• Backplane connectivity – Mates with internal ABB backplane; external fieldbus is handled by dedicated adapters when required.
• Service-friendly design – Keyed connectors and clear board labeling support fast changeouts during planned shutdowns.
• Lifecycle extension – Keeps installed ABB drives in service without a cabinet overhaul.

Technical Specifications

Application Fields

Common in ABB AC/DC drive systems across metals processing, paper & converting, mining conveyors, oil & gas pumping, cranes/hoists, and general factory automation. A typical case is intermittent start-permit drops or noisy analog feedback after long service—replacing the 500BIO01 often stabilizes the chain without touching PLC logic or field wiring routes.

Advantages & Value for Procurement

• Reliability – Restores consistent I/O behavior, reducing nuisance trips and downtime.
• Compatibility – Intended for ABB industrial drive families; we verify part labels and host drive type to avoid mismatches.
• Cost efficiency – Board-level replacement is typically far cheaper than cabinet retrofits and limits re-commissioning work.
• Faster recovery – Drop-in mechanics and keyed connectors help maintenance teams finish within a tight outage window.
• Technical support – Guidance on parameter backups, signal mapping checks, and firmware alignment where applicable.

Installation & Maintenance

• Cabinet environment – Install in a clean, dry, ventilated enclosure. Keep ambient within 0…55 °C; avoid condensation and conductive dust.
• Safety – Lockout/tagout the drive, wait for DC bus discharge, and verify zero energy before handling.
• ESD protection – Use an antistatic wrist strap and handle the board by its edges.
• Connections – Fully seat backplane/edge connectors; check PE bonding and secure any field terminals to the specified torque.
• Commissioning checks – Validate DI/DO logic, analog scaling, and all interlock chains; run a controlled trial with alarms monitored.
• Routine care – Annual dust removal, connector re-seating, and event-log review; update drive firmware when recommended by ABB.

Quality & Certifications

• CE compliance applies at the complete drive system level; this module is a component within that system.
• UL recognition typically at the drive assembly level.
• RoHS compliance for ABB electronic spare parts in many cases.
• Manufactured under ISO 9001 quality systems at the OEM level.
• Warranty: 12 months (365 days) against functional defects under normal use.

Related / Supporting Components

Depending on the drive family, this module is often paired with controller boards and fieldbus adapters. For example, 500BIM01 (baseplate I/O module variant) or dedicated ABB PROFIBUS/PROFINET adapters may be present. Share the drive type code and frame size and we’ll suggest the exact matching parts to keep the signal chain consistent.
