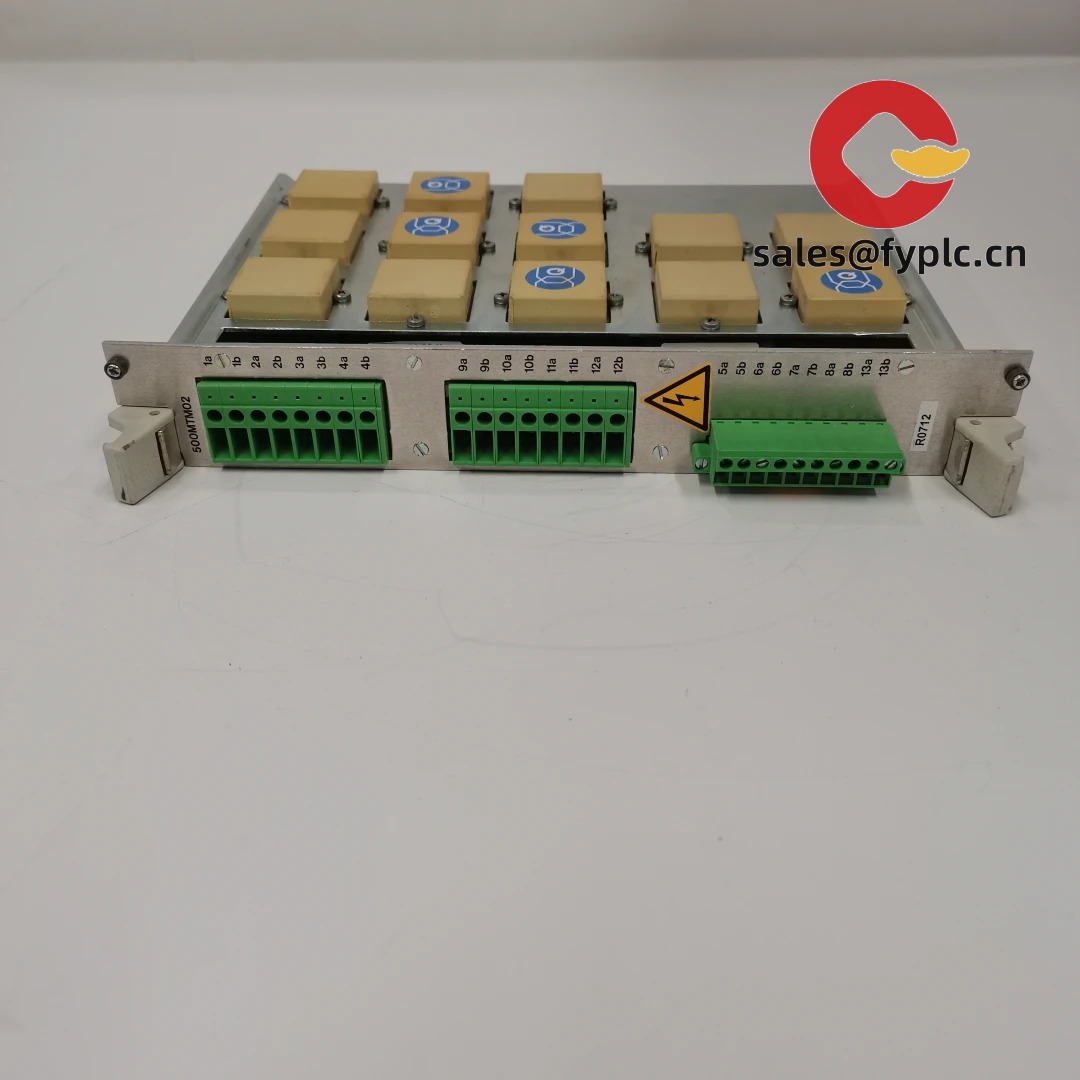

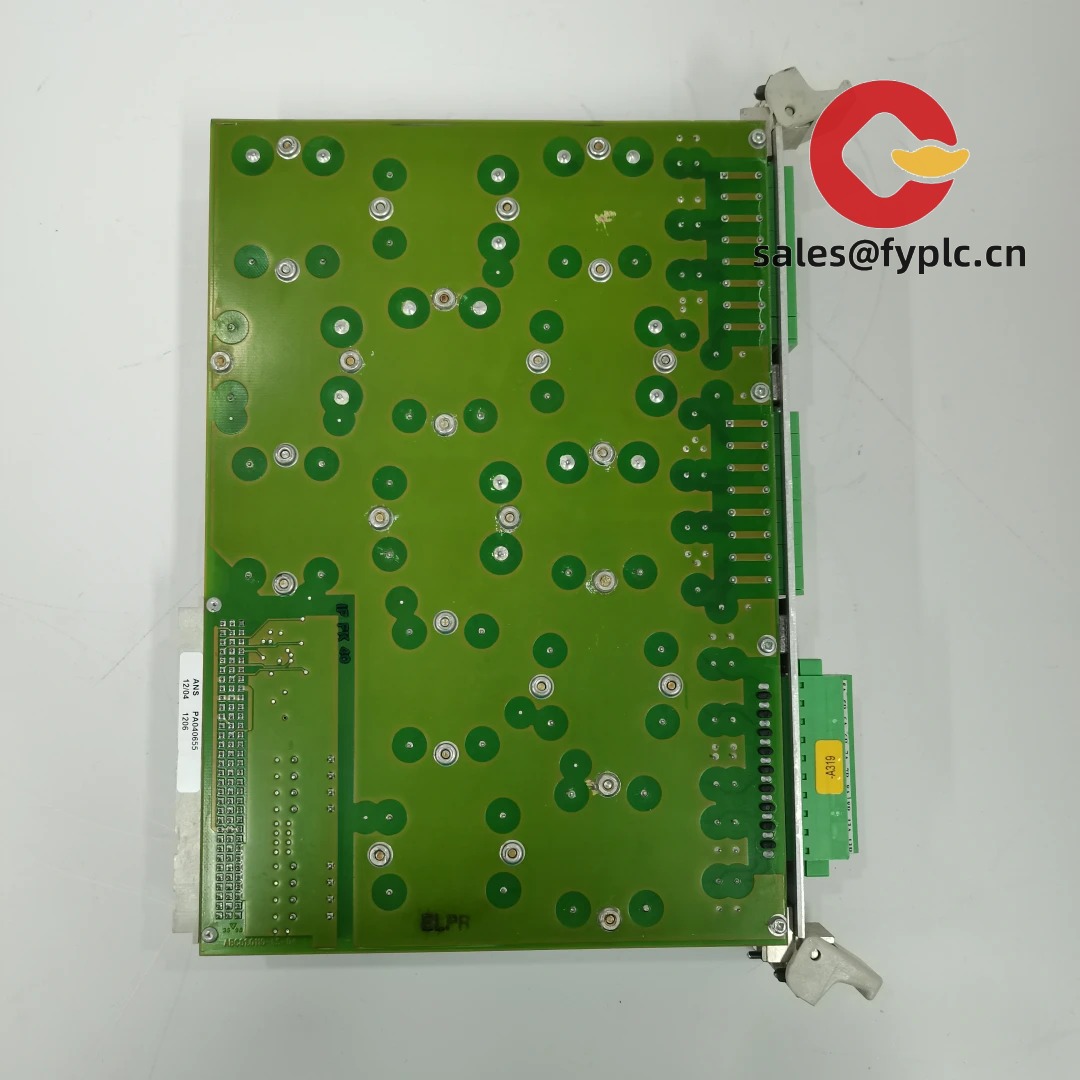

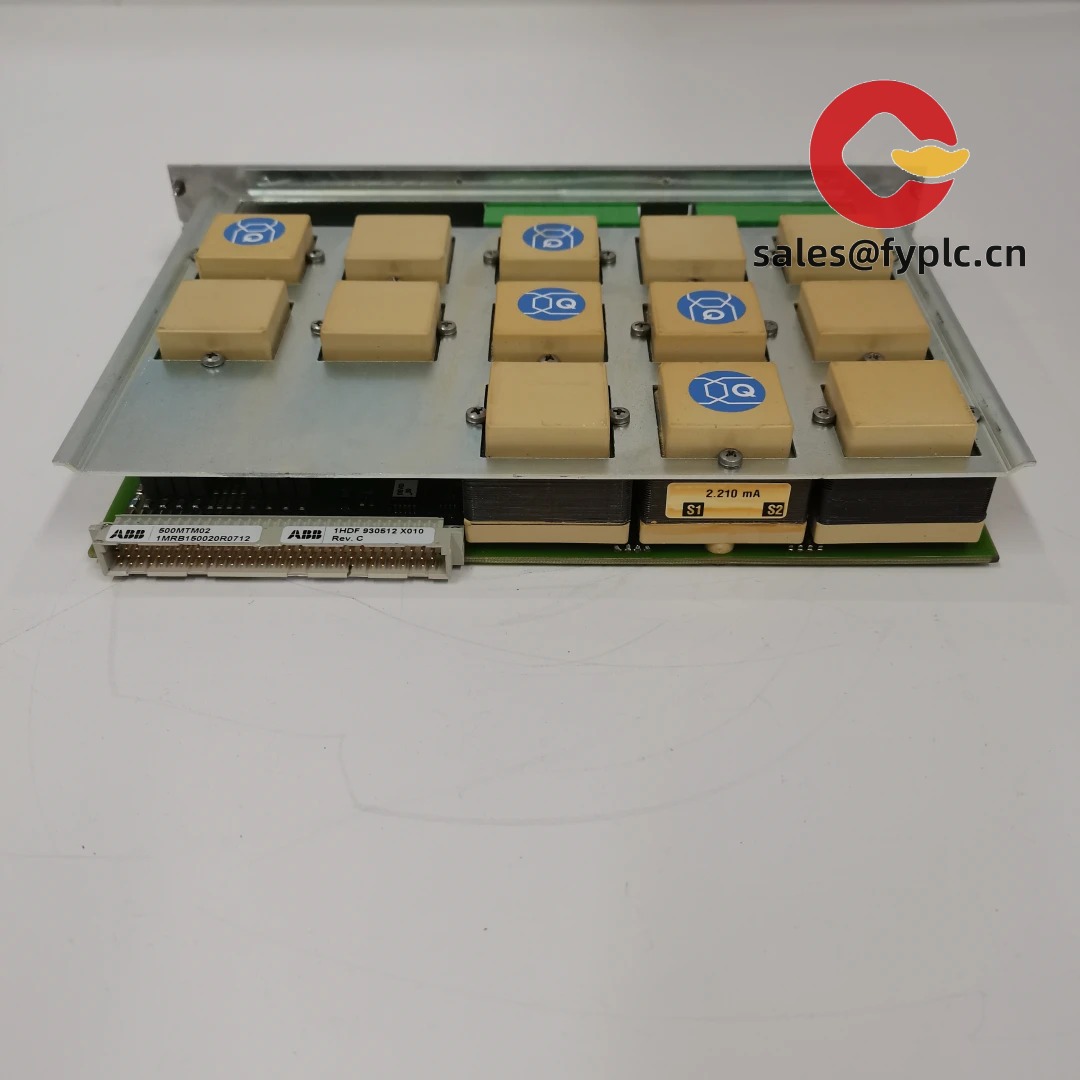

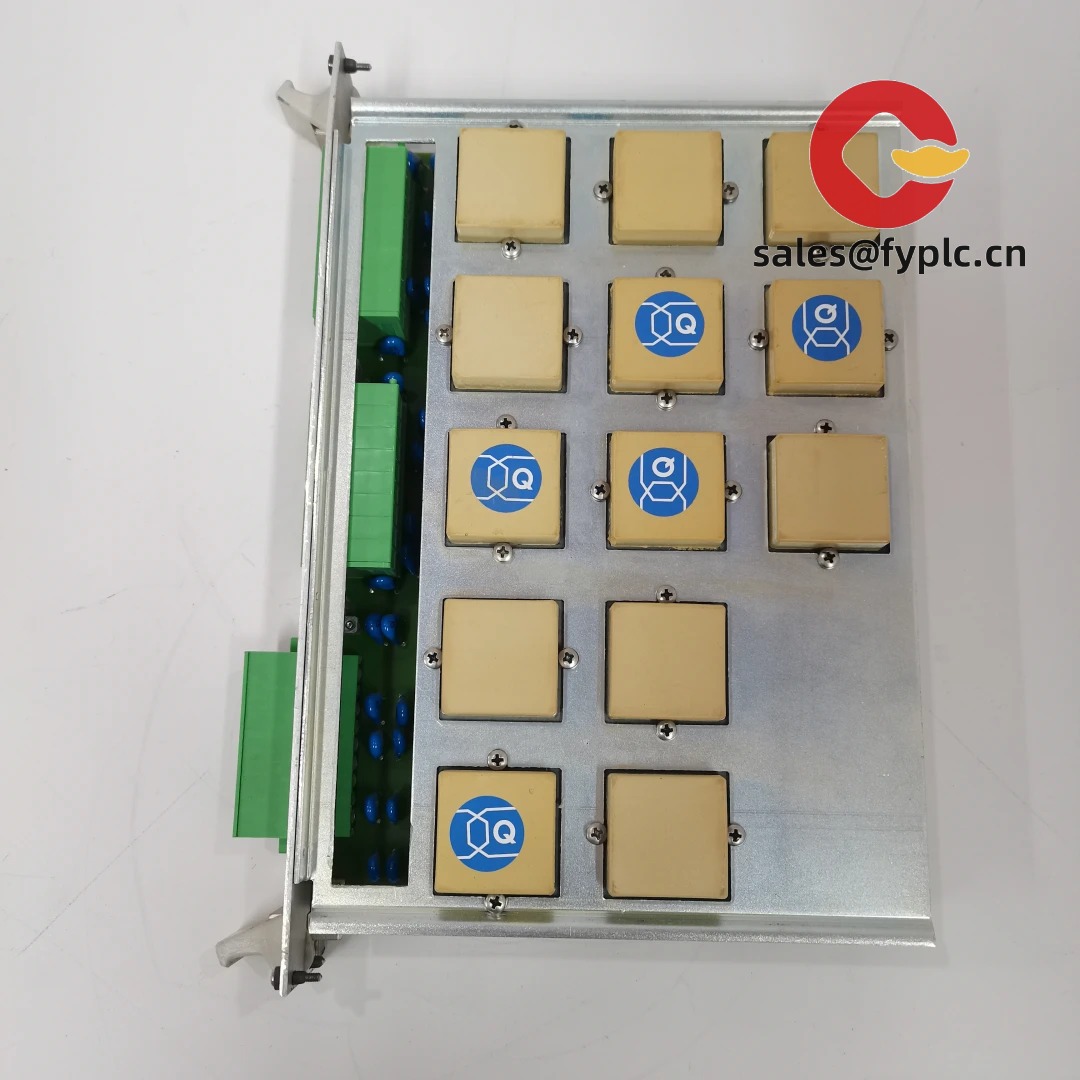

ABB 500MTM02 (Order Code: 1MRB150020R0712; Eng. Ref: 1HDF-930512-X010) – Measurement/Terminal Module for ABB Drive Systems

The ABB 500MTM02, supplied under order code 1MRB150020R0712 (engineering reference 1HDF-930512-X010), appears to be the measurement/terminal module that conditions field signals for the drive controller. From my experience, modules in the MTM family handle the “real-world” side—temperature inputs, analog feedbacks, and discrete status—so when they’re fresh, start/stop chains and protection thresholds behave consistently. You might notice the layout is service‑friendly; the keyed headers and standoffs make like‑for‑like replacement quick during a planned stop, which keeps downtime under control in most cases.

Company’s Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment method: 50% advance payment; full payment for delivery
• Express delivery methods: FedEx / UPS / DHL
• Compatibility check: Share the drive nameplate and a photo of the board label—this typically locks the right revision on the first pass.

Key Features

• Measurement/terminal interface – Conditions field signals for the CPU board; typically used for temperature, analog feedback, and discrete status.
• Drop‑in spare – Like‑for‑like replacement that usually preserves wiring and parameterization.
• Signal stability – Helps resolve nuisance trips traced to noisy or drifting measurement inputs on aged hardware.
• Backplane connectivity – Mates with ABB’s internal connectors for deterministic updates to the control core.
• Service‑friendly design – Keyed plugs, clear labeling, and accessible mounting points speed up changeouts.
• Lifecycle extension – A practical way to stabilize legacy drive cabinets without a full retrofit project.

Technical Specifications

Application Fields

Used across ABB AC/DC drive systems for continuous processes—metals lines, paper & converting, mining conveyors, oil & gas pumps and compressors, cranes/hoists, and general factory automation. A typical case is a line with intermittent “start permit” drops or temperature alarm chatter that only shows after heat soak; swapping 500MTM02 usually restores stable measurement paths without changing PLC logic or motor wiring.

Advantages & Value for Procurement

• Reliability – Restores clean, repeatable measurement signals, cutting nuisance trips and unplanned stops.
• Compatibility – Intended for ABB drive families; we verify part label, revision, and host type so it fits right the first time.
• Cost control – Board‑level maintenance is typically far cheaper than cabinet retrofits and shortens recommissioning.
• Predictable downtime – Drop‑in mechanics keep the changeout inside a tight maintenance window.
• Technical backup – Guidance on parameter backups, scaling checks, and post‑swap validation to lower risk.

Installation & Maintenance

• Cabinet environment – Clean, dry, ventilated enclosure (IEC/UL compliant). Keep ambient 0…55 °C; avoid condensation and conductive dust.
• Safety & isolation – Lockout/tagout the drive, wait for DC bus discharge, and verify zero energy before handling.
• ESD precautions – Use a wrist strap and handle by PCB edges; avoid touching component pins.
• Connections – Seat all backplane/edge connectors fully; confirm PE/ground bonding and cable strain relief.
• Checks after swap – Validate DI/DO logic, analog scaling, and temperature thresholds; run a controlled ramp while monitoring alarms.
• Routine care – Annual dust removal, connector inspection/re‑seating, and event‑log review; align drive firmware per ABB guidance.

Quality & Certifications

• Used within CE‑marked drive assemblies; the module forms part of the certified system.
• UL recognition typically at the complete drive level.
• RoHS‑compliant electronic components in many cases for ABB spares.
• Manufactured under ISO 9001 quality systems at the OEM level.
• Seller warranty: 12 months (365 days) against functional defects under normal operation.
