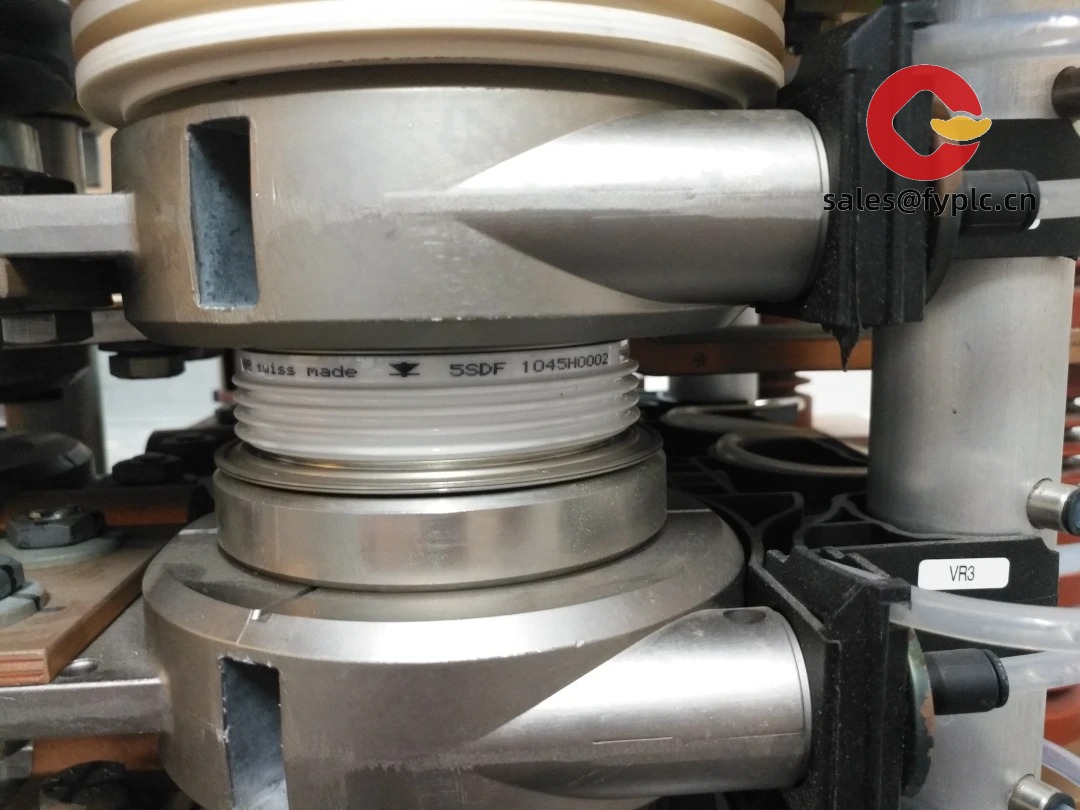

ABB 5SDF1045H0002 – Press‑Pack Fast Recovery Diode (StakPak style) for MV Drives and Converter Stacks
ABB’s 5SDF1045H0002 appears to be a press‑pack fast recovery diode commonly used as a freewheel or rectifier element in medium‑voltage converter stacks. From my experience, plants keep this device on hand when they’re refreshing a position in an inverter/rectifier leg and want predictable reverse‑recovery behavior and solid thermal performance without re‑engineering the stack. One thing I appreciate is the press‑pack construction—no wire bonds, uniform pressure contact—which typically handles thermal cycling better in tough applications.
Company’s Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in‑stock; no more than one month at the latest
- Payment method: 50% advance payment, full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
- Process: Confirm model and quantity → Proforma Invoice → Advance payment → Functional testing and packing → Final payment → Express shipment with tracking
Key Features
- Press‑pack (clamped) design – Uniform current path and robust thermal cycling; no wire bonds to fatigue.
- Fast recovery behavior – Suited for MV converter legs as a freewheel or rectifier diode where low Qrr helps reduce losses.
- StakPak compatibility – Typically used with ABB stack hardware, spacers, and insulators for quick like‑for‑like service.
- High dv/dt capability – Designed for noisy electrical environments with demanding commutation.
- Service‑friendly – Clamped assembly means no soldering; device replacement during a planned stop is usually straightforward.
Technical Specifications
| Brand / Model | ABB – 5SDF1045H0002 (Press‑pack fast recovery diode) |
| HS Code | 854110 (Silicon diodes, other than photosensitive) |
| Power Requirements | Not applicable (passive device; operates within the converter’s DC link/phase leg) |
| Dimensions & Weight | Press‑pack disk package; large‑diameter contact faces; weight typically 0.3–0.6 kg depending on build |
| Operating Temperature | Junction limits per ABB datasheet (often up to 125–150 °C); install in ventilated, rated MV cabinets |
| Terminals / I/O | Press‑pack anode/cathode contact faces; no gate/control pins; often includes test pad for identification only |
| Communication Interfaces | None (semiconductor device) |
| Installation Method | Clamped in the power stack between heat sinks; use specified clamping force and insulation hardware |
Application Fields
You’ll typically see 5SDF1045H0002 in high‑power converter positions where reliable freewheel/rectification is essential:
- Medium‑voltage variable‑speed drives for pumps, fans, and compressors
- Industrial converters in metals, mining, cement, and chemicals
- Wind/energy converters and large rectifier bridges
- Stack refurbishments and lifecycle extensions during planned outages
Advantages & Value
- Reliability: Press‑pack structure typically rides through thermal cycles better than plastic packages in many cases.
- Compatibility: Like‑for‑like replacement maintains existing spacers, busbars, and cooling hardware.
- Predictable performance: Fast recovery helps keep switching losses and dv/dt stress under control.
- Procurement practicality: Sourcing the exact ABB code avoids mismatched recovery/voltage ratings and requalification delays.
“We replaced a freewheel position with 5SDF1045H0002 during a stack refresh. Thermal scans look cooler and the inverter stopped logging sporadic reverse‑recovery alarms.” — Maintenance lead, minerals processing MV drive room
Installation & Maintenance
- Clamping & mechanics: Apply OEM‑specified clamping force with a calibrated fixture; ensure flat, clean heat‑sink faces and correct insulator stack‑up.
- Thermal path: Use the recommended interface material; torque busbar hardware evenly and re‑check after the first thermal cycle if required.
- Electrical safety: LOTO; allow the DC link to fully discharge; observe ESD precautions when handling semiconductors.
- System checks: Verify snubber health and commutation layout; scope low‑load starts to confirm clean recovery and acceptable dv/dt.
- Routine care: Keep airflow paths clean; perform periodic thermal imaging under load and review trip logs for early warnings.
Quality & Certifications
- Manufacturing quality: Produced under ISO 9001 processes (typical for ABB power semiconductors).
- Compliance: Intended for integration inside CE/UL compliant converter systems; RoHS status depends on production year.
- Warranty: 365‑day warranty from shipment date.
Share your converter type, stack position, and the existing device ratings, and we’ll double‑check interchangeability for 5SDF1045H0002 and prepare a brief blocking‑voltage/leakage and case‑insulation test report before dispatch.
