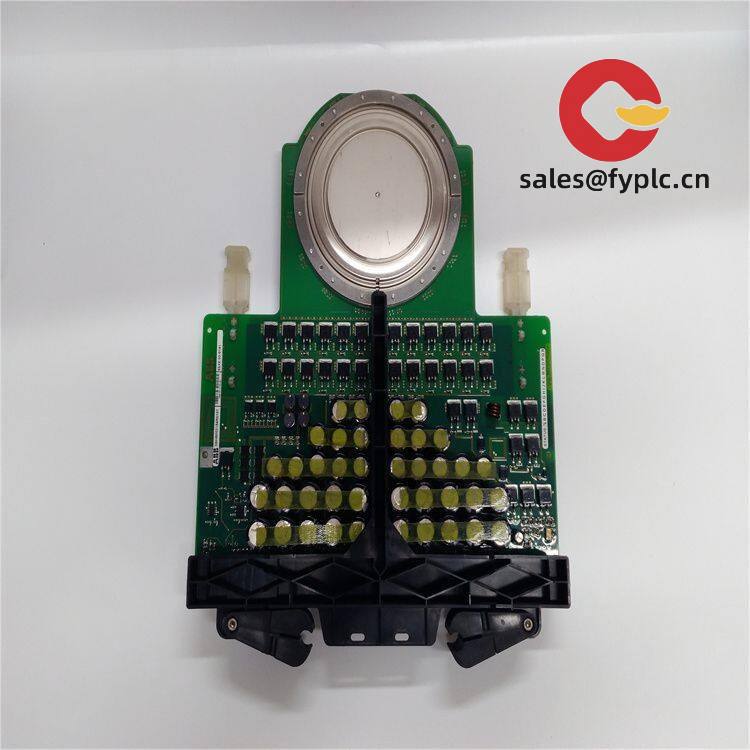

ABB 5SGY3545L0003 IGCT Module – High‑power press‑pack switching for medium‑voltage converters

The ABB 5SGY3545L0003 is an IGCT (Integrated Gate‑Commutated Thyristor) press‑pack device engineered for demanding medium‑voltage applications—think large drives, traction converters, and grid‑support systems where low losses and rugged turn‑off capability really matter. One thing I appreciate is how the press‑pack design typically delivers predictable thermal paths and a fail‑short mode that’s often preferred when stacking devices in series. From my experience, this kind of module fits best where uptime and serviceability are top priorities.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment terms: 50% advance payment, full payment before delivery
• Express options: FedEx, UPS, DHL
• Each unit is visually inspected and packed with ESD-safe materials; test reports can be shared where available.

Key Features

• IGCT press‑pack architecture: Clamped, hermetic package for low inductance and robust thermal conduction.
• High‑power switching: Suitable for medium‑voltage drives and converters that demand low conduction loss and strong turn‑off capability.
• Predictable failure mode: Press‑pack devices typically fail short, which in many cases simplifies series string protection strategies.
• Serviceability: No solder fatigue in the current path; clamped contacts ease replacement during scheduled outages.
• Gate control flexibility: Works with external IGCT gate units; short, low‑inductance gate leads help achieve clean turn‑off.
• Thermal performance: Flat, lapped faces support efficient heat‑sink coupling for air or liquid‑cooled stacks.
• Traceability: ABB’s batch and serial identification supports maintenance logging and fleet management.

Technical Specifications

Brand / Model	ABB 5SGY3545L0003
Device Type	IGCT (Integrated Gate‑Commutated Thyristor), press‑pack
HS Code	8541.30 (Thyristors, including SCRs)
Voltage / Current Class	Medium‑voltage, high‑current class; commonly used in 4.5 kV‑class stacks and multi‑kA applications
Main Terminals	Anode, Cathode (press‑pack); Gate/Cathode control connection
Signal I/O Types	Gate drive input (external gate unit), no user data interface
Communication Interfaces	None (device‑level semiconductor)
Installation Method	Clamped between heat sinks/busbars with specified force; low‑inductance gate wiring
Cooling Approach	External heat sink; air or liquid cooling as per stack design
Compliance	RoHS; manufactured under ISO 9001 / ISO 14001 systems

Application Fields

You’ll typically see the 5SGY3545L0003 in high‑duty power conversion where switching robustness and low conduction loss are essential:

• Medium‑voltage drives for mining, cement, steel and marine propulsion
• Traction converters and auxiliary power converters on rolling stock
• FACTS and grid support (STATCOM, SVC), and in some cases HVDC sub‑systems
• Large wind turbine converters and utility‑scale energy storage interfaces
• High‑power UPS and industrial power conditioning

A maintenance lead from a cement plant told me their IGCT‑based MV drives “run cooler under similar load” compared with previous modules, and downtime dropped because the clamped units are straightforward to swap during planned stops.

Advantages & Value

• Reliability in series stacks: Press‑pack structure and fail‑short behavior aid protection coordination in many MV designs.
• Compatibility: Designed to operate with ABB IGCT gate units and common snubber networks used in 4.5 kV‑class stacks.
• Lower service costs: No solder fatigue in the current path; re‑clamping is typically faster than re‑soldering module leads.
• Traceable sourcing: Genuine ABB parts with batch traceability support audits and long‑term fleet management.
• Technical support: We can share mounting notes, clamping guidance, and gate wiring best practices to speed commissioning.

Installation & Maintenance

• Cabinet & environment: Use an IP‑rated enclosure with clean airflow; maintain clearances suitable for MV insulation levels.
• Heat‑sink preparation: Ensure flat, lapped surfaces; apply a thin, uniform thermal compound; avoid particulate contamination.
• Clamping force: Use a calibrated fixture or hydraulic press to achieve the manufacturer‑specified force; tighten in stages and cross‑pattern.
• Gate wiring: Keep the gate/cathode loop short and low‑inductance; follow the gate unit’s recommended coax or twisted‑pair practice.
• Protection network: Size snubbers and balancing resistors/capacitors according to your stack design and switching profile.
• Routine checks: Inspect clamping hardware, re‑verify torque after thermal cycles, clean dust, and thermal‑scan under load to spot hot spots.
• Safety: De‑energize and discharge all capacitors; IGCT stacks hold energy—use lock‑out and proper PPE.

Quality & Certifications

• RoHS compliant device
• Manufactured under ISO 9001 and ISO 14001 quality systems
• Semiconductor components typically don’t carry CE/UL as standalone parts; system compliance is handled at converter level
• Warranty: 365 days from shipment

Suggested Supporting Components

• IGCT gate unit (fiber‑optic or electrical interface): Matched gate driver for clean turn‑off performance; short, shielded leads recommended.
• Press‑pack clamping set: Calibrated clamps, Belleville washers, and alignment tools to achieve consistent force.
• Freewheel/anti‑parallel press‑pack diode: ABB high‑power diodes in the same voltage class for current commutation in converter legs.
• Snubber and voltage‑balancing network: RC elements and grading components for series strings in MV stacks.
• Heat‑sinks and cooling hardware: Air or liquid‑cooled assemblies sized for your load cycle and ambient conditions.

If you want, share your converter topology and target switching profile—I can cross‑check gate unit pairing and clamping guidance for the 5SGY3545L0003. You might notice small mounting tweaks (like gate lead routing) often bring a surprisingly big improvement in dv/dt stability.
