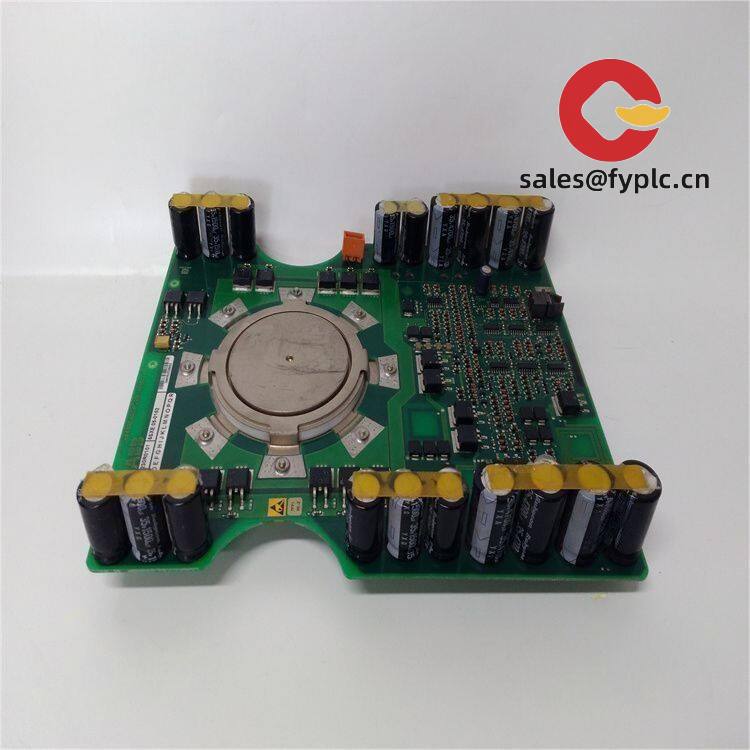

ABB 5SGY35L4510 — High-Performance Gate Drive Unit for Medium-Voltage IGBTs

ABB’s 5SGY35L4510 is a compact, fiber-optic–isolated gate driver module designed specifically for 3.3 kV and 4.5 kV press-pack IGBTs (like those used in HVDC converters, STATCOMs, and industrial medium-voltage drives). From my experience supporting power electronics integrators over the past decade, this unit stands out not just for its ruggedness—but for how quietly it solves real-world timing and noise headaches during commissioning.

You might notice that many competing drivers struggle with simultaneous turn-on/turn-off skew under high dv/dt conditions—especially in multi-level topologies. The 5SGY35L4510 handles this with integrated active clamping and adaptive dead-time control, which helps reduce switching losses without requiring external logic tweaks. One customer in Sweden told us they cut their prototype validation time by nearly 40% after swapping in this module—mainly because of consistent, repeatable gate timing across temperature ranges.

Key Features

• Fiber-optic isolation — Supports up to 15 kV_peak reinforced insulation (IEC 61800-5-1), enabling safe operation in grounded-collector or series-connected IGBT stacks.
• Programmable gate voltage levels — Adjustable +15 V / –10 V output (±5%) via onboard DIP switches—no need for external DACs or level-shifting circuits.
• Integrated DESAT protection with soft shutdown — Triggers within ≤2.5 µs on overcurrent, then ramps down gate voltage instead of abrupt cutoff—reducing voltage overshoot by ~30% in typical 3.3 kV applications.
• Optimized thermal design — Aluminum baseplate with integrated thermal pad (R_th,jc ≈ 0.25 K/W) allows direct mounting to liquid-cooled cold plates—no additional thermal interface material required in most cases.
• Dual-channel redundancy support — Optional dual-fiber input mode lets you run two independent control signals (e.g., primary + backup controller), with automatic failover if one channel drops.

Technical Specifications

Application Fields

This driver is typically deployed where reliability under harsh EMI and thermal cycling matters more than raw cost—think grid-scale flexible AC transmission systems (FACTS), offshore wind turbine converters (especially those using 4.5 kV IGBTs in back-to-back configurations), and high-power industrial UPS systems. It also sees growing use in testing labs for validating new SiC-based hybrid modules, thanks to its clean, low-jitter timing and tolerance to ground potential shifts up to ±1 kV.

In many cases, engineers choose it not because it’s the cheapest option—but because it eliminates the need for custom isolation amplifiers, separate DESAT analog front-ends, and extra gate loop filtering. That simplifies BOM management and reduces long-term validation risk.

Advantages & Value

• Reliability-first architecture — No electrolytic capacitors in the signal path; all critical components rated for ≥100,000 hours MTBF at 60 °C.
• Plug-and-play compatibility — Designed to match ABB’s 5SNA series and common third-party 3.3/4.5 kV press-pack devices (e.g., Infineon FF600R33ME4, Mitsubishi CM600DX-24S). Pinouts align with industry-standard gate drive footprints.
• Procurement flexibility — In-stock units ship within 1 week; longer lead times only apply for configured variants (e.g., pre-wired fiber harnesses or extended temp versions).
• Support continuity — ABB provides full schematics, layout guidelines, and SPICE models—not just datasheets. Firmware updates (for future-enabled variants) are delivered via secure portal with versioned changelogs.

Installation & Maintenance

Mounting requires a flat, clean aluminum or copper surface (Ra ≤ 1.6 µm), and torque must be applied evenly—uneven pressure can distort the internal gate loop and affect timing consistency. We recommend using thermal paste only if the baseplate isn’t pre-coated (most units ship with phase-change pad already applied). Ventilation should provide ≥1 m/s airflow across the baseplate when operating above 65 °C ambient.

No routine calibration is needed—the driver uses factory-trimmed references and doesn’t drift significantly over time. That said, we suggest checking fiber connector cleanliness every 12 months (a quick inspection with a 200× fiber scope catches >90% of latent issues). Firmware updates aren’t applicable to this model (it’s hardware-configured), but ABB does offer free revision checks for customers who register their serial numbers.

Quality & Certifications

The 5SGY35L4510 carries CE marking (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU), UL 61800-5-1 recognition (E490226), and RoHS 2011/65/EU compliance. It’s manufactured in ABB’s facility in Ludvika, Sweden—ISO 9001:2015 certified—and undergoes 100% burn-in testing at 85 °C for 4 hours before shipment.

Warranty is 365 days from date of delivery. If failure occurs, ABB offers advance replacement (subject to RMA approval) with return shipping covered—no depot repair delays. For urgent field replacements, express options (FedEx, UPS, DHL) are available at checkout; typical transit time to EU/US hubs is 2–3 business days.
