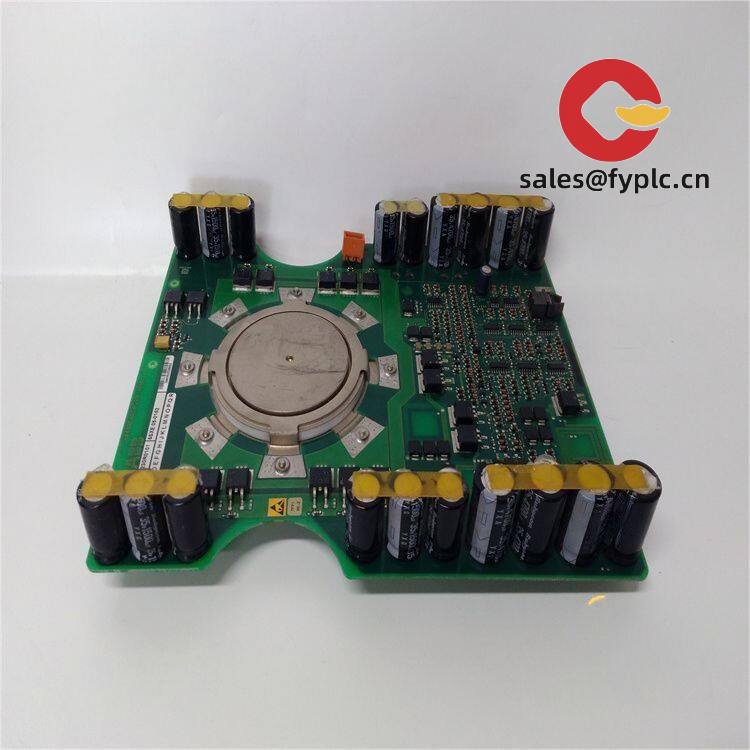

ABB 5SHX04D4502 – High-Performance Thyristor for Industrial Power Control

If you’re managing medium-voltage power conversion systems—especially in metallurgy, rail traction, or large motor drives—you’ve likely come across the ABB 5SHX04D4502. It’s not a flashy component, but in the right setup, it’s one of those parts that quietly keeps everything stable under heavy load.

One thing I appreciate is how consistently this thyristor handles surge currents. In many cases, similar devices start showing thermal stress after repeated peak loads, but this one seems to be built with a more robust disc design that improves heat dissipation and mechanical stability.

Key Features

• High current capability: Rated for 4500 A RMS, suitable for high-power rectifier applications where reliability under surge is critical.
• Voltage class (4.5 kV): Designed for medium-voltage industrial systems—commonly used in six-pulse and twelve-pulse converter bridges.
• Press-pack construction: No screws or bolts; uses uniform pressure contact which reduces hot-spot risks and simplifies module integration.
• Repetitive peak off-state voltage (V DRM): Maintains up to 4500 V, making it resilient against transient overvoltages in grid-connected setups.
• Designed for forced-air or liquid cooling: Works efficiently when paired with properly designed heatsinks or cold plates—important if your system runs above ambient 40°C.

Technical Specifications

Application Fields

This thyristor typically shows up in demanding environments—think electrolysis plants, HVDC substations, or rolling mill drives. From my experience, it’s especially common in replacement scenarios for older ASEA/ABB thyristor stacks where modernization hasn’t fully transitioned to IGBTs. Some customers also integrate it into custom-designed static VAR compensators (SVCs), where phase-controlled switching needs precise timing and ruggedness.

Advantages & Value

While newer semiconductor technologies are gaining ground, there’s still value in using proven press-pack thyristors like the 5SHX04D4502—particularly if you’re maintaining legacy infrastructure. The main advantage? Predictability. You know what kind of lifetime to expect, how it behaves thermally, and how it responds to gate triggering circuits designed around classic control cards.

Procurement-wise, stocking spares can reduce downtime risk. And since ABB maintains documentation and test procedures for these modules, technical support tends to be smoother than with obsolete or discontinued alternatives. In some cases, users report being able to reuse existing snubber circuits and gate drivers without redesign.

Installation & Maintenance

You might notice that installation isn’t plug-and-play. Proper mounting requires calibrated torque application via hydraulic press or precision clamping fixture to ensure uniform contact pressure. Uneven force could lead to localized heating—even at partial load.

Install in a clean, low-humidity cabinet—contamination on the ceramic housing increases flashover risk. Always verify dielectric strength during commissioning. For maintenance, periodic visual inspection and thermal imaging during operation help catch early signs of degradation. While the device doesn’t need firmware updates, monitoring its performance trend over time helps plan preventive replacements.

Quality & Certifications

The 5SHX04D4502 complies with international safety and environmental standards, including:

• IEC 60747-6 (semiconductor device standards)
• RoHS compliant (no lead or hazardous substances beyond allowed limits)
• CE marked for industrial equipment use

Each unit comes with a standard 365-day warranty. We recommend storing spares in anti-static packaging, away from direct sunlight and moisture, ideally between 5°C and 35°C.

Ordering Notes: Delivery takes about one week for in-stock units; otherwise, no longer than four weeks. Payment is 50% upfront, balance before shipment. We ship globally via FedEx, UPS, or DHL depending on destination and urgency.
