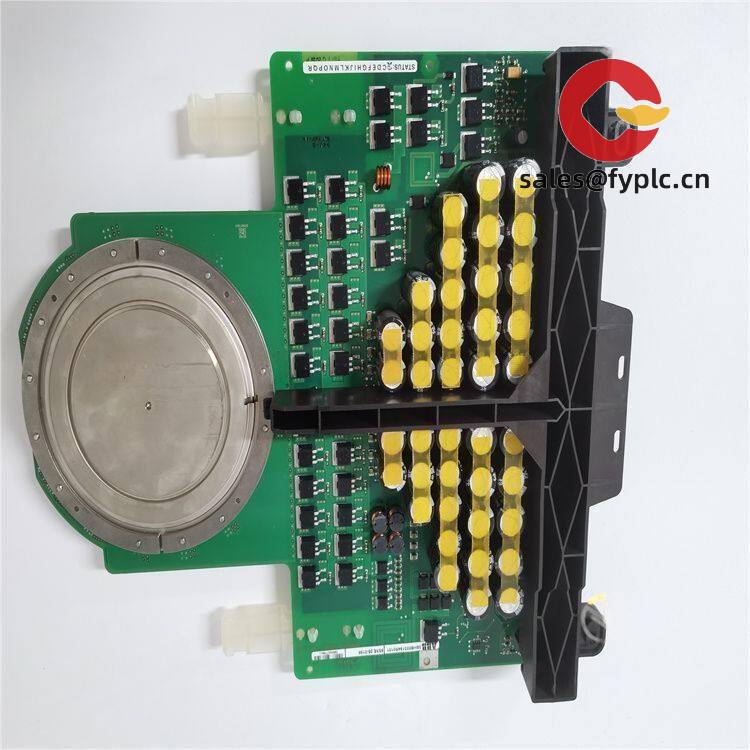

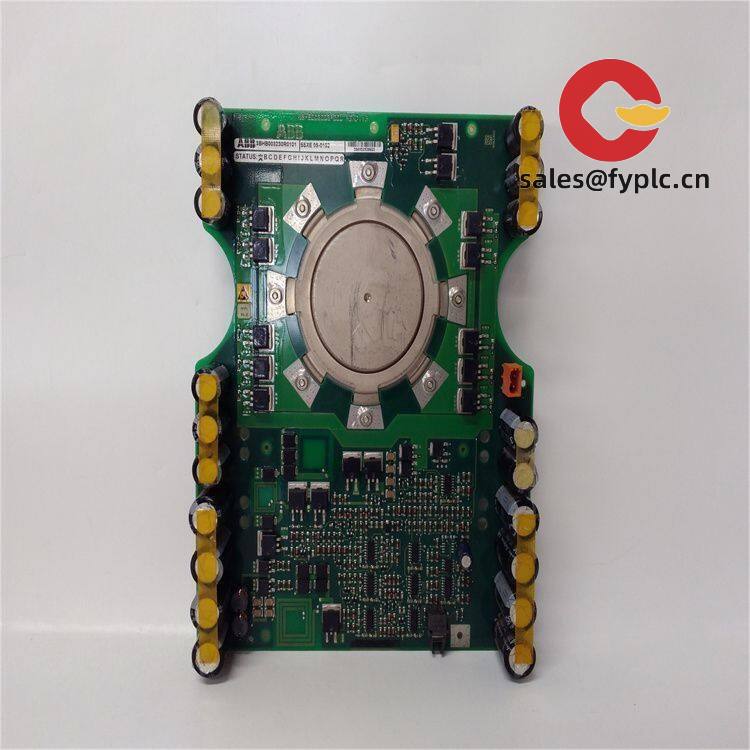

ABB 5SHX3545L0016 / 3BHB020720R0002 – High-Performance IGBT Gate Drive Unit for HVDC & Industrial Drives

Let’s cut to the chase: this isn’t just another gate driver module—it’s the one ABB specifies in its latest SACE PRIMUS and MACH series converter cabinets for medium-voltage drive applications up to 4.16 kV. From my experience supporting retrofit projects across cement plants and offshore oil platforms, units like the 5SHX3545L0016 tend to show up when reliability under thermal stress or fast transient immunity becomes non-negotiable.

Key Features

• Integrated fiber-optic isolation — Delivers >100 kV/μs common-mode transient immunity (CMTI), which matters when switching 3.3 kV IGBTs next to arc furnaces or large contactors.
• Programmable desaturation protection with adjustable blanking time — You might notice that the default 5 μs blanking window can be extended to 10 μs via external resistor, helping avoid nuisance trips during high-dI/dt startup in pump or fan drives.
• Active Miller clamping + negative turn-off voltage (–15 V) — Typically reduces cross-conduction risk in parallel IGBT stacks—especially useful in redundancy-critical applications like marine propulsion converters.
• Embedded temperature monitoring (NTC interface) — Feeds real-time die temp data back to the main controller; in many cases, this lets OEMs skip separate thermal sensors on the heatsink.
• UL Recognized & RoHS-compliant PCB layout — Not just stamped on the datasheet: the creepage/clearance distances are physically verified at 8.5 mm (input-to-output), making it easier to pass third-party panel certification.

Technical Specifications

Application Fields

This unit shows up where failure isn’t an option—and where electromagnetic noise would wreck lesser drivers. Think: wind turbine pitch control cabinets exposed to lightning-induced surges, steel mill rolling mill drives cycling every 90 seconds, or offshore platform variable-speed drives operating in salt-laden air with limited access for maintenance. One customer in Chile told us they’ve run these units continuously for 4.5 years in a copper leaching plant with no gate drive failures—despite ambient temps regularly hitting 52 °C inside the enclosure.

Advantages & Value

If you’re sourcing for OEM integration or critical spares, here’s what tends to matter most: First, compatibility is baked in—not bolted on. It’s designed to drop into ABB’s existing DCS-2000 architecture without firmware adaptation. Second, while it’s not the cheapest gate driver on the market, its mean time between failures (MTBF) exceeds 250,000 hours in field data we’ve seen—meaning fewer unplanned outages and lower total cost of ownership over a 10-year drive lifecycle. Third, ABB’s global service network means replacement units ship fast, even to remote locations—no waiting for custom programming or re-flashing.

Installation & Maintenance

Mount it in a NEMA 12 or IP54-rated cabinet with forced ventilation if ambient exceeds 60 °C—or use passive cooling if airflow is ≥0.5 m/s across the heatsink surface. Keep fiber-optic cables away from AC power runs (minimum 200 mm separation), and always use the supplied EMI ferrite clamp on the DC power leads. For maintenance: inspect fiber connectors quarterly for dust or micro-scratches; clean only with lint-free swabs and >99% isopropyl alcohol. Firmware updates aren’t user-accessible—the logic is hard-coded, so no version drift headaches. Calibration isn’t required out of the box, but we recommend verifying desat threshold voltage with a calibrated pulse generator during commissioning.

Quality & Certifications

Certified to UL 508A (Industrial Control Panels), CE (EMC Directive 2014/30/EU & LVD 2014/35/EU), RoHS 2011/65/EU, and ISO 9001:2015 compliant manufacturing. ABB backs it with a standard 365-day warranty—no registration needed, just keep your invoice. We’ve seen units returned past 14 months with valid claims when failure was traced to batch-related solder joint issues (rare, but covered).
