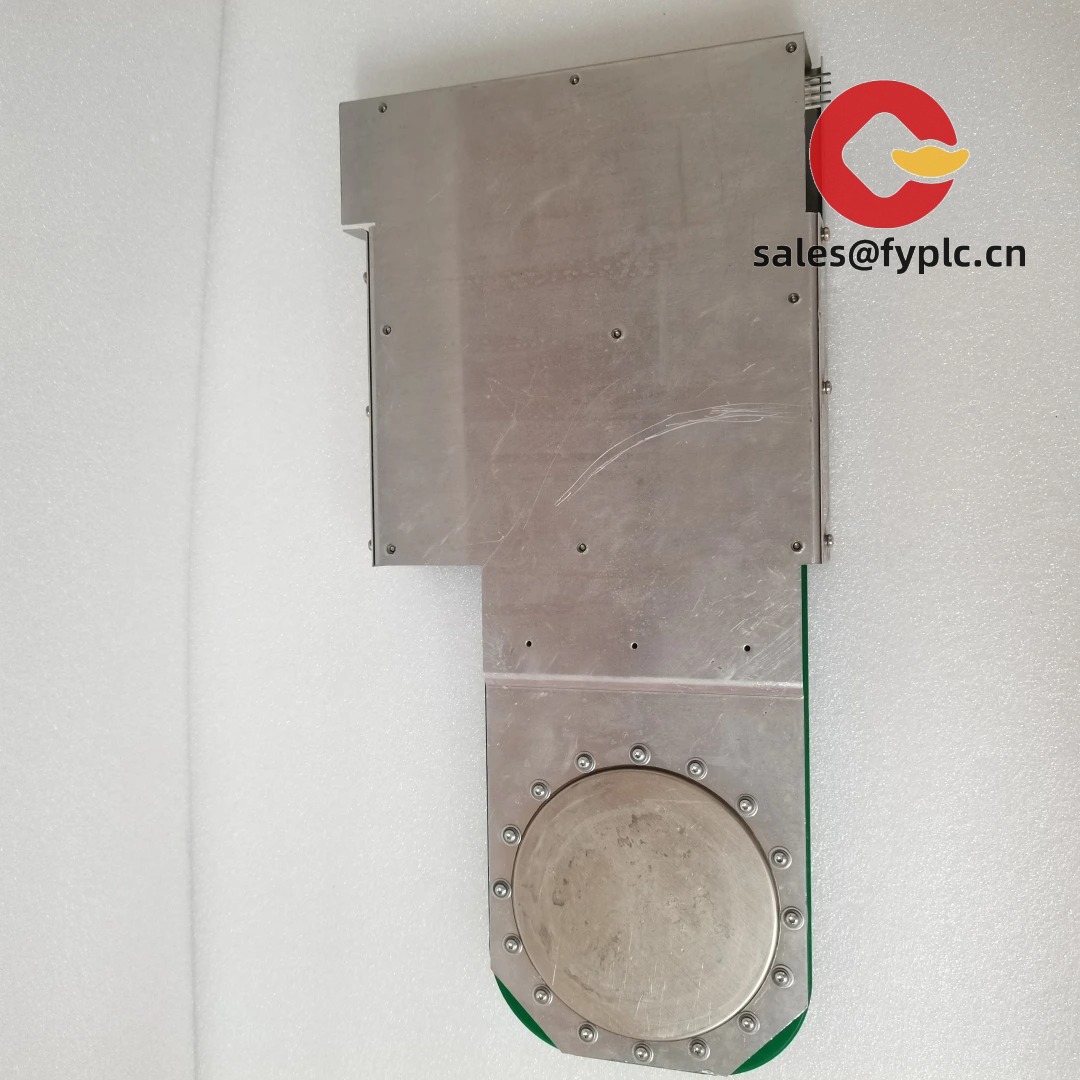

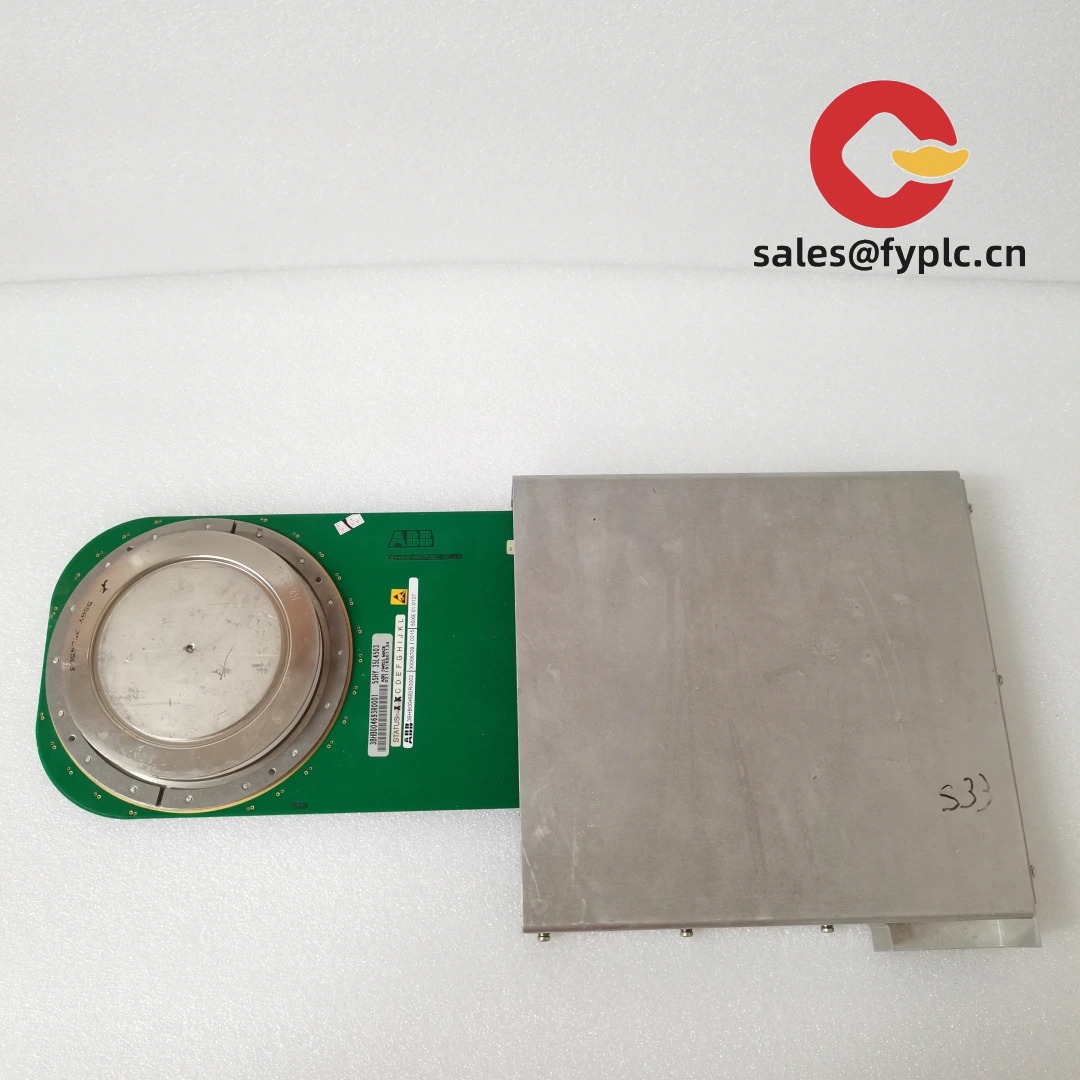

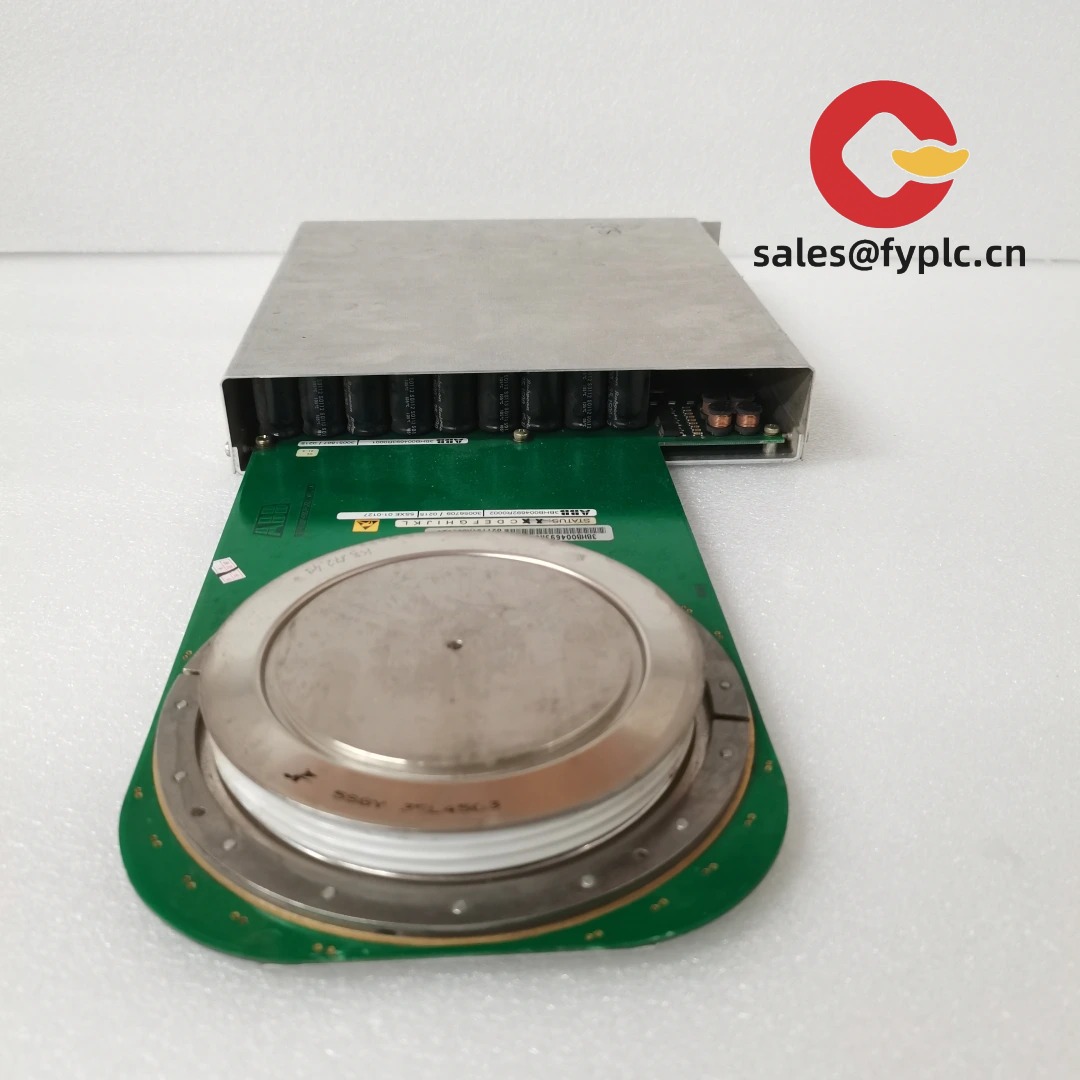

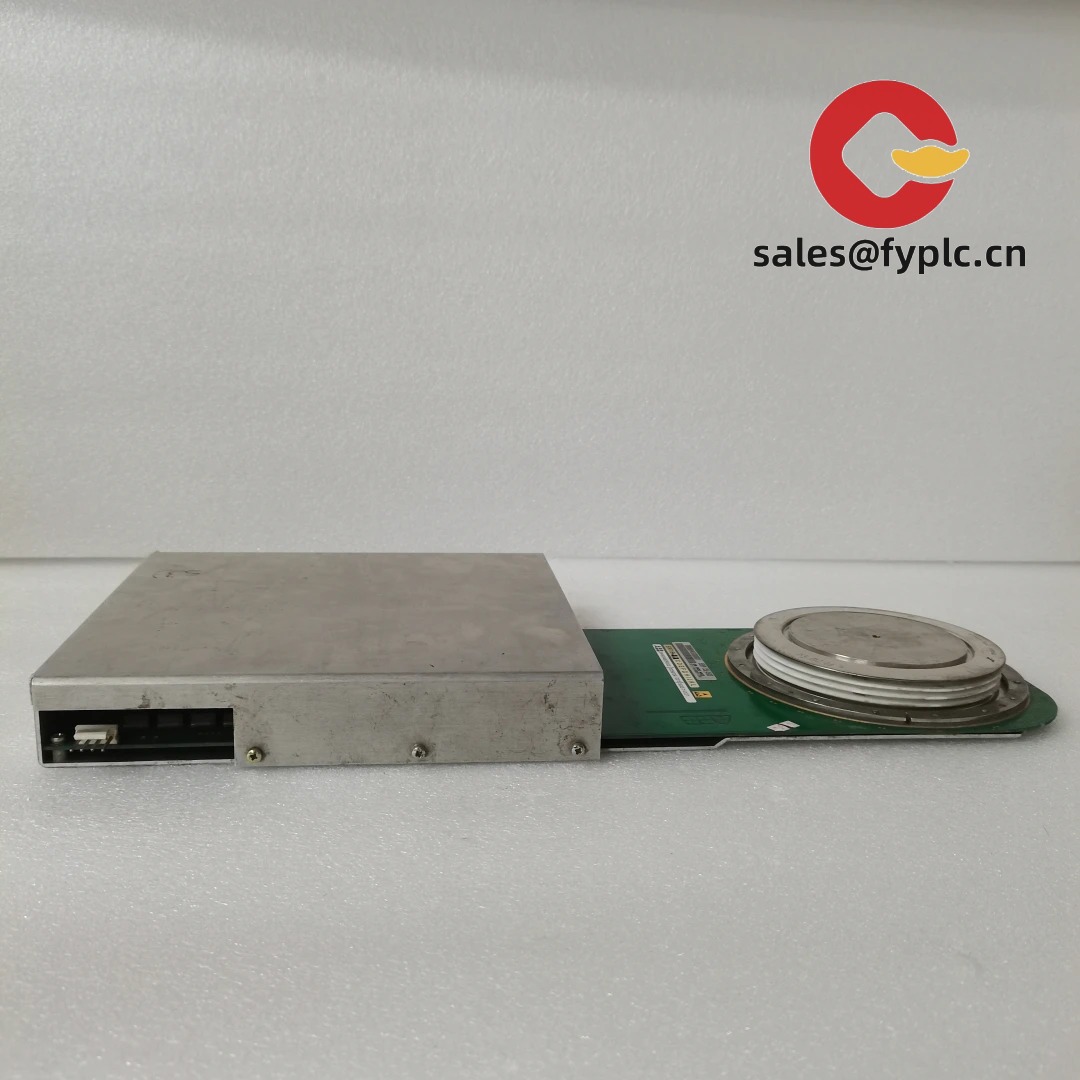

ABB 5SHY35L4503 -3BHB004693R0001 -3BHB004692R0002 – 5SXE01-0127 – Matched IGCT, Gate Units and Driver Board for Medium‑Voltage Drives
This set pairs the ABB press‑pack IGCT 5SHY35L4503 with two gate units (3BHB004693R0001 and 3BHB004692R0002) and a pulse/control driver module identified as 5SXE01‑0127. From my experience, sourcing these pieces together keeps gate energy, protection thresholds, and timing behavior aligned—handy when you’re refreshing a stack position and want predictable performance without re‑engineering the bay. You might notice that the fiber‑optic links and the dedicated backplane interface make commissioning straightforward even in electrically noisy MV cabinets.
Company’s Order Placement Process and Guarantees
- Warranty period: 365 days
- Delivery time: 1 week for in‑stock; no more than one month at the latest
- Payment method: 50% advance payment, full payment for delivery
- Express delivery methods: FedEx, UPS, DHL
- Process: Confirm model and quantity → Proforma Invoice → Advance payment → Functional testing and packing → Final payment → Express shipment with tracking
Key Features
- Matched IGCT + gate chain – 5SHY35L4503 with 3BHB004693R0001, 3BHB004692R0002, and 5SXE01‑0127 keeps dI/dt limits, gate charge, and protection logic aligned.
- Fiber‑optic triggering – Optical Tx/Rx between the driver and gate units provides strong EMC immunity in MV cabinets.
- Press‑pack reliability – Uniform pressure contacts typically ride through thermal cycling better than plastic modules.
- Service‑friendly layout – Clamped device, nearby gate units, and a plug‑in driver board simplify like‑for‑like swaps.
- Stable commutation – Consistent gating seems to reduce nuisance trips during load steps and regeneration events.
Technical Specifications
| Brand / Model | ABB – 5SHY35L4503 – 3BHB004693R0001 – 3BHB004692R0002 – 5SXE01‑0127 |
| HS Code | 850490 (Parts of static converters/drive systems) |
| Power Requirements | Gate units/driver typically 24 VDC via the drive backplane; IGCT device has no user LV supply |
| Dimensions & Weight | Press‑pack IGCT (large‑diameter package); complete kit weight ~2–3 kg depending on mounting hardware |
| Operating Temperature | Electronics typically 0…45 °C cabinet ambient; IGCT junction limits per ABB datasheet |
| Signal Input/Output Types | Fiber‑optic gate trigger/status; gate/cathode sense; interlocks and alarms via rack backplane |
| Communication Interfaces | Proprietary ABB drive backplane; no user Ethernet on the gate chain |
| Installation Method | IGCT clamped in the power stack; gate units mounted adjacent; driver board plugs into the control rack |
Application Fields
You’ll typically find this set in MV drives and converters where rugged switching and high efficiency are needed:
- ABB MV drive platforms (commonly ACS1000 / ACS5000 / ACS6000) for pumps, compressors, fans
- Metals, mining, cement, and chemical plants running 3–6.6 kV motors
- Stack refurbishments and lifecycle extensions to avoid full system upgrades
- N‑1 spares strategies for critical production lines
Advantages & Value
- Reliability: Matched parts typically reduce intermittent gate faults and improve transient behavior under load swings.
- Compatibility: Like‑for‑like fit keeps fiber links, backplane, and busbar geometry intact in most cases.
- Procurement simplicity: One coordinated kit lowers the risk of revision mismatches and requalification delays.
- Supportability: We can run functional checks and share power‑up/LED verification before shipment.
“Replaced a leg with the 5SHY35L4503 kit. The inverter ramped cleanly, fibers passed the loop test, and the trip log has been quiet through the restart.” — Maintenance supervisor, cement kiln drive room
Installation & Maintenance
- Cabinet environment: Clean, dry MV cubicle; maintain ambient within the drive’s rating.
- Mechanical assembly: Apply OEM‑specified press‑pack clamping force with a calibrated tool; ensure flat, clean heat‑sink faces.
- Wiring & optics: Route fibers with proper bend radius; verify Tx/Rx orientation; keep gate/emitter leads short and symmetrical.
- Safety: Lockout/tagout; allow DC link to fully discharge; observe ESD precautions for boards and gate units.
- Commissioning: Confirm stable 24 VDC supply, ground scheme, and interlocks; check status LEDs and diagnostics before enabling.
- Routine care: Quarterly dust removal, connector reseat checks, and periodic thermal scans of the stack under load.
Quality & Certifications
- Quality system: Manufactured under ISO 9001 processes (typical for ABB drive components).
- Compliance: Intended for installation inside CE/UL‑listed MV drive systems; RoHS status may vary by production year.
- Warranty: 365‑day warranty from shipment date.
If you share the drive platform, stack position, and current part revisions, we’ll double‑check interchangeability of 5SHY35L4503, 3BHB004693R0001, 3BHB004692R0002, and 5SXE01‑0127, and prepare test reports prior to shipment.
