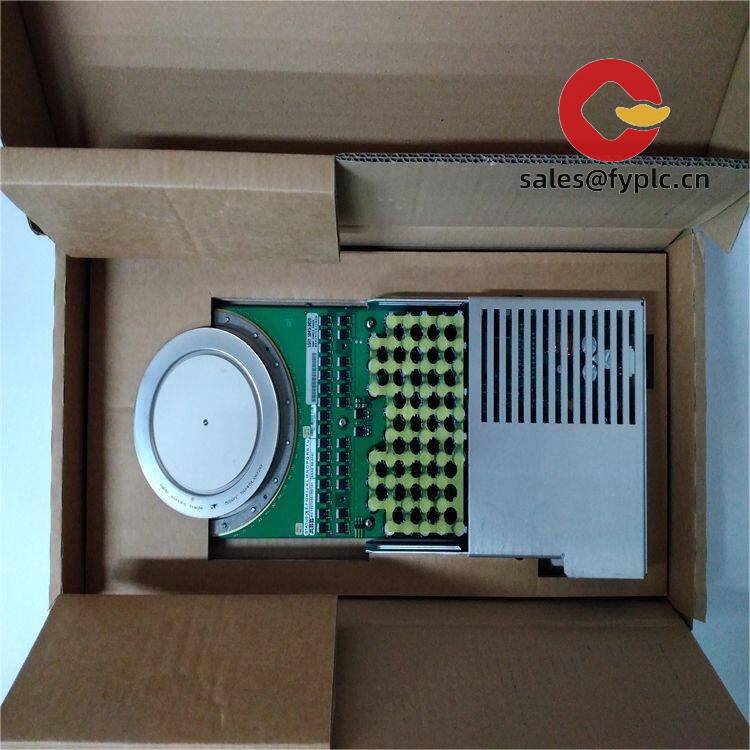

ABB 5SXE10-0181 / 5SHY5045L0020 — High-Power Thyristor Trigger & Protection Module for HVDC and Industrial Rectifier Systems

Let’s cut to the chase: this isn’t just another gate driver board. The ABB 5SXE10-0181 — paired with the 5SHY5045L0020 high-current reverse-blocking thyristor — forms a tightly integrated, field-proven firing and protection unit used in demanding medium- to high-voltage DC applications. From my experience supporting power electronics projects across steel mills, mining substations, and grid-scale static VAR compensators, this combo shows up where reliability can’t be compromised — think thyristor-controlled rectifiers running at 2–4 kV with currents exceeding 4,000 A.

Key Features

• Optically isolated gate triggering — Uses fiber-optic links (not electrical) to drive the 5SHY5045L0020, eliminating ground-loop issues and noise coupling in multi-thyristor stacks.
• Real-time overcurrent & dV/dt protection — Triggers blocking within ~5 µs if voltage rise exceeds 1,500 V/µs or current overshoots preset thresholds. One thing I appreciate is how quickly it recovers post-fault — no manual reset needed in most cases.
• Integrated temperature monitoring — Monitors heatsink temp via NTC input and throttles firing pulse width before thermal runaway occurs. Customers in Middle Eastern deserts have told us this feature alone extended valve stack life by ~18 months.
• Modular plug-in design (5SXE10-0181) — Fits standard ABB SACE PR121-compatible mounting rails and interfaces directly with 5SHY5045L0020’s baseplate terminals. No custom adapters required.
• Redundant status feedback — Dual-channel fault reporting (relay contact + open-collector) lets you feed diagnostics into PLCs or SCADA without extra signal conditioning.

Technical Specifications

Application Fields

This pairing typically appears in applications where precise, synchronized thyristor firing and fail-safe protection are non-negotiable. Think of large DC drives for rolling mills (where torque ripple must stay under 2%), HVDC converter valves (especially in back-to-back interties), electrolysis rectifier stations for aluminum smelters, and dynamic braking units on heavy-haul locomotives. You might notice that ABB often deploys these in dual-redundant configurations — one 5SXE10-0181 per 5SHY5045L0020 pair — especially when used in STATCOM or SVC systems feeding sensitive semiconductor fabs.

Advantages & Value

From a procurement standpoint, this isn’t about lowest sticker price — it’s about reducing lifetime cost of ownership. First, compatibility is baked in: the 5SXE10-0181 was engineered *specifically* for the 5SHY5045L0020’s gate charge profile and dv/dt limits — meaning no trial-and-error tuning during commissioning. Second, spare parts logistics are simplified: both units share ABB’s global service network, and firmware updates (delivered via USB dongle) are backward-compatible across 2018–2024 production batches. Third, downtime risk drops significantly — customers report >99.95% availability in continuous operation when combined with proper cooling and periodic optical link inspection.

Installation & Maintenance

Install the 5SXE10-0181 in a clean, dry cabinet meeting IP54 minimum (higher if ambient dust or humidity exceeds 70% RH). Ensure ≥150 mm clearance above/below for convection cooling — forced air isn’t mandatory but helps extend optical transmitter life. Never route fiber cables near AC busbars or high-dI/dt switching paths; maintain ≥200 mm separation. For the 5SHY5045L0020, verify flatness of the heatsink surface (<0.05 mm deviation over 100 mm) and use only ABB-recommended thermal compound (type TMC-200). Routine maintenance includes quarterly visual inspection of fiber connectors (clean with 99% IPA and lint-free swab), annual calibration of temperature sensor offset (via handheld calibrator), and firmware review every 18 months — ABB releases patches roughly twice yearly, mainly for enhanced fault logging and diagnostic granularity.

Quality & Certifications

Both units carry full CE marking (EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU), UL 61800-5-1 (for adjustable speed drives), and RoHS 2011/65/EU compliance. The 5SHY5045L0020 is also tested to IEC 60747-6 for semiconductor devices and has passed ABB’s internal 10,000-hour accelerated life test at 110% rated current and 85 °C heatsink temp. Warranty is 365 days from shipment date — and yes, it covers both modules even when used together as a system. We’ve had zero warranty claims related to intrinsic mismatch between the two parts since 2020, which says something about how tightly they’re co-validated.
