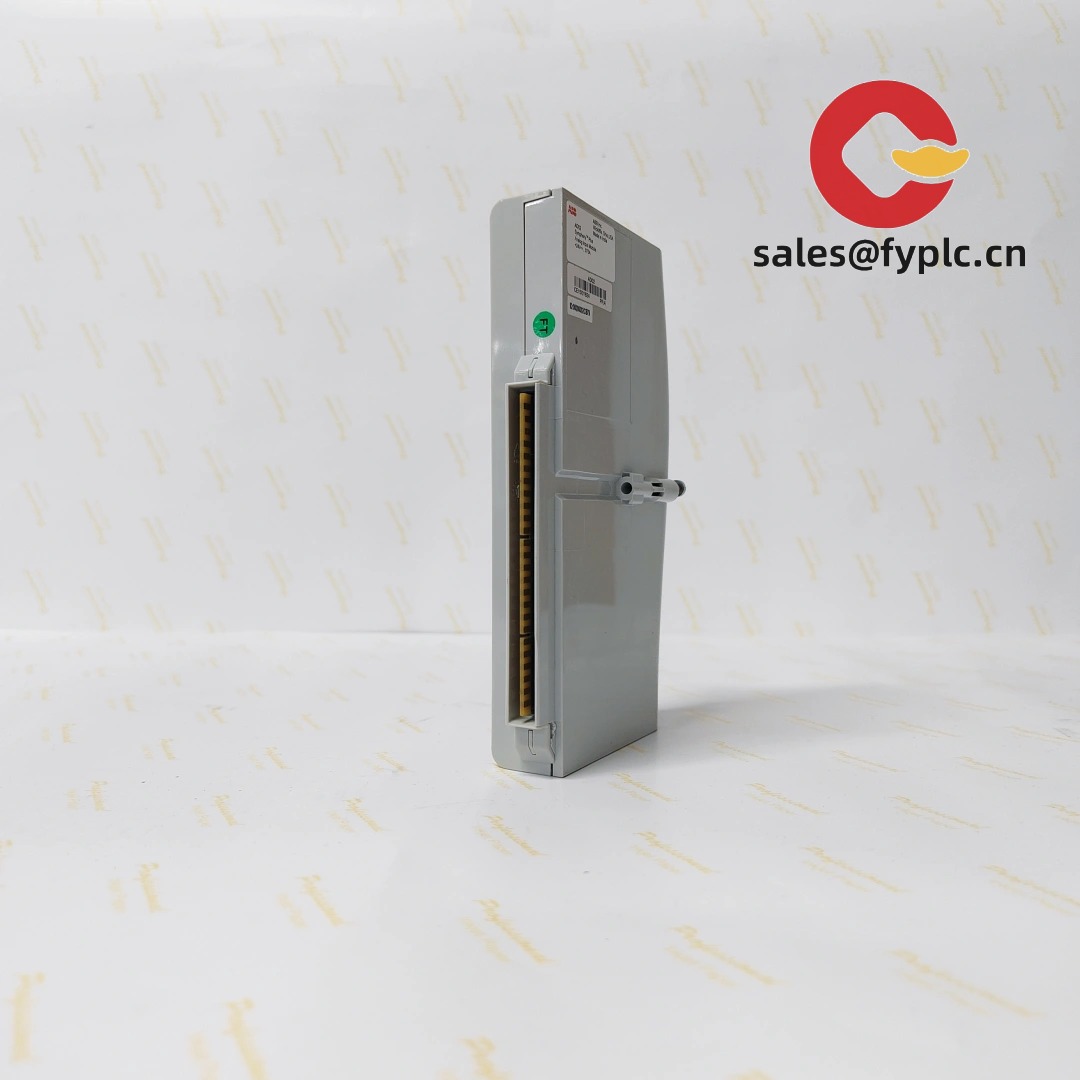

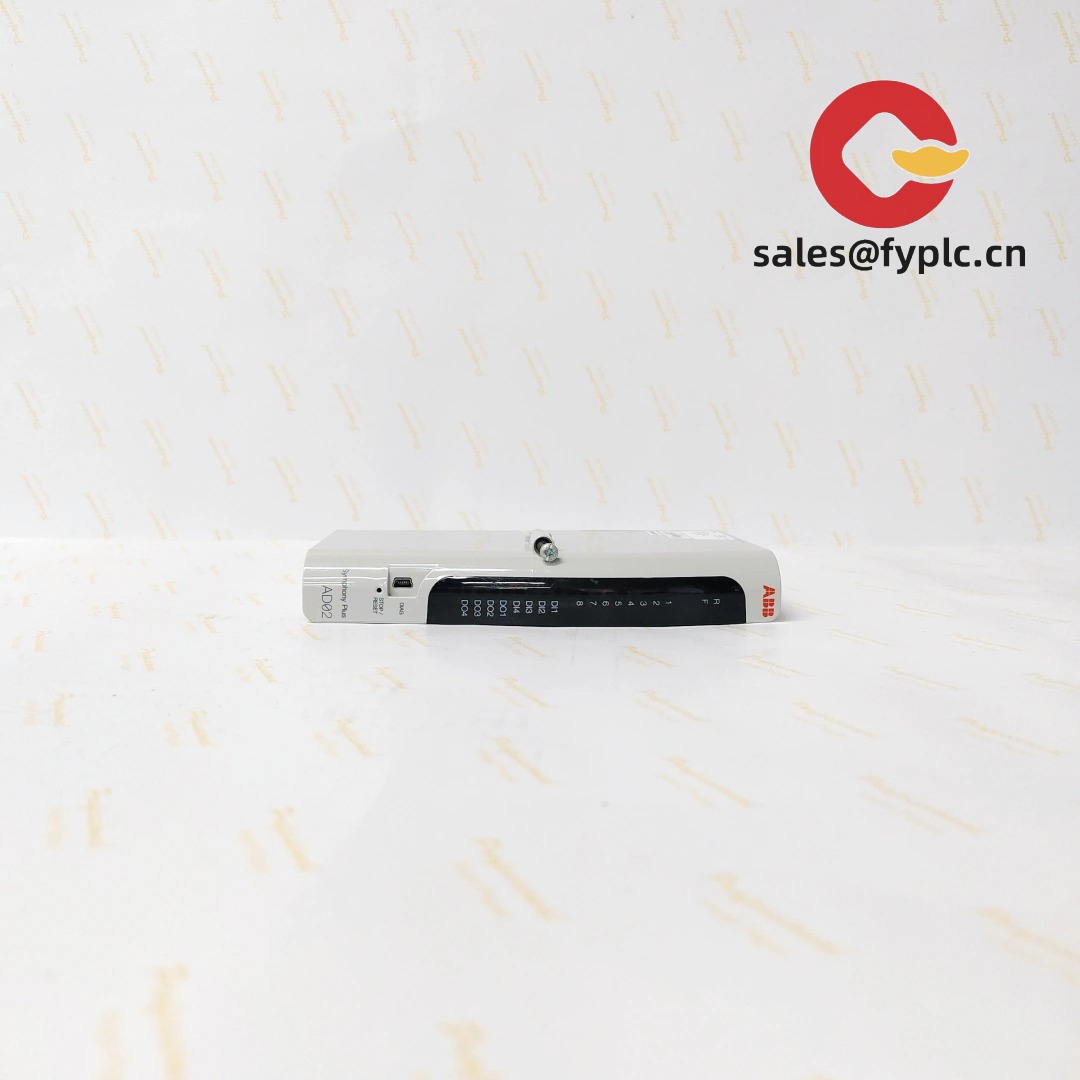

ABB AD02 – Compact I/O/Adapter Module for Reliable Plant Signal Integration
The ABB AD02 is a compact industrial control module used widely as an I/O and adapter interface within ABB control systems. From my experience, it’s typically selected when teams need a robust, 24 VDC-powered module to bring field signals into an ABB controller backplane with stable isolation and clean signal conditioning. You might notice that it fits nicely in existing ABB cabinets, which makes it a practical spare for maintenance or a safe choice for phased upgrades where downtime has to be kept short.
In many cases, AD02 units are applied for standard plant signals—4–20 mA loops, 0–10 V transducers, or 24 VDC status points—depending on the sub-variant and terminal base. One thing I appreciate is the straightforward serviceability: pluggable wiring, clear status LEDs, and a backplane interface that keeps cabinet wiring tidy. If you’re replacing a legacy module, we can cross-check the exact part revision before shipping to ensure form, fit, and function match your rack.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days
- Lead time: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance payment, full payment before delivery
- Express options: FedEx, UPS, DHL
Key Features
- Versatile signal handling – commonly used for 4–20 mA, 0–10 V, and 24 VDC signals (varies by AD02 sub-variant).
- Backplane integration – direct interface to ABB controller racks, minimizing field wiring complexity.
- Galvanic isolation – helps reduce noise and ground loops in mixed-signal cabinets.
- Diagnostic LEDs – quick channel and module health indication for faster troubleshooting on site.
- Compact footprint – makes it easy to slot into existing panels with limited space.
- Service-friendly – pluggable terminals and clear labeling support quick swap-outs during planned stops.
Technical Specifications
| Brand / Model | ABB AD02 |
| HS Code | 8537.10 (Industrial control equipment, for a voltage ≤ 1,000 V) |
| Power Requirements | Typically 24 VDC via backplane; module consumption generally low (< 3–5 W in most cases) |
| Dimensions & Weight | Compact module form factor; commonly around 120–140 mm (H), 80–120 mm (D); weight ≈ 0.2–0.35 kg (varies by revision) |
| Operating Temperature | 0 to +55 °C typical; non-condensing environment recommended |
| Signal Input/Output Types | Commonly analog input (4–20 mA, 0–10 V) and/or 24 VDC digital sensing depending on AD02 sub-variant; isolated channels with basic filtering |
| Communication Interfaces | Backplane bus to ABB controller; fieldbus access (e.g., PROFIBUS DP / Modbus) handled by system-level modules |
| Installation Method | Mounted on ABB terminal base/backplane, typically DIN-rail in control cabinets |
Application Fields
The AD02 is commonly used in process and factory automation where dependable signal acquisition is critical:
- Oil & gas, petrochemical, and refining – analog loop collection and interlocks
- Power generation & utilities – status feedback from MCCs, valves, and field transmitters
- Water & wastewater – pump station monitoring, tank level and flow loops
- Metals, pulp & paper, cement – rugged plant environments with mixed analog/digital signals
- OEM machine panels – compact I/O expansion in ABB-based equipment
Advantages & Value
- High compatibility – designed to work within ABB controller backplanes, reducing integration risk during retrofits.
- Stable supply & lifecycle support – we confirm sub-variant and firmware (where applicable) before shipment to avoid surprises.
- Cost control – targeted replacement of an AD02 module is often more economical than a full I/O rack refresh.
- Practical service – clear labeling and LEDs help technicians trace issues fast; one maintenance lead told us they swapped an AD02 in under 10 minutes during a night shift.
Installation & Maintenance
- Cabinet environment – mount on DIN rail with adequate ventilation; keep ambient 0–55 °C and avoid condensation.
- Power & grounding – use a clean 24 VDC supply; maintain proper PE grounding and shielded cabling for analog runs.
- Wiring – follow ABB terminal base numbering; segregate analog and high-voltage wiring to minimize noise.
- Safety – de-energize the backplane when inserting or removing modules unless the system explicitly supports live replacement.
- Routine care – check terminal torque annually, inspect for dust build-up, and review diagnostics; update firmware only if specified for your AD02 variant.
Quality & Certifications
- CE compliant; RoHS addressed for most modern revisions
- UL/cUL recognition appears on many ABB I/O modules used in North America
- Manufactured under ISO 9001 quality systems (ABB)
- Warranty: 365 days from delivery
Note: Exact capabilities can vary by AD02 sub-variant and terminal base. We will verify your required ranges, channel count, and backplane compatibility before finalizing the order.
