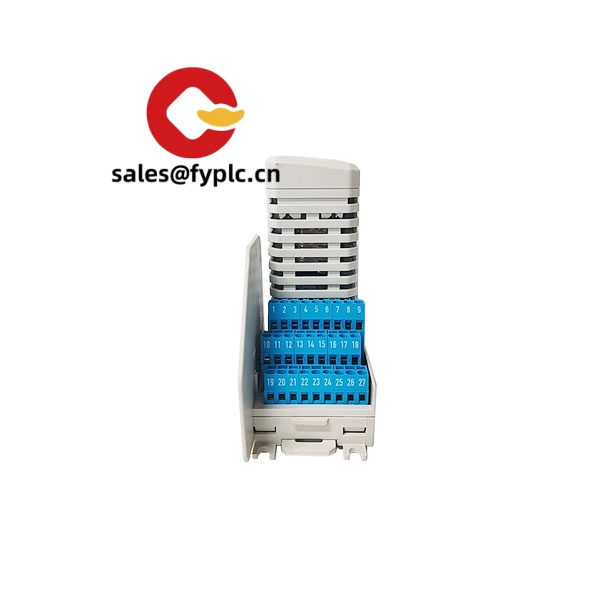

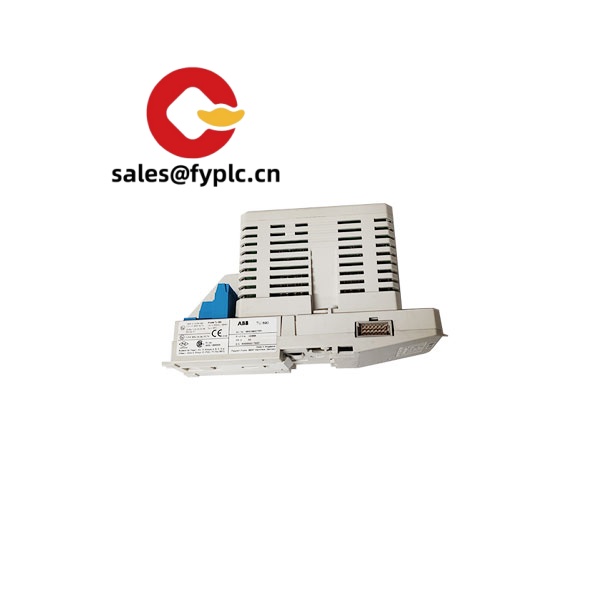

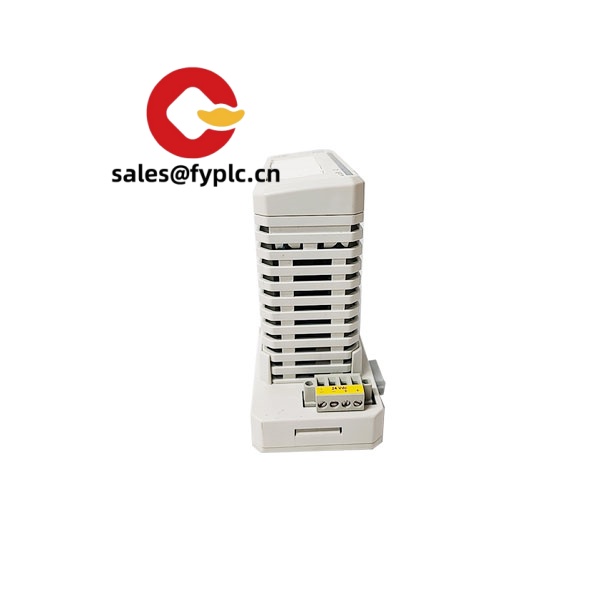

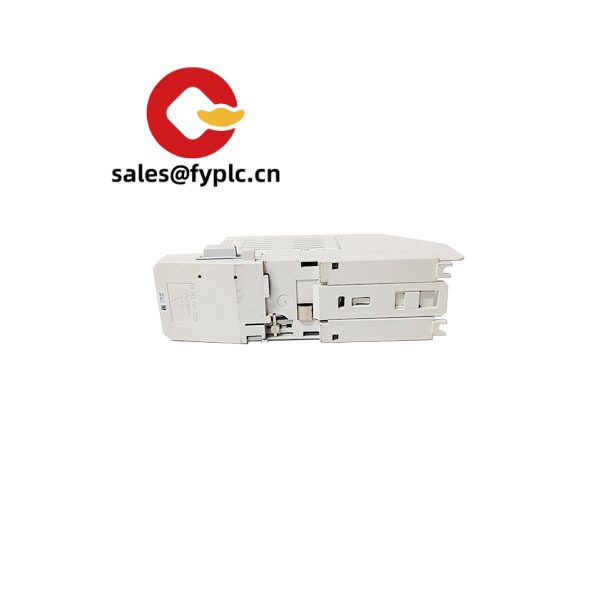

ABB AI895 (3BSC690089R1) – S800 I/O Analog Input Module for reliable 4–20 mA signal acquisition

The ABB AI895, ordering code 3BSC690089R1, is an analog input module in the S800 I/O family, used with AC 800M and related ABB systems. From my experience, it’s the kind of module you pick when you want stable, low-noise current loop measurements from field transmitters and you need them to sit neatly on a standard S800 terminal unit in a compact DIN-rail cabinet. It seems to be a favorite in brownfield upgrades because it drops into existing S800 racks without fuss and plays well with mixed I/O islands.

Our Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: Typically 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• Analog current input for process transmitters – Designed for standard 4–20 mA loops commonly used with pressure, flow, level, and temperature transmitters.
• S800 I/O form factor – Installs on ABB S800 terminal units (TU8xx series) for fast module replacement and neat cabinet wiring.
• ModuleBus integration – Communicates over ABB’s S800 ModuleBus to AC 800M and compatible controllers, minimizing extra interface hardware.
• Compact, DIN-rail friendly design – High channel density in a slim footprint helps when cabinet space is tight.
• Industrial EMC robustness – Typically compliant with ABB’s industrial noise immunity requirements, which helps keep signals stable in high-noise MCC rooms.
• Serviceable on-line – In many cases, S800 modules can be swapped with minimal process interruption when the system is engineered for it.

Technical Specifications

Note: Exact channel count and detailed electrical ranges depend on the specific engineering data for AI895 in your S800 configuration. If you share your I/O list, we can confirm the channel mapping and wiring diagram before shipment.

Application Fields

• Oil & Gas skids: Tie-in of pressure and temperature transmitters on wellhead or compressor stations.
• Water & Wastewater: Flow, level, and chemical dosing feedback in distributed pump stations.
• Power Generation: Balance-of-plant analogs (lube oil pressure, condenser vacuum, demin plant signals).
• Chemicals & Pharma: Reactor jacket temperature, differential pressure across filters, utility metering.
• Pulp & Paper: Headbox level, stock consistency, and process tank monitoring.

Advantages & Value

• Reliability – S800 modules are known for long service life in harsh electrical environments, which typically cuts nuisance trips and unplanned callouts.
• Compatibility – Works within existing ABB S800 I/O racks; no rework on bus interfaces if you’re on AC 800M or compatible gateways.
• Cabinet efficiency – Slim module width and shared terminal units reduce panel real estate and wiring sprawl.
• Lifecycle support – Easy like-for-like replacements keep maintenance predictable and spares standardized.
• Procurement simplicity – We provide traceable parts and a 365-day warranty, which reduces the risk on critical shutdown purchases.

“We swapped in AI895 modules during a hot-cutover on a water treatment plant—no surprises, the loops came back clean, and noise was noticeably lower on long cable runs,” a maintenance lead told us after a weekend upgrade.

Installation & Maintenance

• Panel & environment – Mount on DIN rail inside an industrial control cabinet (IP54 or better recommended), with adequate ventilation.
• Wiring – Use shielded twisted pairs for 4–20 mA loops; land shields to the designated ground point on the terminal unit. Keep power and signal segregated.
• Grounding – Maintain a single-point grounding scheme to avoid ground loops; bond DIN rail to cabinet PE.
• Module handling – Observe ESD precautions; insert/remove the module only when the system procedure permits. Label each loop to match the channel assignment.
• Routine maintenance – Periodic loop checks and transmitter calibration (typically annually). Dust off ventilation paths; keep firmware and controller configuration backed up.
• Spare strategy – Keeping at least one AI895 per I/O island on the shelf usually minimizes downtime during fault swaps.

Quality & Certifications

• Manufacturer certifications typically include CE and UL/cUL for industrial control equipment; RoHS compliance is commonly met on S800 series.
• Warranty: 365 days from delivery.
