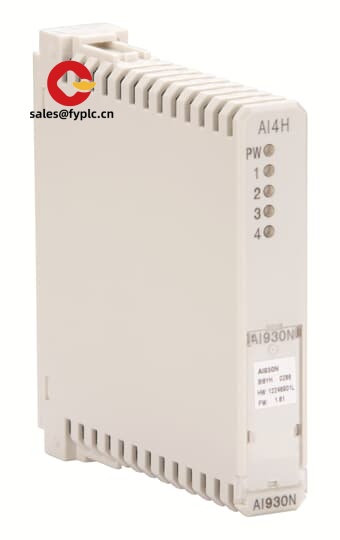

ABB AI930 Analog Input Module – Stable 4–20 mA acquisition for S800 I/O and 800xA plants

The ABB AI930 is an S800 I/O analog input module designed for dependable current-loop measurement in distributed control systems. From my experience, it’s a practical choice when you need clean, multi-loop 4–20 mA data into AC 800M / 800xA without complicating the cabinet. You might notice that it favors reliability and easy serviceability—hot‑swappable handling, clear diagnostics, and straightforward wiring on the S800 termination units typically make commissioning faster than expected.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week for in-stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• Industrial 4–20 mA input – Optimized for two-wire transmitters used in flow, pressure, level, and temperature loops.
• S800 I/O ecosystem – Plugs onto ABB S800 termination units (e.g., TU810/TU812), which seems to be the most common setup in 800xA cabinets.
• Hot‑swap serviceability – Module replacement without powering down the whole I/O cluster in most cases, minimizing downtime.
• Robust diagnostics – Channel fault and module status indicators help maintenance pinpoint loop issues quickly.
• Noise‑resistant design – Suits noisy panels with VFDs nearby when wiring and shielding are done properly.
• HART pass‑through (variant dependent) – Frequently used for device parameterization and asset management when configured with HART-enabled channels.
• Space‑efficient form factor – Typical S800 footprint keeps cabinets compact on DIN rail.

Technical Specifications

Application Fields

Plants that rely on tight loop control usually get the most from AI930. Typical scenarios include:

• Oil & Gas skids: Pressure and temperature transmitters on separators and metering skids, where hot‑swap and fast loop diagnostics save service time.
• Water & Wastewater: Level and flow measurement on clarifiers and chemical dosing, often with HART device parameter checks from the control room.
• Power & Utilities: Condensate and boiler feed loops, where stable current acquisition supports steady PID control.
• Food & Beverage / Pharma: Hygienic process transmitters feeding trend-critical CIP/SIP steps with clean 4–20 mA signals.
• Metals / Mining: Rugged cabinet installs near drives and MCCs; proper shielding and the module’s diagnostics help reduce nuisance faults.

Advantages & Value for Procurement

• Reliability: S800 I/O modules are known for long service life; fewer nuisance trips mean reduced unplanned downtime.
• Compatibility: Works within AC 800M / 800xA and wider ABB DCS topologies; leverages existing S800 spares and know‑how.
• Cabinet efficiency: Compact footprint keeps enclosure sizes in check—often a quiet cost saver on brownfield upgrades.
• Maintainability: Hot‑swap handling and clear LEDs speed up replacement; technicians typically finish module swaps within minutes.
• Lifecycle support: Good availability of termination units and accessories helps standardize across skids and lines.

A maintenance supervisor at a municipal WTP told us they replaced an AI930 during a shift without halting the clarifier—15 minutes from alarm to green light. That’s the kind of practical benefit that tends to matter more than spec-sheet numbers.

Installation & Maintenance

• Cabinet & environment: Mount on DIN rail with S800 termination units; allow ventilation; keep within 0…+55 °C and non‑condensing humidity.
• Wiring practices: Use shielded twisted pair for 4–20 mA; land shields at one end; separate low‑level analog from power and VFD cabling.
• Loop power: Verify transmitter supply (24 VDC) and common returns; add HART load resistor if required by your asset management setup.
• Grounding & EMC: Bond DIN rail and cabinet ground properly; keep cable trays tidy to limit coupling noise.
• Routine care: Visually inspect terminals, re‑torque as per site practice, clean dust with dry air, and review channel diagnostics quarterly.
• Firmware/config: When applicable, align module firmware and controller libraries; back up I/O configuration before changeovers.

Quality & Certifications

• Certifications: CE compliant; many installations also reference UL/cUL and RoHS conformity for S800 family modules.
• Manufacturing quality: ABB quality systems are typically aligned with ISO 9001.
• Warranty: 365-day warranty coverage from shipment.

Common Supporting Components

• Termination Units: TU810 / TU812 (or equivalent S800 TUs) for field wiring and ModuleBus connection.
• System Accessories: DIN rail, end stoppers, and shield clamps for proper EMC and strain relief.
• Service Spares: Extra TU terminal connectors and labeling strips for quick swap-outs.

If you’re standardizing an S800 cabinet, pairing AI930 with TU810/TU812 keeps wiring consistent across skids and eases future expansions.
