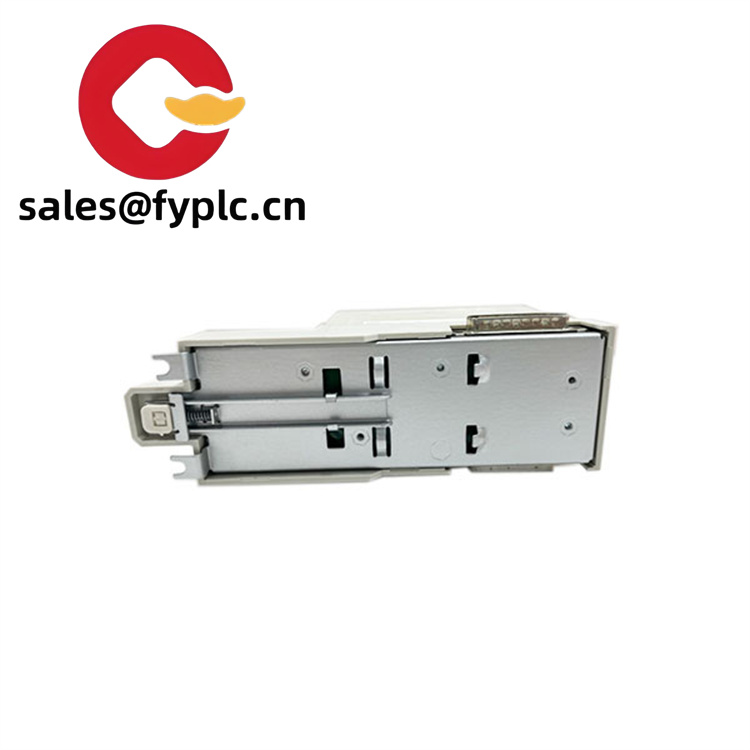

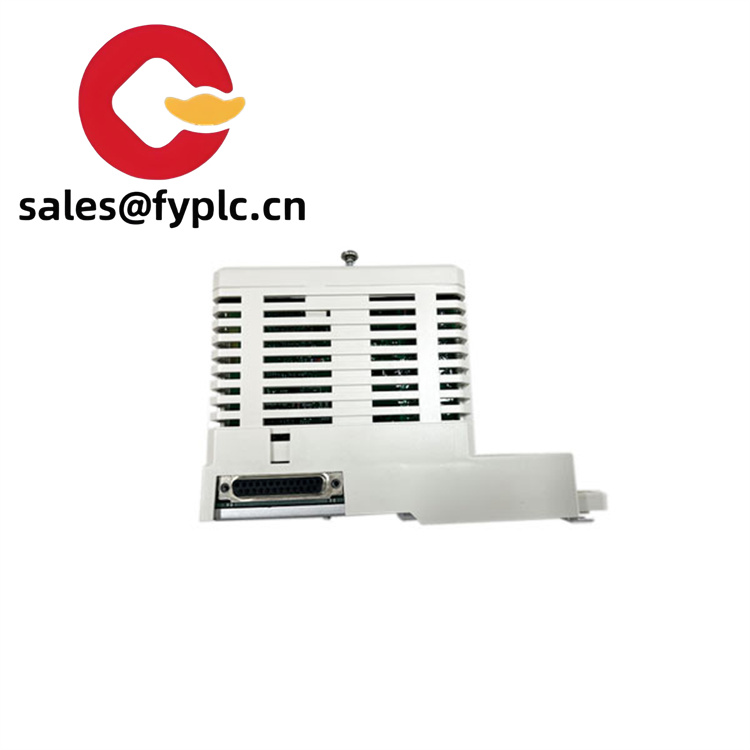

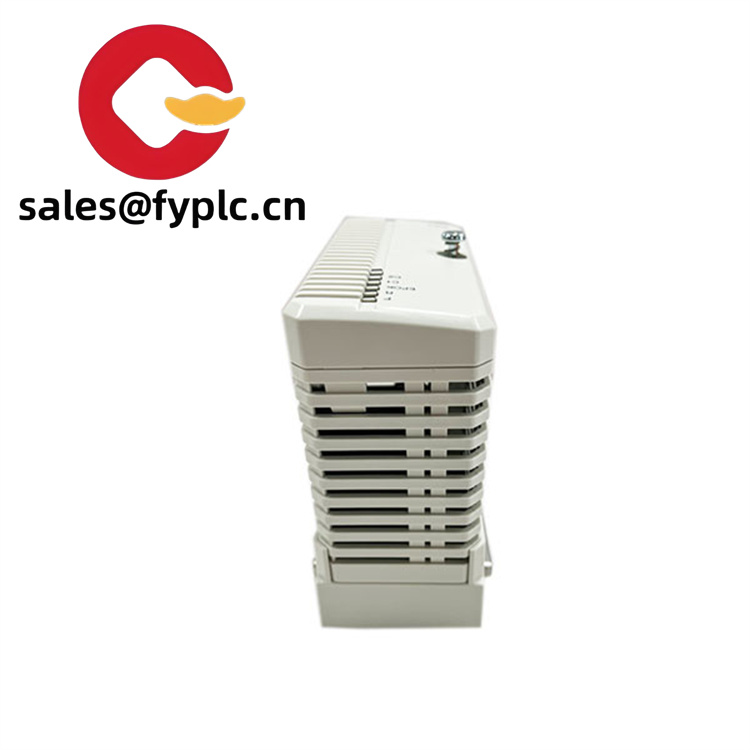

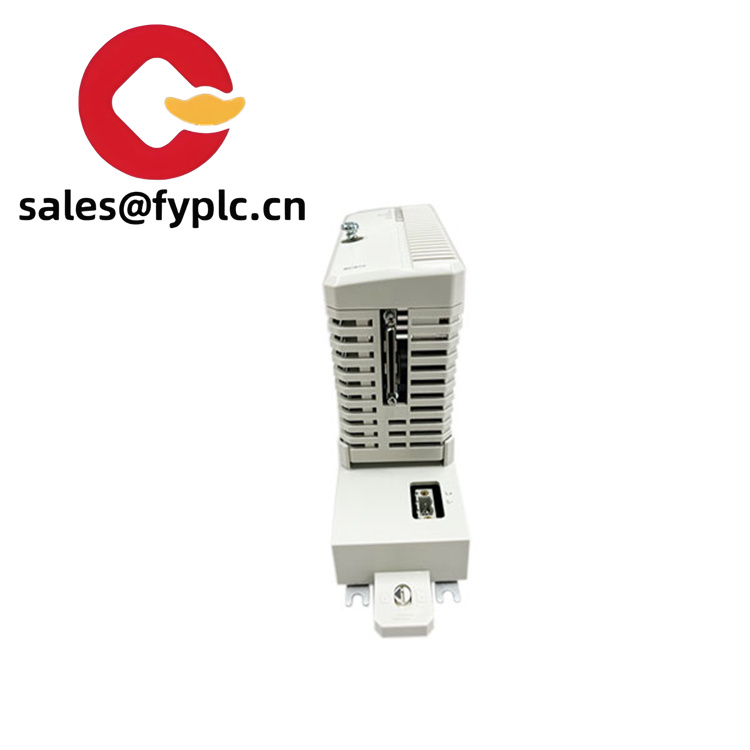

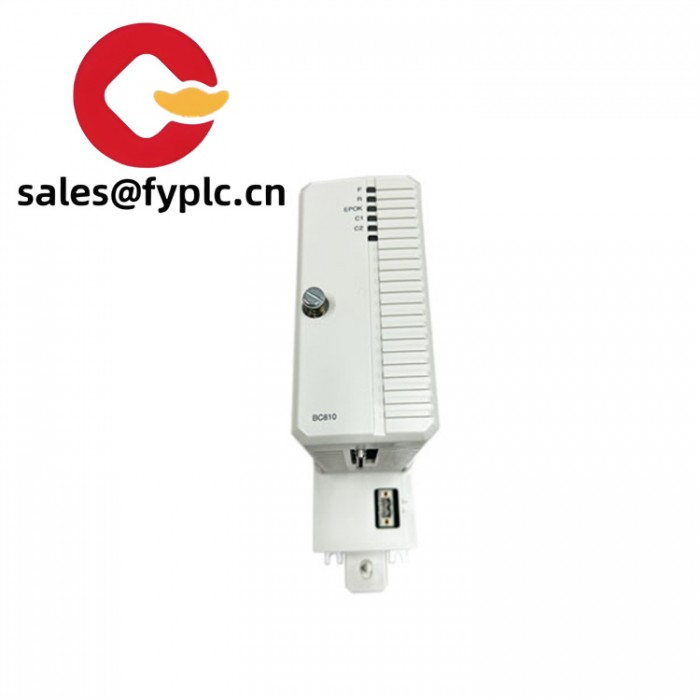

ABB BC810 high-performance programmable logic controller
BC810
The ABB BC810 series is a versatile family of industrial modules designed to enable seamless communication, control, and integration in automation systems. Comprising multiple variants such as BC810K01 and BC810K02, these units serve as critical components in ABB’s distributed control systems (DCS) and modular automation architectures, particularly within the AC 800M and S800 I/O ecosystems . Below is a detailed breakdown of their technical specifications, applications, and lifecycle considerations.
For more information, please click on the following link:
| Parameter | BC810K01 | BC810K02 |
|---|---|---|
| Type | CEX-Bus Interconnection Unit | CEX-Bus Interconnection Unit |
| Function | Bridges CEX-Bus segments for enhanced communication reliability | Supports redundant CEX-Bus configurations and online CPU replacement |
| Bus Support | CEX-Bus (for connecting I/O modules, drives, and controllers) | CEX-Bus with redundancy protocols (e.g., MRP/PRP) |
| Power Supply | 24V DC ±20% | 24V DC ±20% |
| Environmental Ratings | -25°C to +70°C (operational) | -40°C to +70°C (operational) |
| Physical Dimensions | 59 x 185 x 127.5 mm | 120 x 94 x 72 mm |
| Certifications | CE, UL, CSA | CE, UL, CSA |
| Redundancy Support | N/A | Hot-swappable in redundant CPU systems |
CEX-Bus Interconnection
Both BC810K01 and BC810K02 act as bridges for ABB’s CEX-Bus, a high-speed communication backbone used in industrial automation. This allows seamless data exchange between S800 I/O modules, AC 800M controllers, and other devices like servo drives and HMIs .
Both BC810K01 and BC810K02 act as bridges for ABB’s CEX-Bus, a high-speed communication backbone used in industrial automation. This allows seamless data exchange between S800 I/O modules, AC 800M controllers, and other devices like servo drives and HMIs .
Rugged Industrial Design
With wide temperature ranges and IP20/IP30 protection, these modules withstand harsh environments, including high vibration, dust, and humidity . The BC810K02’s reinforced casing and conformal coating further enhance durability in extreme conditions .
With wide temperature ranges and IP20/IP30 protection, these modules withstand harsh environments, including high vibration, dust, and humidity . The BC810K02’s reinforced casing and conformal coating further enhance durability in extreme conditions .
BC810
Modular Scalability
BC810K01: Supports up to 128 concurrent connections, ideal for small to medium-scale systems .
BC810K02: Enables ring topology configurations for redundant networks, critical for mission-critical applications like power plants and chemical processing .
Diagnostic Capabilities
Built-in LED indicators provide real-time status monitoring for power, communication, and module health. Remote diagnostics via ABB’s 800xA software allow proactive maintenance and rapid troubleshooting .
