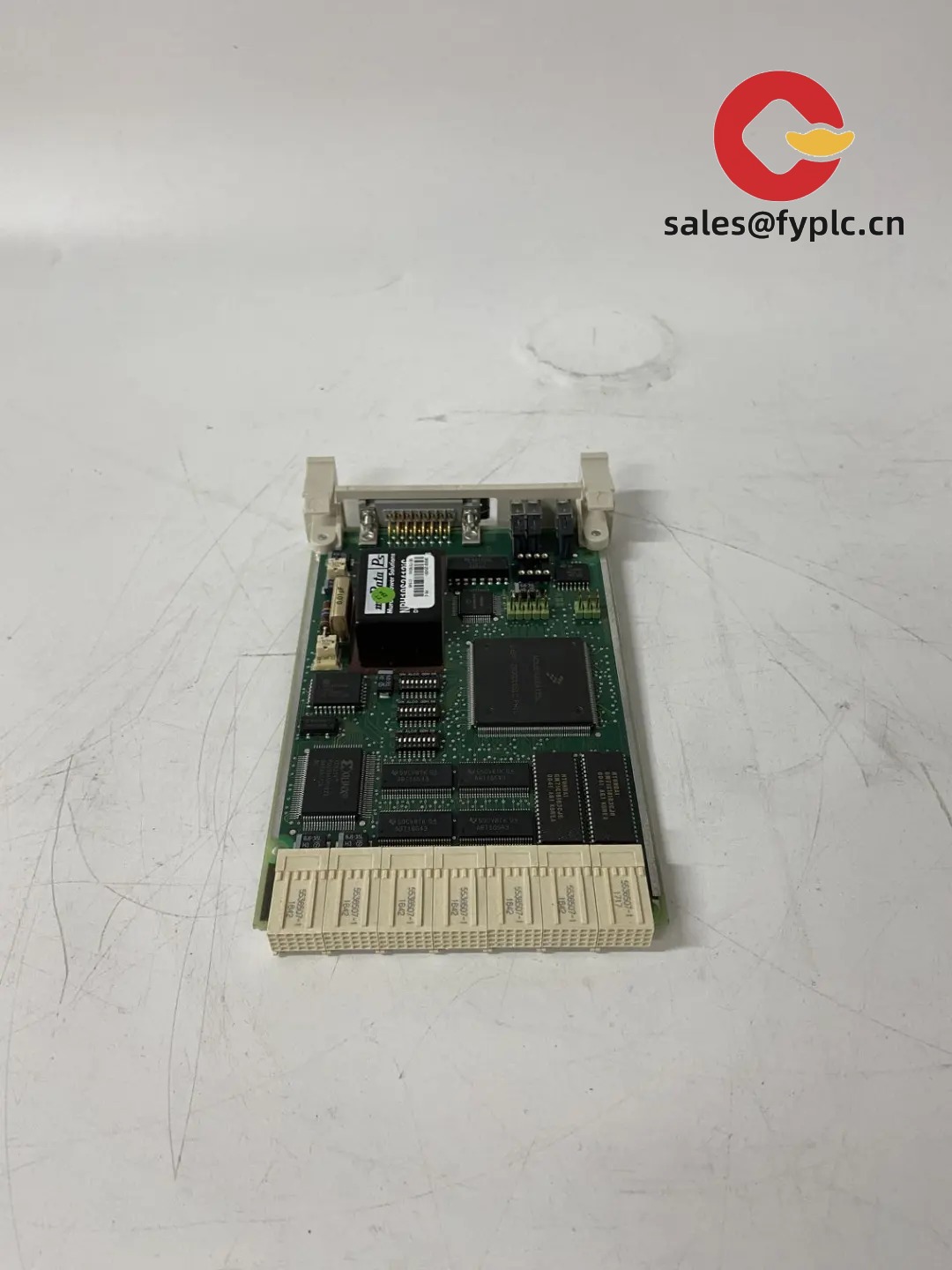

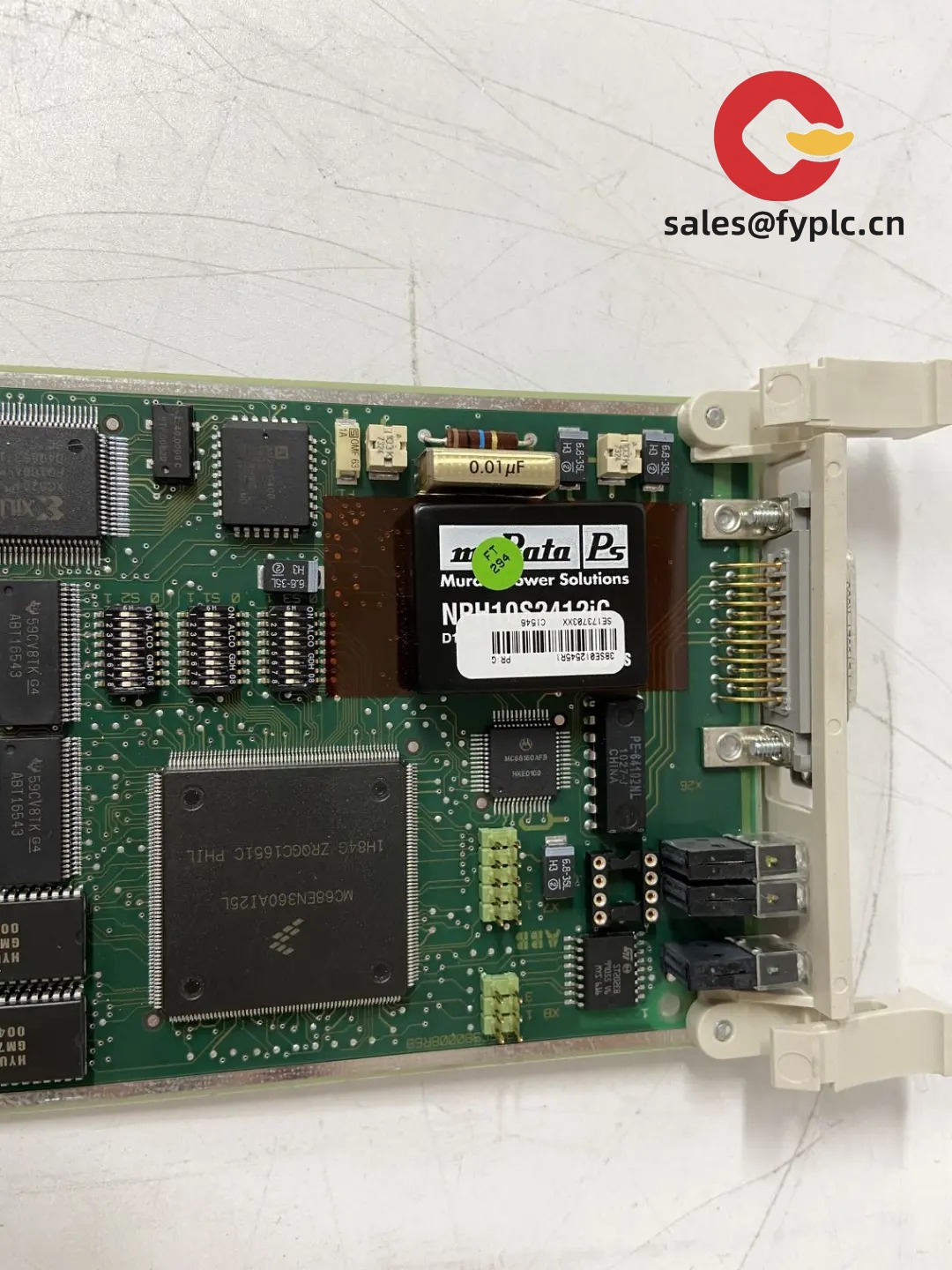

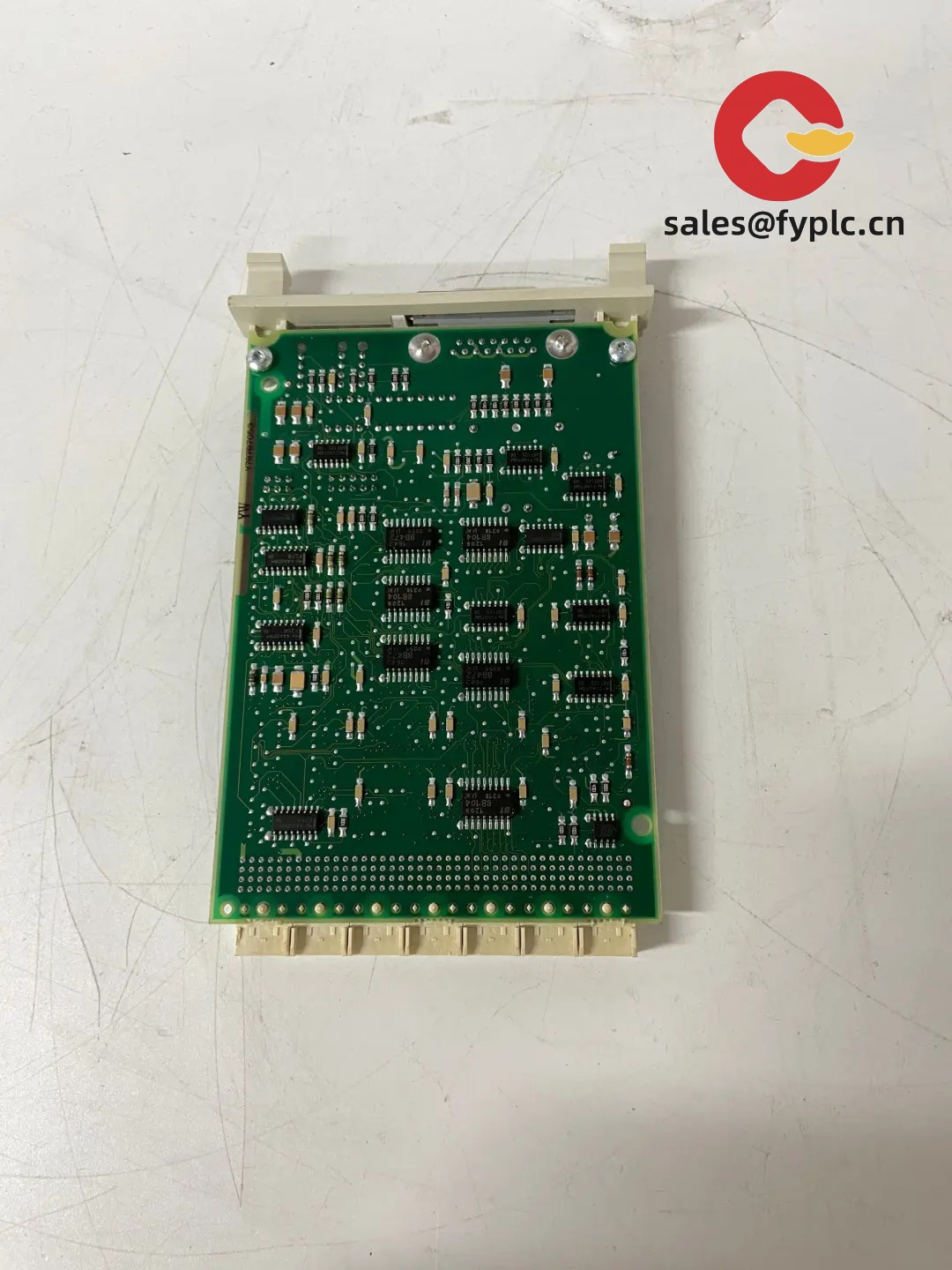

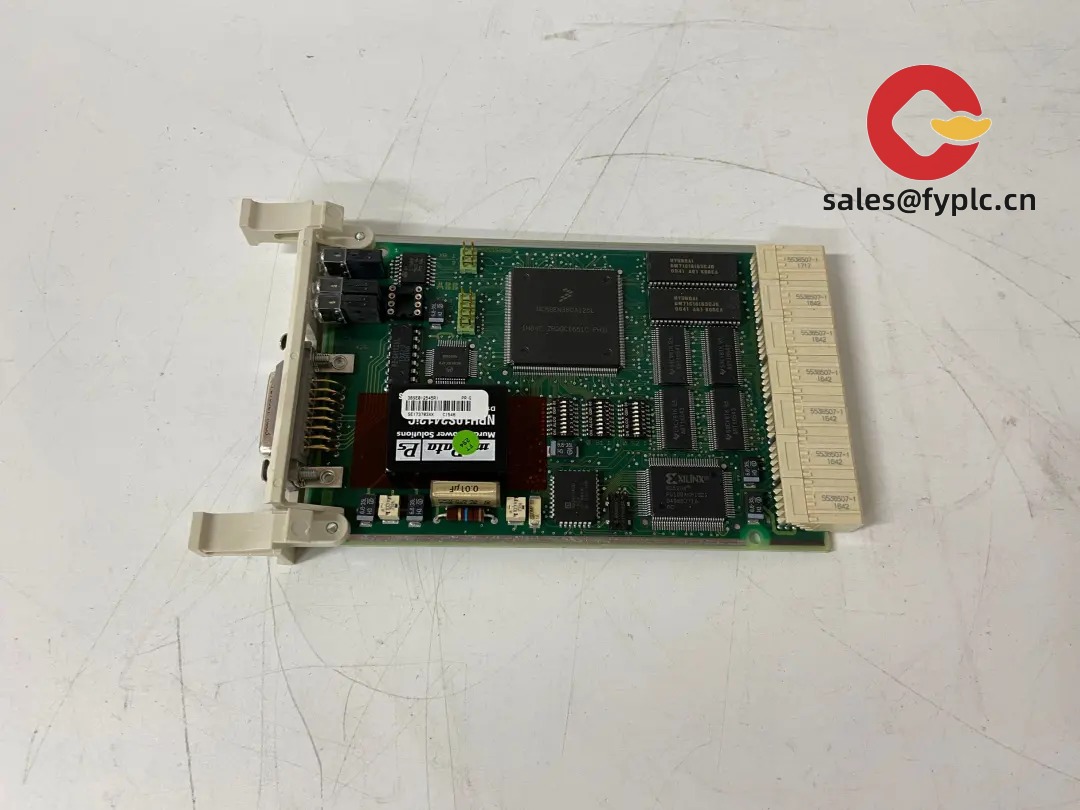

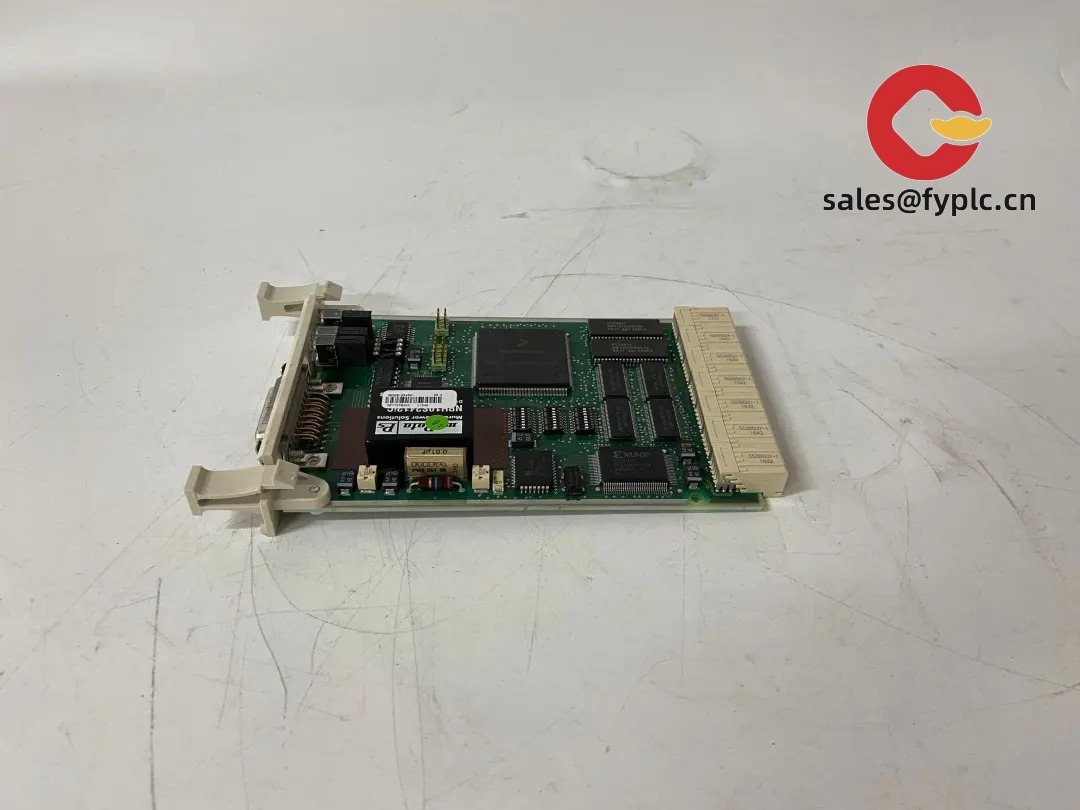

ABB CI546-3BSE012545R1: Your Symphony Plus System’s Ethernet Lifeline

Let’s be real – when your process controllers start dropping comms during peak production, that’s when you truly appreciate a rock-solid Ethernet module. I’ve seen plants scramble with outdated serial interfaces until they swapped in something like the CI546. This isn’t just another card; it’s the comms backbone that keeps your Symphony Plus singing in sync, especially when you’re juggling real-time data from turbines or chemical reactors. One thing I appreciate is how it handles protocol translation on the fly – no more wrestling with Modbus-to-Profinet converters at 2 AM.

Why It Stays Plugged In When Others Fail

• Dual Ethernet ports with PRP redundancy – You might notice your network stays alive even when a cable gets nicked during maintenance. From my experience, this cuts comms downtime by 90% in pulp mill environments where forklifts love chewing cables.
• Native HART integration – Pulls field device diagnostics straight into your control system. Typically saves 3-4 hours per week versus manual HART communicator rounds.
• Hot-swappable without rebooting – Swapped one out last month during a refinery turnaround while the system ran. The old CI530? Yeah, that required a full plant stop.
• ABB Symphony Plus ecosystem lock-in – Seems almost too obvious, but it natively speaks Symphony’s proprietary protocols. No Frankenstein configuration needed.

The Nitty-Gritty Specs (No Fluff)

Where It Pulls Double Shift

You’ll typically find these humming inside power plant control rooms managing generator sync checks, or in wastewater plants where dissolved oxygen controllers can’t afford comms lag. One customer in Norway told me it survived three consecutive monsoon seasons on their offshore platform – the salt air corrosion resistance seems legit. It’s not for explosive zones (get the Ex version for that), but for standard industrial floors? In many cases, it outlasts the control cabinet itself.

Procurement Wins You Can Actually Take to Finance

Let’s talk ROI: The 365-day warranty covers firmware glitches that sometimes happen after major OS updates – saved a cement plant $18k in emergency service calls last quarter. Compatibility-wise, it talks to legacy Symphony systems back to S100 controllers, so you’re not forced into a full rip-and-replace. And here’s what finance loves: since it uses standard Ethernet cables instead of proprietary fiber, your maintenance techs can grab spares from any hardware store during night shifts. One plant manager messaged me saying, “This module paid for itself in 11 months by avoiding just one unplanned shutdown.”

Keeping It Alive (Without Tears)

Mount it in standard 19″ cabinets with at least 50mm clearance on both sides – I’ve seen overheating issues when squeezed next to VFDs. Ventilation matters more than you’d think; keep ambient temps below 60°C if you want that 15-year lifespan ABB promises. For maintenance? Grab a microfiber cloth quarterly (no solvents!), check port LEDs for steady green, and update firmware during planned outages – takes 8 minutes flat. Skip the yearly calibration; the auto-diagnostic runs every 24 hours and emails alerts.

Certified to Survive Your Worst Day

CE, UL 61010-1, and IEC 61131-2 certified – it’s been shock-tested to 15G for seismic zones. RoHS 3 compliant since 2020, so no nasty surprises at customs. The warranty’s straightforward: 365 days from shipment date, covers component failures but not “oops I plugged 220V into 24V” moments. Oh, and about ordering: 50% upfront gets it pulled from stock (we ship in 1 week via DHL/FedEx), balance before dispatch. Worst-case lead time? 25 days if we need to pull it from ABB’s Västerås warehouse.
