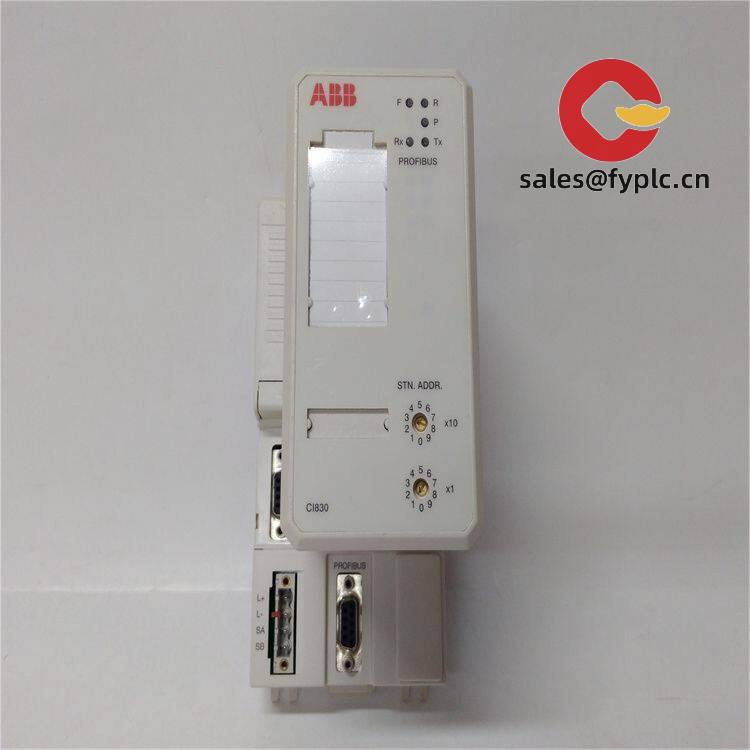

ABB CI830 3BSE013252R1 – High-Performance Redundant Communication Interface for Industrial Automation

If you’re running an ABB 800xA system and need rock-solid communication redundancy between controllers and I/O modules, the CI830 is one of those components that quietly keeps everything online. It’s not flashy, but in many cases, it’s the difference between a smooth switchover during network hiccups and an unplanned plant stoppage.

One thing I appreciate about this module is how well it integrates with existing AC 800M setups. You might notice that some communication cards require extra configuration or firmware patches, but the CI830 typically comes up fast after installation—especially if you’re upgrading from an older CI810 or CI820.

Key Features

• Redundant Modbus RTU/ASCII master interface – Handles two serial communication channels with automatic failover, which seems to reduce downtime during port failures.
• Dual-channel RS-485/RS-422 support – Offers flexibility in connecting legacy drives, meters, or third-party devices without requiring additional converters.
• Hot-swappable design – From my experience, this saves real time during maintenance windows since you don’t need to power down the entire rack.
• Integrated diagnostics via Control Builder M – Gives engineers visibility into communication errors, CRC failures, or device timeouts directly from the control system.
• Supports up to 19.2 kbps per channel – Not ultra-fast by modern standards, but more than sufficient for most field devices like flow meters or motor controllers.

Technical Specifications

Application Fields

This card shows up a lot in water treatment plants, pulp and paper mills, and medium-scale power generation sites where legacy equipment still runs on serial protocols. For example, one customer used it to link an aging boiler feedwater system using Modbus RTU to their new 800xA DCS—without rewiring anything on the field side. It also appears in safety-related applications where redundant comms are required, though it’s not a SIL-certified component itself.

Advantages & Value

Procurement teams tend to favor this module because it extends the life of existing systems. Instead of replacing perfectly functional field devices just to match newer communication standards, the CI830 lets you integrate them cleanly. That usually translates into cost savings—sometimes thousands when you factor in reduced engineering hours and avoided downtime.

It’s also compatible across multiple ABB controller generations, so if you’re managing spare parts inventory across several plants, having one model that fits most racks simplifies logistics. Firmware updates are handled through standard tools, which reduces dependency on specialized technicians.

Installation & Maintenance

The module slides into any standard AC 800M I/O rack and draws power from the backplane—no separate PSU connections. Just make sure your cabinet meets IP20 standards, has adequate ventilation (especially in warmer climates), and uses shielded twisted-pair cabling for the serial links.

During installation, double-check termination resistors on each bus segment. One site I worked with had intermittent faults until they realized both ends of the RS-485 line were terminated—classic mistake. Also, avoid routing signal cables alongside high-voltage lines; EMI can sneak in even with isolation.

For maintenance, there’s not much to do beyond periodic checks in Control Builder M. Look at error counters monthly, clean dust from connectors during annual shutdowns, and keep firmware aligned with your system baseline. No calibration needed—it’s all digital.

Quality & Certifications

The CI830 carries CE, UL, and RoHS compliance marks, which clears most regulatory hurdles in North America and Europe. It’s designed and tested to industrial EMC standards (IEC 61000-6 series), so it holds up well in electrically noisy environments.

Warranty is 365 days from shipment date—typical for refurbished or surplus ABB hardware. We test every unit before dispatch for basic functionality: LED status, loopback response, and firmware recognition. Delivery takes about one week for in-stock units, and no later than one month if we need to source it. Payment is 50% upfront, balance before shipping via FedEx, UPS, or DHL depending on destination.
