Description

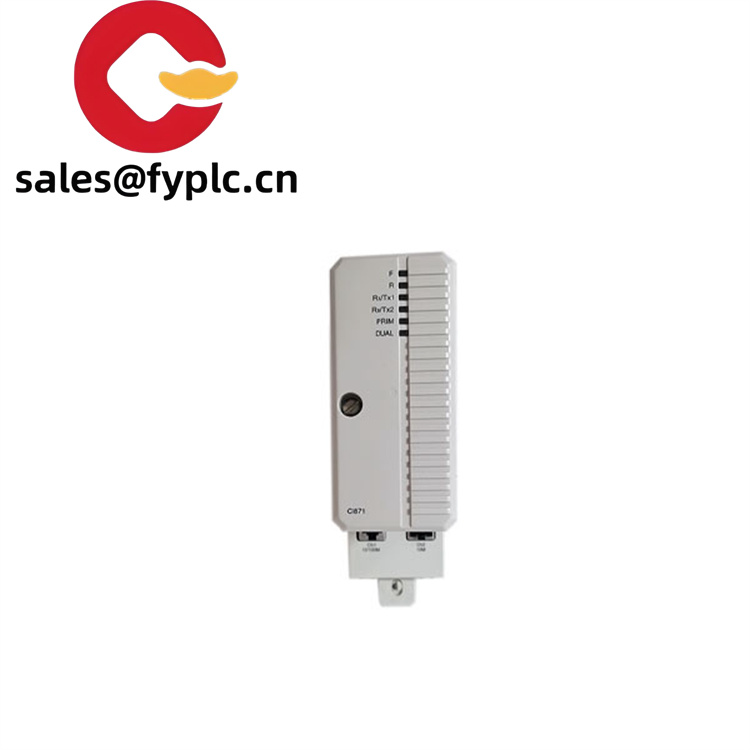

ABB CI871 Controller Interface Module Communication Connector
CI871
The ABB CI871 serves as a bridge that connects various components within industrial control systems. Whether it’s integrating sensors that monitor critical process variables, actuators that execute control commands, or coordinating with Programmable Logic Controllers (PLCs), Distributed Control Systems (DCS), or Supervisory Control and Data Acquisition (SCADA) systems, this module plays a pivotal role.
| Label |
Specification |
| Model Number |
CI871 (available in variants like CI871K01, CI871AK01) |
| Brand |
ABB |
| Type |
Communication Interface Module |
| Input Voltage |
Typically 24 VDC (varies by model and application requirements) |
| Operating Temp |
– 20 °C to + 60 °C |
| Communication Method |
Ethernet (with 100 Mbps support for PROFINET IO in some models), supports Modbus TCP/IP and other industrial – standard protocols |
| Mounting |
DIN – rail mounting for easy installation in control cabinets |
| Weight |
Approximately 0.3 kg (varies slightly depending on the specific model) |
| Certifications |
Meets international standards such as CE, UL, CSA, and TUV, ensuring compliance with safety and quality regulations |
| Dimensions |
Roughly 150 x 100 x 50 mm (model – specific dimensions may vary) |
| IP Rating |
Designed to withstand industrial environments, with appropriate protection against dust and moisture (specific IP rating may vary by model) |
| Protocols Supported |
PROFINET IO, Ethernet/IP, Modbus TCP, and others, facilitating communication with a wide range of devices |
CI871
The ABB CI871 has been engineered with several functional strengths that make it stand out in real – world industrial environments. Its support for multiple communication protocols is a significant advantage. By being compatible with protocols like PROFINET IO, Ethernet/IP, and Modbus TCP, it can communicate with devices from different manufacturers and integrate into existing systems without major compatibility issues. This interoperability simplifies the process of building or upgrading industrial automation networks, allowing companies to mix and match equipment based on their specific needs.
In terms of performance, the
CI871 offers high – speed data transfer capabilities. The 100 Mbps Ethernet connection, especially for PROFINET IO in relevant models, ensures that large volumes of data can be transmitted rapidly and accurately. This speed is crucial in applications where real – time monitoring and control are essential, such as high – speed manufacturing lines or automated robotic systems. For example, in an automotive assembly plant, the
CI871 can quickly relay the position and status of robotic arms to the control system, enabling precise and timely adjustments.
CI871
The design of the
ABB CI871 also prioritizes reliability. It features a rugged construction that can endure the harsh conditions often found in industrial settings, including electrical noise, vibrations, and temperature fluctuations. The DIN – rail mounting design not only makes installation straightforward but also ensures a secure fit in control cabinets. Additionally, the module is designed to consume low power, optimizing energy use without sacrificing performance. This is not only beneficial for reducing operational costs but also aligns with the growing trend towards eco – friendly industrial practices.
