ABB CI871K01 Distributed Control System Controller Interface Ethernet Interface Module

CI871K01

The ABB CI871K01 is purpose – built to serve as a bridge between various devices in industrial automation systems. Whether it’s in a large – scale factory with numerous sensors and actuators, a power plant monitoring critical parameters, or a chemical plant controlling complex processes, this module plays a pivotal role. It enables high – speed data transfer, ensuring that information from the shop floor reaches the control room in a timely manner. By integrating with the ABB 800xA DCS (Distributed Control System) or other compatible industrial networks, the CI871K01 becomes an essential part of the overall control infrastructure.

Label	Specification
Model Number	CI871K01
Brand	ABB
Type	Profinet IO Interface Module
Input Voltage	24V DC
Operating Temperature	– 20°C to 60°C
Communication Speed	Up to 100 Mbps
Communication Protocol	Profinet IO, also supports Modbus TCP/IP and is compatible with various industrial protocols like Ethernet/IP
Mounting	Designed to be mounted in a standard industrial control cabinet, often in combination with a TP867 baseplate
Weight	Approximately 0.7 kg (including associated components in a typical setup)
Certifications	UL, CE, CSA, TUV, compliant with EU directive 2011/65/EU (RoHS), falling under WEEE category 5 (small equipment)
Dimensions	Product net depth/length: 127.5 mm, net height: 186 mm, net width: 59 mm
Interface Compatibility	Features an RS – 485 connection type for versatile connectivity; has two RJ45 Ethernet connectors on the associated TP867 baseplate (with CH1 supporting 100Mbps for Profinet IO connection)
Power Dissipation	Up to 5 watts, ensuring energy – efficient operation

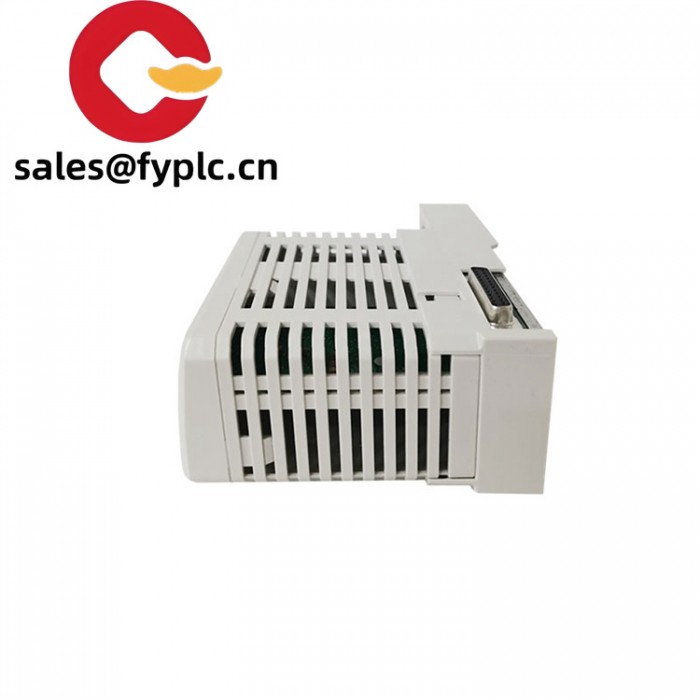

ABB-CI871K011

The ABB CI871K01 is engineered with several features that set it apart in the industrial landscape. Its support for high – speed communication protocols like Profinet IO enables rapid data exchange. In a fast – paced manufacturing environment, where real – time data is crucial for maintaining production efficiency, the CI871K01 can quickly transmit data between different parts of the automation network. For example, it can relay the status of robotic arms in an assembly line to the control system in milliseconds, allowing for immediate adjustments if any anomalies are detected.

The module’s wide operating temperature range from – 20°C to 60°C makes it suitable for use in diverse industrial settings. In a cold storage facility, where temperatures can drop well below freezing, or in a steel mill with extremely high ambient temperatures, the CI871K01 can continue to function reliably. This robustness ensures that industrial processes are not interrupted due to temperature variations.

ABB-CI871K011

Its compatibility with multiple industrial protocols is another major advantage. Whether a plant is using equipment that adheres to Modbus TCP/IP or Ethernet/IP standards, the CI871K01 can interface with these devices seamlessly. This flexibility allows for easy integration into existing industrial setups, eliminating the need for complex and costly rewiring or system overhauls when upgrading or adding new components.
