The ABB CP405-A0 is a high-performance human-machine interface (HMI) designed for industrial automation and process control applications. Classified under ABB’s CP400 series, this 7-inch TFT touchscreen panel combines rugged durability with flexible communication capabilities, making it suitable for industries such as manufacturing, energy, and water treatment. Below is a detailed analysis of its technical specifications, functionalities, and real-world applications.

Label	Specification
Model	CP405-A0 (1SAP500405R0001)
Brand	ABB
Type	Industrial Control Panel (HMI)
Display	7-inch TFT LCD with resistive touchscreen
Resolution	800 x 480 pixels
IP Rating	IP65 (dust and water ingress protection)
Communication Ports	RS232, RS485, RS422, Ethernet (TCP/IP)
Input Voltage	24V DC (±10%)
Power Consumption	≤8VA
Processor	32-bit RISC microcontroller (ABB-specific)
Memory	8MB Flash, 8MB RAM
Operating Temperature	0°C to +50°C (standard)
Storage Temperature	-20°C to +60°C
Dimensions	210mm (W) × 150mm (H) × 52mm (D)
Weight	~0.65 kg
Certifications	CE, UL (pending verification)
Software	CP400 PB Panel Builder 400

1. Intuitive Operator Interface
   The 7-inch TFT display with resistive touch technology allows operators to monitor process data (e.g., temperature, pressure, flow) and adjust parameters in real time. Its eight configurable function keys (F1-F8) and dedicated menu navigation simplify access to critical operations like alarm management or recipe selection . The touchscreen supports up to 1,000,000 activations, ensuring long-term durability in high-use environments.
2. Multi-Protocol Connectivity
   Equipped with multiple serial ports (COM1-COM3) and an Ethernet interface, the CP405-A0 supports seamless integration with ABB’s Freelance DCS, AC800M PLCs, and third-party systems via protocols like Modbus RTU/ASCII, Profibus DP, and Ethernet/IP . This versatility enables it to act as a local HMI for modular automation systems or a remote monitoring terminal for distributed control networks.
3. Robust Environmental Resilience
   The IP65-rated enclosure protects against dust, water splashes, and oil mist, making it suitable for harsh industrial settings like chemical plants or food processing facilities . Its extended operating temperature range (-20°C to +60°C during storage) ensures reliable performance in extreme conditions, while galvanic isolation safeguards against voltage spikes and electromagnetic interference.

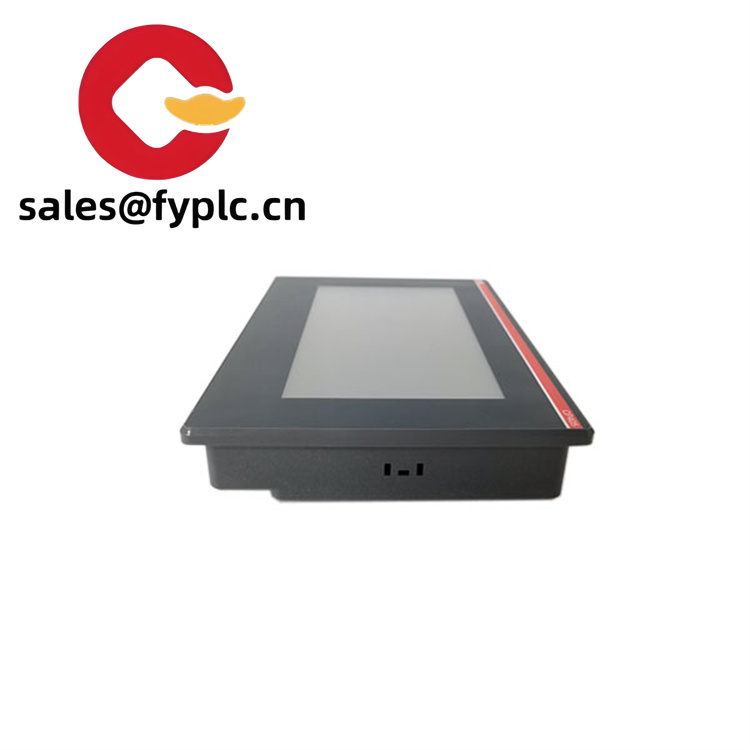

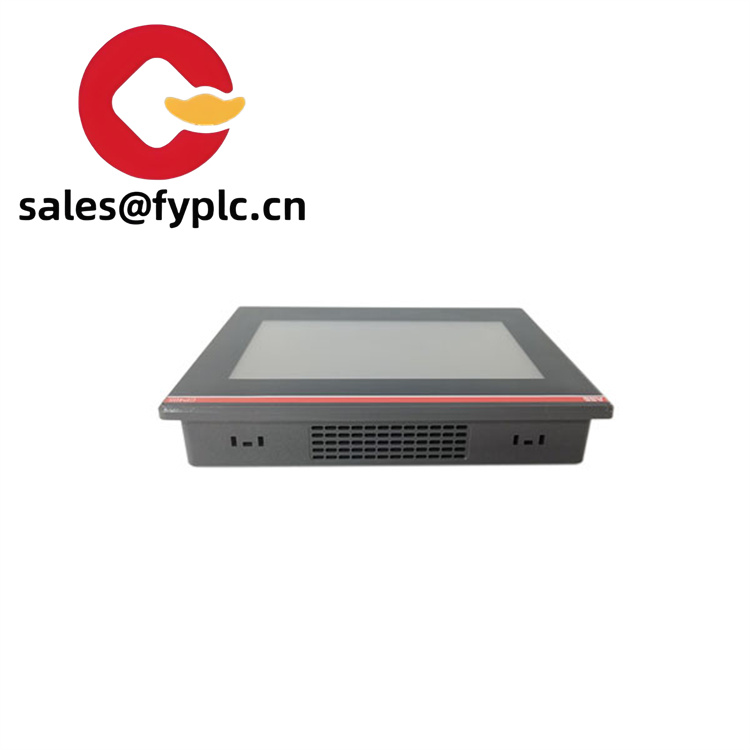

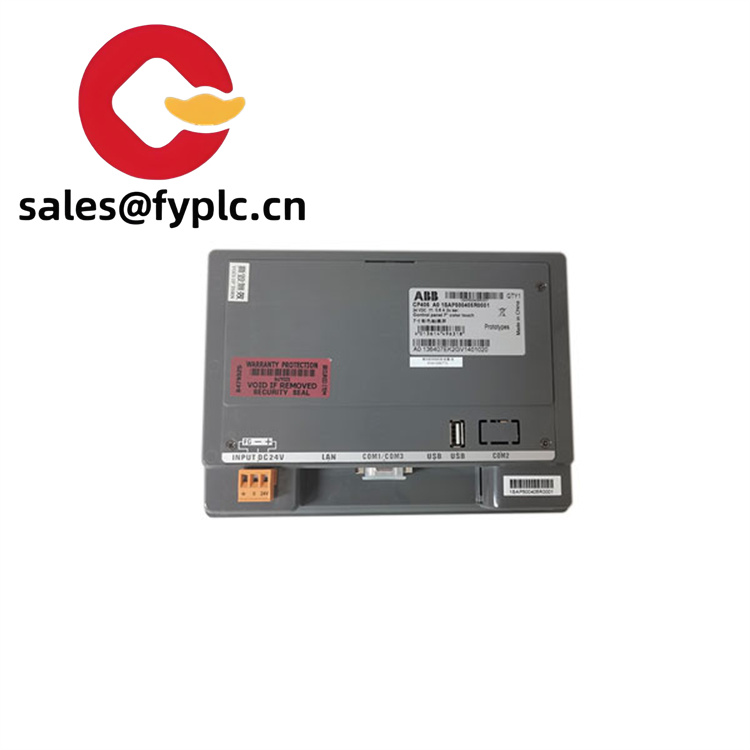

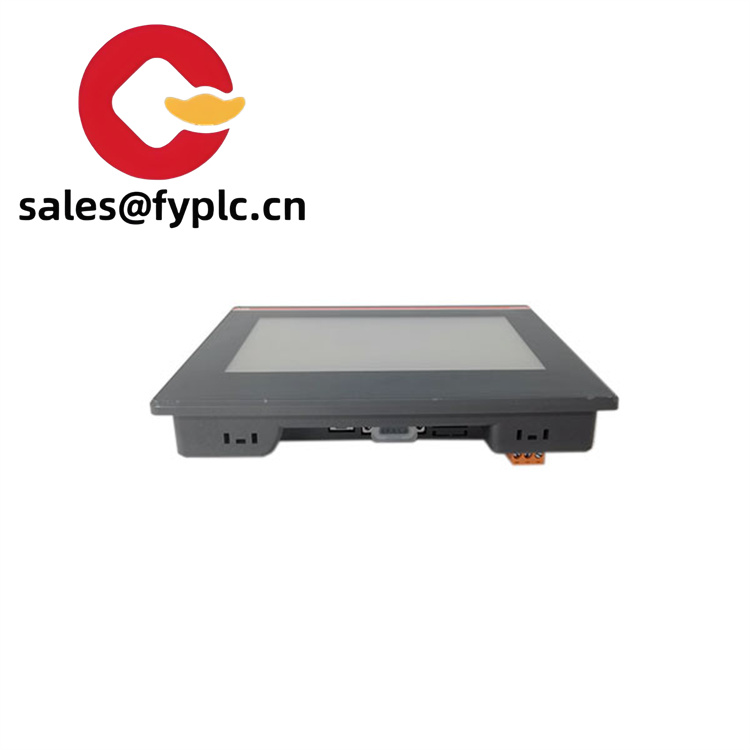

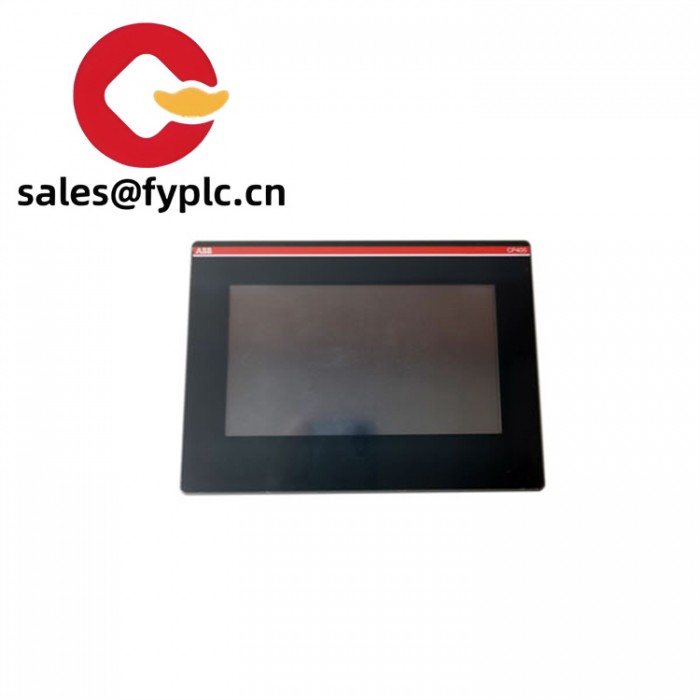

   CP405-A0

4. Customizable Application Development
   Using CP400 PB Panel Builder 400, engineers can design tailored HMI applications, including graphical displays, data logging, and user authentication. The software supports multi-language interfaces (including Far East languages) and real-time data visualization in numerical, bar graph, or gauge formats . The control panel’s 8MB Flash memory stores complex applications, while 8MB RAM ensures smooth real-time processing.
