Description

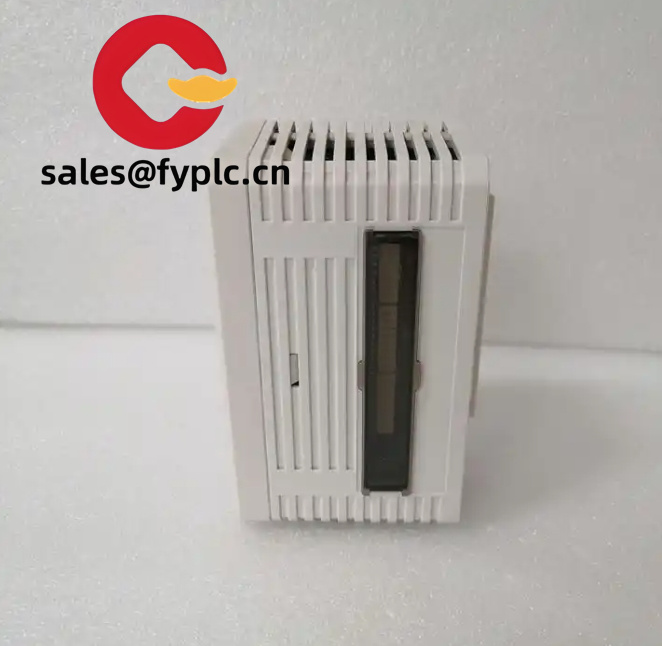

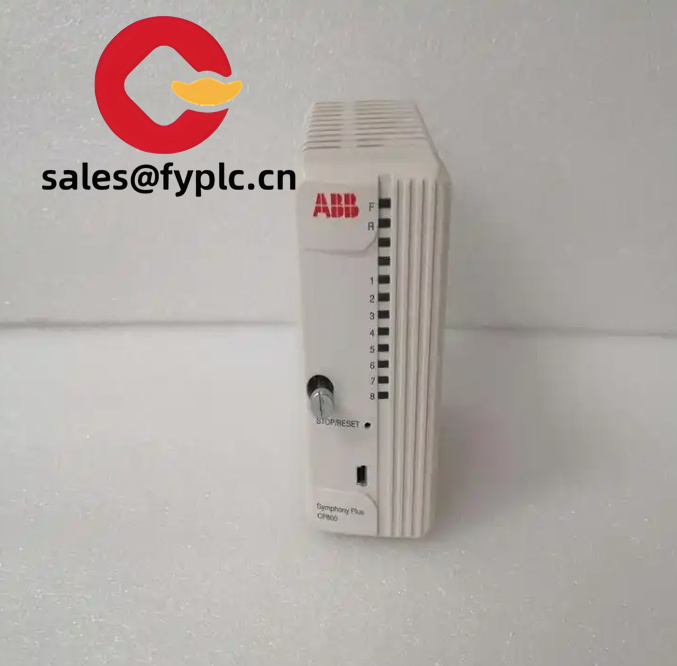

ABB CP800 communication controller, motion controller
Building M2M Networks
When paired with Affordable Scada’s machine – to – machine (M2M) network and hosted HMI, the CP800 unlocks the potential for seamless remote access to on – site intelligent devices. This combination is especially beneficial for industries with distributed operations, such as utility companies, logistics providers, and multi – site manufacturing facilities.
For a utility company managing a vast network of power substations, transformers, and smart meters across a large geographical area, the CP800 – M2M – HMI solution allows operators to remotely monitor and control these devices from a central command center. Using any standard web browser, they can access real – time data on power generation, consumption, and equipment status, perform remote diagnostics, and even issue control commands to adjust the operation of the devices. This not only improves operational efficiency but also reduces the need for costly on – site visits, enabling faster response times to equipment failures and other issues.
In the logistics industry, where fleets of vehicles, warehouses, and distribution centers need to be managed efficiently, the CP800 can be used to connect various sensors and devices, such as GPS trackers, temperature sensors in refrigerated trucks, and inventory management systems. Through the M2M network and hosted HMI, logistics managers can monitor the location, condition, and status of their assets in real – time, optimizing routes, scheduling maintenance, and ensuring the timely delivery of goods.
2.3.3 Good System Expandability
The CP800 is designed with scalability in mind, making it an ideal choice for industrial automation systems that are expected to grow and evolve over time. The network and HMI ecosystem associated with the CP800 offer excellent expandability, allowing businesses to start small and gradually add more devices and functionality as their infrastructure requirements increase.
In the early stages of a manufacturing startup, for example, a basic communication network can be established using a few CP800 devices to connect essential production equipment, such as a couple of PLCs, a few sensors, and a simple HMI for local control. As the business expands and more production lines are added, additional CP800 devices can be easily integrated into the existing network. These new devices can connect to new sensors, actuators, and control systems, without the need for a complete overhaul of the entire system.
The modular design of the CP800 also facilitates the addition of new features and functionality. For instance, if a company decides to implement a new predictive maintenance program, it can simply connect additional vibration sensors, temperature sensors, and other diagnostic devices to the existing CP800 – based network. The CP800’s support for multiple protocols and its ability to handle large amounts of data ensure that the new devices can be integrated smoothly, and the data can be effectively collected, processed, and analyzed to detect potential equipment failures before they occur.
Technical Parameters
|
Parameter Category
|
Parameter Name
|
Specification
|
|
Environmental
|
Operating Temperature
|
– 40°F to + 100°F (- 40°C to 37.8°C)
|
|
|
Protection Level
|
NEMA 4
|
|
|
UL Certification
|
Meets UL F1 ultraviolet exposure level requirements
|
|
Physical
|
Housing Material
|
Polycarbonate
|
|
|
Lock
|
Stainless steel lockable latch
|
|
|
Appearance
|
Light gray glossy surface treatment
|
|
|
Weight
|
50 lbs (22.7kg)
|
|
|
Dimensions
|
16” W x 14” H x 8” D (40.6cm x 35.6cm x 20.3cm)
|
|
|
Installation Method
|
Wall – mounting or pole – mounting
|
|
Communication
|
Communication Interfaces
|
Serial (RS – 232), Ethernet
|
|
|
Communication Methods
|
Cellular, Satellite
|
|
|
Supported Protocols
|
Modbus, DNP 3, Ethernet IP, Modbus TCP, BACnet, Pak Bus, SRTP, Landis & Gyr
|
|
Power
|
Input Voltage
|
120VAC or 12VDC
|
|
|
Power Consumption
|
3 watts
|
|
|
Options
|
Solar charging system available
|
.Installation Instructions
Preparation
Prior to the installation of the CP800, several preparatory steps are essential to ensure a smooth and successful installation process. First and foremost, it is crucial to gather all the necessary tools and equipment. This includes a set of precision screwdrivers, wrenches, and pliers for handling the installation hardware and cables. Additionally, an anti – static wrist strap should be procured to protect the sensitive electronic components of the CP800 from electrostatic discharge during handling.
Next, a thorough inspection of the installation site is required. The location should meet the environmental parameter requirements specified for the CP800. It should be away from strong electromagnetic interference sources, such as large motors, transformers, and high – voltage power lines. The area should also be free from excessive moisture, dust, and corrosive substances, as the CP800, although protected by its NEMA 4 housing, performs best in an environment that minimizes these potential hazards.
