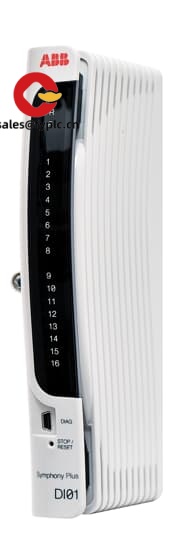

ABB DDI01 – Digital I/O Module for Reliable Process Automation

If you’re working on a compact automation setup within an ABB AC500 or compatible PLC system, the DDI01 is one of those modules that tends to fly under the radar—but it’s absolutely essential. It’s not flashy, but in most cases, it’s the backbone of discrete signal handling, especially when you need dependable digital input functionality without overcomplicating your rack configuration.

One thing I appreciate about this module is how straightforward it is. No touchscreens, no embedded web servers—just 16 isolated digital inputs that do what they’re supposed to, cycle after cycle. From my experience, it’s typically found in water treatment skids, small pumping stations, or auxiliary control panels where reliability matters more than speed.

Key Features

• 16-channel digital input: Accepts 24 VDC signals with galvanic isolation per group, reducing noise interference from field devices.
• Group isolation (x4): Four groups of four channels each—this helps contain faults and improves diagnostics during maintenance.
• LED status indicators: Per channel and power, making troubleshooting faster without needing software access.
• Plug-in terminal block: Removable connector simplifies wiring and allows pre-testing before installation.
• Hot-swappable (with system support): In many cases, you can replace it without powering down the entire PLC rack—provided your configuration supports it.

Technical Specifications

Application Fields

The DDI01 shows up most often in modular control systems where space and cost efficiency matter. You’ll typically find it monitoring float switches in sump pits, tracking valve position feedback in HVAC plants, or reading alarm contacts from packaged equipment like chillers or compressors. It seems to be particularly popular in OEM-built control panels for environmental monitoring and utility substations.

Advantages & Value

It might not have the bandwidth of newer Ethernet I/O, but its simplicity translates into long-term value. Because it integrates directly with the AC500 series, there’s no extra configuration overhead—once scanned by the CPU, the inputs appear as standard memory tags. That makes programming easier and reduces commissioning time. Procurement teams tend to favor it due to consistent availability and backward compatibility across firmware versions.

Another subtle benefit? Spare stocking. Since it uses the same form factor as other I/O modules in the family, technicians can keep a few generic replacements on hand without tying up too much inventory budget.

Installation & Maintenance

Install only in enclosed cabinets meeting IP54 or higher, especially if located outdoors or in high-dust areas. Ensure proper ventilation—don’t stack heat-generating components directly beside it. Use shielded twisted-pair wiring for input lines running near motors or VFDs to avoid false triggering.

Routine checks should include visual inspection of LED indicators and cleaning dust buildup every 6–12 months. While no scheduled calibration is required, verifying signal integrity through forced testing during planned outages helps catch failing sensors early.

Quality & Certifications

This module carries CE, UL, and RoHS compliance marks—standard for industrial electronics sold in North America and EU markets. It’s also designed to meet IEC 61131-2 standards for programmable controllers. The manufacturer provides a standard 365-day warranty against defects in materials and workmanship.

Delivery typically takes one week for in-stock units, with a maximum lead time of four weeks if a shipment needs to be arranged. Payment terms are 50% upfront, balance due before dispatch. We ship globally via FedEx, UPS, or DHL depending on destination and urgency.
