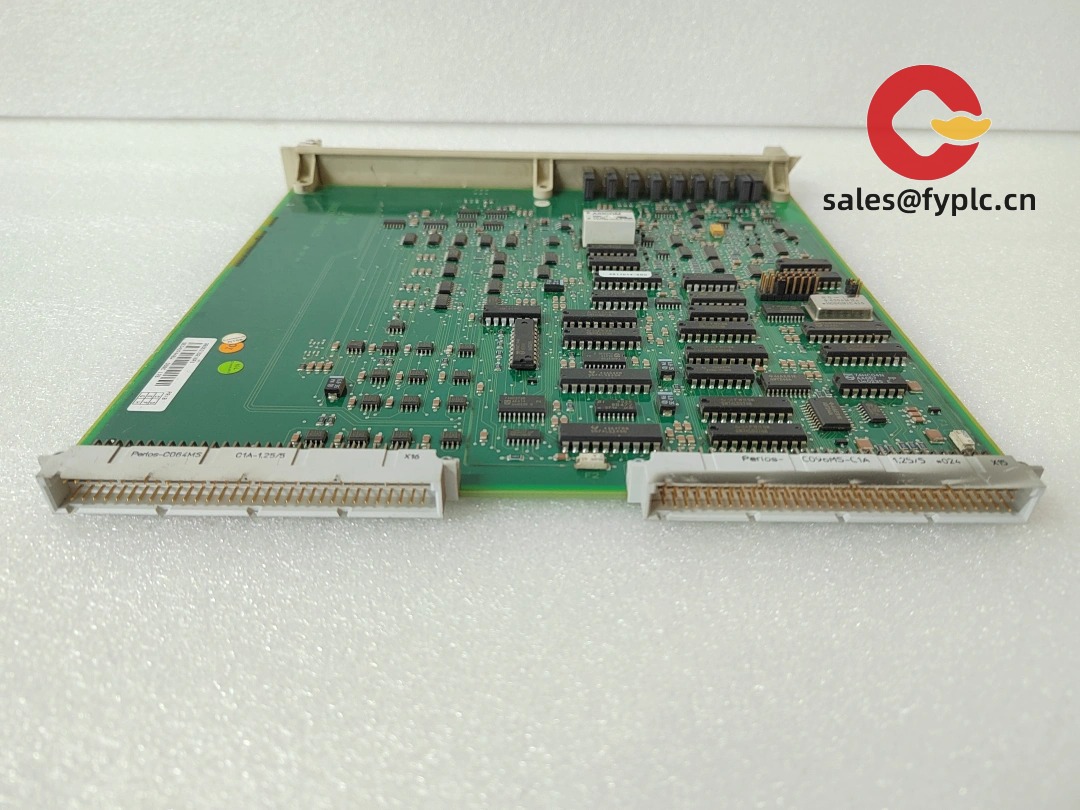

ABB DSBC176 3BSE019216R1 – High-Performance Drive System Board for Industrial Automation

If you’re maintaining or upgrading ABB ACS800 or similar drive systems, the DSBC176 (3BSE019216R1) is one of those boards that quietly holds things together. It’s not flashy, but it handles core communication and control tasks between the main CPU and I/O modules. From my experience, this board tends to show up in retrofits and mid-life system refreshes—especially in plants where uptime matters more than a full hardware overhaul.

Our Order Placement Process & Guarantees

• Warranty: 365 days — covering defects in materials and workmanship under normal use.
• Delivery: Typically ships within 1 week if in stock; maximum lead time no more than one month.
• Payment: 50% advance payment required; balance due before shipment.
• Shipping: Delivered via FedEx, UPS, or DHL with tracking provided.

Key Features

• Digital Signal Interface Hub: Manages data flow between the drive controller and peripheral modules—critical for synchronized operation in multi-axis setups.
• Robust Design: Built with industrial-grade components; typically survives harsh electrical environments, though dust and moisture still take a toll over time.
• Plug-and-Play Replacement: Designed as a direct replacement for failed units, minimizing downtime during maintenance windows.
• ABB Integration: Fully compatible with ABB’s DriveWindow and Control Panel tools, making diagnostics and firmware updates smoother.
• Real-Time Monitoring Support: Enables live status feedback on fault codes, signal integrity, and bus load—useful when troubleshooting intermittent issues.

Technical Specifications

Application Fields

You’ll typically find the DSBC176 in medium-voltage drive systems used across pulp & paper mills, water treatment plants, and conveyor-driven manufacturing lines. One thing I appreciate is how often it appears in legacy ACS800 installations where users are extending service life instead of migrating to newer platforms. It seems to be particularly reliable in constant-torque applications—like extruders or large fans—where precise timing between control modules is essential.

Advantages & Value

In many cases, replacing a DSBC176 board costs a fraction of a new drive unit—and avoids reprogramming or recalibration. That makes it a smart move for procurement teams balancing budget constraints with operational continuity. The fact that it’s still supported by ABB’s service ecosystem helps too, especially when dealing with audits or compliance checks. Plus, since it uses standard diagnostic protocols, your technicians probably won’t need special training to work with it.

Installation & Maintenance

Install in a clean, well-ventilated cabinet meeting IP54 standards. Avoid locations near high-frequency noise sources like contactors or unshielded VFD outputs. Always power down the entire drive frame before inserting or removing the board—hot-swapping isn’t supported, and static discharge can damage onboard ICs.

For maintenance, visually inspect connectors every six months, especially in dusty environments. Cleaning should be limited to compressed air—no solvents near the PCB. Firmware updates aren’t typical for this model, but checking version compatibility during system upgrades is a good habit.

Quality & Certifications

This unit complies with CE, UL, and RoHS directives—standard for ABB industrial electronics. It also meets ISO 9001 requirements for manufacturing quality. The 365-day warranty covers functional failure under normal operating conditions, though physical damage or improper installation isn’t included. In practice, most failures we’ve seen trace back to environmental stress rather than component defects.
