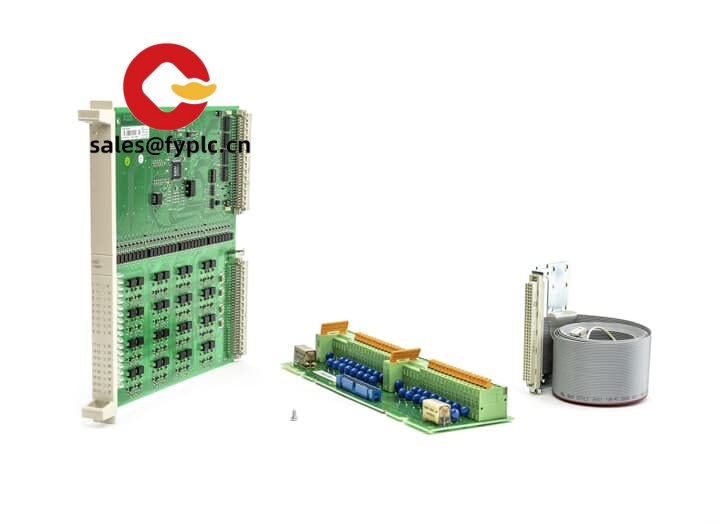

ABB DSDI110A V1 (3BSE018295R1) – High‑integrity 24 V DC Digital Input Module for S800 I/O

The ABB DSDI110A V1 is a safety‑oriented digital input module for the S800/S800 High Integrity I/O family. It’s typically used to acquire 24 V DC on/off signals from field devices—limit switches, pushbuttons, proximity sensors—and forward them to ABB safety controllers within 800xA. From my experience, it’s chosen when teams want reliable, time‑deterministic inputs with diagnostic coverage in process and power applications.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week for in‑stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• 24 V DC digital inputs – Designed for clean, deterministic on/off acquisition from industrial field devices.
• S800 High Integrity compatibility – Typically applied in safety‑related configurations; SIL capability when used in certified architectures.
• Integrated diagnostics – You might notice line fault detection and status LEDs that simplify troubleshooting during commissioning.
• Time‑coherent signal handling – Suitable for sequence events and interlocks where consistent timing matters.
• ModuleBus backplane connection – Plugs into S800 MTUs, keeping wiring straightforward and maintenance fast.
• Compact form factor – Fits standard S800 I/O footprints to maximize cabinet density.
• Wide system integration – Works with ABB 800xA/AC 800M families via S800 I/O; typically seamless with existing libraries.

Technical Specifications

Application Fields

The DSDI110A V1 is commonly deployed in safety‑related and high‑availability systems where clean DI acquisition matters:

• Emergency shutdown (ESD) and interlock inputs in oil & gas and petrochem
• Boiler/burner management systems and turbine auxiliaries in power plants
• Machine safeguarding and process permissives in discrete manufacturing
• Tank farms, pipelines, and terminal automation where line diagnostics help reduce callouts

Advantages & Value

• Reliability that scales – One thing I appreciate is how S800 HI modules maintain signal integrity across dense cabinets, helping to keep nuisance trips low.
• Compatibility – Drop‑in fit with ABB S800 infrastructure and 800xA libraries reduces engineering effort and commissioning time.
• Lifecycle support – Availability of V1 MTUs and spares streamlines expansions and phased upgrades.
• Cost control – Standardized wiring on TU8xx MTUs and clear diagnostics can cut hours during FAT/SAT and maintenance windows.
• Technical backing – In many cases, ABB documentation and tools make configuration repeatable and easier to validate for safety cases.

Installation & Maintenance

• Cabinet & mounting – Install on DIN‑rail with the appropriate TU8xx MTU. Keep good ventilation; follow spacing norms typical for S800 I/O to manage heat.
• Power & wiring – 24 V DC supply to the MTU; segregate DI wiring from high‑noise cabling. Use shielded cable where EMI is expected.
• Safety – De‑energize the 24 V DC field and ModuleBus before inserting/removing modules. Verify earth bonding and correct polarity on field loops.
• Commissioning – You might notice channel status LEDs and diagnostic bits that speed up loop‑checks. Keep a simple check sheet for each input.
• Routine maintenance – No calibration needed for digital channels. Periodically re‑torque terminals at the MTU, clean dust, and review firmware/package revisions via 800xA as applicable.

Quality & Certifications

• Certifications – CE marking and RoHS compliance are standard for S800 modules; UL/CSA recognition is common. Safety ratings (e.g., SIL) apply when used within certified S800 High Integrity configurations.
• Manufacturer policy – ABB factory warranty is typically 12 months via authorized channels; regional terms may vary.
• Our coverage – We provide a 365‑day warranty and controlled logistics with FedEx/UPS/DHL for predictable lead times.

Short field note from a recent user: “Swapping to DSDI110A V1 on our shutdown panel cut our loop‑check time by roughly a third. The channel status feedback made it obvious where we mis‑landed a wire.”
