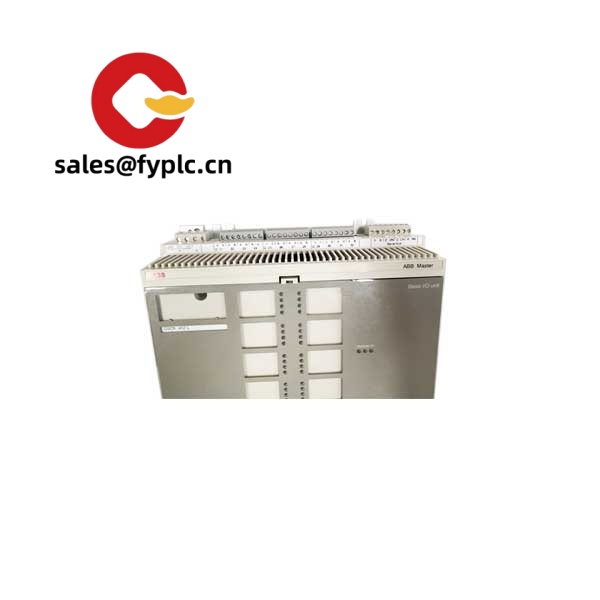

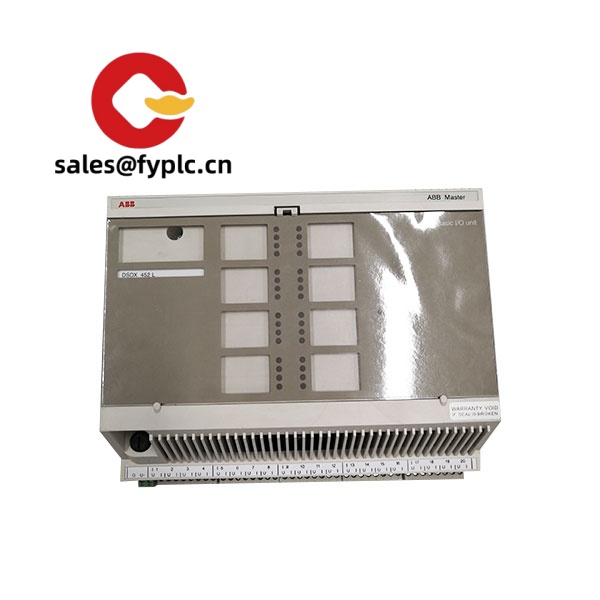

ABB DSDX452L – Field I/O Termination Unit for Reliable Cabinet Wiring

The ABB DSDX452L is a cabinet-mounted termination board used to neatly land field wiring and route it to the corresponding ABB I/O electronics in distributed control systems. From my experience, this type of passive termination is the piece that keeps panels clean, labeling consistent, and troubleshooting fast—especially in brownfield upgrades where space is tight and downtime is expensive.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Passive termination design: No firmware or configuration—just a clean interface between field signals and ABB I/O cards.
• Clear channel labeling: Numbered terminals help maintenance teams trace signals quickly during startups and outages.
• Robust screw terminals: Secure wiring for discrete and control signals commonly used in process cabinets.
• Ribbon-cable link to I/O modules: Fast, tidy connection to the associated ABB I/O electronics in the same system family.
• Noise-reduction practices supported: Dedicated shield/ground points help keep cabinets quiet and stable, which in many cases reduces nuisance trips.
• Service-friendly layout: You might notice that channel grouping makes adding or redirecting points a lot simpler during expansions.

Technical Specifications

Application Fields

This termination unit is commonly specified in process and utility cabinets where orderly field wiring is critical:

• Power generation balance-of-plant I/O cabinets
• Oil & gas and petrochemical unit panels (discrete interlocks, permissives)
• Water/wastewater MCC and remote I/O enclosures
• Metals, pulp & paper, and cement plant DCS expansions
• General factory automation cabinets needing structured terminations

Advantages & Value

• Reliability: Passive design reduces points of failure—no firmware, no settings, just dependable wiring.
• Compatibility: Designed to mate with ABB system I/O, which in most cases simplifies cabinet standardization.
• Cost efficiency: Faster panel builds and easier fault tracing typically mean lower installation and maintenance costs.
• Technical support: We can help verify cable pinout and channel mapping before shipment to avoid rework on site.

Customer note: “Swapping in the DSDX452L kept our existing cabinet layout intact. Field terminations stayed labeled and we cut our loop-check time noticeably.”

Installation & Maintenance

• Cabinet standards: Install in a clean, ventilated control cabinet. Maintain segregation between high-voltage, low-voltage, and signal wiring.
• Wiring practice: Use properly ferruled conductors; torque terminals to spec; keep shield drain wiring consistent with site grounding policy.
• Cable routing: Keep ribbon cables away from contactors and VFD cabling where possible to minimize interference.
• Safety: De-energize circuits and verify isolation before working on terminations; tag wires and document updates.
• Routine checks: Re-torque terminals during major outages, inspect for discoloration or loosened strands, and clean dust with dry air.

Quality & Certifications

• Compliance: CE conformity for industrial control environments; many installations also reference UL/CSA at the system level.
• RoHS: RoHS applicability depends on production date and regional requirements; we can verify per lot if needed.
• Warranty: 365-day coverage from delivery.

Helpful Accessories and Supporting Components

• Factory ribbon cable assemblies for quick connection to the paired ABB I/O module
• Shield/ground bar kits for tidy signal grounding inside the cabinet
• Preprinted channel markers and terminal labels to match loop sheets
• DIN-rail or panel bracket hardware (depending on cabinet layout)

One thing I appreciate is how a correctly matched ribbon cable set and labeling kit can save hours during loop checks. If you share your I/O card type and cable length, we can pre-validate the pinout before shipping.
