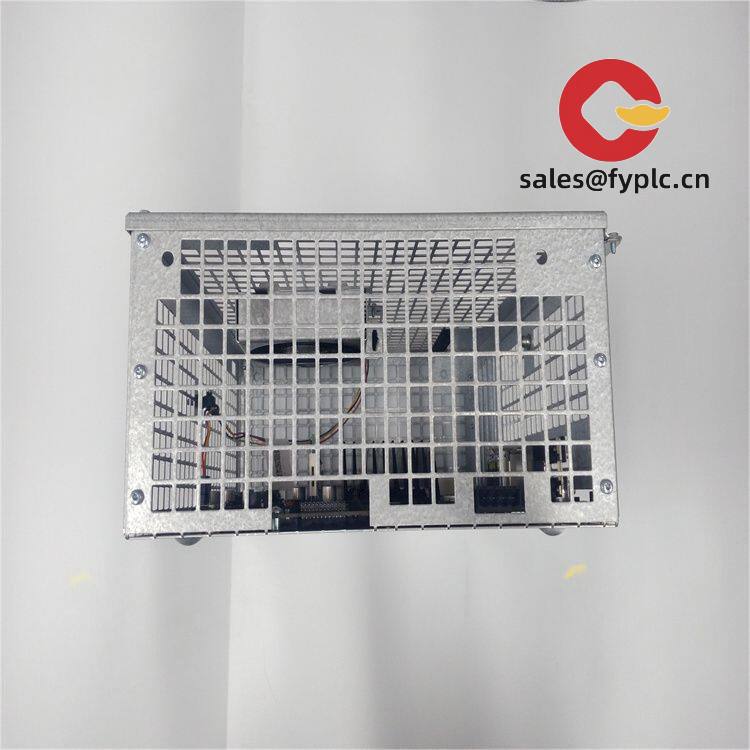

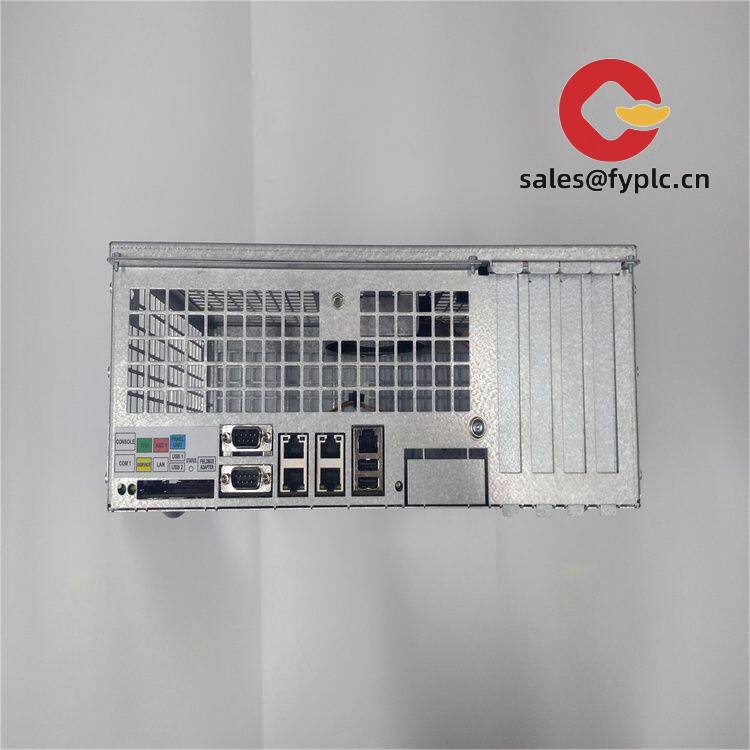

ABB DSQC639 (3HAC025097-00116) Main Chassis Motherboard – Core CPU Board for ABB IRC5 Robot Controllers

The ABB DSQC639 main chassis motherboard (part no. 3HAC025097-00116) is the central computer board used in many ABB IRC5 robot controllers. From my experience, it’s the board that ties the controller together—handling system boot, real‑time coordination, and communication across the backplane and network. If you’re troubleshooting random reboots, slow boots, or loss of communication in an IRC5 cabinet, this is typically the part that brings the system back to a stable baseline with a straightforward swap.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express carriers: FedEx, UPS, DHL

Key Features

• Main CPU board for IRC5 – Designed as the controller’s core computing platform, coordinating motion, tasks, and system I/O.
• Hardware revision -00116 – You might notice the “00116” suffix; in many cases it indicates a later hardware revision with improved stability and compatibility.
• Backplane integration – Interfaces directly with the IRC5 system bus for deterministic control and fast internal signaling.
• Industrial Ethernet – Typically supports 10/100Base‑T for service and plant networks, allowing straightforward controller access and diagnostics.
• 24 VDC cabinet power – Runs from the controller’s internal 24 VDC supply; no separate power supply required.
• Field-replaceable design – Slide‑in card with screw retention; swap time is usually under an hour with proper ESD handling.
• Software compatibility – Generally compatible with RobotWare versions used across IRC5 generations, subject to controller configuration and board revision.

Technical Specifications

Application Fields

The DSQC639 is widely used across ABB IRC5‑based cells in automotive body and paint shops, metal fabrication, palletizing and packaging, arc welding, machine tending, and material handling. One thing I appreciate is how drop‑in replacement typically restores controller stability without reworking the rest of the cell hardware.

Advantages & Value

• Reliability – Genuine ABB part number with a stable hardware revision (-00116) that seems to be favored in many service teams.
• Compatibility – Fits the IRC5 architecture and works with existing I/O and fieldbus setups in most cases, minimizing re‑engineering.
• Downtime reduction – Fast board swap and quick boot when the controller image is ready; keeps production on schedule.
• Cost control – Replacing the core board is typically far cheaper than swapping an entire controller cabinet.
• Support – We can help verify firmware/RobotWare alignment before shipment to avoid version surprises on site.

Installation & Maintenance

• Cabinet environment – Install in a clean, ventilated controller cabinet; maintain ambient 0–45°C and keep dust to a minimum.
• Power & safety – Lockout/tagout the controller, discharge residual energy, and use an ESD wrist strap before handling the board.
• Swap steps – Label connections, slide out the old board, seat the DSQC639 firmly in the guides, tighten retention screws, and reconnect harnesses.
• Commissioning – Restore backups, confirm RobotWare compatibility, check IP settings, and run system self‑tests and motion interlocks.
• Routine care – Back up the controller image regularly, inspect connectors annually, and use dry filtered air to remove fine dust when the cabinet is powered down.

Quality & Certifications

• Manufacturer conformity: CE; cULus (typical for ABB control components)
• RoHS compliance: typically applicable for ABB electronic assemblies
• Production quality systems: ISO 9001
• Warranty: 12 months from delivery

Real‑World Note

A Tier‑1 automotive customer told us their maintenance team swapped a DSQC639 during a lunch break—about 30 minutes including backups—and the line was back in automatic by the next hour. That’s pretty typical when the controller image and settings are prepared in advance.

Related/Supporting Components

We can support complementary IRC5 modules such as power supply units, axis computer boards, and fieldbus interface modules (Profibus/DeviceNet) to match your installed base. If you share the controller type and RobotWare version, we’ll help validate part compatibility before shipment.
