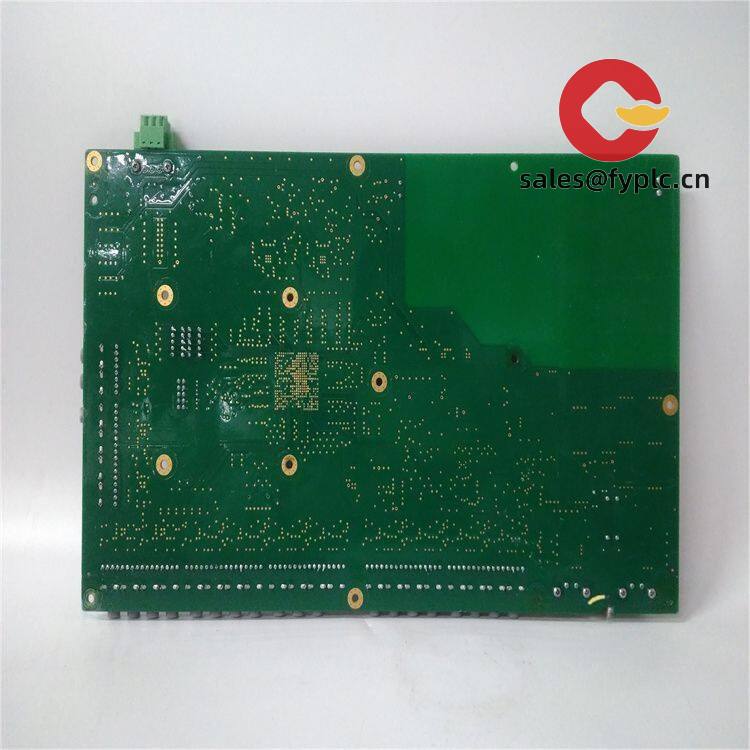

ABB GDD360C (3BHE047217R0101) – Gate Driver Board for IGCT Power Stacks in Medium-Voltage Drives

The ABB GDD360C, also referenced as GD D360C with ABB part number 3BHE047217R0101, is a gate driver board engineered for IGCT-based power cells used in ABB medium-voltage drives. From my experience, this board sits at the center of safe turn-on/turn-off of the IGCTs, handling fiber‑optic firing commands, interlock logic, and feedback status to the drive controller. It’s the kind of spare that maintenance teams keep on hand to cut downtime from days to hours when a power cell throws a gate-driver fault.

Typical applications include ABB ACS series medium-voltage drives and IGCT converter stacks where fiber‑optic trigger lines are standard. One thing I appreciate is the robust undervoltage lockout and soft turn-off behavior—those protections tend to prevent device stress during brownouts or unexpected trips. A service lead recently told me they swapped in a GDD360C during a planned shutdown, and the drive cleared its “gate not ready” alarm on first power-up—exactly what you want in a tight maintenance window.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days coverage
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment, balance before delivery
• Shipment: FedEx, UPS, DHL express options
• Condition: Professionally inspected and tested to OEM functional standards
• Packaging: ESD-safe, shock‑absorbent packing suitable for export

Key Features

• Fiber‑optic command interface – Immune to electrical noise; simplifies long-distance routing inside MV drive cubicles.
• IGCT-optimized gating – Supports fast, reliable turn-on and controlled soft turn-off to reduce device stress.
• Undervoltage lockout – Inhibits firing if auxiliary supply dips below threshold, protecting the power device.
• Status and interlock feedback – “Ready/Not Ready” and fault signaling back to the controller for safe coordination.
• Galvanic isolation – Optical command path and segregated power domains enhance personnel and equipment safety.
• Fit-for-service spare – Drop-in replacement for the GDD360C part code 3BHE047217R0101 in compatible ABB stacks.

Technical Specifications

Application Fields

The GDD360C is commonly deployed in:

• Medium-voltage drives (e.g., ACS-series MV drives using IGCT power cells)
• High-power converters in metals, mining, cement, oil & gas, and marine propulsion
• Large test benches and grid-connected converters that require fiber‑optic gating

You might notice that facilities running 24/7—steel rolling lines or mine hoists, for example—treat gate drivers as strategic spares. A quick board swap can restore interlocks and clear “gate not ready” or “fiber link fault” alarms without touching the power stack.

Advantages & Value

• Reliability – ABB gate drivers are proven in harsh, electrically noisy MV environments.
• Compatibility – Designed for IGCT stacks with optical triggering; minimizes rework during replacements.
• Downtime reduction – Keep one on the shelf; swap times are typically under a shift with standard lockout/tagout.
• Cost control – Extends the service life of existing MV drives; avoids premature stack replacements.
• Technical support – Guidance on wiring checks, fiber polarity, and power-up tests to shorten commissioning time.

Installation & Maintenance

• Environment – Install in a clean, ventilated cabinet. Maintain adequate creepage/clearance from HV parts.
• Wiring – Use ESD protection. Verify 24 VDC polarity and grounding. Route fiber‑optic Rx/Tx per markings; reverse pairing can block firing.
• Checks before energizing – Confirm all standoffs are tight, connectors latched, and no debris under the board. Inspect fibers for bends and end-face contamination.
• Safety – Follow lockout/tagout; discharge DC link; wait for MV stack to reach safe voltage before handling.
• Routine care – Quarterly visual inspection, gentle dust removal with dry air, connector reseat if alarms recur. No user firmware in most cases; configuration typically via jumpers per ABB documentation.
• Commissioning tip – If “not ready” persists, measure auxiliary supply ripple and verify fiber signal integrity with a simple loopback where supported.

Quality & Certifications

• Manufactured under ABB quality systems (ISO 9001)
• CE compliant; RoHS conformity typically applicable to relevant revisions
• Functional testing prior to dispatch; 365‑day warranty coverage
• Traceable part number: 3BHE047217R0101
