ABB GFD233A Compact Controller DCS Spare Parts

Communication Interfaces	Multiple, including RS485, Ethernet, MODBUS, and ABB’s proprietary protocols; also supports Profibus DP, Profinet, and Modbus TCP for broader compatibility
Mounting	Can be installed as an insert – type module on a DIN rail or in a dedicated rack

Categories: ABB

Need help?
Email: sales@fyplc.cn
Tel/WhatsApp: +86 173 5088 0093

Description
Reviews (0)

Description

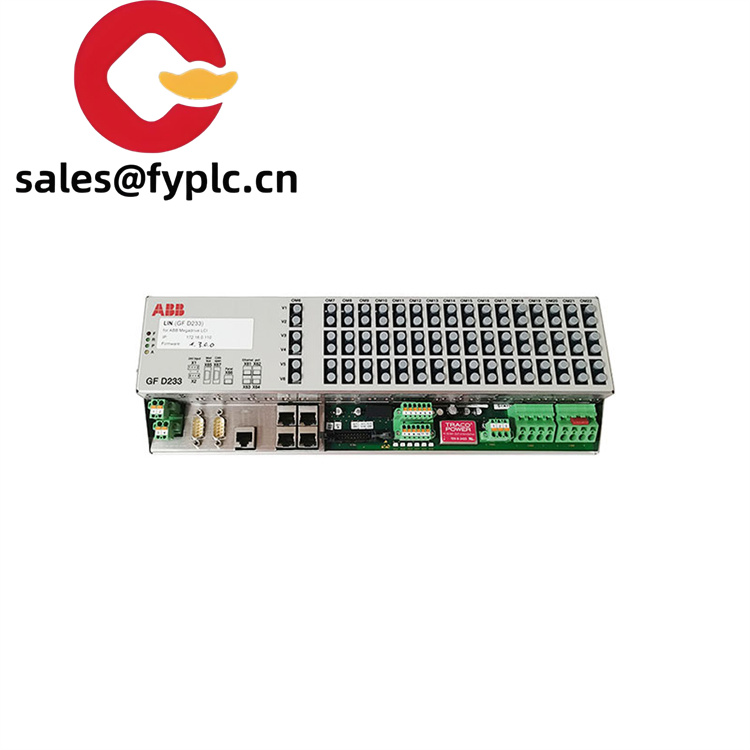

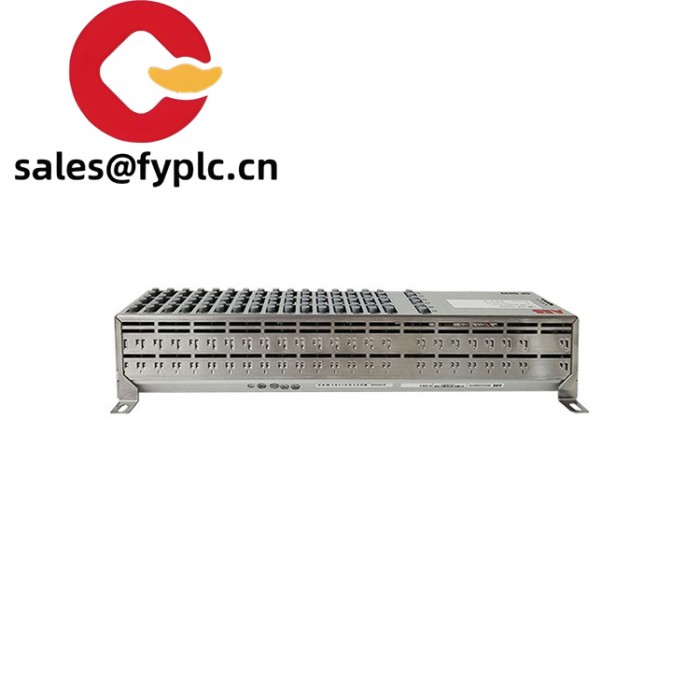

ABB GFD233A Compact Controller DCS Spare Parts

GFD233A

beyond this simple classification. In power systems, it serves as a critical component in generator excitation systems. By precisely controlling the excitation current that passes through the generator’s excitation coil, it has a direct impact on the generator’s electromagnetic field. This, in turn, enables precise regulation of the generator’s output voltage, frequency, and power factor. Whether it’s in a large – scale power plant providing electricity to a city or a smaller – scale industrial generator powering a manufacturing facility, the GFD233A ensures stable and efficient power generation.

Label	Specification
Model Number	GFD233A
Brand	ABB
Type	Excitation Controller Module (also with data acquisition and control capabilities)
Input Voltage	24V DC ± 20%
Operating Temperature	– 25°C to + 70°C
Communication Interfaces	Multiple, including RS485, Ethernet, MODBUS, and ABB’s proprietary protocols; also supports Profibus DP, Profinet, and Modbus TCP for broader compatibility
Mounting	Can be installed as an insert – type module on a DIN rail or in a dedicated rack
Weight	Approximately 0.8 kg (varies slightly depending on configuration)
Certifications	Meets various international industrial standards, ensuring quality and reliability in different global markets
Dimensions	Compact design to fit into standard industrial control cabinets, with dimensions optimized for space – efficient installation
Input/Output Channels	Some configurations support up to 32 I/O channels, allowing for connection with a large number of external devices
Input Impedance	Greater than 10 MΩ for accurate signal measurement
Accuracy	± 0.1% of full scale, ensuring high – precision data acquisition and control
Resolution	16 – bit, providing detailed and accurate representation of analog signals
Protection Rating	IP65 or IP67 in some versions, offering protection against dust and water ingress, suitable for harsh industrial environments

GFD233A

The ABB GFD233A is packed with features that set it apart in the industrial landscape. Its highly integrated design brings together multiple functions crucial for excitation control and data handling. This integration not only reduces the need for multiple discrete components but also enhances the overall reliability of the system by minimizing potential points of failure.

The module’s control algorithms are state – of – the – art, enabling it to provide high – performance control in all operating conditions. In power generation, it can quickly respond to changes in load demand, adjusting the generator’s excitation to maintain a stable output. For example, during peak electricity consumption periods, the GFD233A can rapidly increase the excitation current to boost the generator’s output voltage, ensuring a consistent power supply.

Flexibility is another key strength of the GFD233A. It supports a wide range of configuration options, allowing users to tailor it to the specific requirements of their generators or industrial processes. Whether it’s adjusting control parameters through software settings or using hardware jumpers, the module can be easily customized. This adaptability makes it suitable for use in diverse applications, from small – scale industrial gensets to large – scale power generation plants with complex power management systems.

GFD233A

In terms of protection, the GFD233A leaves no stone unturned. It comes equipped with comprehensive protection functions such as over – current protection, which safeguards the generator from excessive current that could damage its windings. The under – voltage protection feature ensures that the generator is not operated at dangerously low voltages, while the over – temperature protection kicks in if the module or the generator starts to overheat, preventing potential equipment failures.
