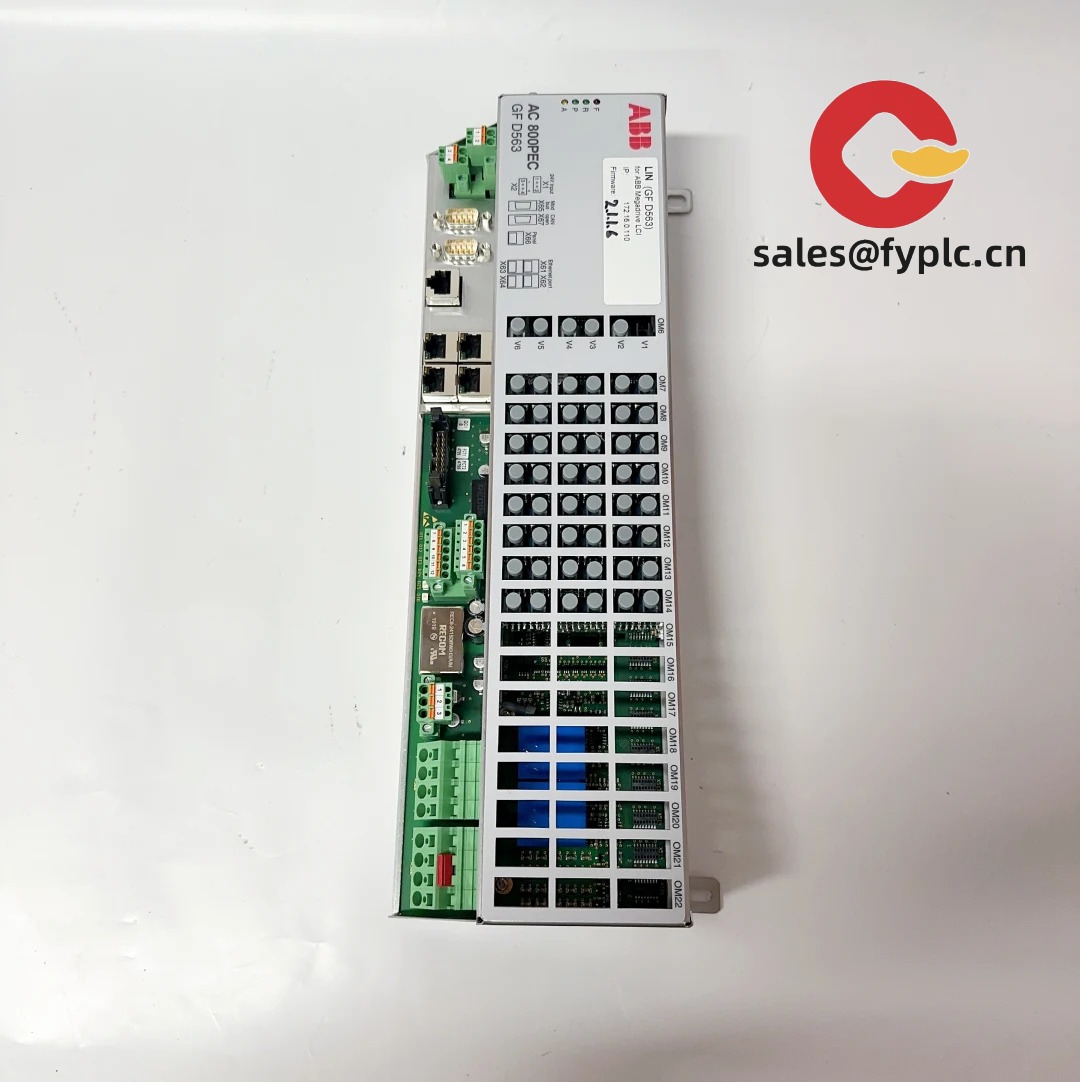

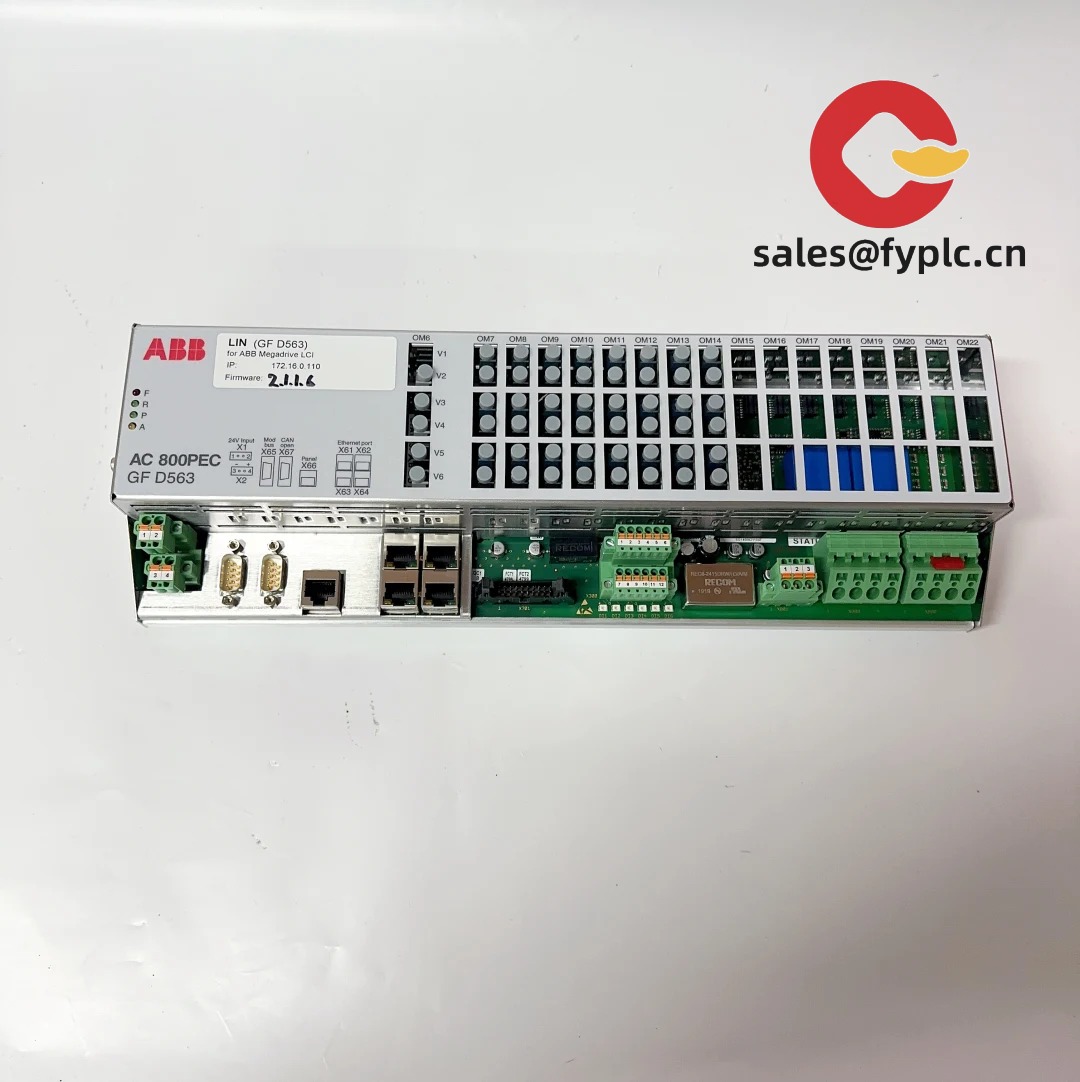

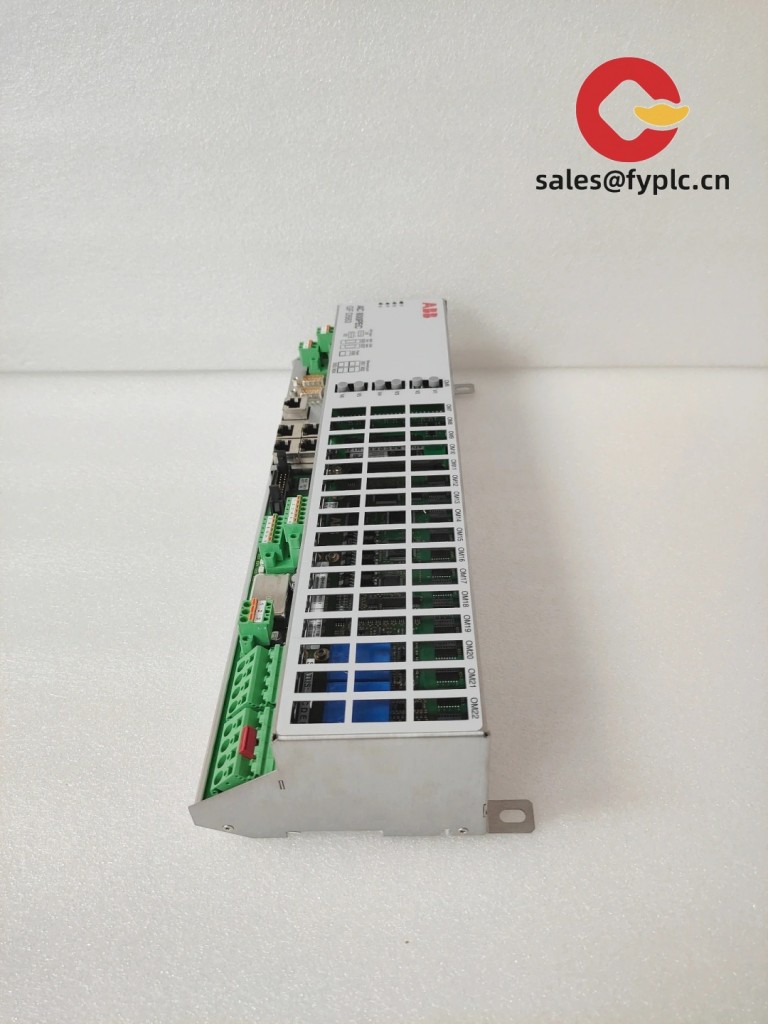

ABB GFD563A102 (3BHE046836R0102) – Control/Driver Board for ABB excitation and drive cabinets

The ABB GFD563A102 (also marked as GF D563 A102, part code 3BHE046836R0102) is a plug-in control/driver board typically used inside ABB excitation systems and high‑power drive cabinets. In many cases it sits between the system controller and the power stage, handling signal conditioning, field/gate drive interfacing, and protective feedback. From my experience, plants use this board when they need dependable control of generator field equipment or heavy-duty DC/AC drive sections without overhauling the entire cabinet.

One thing I appreciate is its compatibility mindset: it’s designed to slide into ABB racks with a backplane connection, so swaps are fast and downtime stays low. You might notice that it’s often paired with supervisory CPUs and measurement modules to form a complete, hardened control chain for power and process applications.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week for in‑stock items; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL
• Pre‑shipment testing: Functional check and visual inspection are typically performed before dispatch

Key Features

• Rack‑mounted plug‑in design: Quick replacement via ABB backplane; reduces changeover time during outages.
• Signal conditioning and driver stage: Interfaces controller logic to field or power electronics; typically includes isolation and protection.
• Feedback and protection inputs: Supports monitoring of currents/voltages and trips to safeguard field windings or power modules.
• Industrial temperature tolerance: Built for cabinet environments in power plants and process lines.
• Backplane bus connectivity: Seamless communication with adjacent ABB system modules; tidy wiring and reliable contact.
• Serviceability: Front access for removal/installation; in many cases no field recalibration is needed after a like‑for‑like swap.

Technical Specifications

Brand / Model	ABB GFD563A102 (GF D563 A102) / 3BHE046836R0102
HS Code	8538.90 (Parts for control panels/apparatus)
Power Requirements	24 VDC via system backplane (typical), low power consumption
Operating Temperature	0 to +55 °C typical cabinet environment
Signal I/O Types	Driver outputs for field/power stage, isolated digital I/O, analog feedback channels (application‑dependent)
Communication Interfaces	Proprietary ABB backplane bus; front connectors for test/service as applicable
Installation Method	Plug‑in board inside ABB excitation/drive cabinet rack; ESD‑safe handling required

Application Fields

This board is commonly found in:

• Generator excitation systems in power plants (thermal, hydro, and CHP), handling field control and protection.
• Heavy industry drives (metals, mining, cement) where robust interface boards sit between the controller and power converters.
• Marine and offshore power systems, especially where compact rack solutions are preferred.
• Upgrades and life‑extension projects in legacy ABB cabinets needing like‑for‑like replacements.

A maintenance manager from a paper mill told us the swap was “a straight slide‑in change, 20 minutes during a planned stop,” which seems to be typical when the backplane and firmware set remain unchanged.

Advantages & Value

• Reliability: ABB boards are built for continuous duty; they tend to run for years in harsh electrical rooms.
• Compatibility: Designed for ABB racks and backplanes—usually minimal wiring changes.
• Cost control: Replacing the board avoids a costly cabinet redesign; faster return to service.
• Supportability: Clear traceability via the 3BHE046836R0102 code helps with documentation, spares forecasting, and audits.

Installation & Maintenance

• Cabinet standards: Install in a clean, ventilated control cabinet. Maintain ambient 0–55 °C, non‑condensing humidity.
• Wiring: Use the designated backplane slot and keyed connectors. Verify grounding and shield terminations for noise immunity.
• Safety: Power down and discharge stored energy before handling. ESD wrist straps and antistatic packaging are recommended.
• Commissioning: After replacement, perform functional checks—feedback scaling, trip logic, and field/drive enable sequences.
• Routine care: Quarterly dust removal (dry air), connector reseat if required during outages, and visual inspection for heat discoloration.
• Firmware/parameters: If the board stores parameters, align versions with the host controller and keep a backup set on file.

Quality & Certifications

• Manufacturer standards: ABB hardware is typically CE‑marked for industrial environments; many assemblies are produced under ISO 9001 quality systems.
• RoHS/UL: Conformance can vary by production year and target market; we can verify specific lot compliance on request.
• Warranty: 12‑month warranty (365 days) from delivery.
• Testing: Units are typically subjected to functional checks prior to shipment.

Related/Supporting Components

Plants often pair the GFD563A102 with controller CPUs and measurement/protection boards in the same ABB rack. If you are refreshing spares, it’s practical to review companion modules in the same bay (e.g., control CPU, analog measurement board, and trip interface) to ensure firmware and hardware revisions remain aligned.
