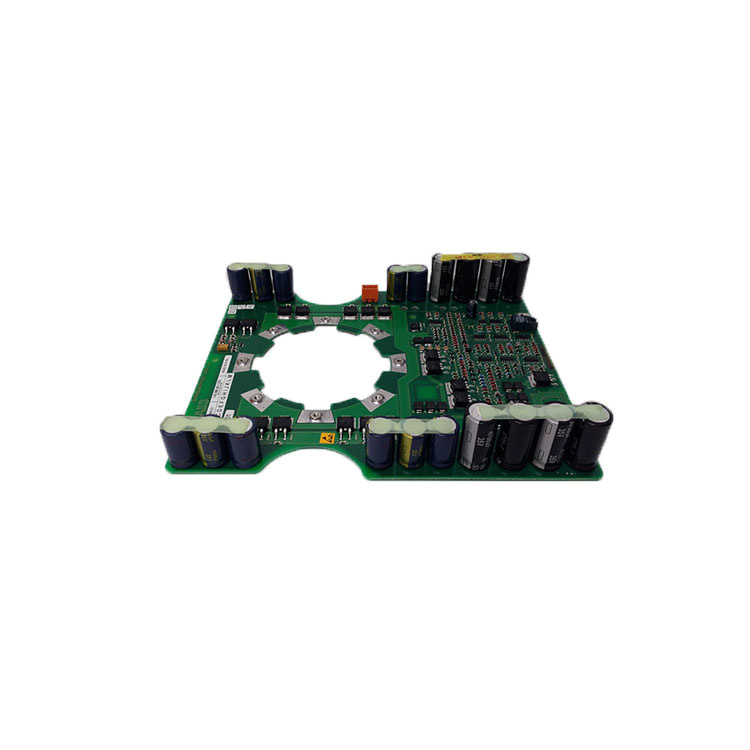

ABB GVC704AE01 (5SHX1060H0001 / 3BHB003230R0101) – Gate Unit for IGCT control in medium-voltage drives

The ABB GVC704AE01 is an IGCT gate unit designed for high-reliability switching control in ABB medium-voltage drives and converter stacks. You might notice the three identifiers often travel together: GVC704AE01 is the type, 5SHX1060H0001 is the ordering code, and 3BHB003230R0101 is the ABB article number. From my experience, this unit is commonly found in ACS-series MV drives where robust, fiber-optic isolated gating and built-in protection logic are essential for uptime and safety.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• IGCT gate control – Provides the drive-strength and turn-off protection logic needed for ABB IGCT devices in MV converters.
• Fiber‑optic isolation – Typically uses fiber signals for command and status, helping to break ground loops and improve EMC in high dV/dt environments.
• Integrated protection – Fast fault feedback and interlock behavior help protect the power device during abnormal events.
• ABB OEM spare – Drop-in replacement for the matching stack position; reduces commissioning time after maintenance.
• Service-friendly layout – Connectors and mounting points are arranged for quick swap, which in many cases shortens downtime.
• Traceable part IDs – GVC704AE01 type with 5SHX1060H0001 / 3BHB003230R0101 for clear sourcing and lifecycle tracking.

Technical Specifications

Brand / Model	ABB GVC704AE01
ABB Ordering Code	5SHX1060H0001
ABB Article No.	3BHB003230R0101
HS Code	8504.90 (Parts of static converters – typical classification for drive modules)
Power Requirements	24 VDC auxiliary supply, nominal (commonly used on ABB gate units)
Operating Temperature	Typically 0…+55°C when mounted inside a ventilated cabinet
Signal I/O Types	Fiber‑optic command and status links; hardware interlock/feedback connectors (drive stack dependent)
Communication Interfaces	Fiber‑optic interface to the drive control; no external fieldbus on the unit itself
Installation Method	Stack-mounted within the converter/drive cabinet; handled by qualified MV drive technicians
Form Factor	Gate unit board assembly; compact, lightweight for service replacement

Application Fields

This gate unit is typically used in ABB medium-voltage drives employing IGCT technology—commonly seen in process industries where continuous duty and high power density are required. Real-world examples include:

• MV drive stacks in ACS-series systems for compressors, fans, and pumps in oil & gas or chemical plants
• Cement kiln drives and large mills where rugged switching and fast protection are critical
• Marine and mining applications using MV drives for propulsion, hoists, and conveyors
• Utility and industrial converters that rely on IGCT stacks for efficient, controllable power

One thing I appreciate is how consistently it integrates with the ABB ecosystem; in many cases, it’s a straight swap with minimal parameter adjustments when the rest of the stack is unchanged.

Advantages & Value

• Reliability under stress – Designed around IGCT switching demands, with robust isolation and protection behavior.
• Compatibility – Matches ABB stacks specified for GVC704AE01/5SHX1060H0001, helping avoid retrofit risk.
• Reduced downtime – Field technicians can usually replace and verify operation within a standard maintenance window.
• Lifecycle confidence – Identifiable by 3BHB003230R0101 for asset tracking and procurement repeatability.
• Support – We can assist with ID verification and pre-shipment testing documentation on request.

Installation & Maintenance

• Environment: Mount inside a clean, ventilated MV drive cabinet; maintain airflow clearance around the stack.
• Wiring: Use the specified fiber‑optic links and keyed connectors; route fibers away from sharp bends and high‑EMI zones.
• Power: Provide a stable 24 VDC auxiliary supply within tolerance; verify polarity and grounding per ABB drive manual.
• Safety: Lockout/tagout the drive, discharge DC link, and observe ESD handling; IGCT stacks retain charge—wait the specified time.
• Commissioning: After installation, check fiber link integrity and status indications; run drive diagnostics before returning to load.
• Routine checks: Inspect connectors and fibers during scheduled shutdowns; clean dust with dry compressed air; firmware alignment is usually fixed at the drive level (no field updates on the gate unit in most cases).

Quality & Certifications

• Manufactured under ABB’s quality system (typically ISO 9001 controlled production)
• CE compliance when installed as part of the CE‑marked drive system
• RoHS status follows ABB industrial spare‑part policy for the applicable production lot
• Warranty: 365 days (replacement or repair, subject to evaluation)

Related/Supporting Components

Typically paired with ABB IGCT power devices (5SHY series) within the same converter stack, plus matching fiber‑optic cables and auxiliary 24 VDC supply harnesses. Many maintenance teams keep one spare GVC704AE01 alongside spare IGCTs to shorten recovery time during planned overhauls.

A customer in a cement plant shared that swapping a failing gate unit for a GVC704AE01 cut their restart window to under two hours—no parameter changes were needed once the fibers and 24 V feed were verified.

Compatibility note: this listing refers specifically to ABB GVC704AE01 with identifiers 5SHX1060H0001 and 3BHB003230R0101. If you’re matching an installed drive, please send the drive nameplate and stack position so we can confirm the exact variant before shipping.
