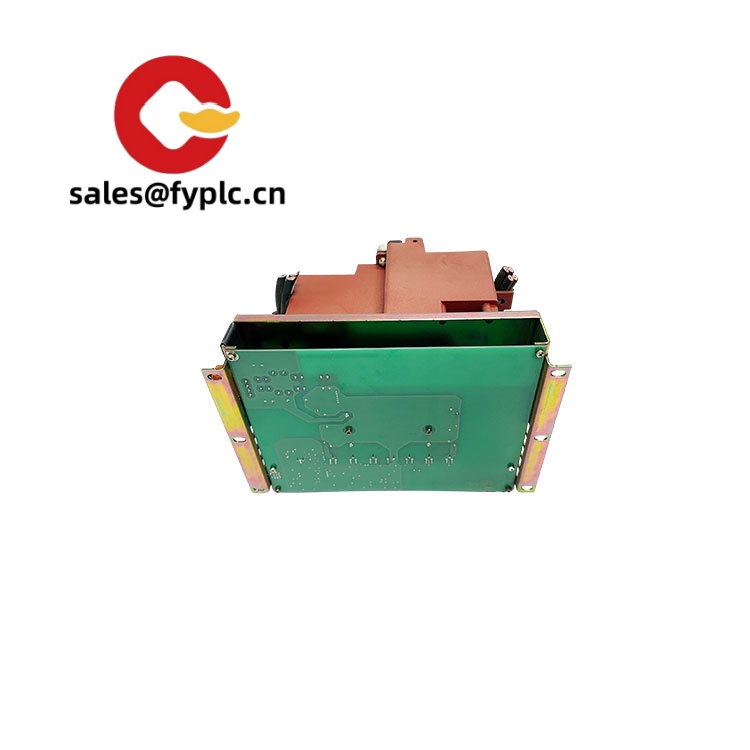

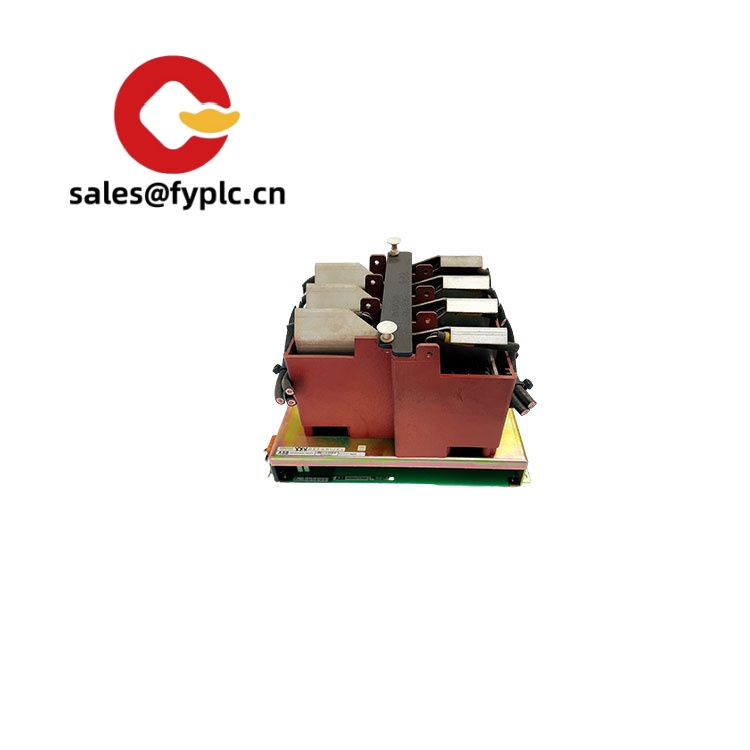

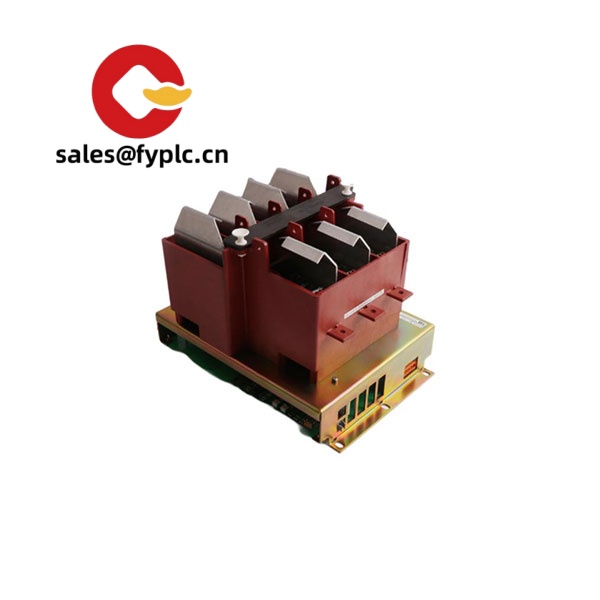

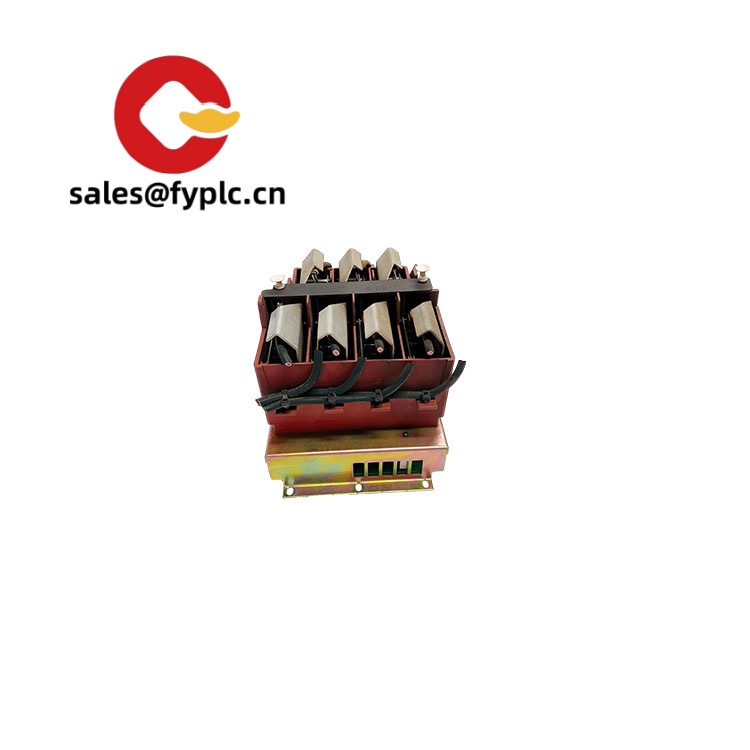

ABB KUC711AE101 (3BHB004661R0101) – Gate Driver Board for ACS600/ACS800 Power Modules

The ABB KUC711AE101, ordering code 3BHB004661R0101, is a gate driver board typically used in ABB ACS600/ACS800 frequency converters to drive and protect the IGBT power stage. From my experience, this board sits between the inverter control unit and the power module, handling fiber‑optic gating, fault feedback, and protection logic so the drive runs reliably under heavy loads. If you’re maintaining a fleet of ACS drives, this is one of those spares that seems to keep lines running with minimal drama.

Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: typically 1 week if in stock; no more than one month at the latest
• Payment terms: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL
• Packing: anti-static packaging, shock-protected; ESD handling throughout

Key Features

• IGBT gate drive and protection – Provides the gate signals and basic protections (desaturation/overcurrent feedback) for the inverter power stage.
• Fiber‑optic signal links – Galvanic isolation from the control unit to reduce noise susceptibility and improve safety in high‑power cabinets.
• Designed for ACS600/ACS800 frames – In many cases drop‑in compatible within designated frames; verify against your drive type code and software revision.
• Self‑diagnostics and fault feedback – Returns status/fault signals back to the drive control to enable fast trips and clear alarm reporting.
• 24 VDC low‑voltage operation – Typically powered from the host drive’s internal auxiliary supply for simple integration.
• Field‑service oriented – Connectorized layout and clear test points help maintenance teams shorten downtime.

Technical Specifications

Application Fields

You might notice this board most often in heavy-duty applications where uptime is non‑negotiable. Typical uses:

• Pumps, fans, and compressors in water & wastewater and HVAC plants
• Metals and mining conveyors, mills, and hoists
• Pulp & paper lines, winders, and web handling
• Marine propulsion and auxiliary drives
• Chemicals, oil & gas skids, and refining auxiliaries

Advantages & Value

• Reliability under load – Designed for ABB high‑power inverters; stable gate control reduces nuisance trips.
• Compatibility – Suits designated ACS600/ACS800 frames, saving time during maintenance swaps.
• Cost control – Replacing the driver board often restores a downed inverter without changing the entire power module.
• Support-ready – Clear part number mapping (KUC711AE101 / 3BHB004661R0101) simplifies troubleshooting and spares identification.

Installation & Maintenance

• Mounting environment – Install inside a sealed control cabinet with adequate ventilation; follow ABB cabinet IP and heat‑dissipation guidelines.
• Wiring – Keep fiber‑optic bends gentle; maintain correct gating and feedback connector orientation; torque any terminal screws to spec.
• ESD and safety – Wear grounding protection; isolate input power and wait for DC bus discharge before service.
• Routine checks – Inspect connectors and optics for contamination; verify healthy gate waveforms after replacement; keep firmware of the host control unit up to date if applicable.
• Calibration – Typically no field calibration on the board; follow drive parameter checks and run standard ABB commissioning tests.

Quality & Certifications

• Manufacturing systems: ISO 9001
• Compliance: CE; RoHS for electronic assemblies (region‑dependent)
• Safety: Designed for use within UL/CE‑compliant ABB inverter systems
• Warranty: 365 days (repair/replace, subject to evaluation)

Supporting Components (Often Paired)

• ACS800/ACS600 Control Unit (e.g., RMIO series) – Provides the control logic and sends/receives fiber‑optic gate and fault signals.
• IGBT Power Module (frame‑specific) – The power semiconductor pack driven by the KUC711AE101; verify module ratings against your drive kW and voltage.
• Snubber/DC Link Assemblies – Energy buffering for safe switching; healthy snubbers greatly reduce stress on the driver and IGBTs.
• Fiber‑Optic Cables – Ensure correct length and minimum bend radius to maintain signal integrity.

“We swapped in a KUC711AE101 on an ACS800-104 during a weekend stop. The fault cleared immediately, and the line was back at 100% by Monday.” — Maintenance Supervisor, metals processing

One thing I appreciate is how predictable these boards are: when the drive reports desat/faults tied to the power stage and the IGBT pack checks out, this module is, in many cases, the fix. If you share your exact ACS model and frame, I can cross‑check compatibility before you place the order.
