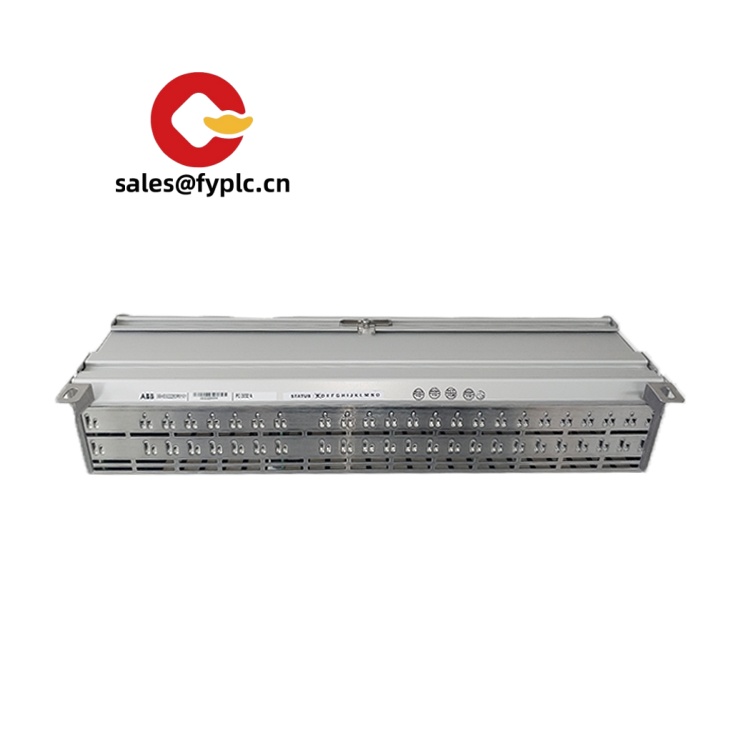

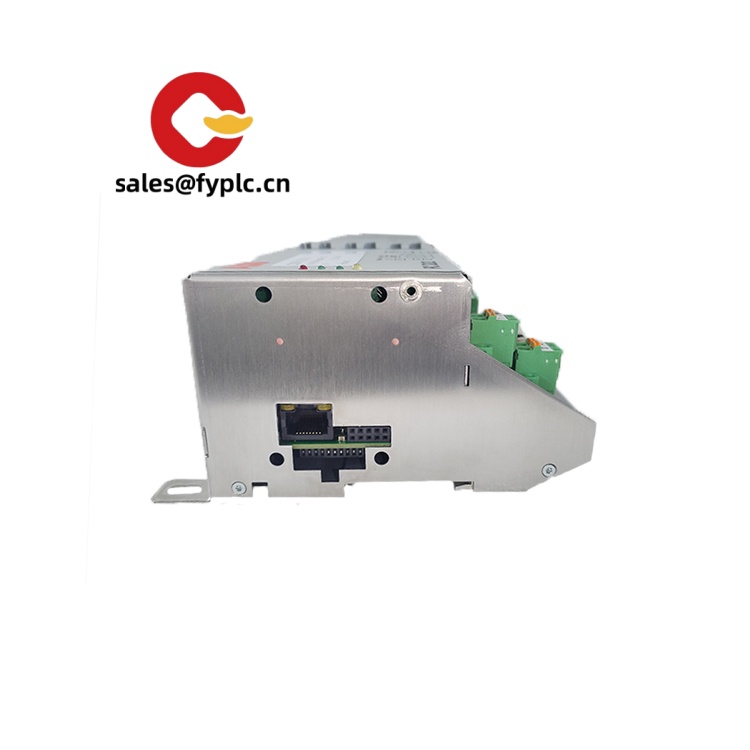

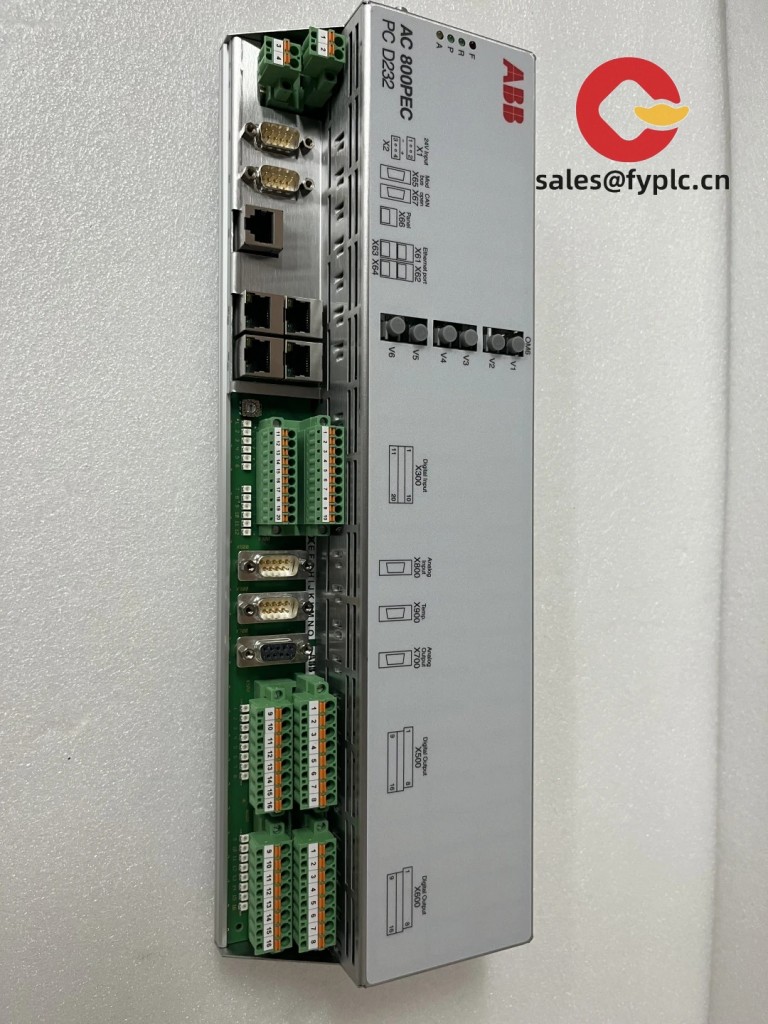

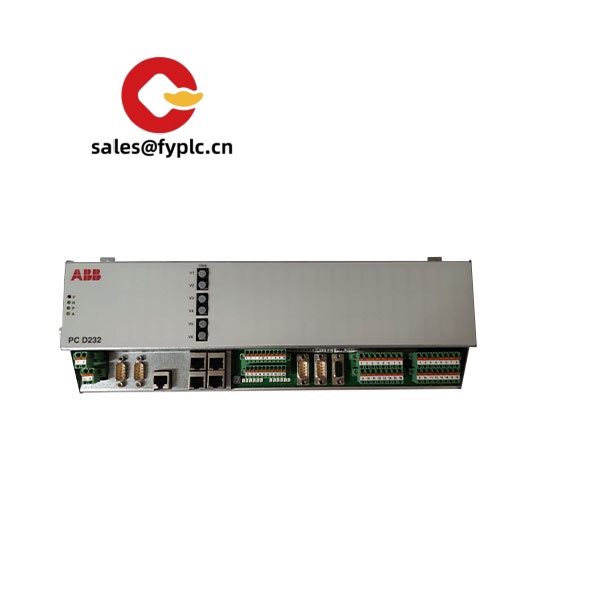

ABB PCD232A (3BHE022293R0101) – Plug‑in Control Board for ABB Industrial Automation Systems
The ABB PCD232A, ordering code 3BHE022293R0101, is a plug‑in control board used inside ABB automation/drive control cabinets. From my experience, this module sits on the system backplane and handles control or signal processing tasks without direct field wiring on the front—ideal as a dependable replacement or spare for installed ABB platforms. You might notice that it’s designed for steady, cabinet-based environments where reliability and long‑term serviceability matter more than flashy features.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days coverage.
- Lead time: In-stock typically ships in 1 week; no more than one month at the latest.
- Payment: 50% advance payment; full payment before delivery.
- Express options: FedEx, UPS, DHL.
Key Features
- Backplane‑powered design: Draws power from the host cabinet’s 24 VDC supply—no external PSU wiring required.
- Board‑level reliability: Built for continuous service inside industrial enclosures; typically stable in 0–55°C cabinets.
- Proprietary ABB bus interface: Communicates over the system backplane, reducing field cabling and noise susceptibility.
- Drop‑in spare behavior: Form/fit compatible within the designated ABB rack slot in most cases, easing maintenance.
- No front‑side field I/O: Signal handling is via the backplane, keeping the fascia clean and service access simple.
- Service‑friendly handling: Standard ESD-safe insertion/removal; typically secured with card guides or retaining screws.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand / Model | ABB PCD232A – 3BHE022293R0101 |
| Product Type | Control board / plug‑in module for ABB automation systems |
| HS Code | 853890 (Parts suitable for use with apparatus of heading 8537) |
| Power Requirements | Backplane supplied; typically 24 VDC provided by the system power module (no external power input) |
| Operating Temperature | 0 to 55°C typical cabinet environment; non‑condensing humidity |
| Signal Input/Output Types | No direct field terminals; processing via system backplane for digital/analog data as defined by the host system |
| Communication Interfaces | Proprietary ABB backplane bus (firmware/system-dependent) |
| Installation Method | Plug‑in card, ESD‑safe handling; insert into designated rack slot and secure per cabinet instructions |
| Dimensions & Weight | Board‑level module; compact Eurocard‑style footprint, lightweight for 19″ cabinet use |
Application Fields
In many cases, the PCD232A is used inside ABB automation cabinets for process industries and motion/control equipment. Typical scenarios include:
- Power generation and utilities cabinets where ABB control racks coordinate excitation, drives, or protection functions.
- Metals, pulp & paper, and chemical plants requiring stable PLC/DCS subsystem boards with long lifecycle support.
- Oil & gas and marine applications with cabinet-based control where backplane modules simplify wiring and maintenance.
One maintenance manager told us they prefer keeping a PCD232A on the shelf because it “drops in and runs” after a brief checkout, which seems to be the case for most cabinet-level replacements.
Advantages & Value
- Reliability: Built for continuous duty inside industrial enclosures; stable under typical plant temperatures.
- Compatibility: Designed to operate on ABB system backplanes, reducing retrofit complexity.
- Lower downtime: Plug‑in swap keeps turnaround short; fewer wiring changes in most cases.
- Cost control: Lifecycle spares strategy—buying the exact code 3BHE022293R0101 helps avoid integration surprises.
- Technical support: We can assist with basic compatibility checks and handling guidelines prior to shipment.
Installation & Maintenance
- Cabinet standards: Install in a clean, ventilated control cabinet; follow the rack’s designated slot map.
- Wiring & power: No field wiring on the board front; ensure the system 24 VDC supply is stable and within spec.
- ESD safety: Wear a grounding strap; handle the module by the edges; avoid touching components/connectors.
- Ventilation: Maintain airflow and keep dust filters clean to preserve component life.
- Routine checks: Periodic visual inspection for connector oxidation, loose retainers, or contamination; gentle cleaning if needed.
- Firmware/configuration: If the module’s function depends on firmware, align versions with the host controller; back up configurations before swap.
- Storage: Keep spares in anti‑static packaging, 5–85% RH non‑condensing, away from heat sources.
Common supporting components you may need: the matching ABB rack/backplane, 24 VDC power supply module, system CPU/controller, and any required I/O carriers. We typically check these with you before shipping to avoid on‑site surprises.
Quality & Certifications
- Quality system: Manufactured under ISO 9001 quality management (typical for ABB production).
- CE conformity: Designed for use in CE-marked industrial control cabinets.
- RoHS/UL: RoHS status and UL recognition may vary by board revision and production year; we can verify against your exact code if needed.
- Warranty: 12 months (365 days) warranty from delivery date.
If you’d like, share your installed system type and rack slot details, and I’ll quickly confirm compatibility for PCD232A (3BHE022293R0101). That simple check usually saves time on site.
